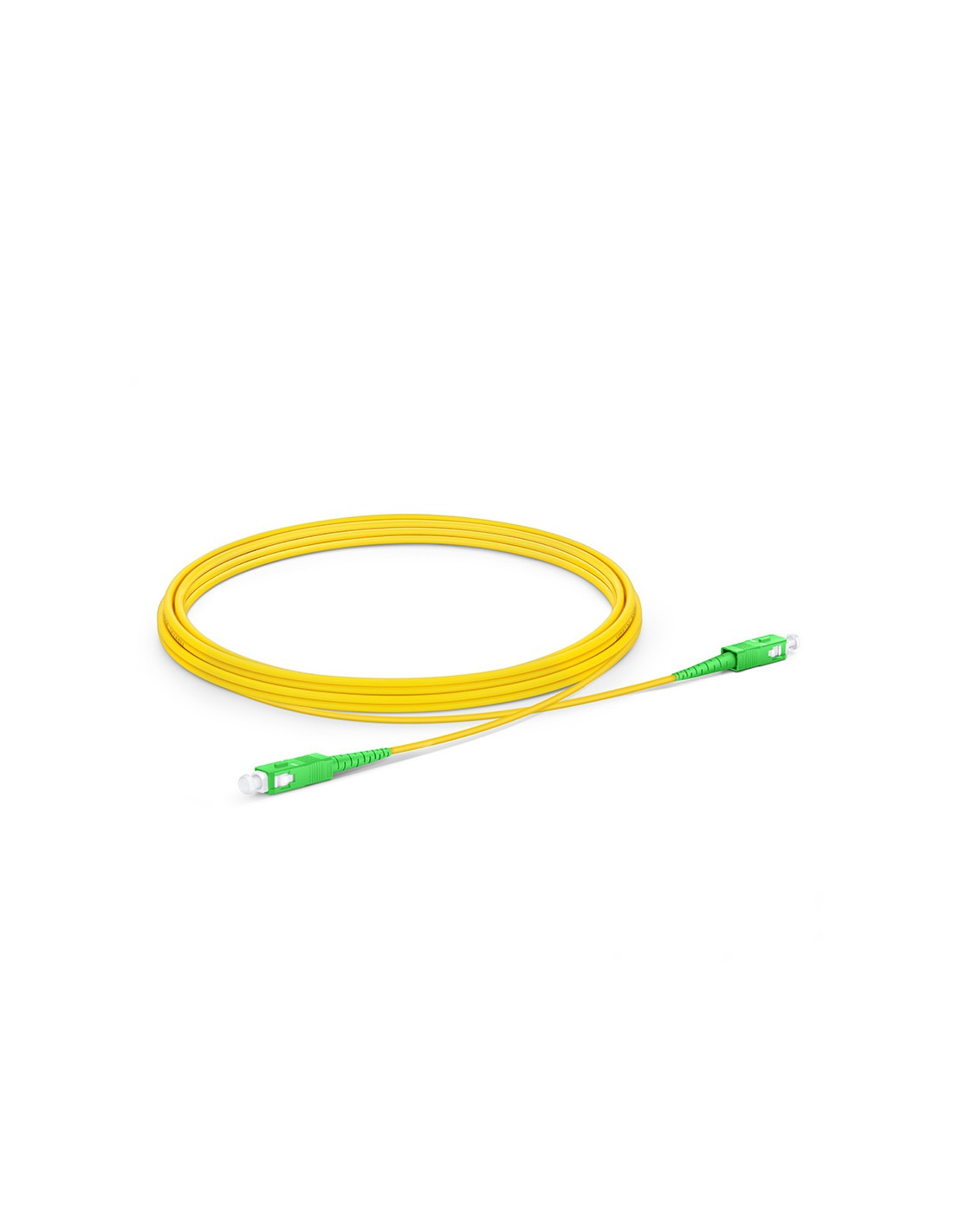

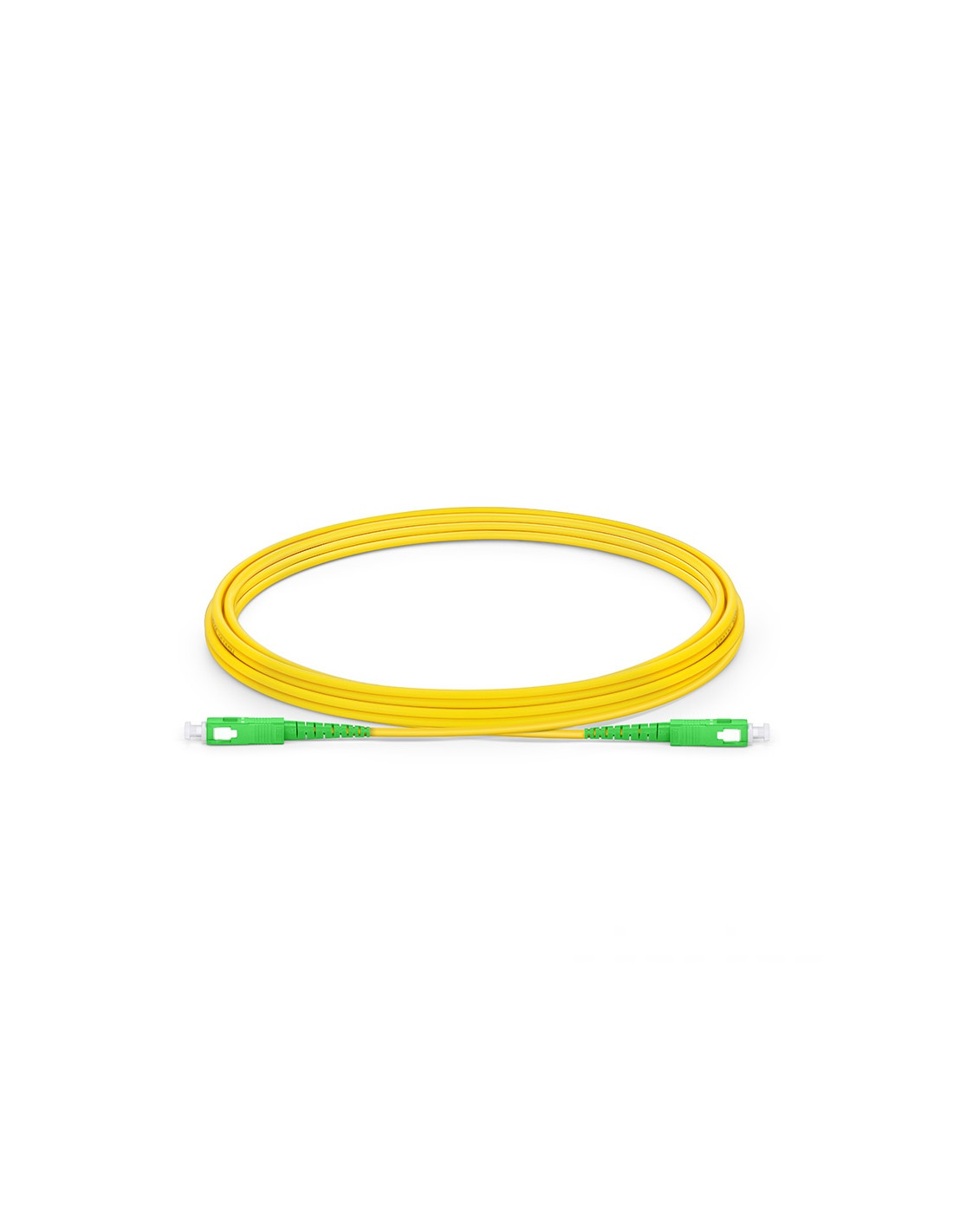

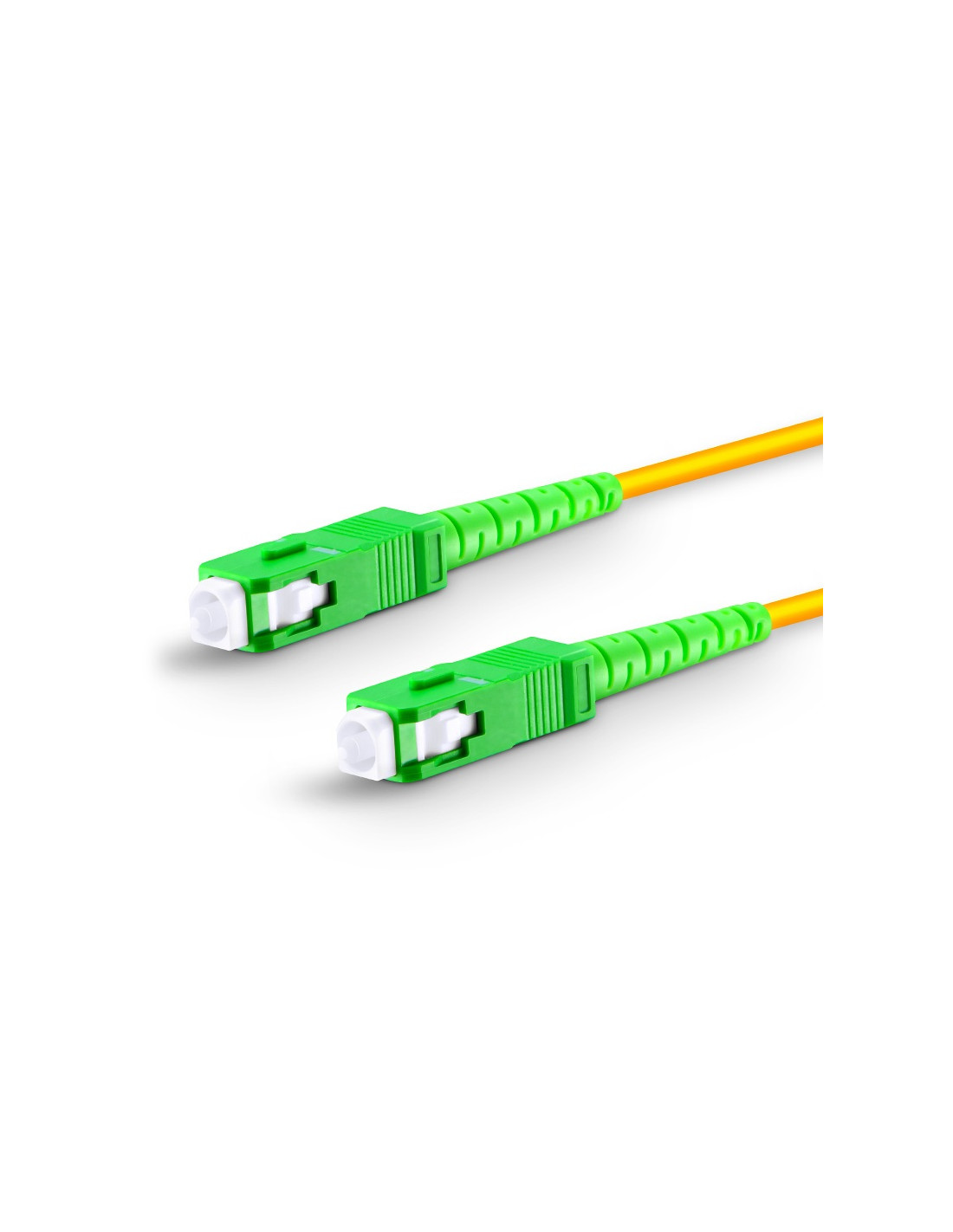

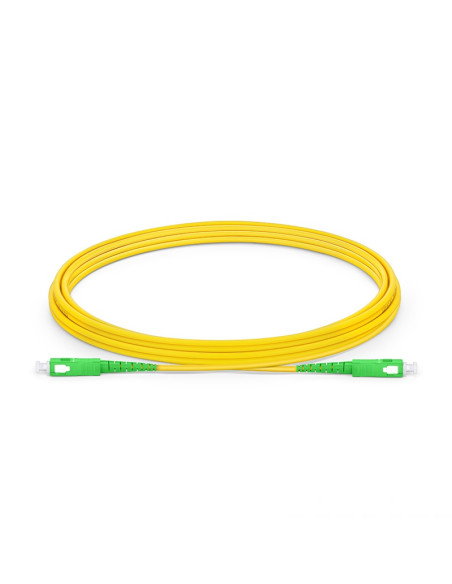

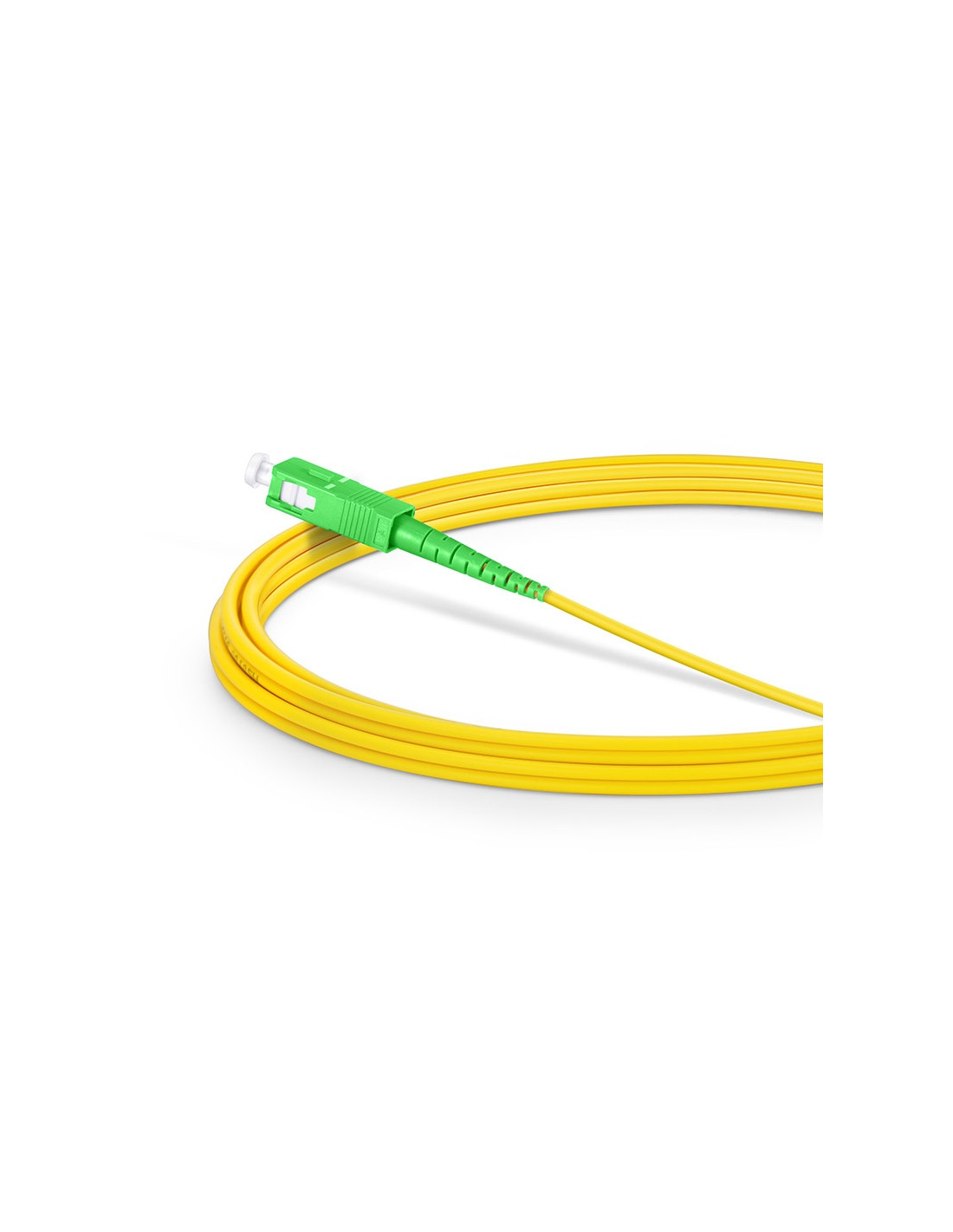

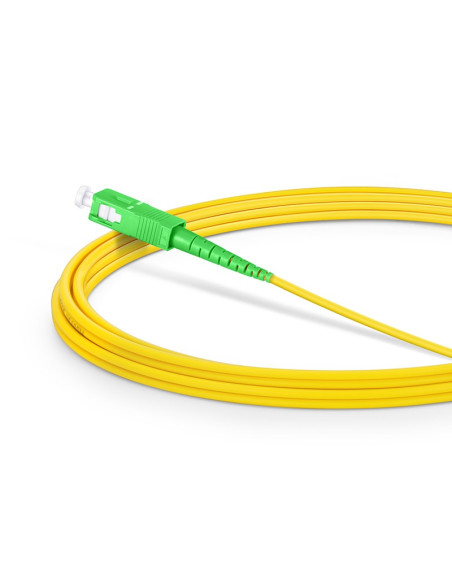

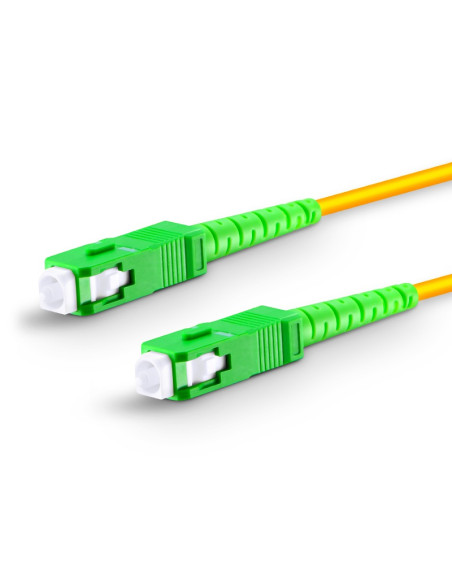

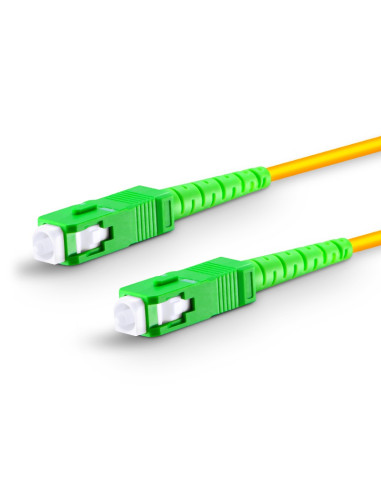

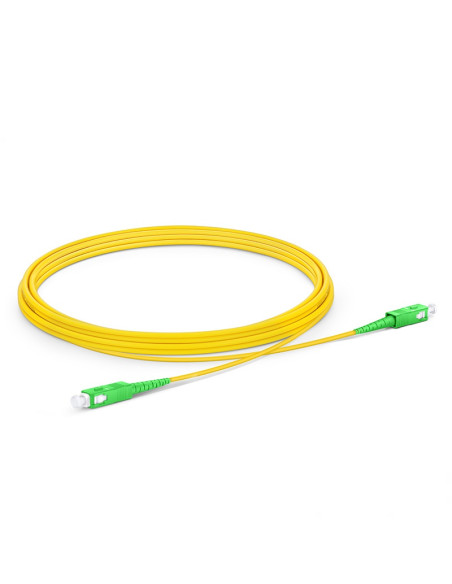

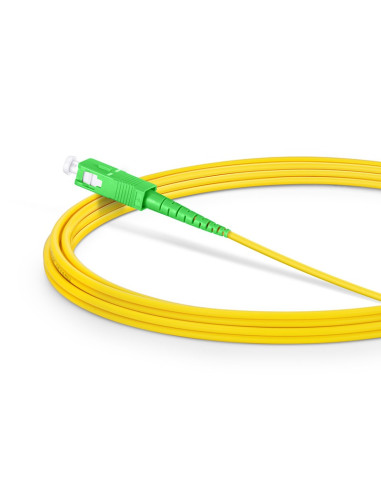

SMSCSX 3M OS2 Single Mode Fiber Patch Cable, SC APC to SC APC Simplex, 9/125μm, Riser (OFNR), Tight-Buffered, Yellow

Fiberstore| Buy SMSCSX 3m OS2 Single Mode Fiber Patch Cable SC APC to SC APC Simplex 9/125μm Riser (OFNR) Tight-Buffered Yellow|

SMSCSX 3M OS2 Single Mode Fiber Patch Cable, SC APC to SC APC Simplex, 9/125μm, Riser (OFNR), Tight-Buffered, Yellow

Name: SMSCSX 3M OS2 Single Mode Fiber Patch Cable, SC APC to SC APC Simplex, 9/125μm, Riser (OFNR), Tight-Buffered, Yellow
Brand: Fiberstore
SKU: SMSCSX
Price: 9.9 AUD
Availability: InStock

Brand: Fiberstore

Reference SMSCSX

Last items in stock

$9.90

Tax included

SMSCSX

Fiber Patch Cable, SC APC to SC APC, Simplex, 1F, OS2, Riser (OFNR), 2.0mm

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Key Features:

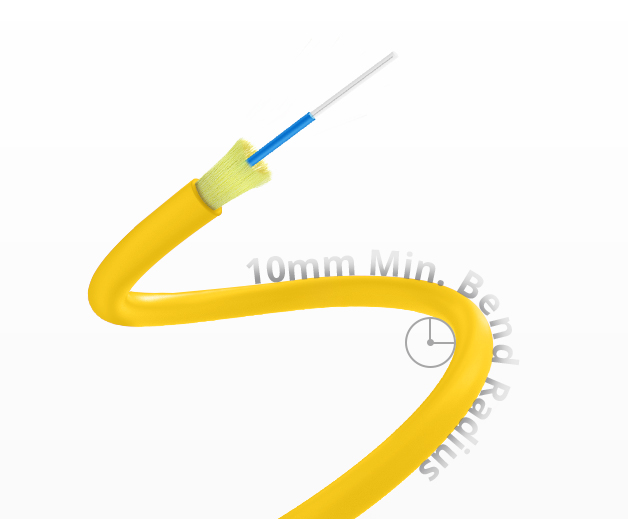

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Ideal for Unidirectional Data Transmission
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting

SMSCSX, 3M OS2 Single Mode Fiber Patch Cable, SC APC to SC APC Simplex, 9/125μm, Riser (OFNR), Tight-Buffered, Yellow

Build a Stable and Robust Fiber Optic Network

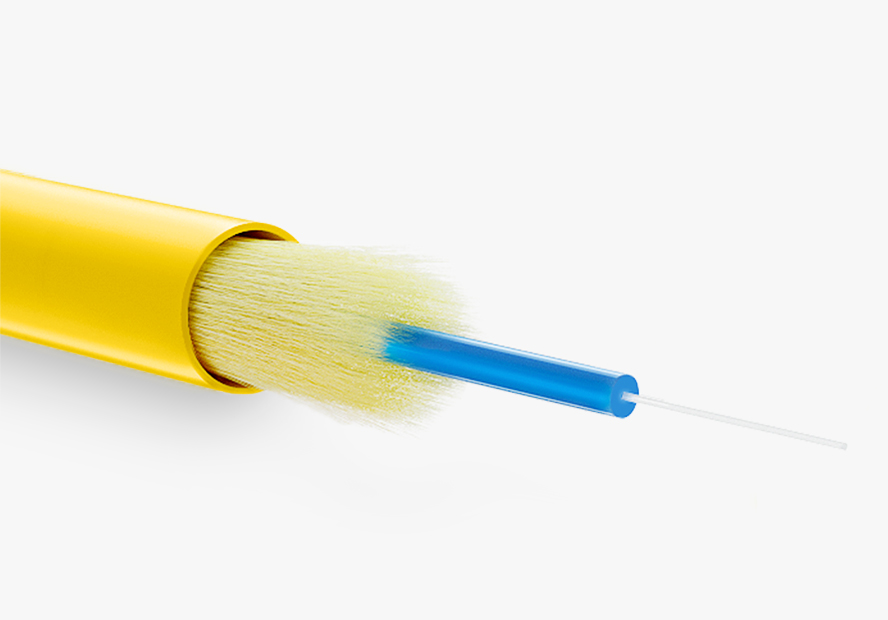

High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.

structural diagram

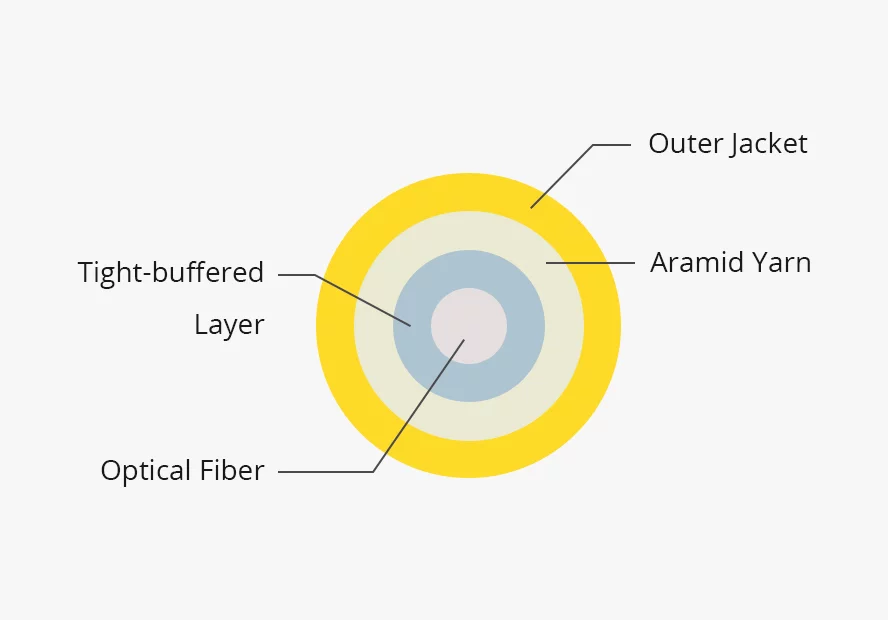

Cross-section diagram

Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

The G.657.A1 fiber allows tighter cable bends for routing, and ensures low optical loss and stable transmission.

The high-precision zirconia ceramic ferrule has a long life, and ensures strong stability and interchangeability.

Product Specifications:

Specification	Details
Connector A	SC APC Simplex
Connector B	SC APC Simplex
Fiber Count	1 Fiber
Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm
Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant
Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm
Flame Rating	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	10mm
Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)

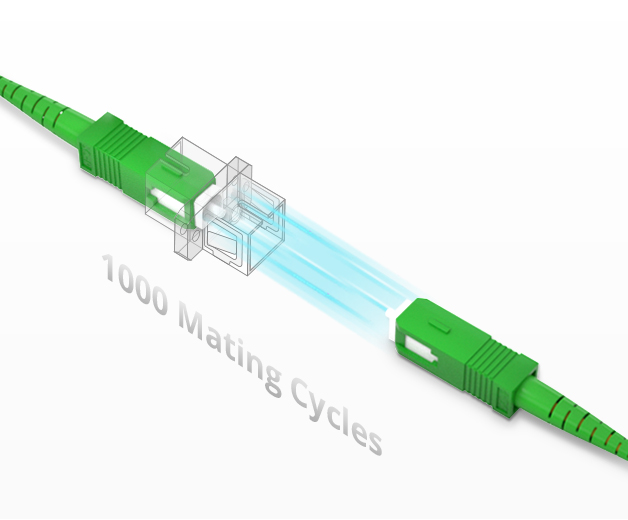

Connector Durability	1000 times
Tensile Strength	60/100N (Long/Short Term)
Insertion Loss	≤0.3dB
Return Loss	≥60dB
Attenuation at 1310nm	0.4dB/km
Attenuation at 1550nm	0.3dB/km
Operating Temperature	-10 to 70°C (14 to 158℉)
Storage Temperature	-20 to 70°C (-4 to 158℉)

MPN SMSCSX

No reviews

MikroTik CRS328 24x 24/48V Gigabit PoE + 4x 10G SFP+ Managed Rackmount Switch

MikroTik

CRS328-24P-4S+RM

$910.80

CRS328-24P-4S+RM 24x 24/48V Gigabit PoE + 4x 10G SFP+ Managed Rackmount Switch The CRS328-24P-4S+RM from MikroTik is a cost-effective, multi-port cloud router switch powered by a single core 800MHz processor and 512MB RAM. This CRS328 model comes in a 1U rackmount enclosure and features (24) Gigabit Ethernet ports, (4) SFP+ ports, and (1) RJ45 Serial...

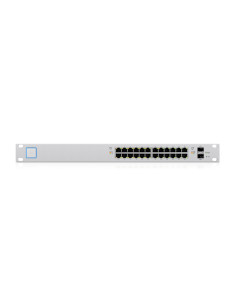

Ubiquiti UniFi 24-Port 24V Passive / 802.3at PoE + 2-Port SFP Managed Gigabit Switch US-24-250
