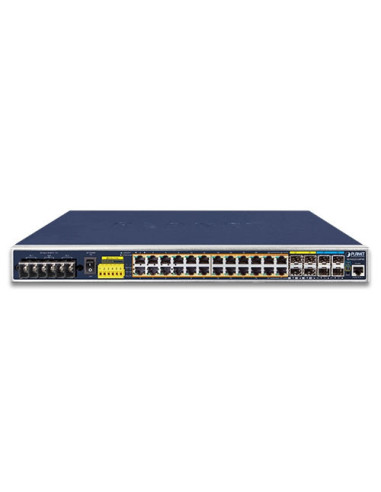

Planet IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch

IGS-6325-24P4X
Last items in stock
$1,625.80
Tax included

IGS-6325-24P4X

PLANET has launched two new PoE+ managed switches, namely the IGS-6325-24P4XIndustrial L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch and the IGS-6325-24P4S Industrial L3 24-Port 10/100/1000T 802.3at  PoE  +  4-Port  Shared  100/1000X  SFP  Managed  Ethernet  Switch.In  the  following  sections,  the  term  “IGS-6325  PoE  Series”  means  the  IGS-6325-24P4X  and  IGS-6325-24P4S.

The IGS-6325 PoE Series features 24 10/100/1000BASE-T 802.3at PoE+ portswith  each  port  powering  up  to  36  watts,  and  4  shared  SFP  ports  and  4  10G  SFP+  ports  in  a  1U  case.  It  provides  user-friendly  yet  advanced  IPv6/IPv4  management  interfaces,  abundant  L2/L4  switching  functions,  Layer  3  OSPFv2  dynamic  routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the  rapid  self-recovery  capability  and  PLANET  intelligent  PoE  functions  for  controlling the PoE outdoor IP surveillance and wireless network applications. It is able  to  operate  reliably,  stably  and  quietly  in  the  temperature  range  from  -40  to  75 degrees  C.



IGS-6325-24P4X - PLANET Industrial L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch



Advanced Layer 3 Manageable PoE Solution for Hardened Environment

PLANET IGS-6325-24P4X L3 Industrial Managed PoE+ Switch, featuring 24 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, 4 shared SFP ports and 4 10G SFP+ ports in a 1U case. With 10Gbps uplink, the IGS-6325-20T4C4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 OSPFv2 dynamic routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.



Layer 3 Routing Support

The IGS-6325-24P4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.



Cybersecurity Network Solution to Minimize Security Risks

The IGS-6325 Series supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.



Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-6325 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.



High Power PoE for Security and Public Service Applications

As the whole system comes with a total 440-watt PoE budget, the IGS-6325-24P4X is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11a/b/g/n) wireless LAN access points, PTZ (pan, tilt, zoom) speed dome network cameras and other PoE network devices.



Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-6325-24P4X GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series, making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status; the PoE reboot can be controlled from the GUI.



Intelligent Alive Check for Powered Device

The IGS-6325-24P4X PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-6325-24P4X will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.



PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-6325-24P4X can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.



Scheduled Power Recycling

The IGS-6325-24P4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.



SMTP/SNMP Trap Event Alert

The IGS-6325-24P4X provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.



Effective Alarm Alert for Better Protection

The IGS-6325 Series supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.



Digital Input and Digital Output for External Alarm

The IGS-6325 Series supports Digital Input and Digital Output on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-6325 Series’ port shows link down, link up or power failure.



Robust Layer 2 Features

The IGS-6325 Series can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-6325 Series provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-6325 Series allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 6 trunk groups with 4 ports per trunk group, and supports fail-over as well.



Powerful Security

The IGS-6325 Series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-6325 Series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.



1588 Time Protocol for Industrial Computing Networks

The IGS-6325 Series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.



Flexible and Extendable 10Gb Ethernet Solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the IGS-6325-24P4X supports dual speed and 10GBASE-SR/LR or 1000BASE-SX/LX. With its 4-port, 10G Ethernet link capability and additional 4-port 1G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325-24P4X provides broad bandwidth and powerful processing capacity.



Intelligent SFP Diagnosis Mechanism

The IGS-6325 Series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.



Industrial Area Department/Workgroup PoE Switch

Providing up to 24 PoE+, in-line power interfaces, the IGS-6325-24P4X can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 24 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-6325-24P4X makes the installation of IP cameras or wireless AP easier and more efficient.

Hardware Specifications
Copper Ports 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
Compatible with 100BASE-FX SFP transceiver
SFP+ Slots 4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
PoE Injector Port 24 ports with 802.3af/at PoE injector function with Port-1 to Port-24
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 128Gbps/non-blocking
Throughput (packet per second) 95.2Mpps@ 64 bytes packet
Address Table 16K entries, automatic source address learning and aging
Shared Data Buffer 32M bits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection 5KV DC
Enclosure IP30 metal case
Installation Rack-mountable kit
Connector Fixed 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI&DO 2 digital input (DI):

Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Max. input current: 10mA

2 digital output (DO):

Open collector to 24V DC, 100mA max.

LED Indicators System:

DC 1 (Green)
DC 2 (Green)
Fault Alarm (Red)
Ring (Green)
Ring Owner (Green)
DIDO (Red)

Per 10/100/1000T RJ45 PoE+ Interfaces (Port 1 to Port 24):

PoE-in-Use (Amber)
LNK/ACT (Green)

100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):

1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Amber)

1/10Gbps SFP+ Interfaces (Port 25 to Port 28):

1Gbps LNK/ACT (Green)
10Gbps LNK/ACT (Amber)

Dimensions (W x D x H) 440 x 300 x 44 mm, 1U height
Weight 3800g
Power Requirements Dual 48~56V DC (>53V DC for PoE+ output recommended), 11A
Power Consumption Max. 33 watts/112.51 BTU (Power on without any connection)
Max. 540 watts/1841.13 BTU (Full loading with PoE function)
Power Over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard

- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts

IEEE 802.3at Standard

- Per port 52V~56V DC (depending on the power supply), max. 36 watts

Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 48V Power input

- Single power input: 240W maximum (depending on power input)
- Dual power input: 300W maximum (depending on power input)

52~56V Power input

- Single power input: 240W maximum (depending on power input)
- Dual power input: 440W maximum (depending on power input)

※Dual power input must be the same as DC voltage, like dual 56V
Max. Number of Class 2 PDs 24
Max. Number of Class 3 PDs 24
Max. Number of Class 4 PDs 16
Layer 2 Function
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX / RX / Both
Many-to-1 monitor
VLAN IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP (GARP VLAN Registration Protocol)
Up to 256 VLAN groups, out of 4096 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 14 trunk groups with 16 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
QoS Traffic classification based, strict priority and WRR
8-level priority for switching

- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet

IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IPv4 IGMP querier mode support
MLD Snooping IPv6 MLD (v1/v2) snooping, up to 255 multicast groups
IPv6 MLD querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control

Ingress: 10Kbps~13000Mbps
Egress: 100Kbps~13000Mbps

Layer 3 Function
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
IPv4 OSPFv2 dynamic routing
Management
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSH, TLS, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
FC 4292 IP Forward MIBIEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gigabit Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
ITU G.8032 ERPS Ring
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Device Type
Network Switch
Device Features
Industrial
TAA Compliant
POE Ports
24
Ports
24 10/100/1000TX Shared 4 100/1000X SFP + 4 10G SFP+
Type
Managed
PoE Standard
802.3at PoE+ PSE
Operating Temperature
-40 to 75° C
Throughput
95.2Mpps @ 64Bytes
Supports
Modbus TCP, IEEE 1588v2 Transparency, ERPS Ring, DIDO, Cloudviewer App (more info. below)
Switch Fabric
128Gbps / non-blocking
Max. Power Consumption
33W/ 112.51BTU (power on w/0 any connection), 540W/1841.13BTU (full loading w/PoE)
PoE Budget
Max. 240W w/Single 48~56V DC
Max. 440W w/Dual 52~56V DC Power Input
4711605284059
