IGS-1000-8UP4x
*** Out of stock ATM, Available On Backorder ***
$658.90
Tax included

IGS-1000-8UP4x

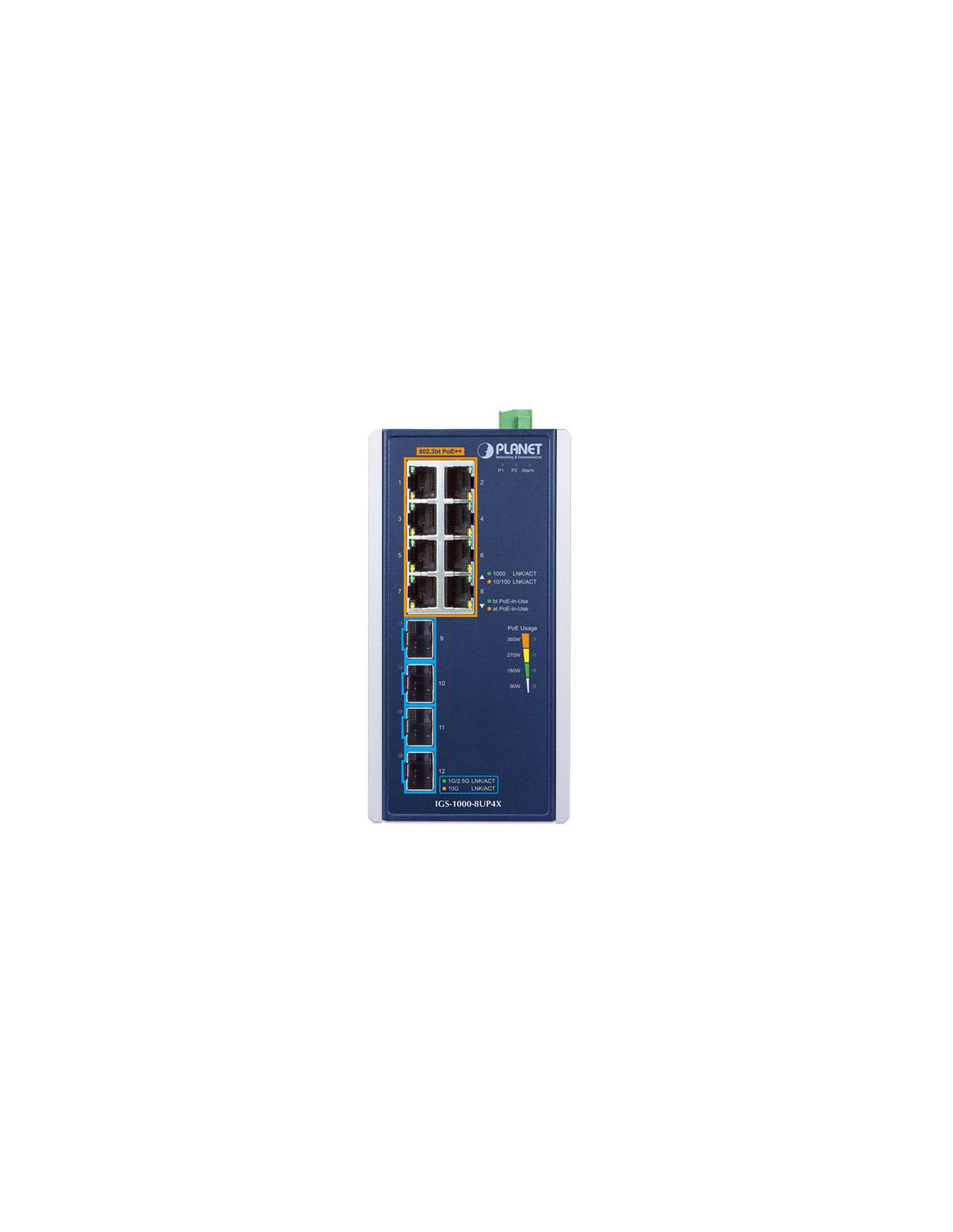

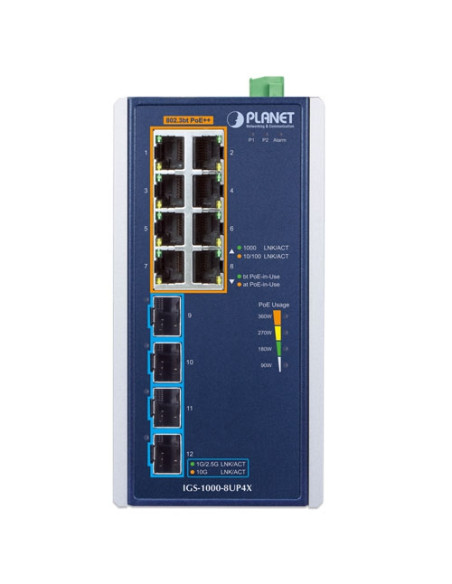

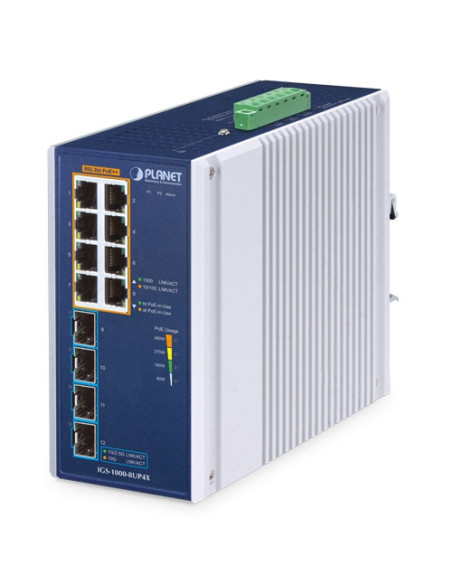

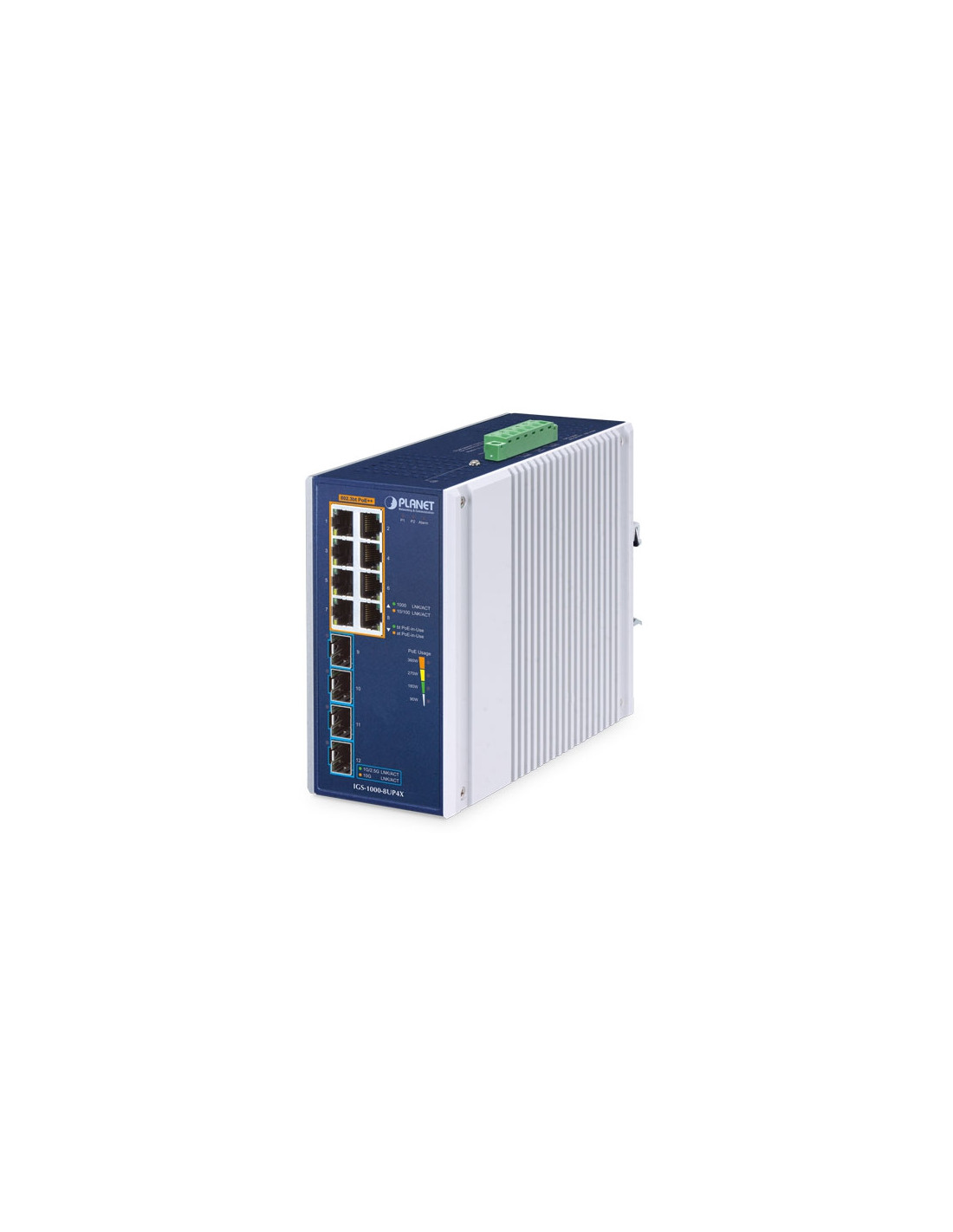

The PLANET IGS-1000-8UP4X is an industrial-grade unmanaged PoE++ switch designed for high-power and high-bandwidth network deployments. It features eight Gigabit Ethernet ports supporting IEEE 802.3bt PoE++ and four 10G SFP+ uplink ports, enabling reliable connectivity for industrial automation, surveillance systems, and high-performance network backbones

Key Features:

  • ✓ 8 x 10/100/1000Base-TX Ports
  • ✓Modbus TCP Managed Ethernet Switch
  • ✓4 x SFP Ports
  • ✓ Fanless Design for Silent Operation
  • ✓ DIDO Support
  • ✓ Industrial -40°C to 75°C Operation

Note: Power supply is not included, please select from the checklist below

- Power Supply Options

NDR-240-48 Industrial 48V 240W DIN Rail Power Supply

$86.90

NDR-480-48 Industrial 48V 480W DIN Rail Power Supply

$181.00

- SFP Modules

Planet Multi-Mode MGB-TSB Mini GBIC Multi-mode WDM Tx-1550, 2km ,1000Mbps Gigabit SFP Fiber Transcei

$45.80

Planet Multi-Mode MGB-TSA Mini GBIC Multi-mode WDM Tx-1310, 2KM, 1000Mbps SFP fiber transceiver

$45.80

Planet Single-Mode MGB-TLX Mini GBIC LX Module – 20KM, extended temperature 1000Mbps Gigabit SFP Fib

$42.90

Planet MGB-GT Mini GBIC TP Module – 100M, 1000Mbps Gigabit Ethernet SFP Fiber Transceiver

$58.99

Planet MGB-TGT Mini GBIC TP Module – 100M , extended temperature 1000Mbps Gigabit Ethernet SFP Fiber

$69.72

Planet Multi-mode MGB-SX2 Mini GBIC SX Module – 2KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tran

$40.76

Planet Single Mode MGB-LX Mini GBIC LX Module – 20KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tra

$40.76

Planet Multi-mode MGB-TSX Mini GBIC SX Module, DDM Supported – 220-550M, extended temperature 1000Mb

$41.82

Planet Single-Mode MGB-L40 Mini GBIC LX Module – 40KM ,1000Mbps Gigabit Ethernet SFP Fiber Transceiv

$64.35

Planet Single-Mode MGB-2GTLA20 2.5G SFP Transceiver (WDM, TX:1310nm RX:1550nm, DDM, -40~75°C) – 20km

$89.10

MGB-TSX2 Planet 1000BASE-SX mini-GBIC MultiMode module, SFP transceiver, up to 2Km, -40 to 75°C, DDM

$42.90

Planet MGB-SX Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)

$38.61

Planet Multi-mode MFB-TSA SFP-Port 100BASE-BX Transceiver (WDM,TX:1310nm RX:1550nm / DDM) - 2km (-4

$84.29

Planet Multi-Mode MFB-TSB SFP-Port 100BASE-BX Transceiver (WDM,TX:1550nm RX:1310nm / DDM) - 2km (-40

$87.49

Planet MFB-F20 Single Mode, 100Mbps SFP Fiber Transceiver – 20KM

$41.82

Planet MFB-TFX Multimode 100Mbps SFP fiber transceiver 1310nm 2KM -40 to 75C

$49.34

Planet MFB-TF20 Single-Mode 100Mbps SFP Fiber Transceiver – 20km

$57.92

Quantity Unit price You Save
4 $639.13 $79.07

Related Products & Accessories



PLANET IGS-1000-8UP4x

planet TSN-6325-8T4S4X
planet TSN-6325-8T4S4X view 2 planet TSN-6325-8T4S4X view 3 planet TSN-6325-8T4S4X view 4
The PLANET TSN-6325-8T4S4X is a high-performance industrial Layer 3 managed Ethernet switch designed to support Time-Sensitive Networking (TSN) environments. It features eight 10/100/1000BASE-T Gigabit Ethernet ports, four 1G/2.5G SFP fiber slots, and four high-speed 10G SFP+ uplink ports. This flexible port configuration enables reliable high-bandwidth connectivity and seamless fiber expansion for industrial backbone networks and advanced automation infrastructures.

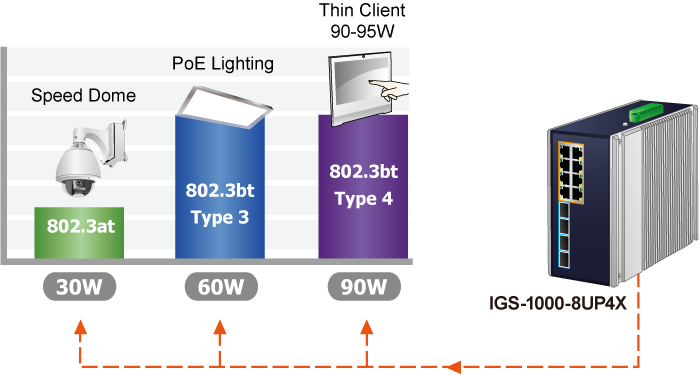

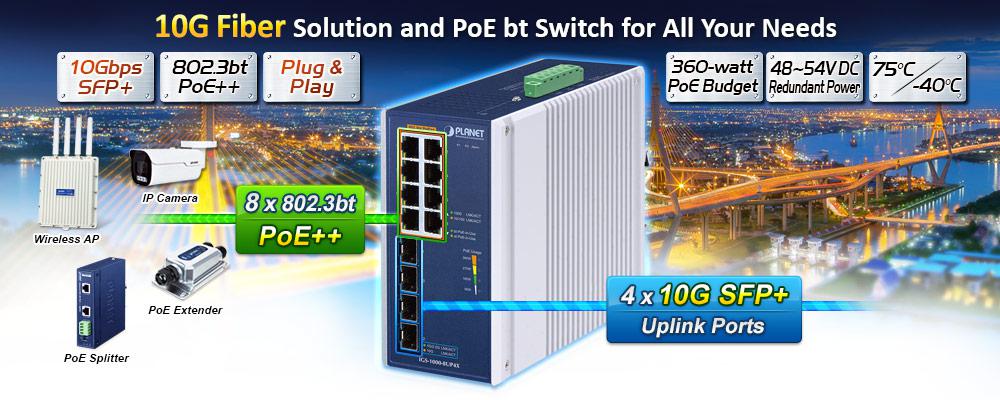

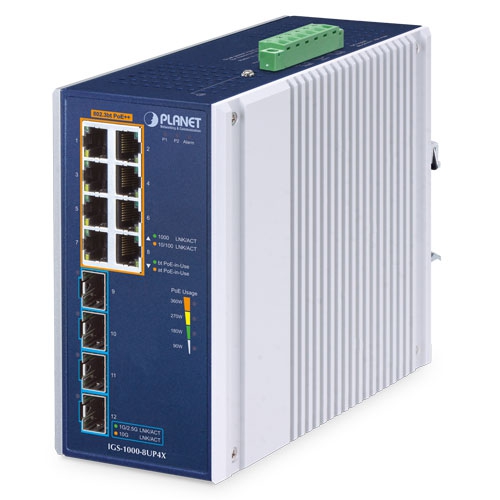

The PLANET IGS-1000-8UP4X is a high-performance industrial unmanaged PoE switch designed to deliver both power and data over Ethernet in demanding environments. It provides eight Gigabit Ethernet ports with IEEE 802.3bt PoE++ support, capable of delivering up to 95W per port, making it ideal for high-power devices such as PTZ cameras, wireless access points, and industrial equipment.

In addition to its copper connectivity, the switch includes four 10G SFP+ uplink ports that enable high-speed backbone connections. These fiber interfaces support long-distance communication and provide the bandwidth required for data-intensive applications such as video surveillance, industrial automation, and large-scale network aggregation.

The IGS-1000-8UP4X features a robust PoE power system with a total budget of up to 360W when using dual power inputs. This allows multiple high-power devices to be powered simultaneously, reducing the need for additional power infrastructure and simplifying installation in industrial deployments.

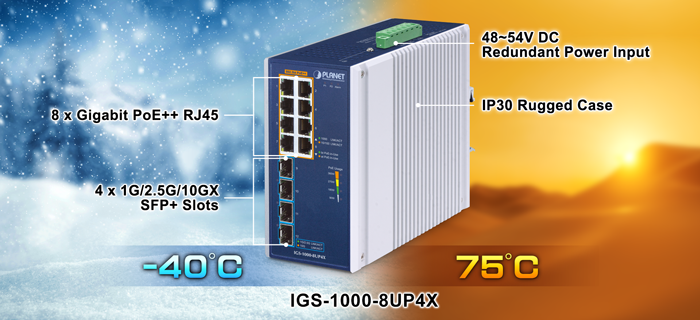

Built for harsh environments, the switch is housed in an IP30-rated metal enclosure and operates reliably within a wide temperature range of -40°C to 75°C. Its fanless design ensures silent operation and long-term reliability in environments such as factory floors, outdoor cabinets, and transportation systems.

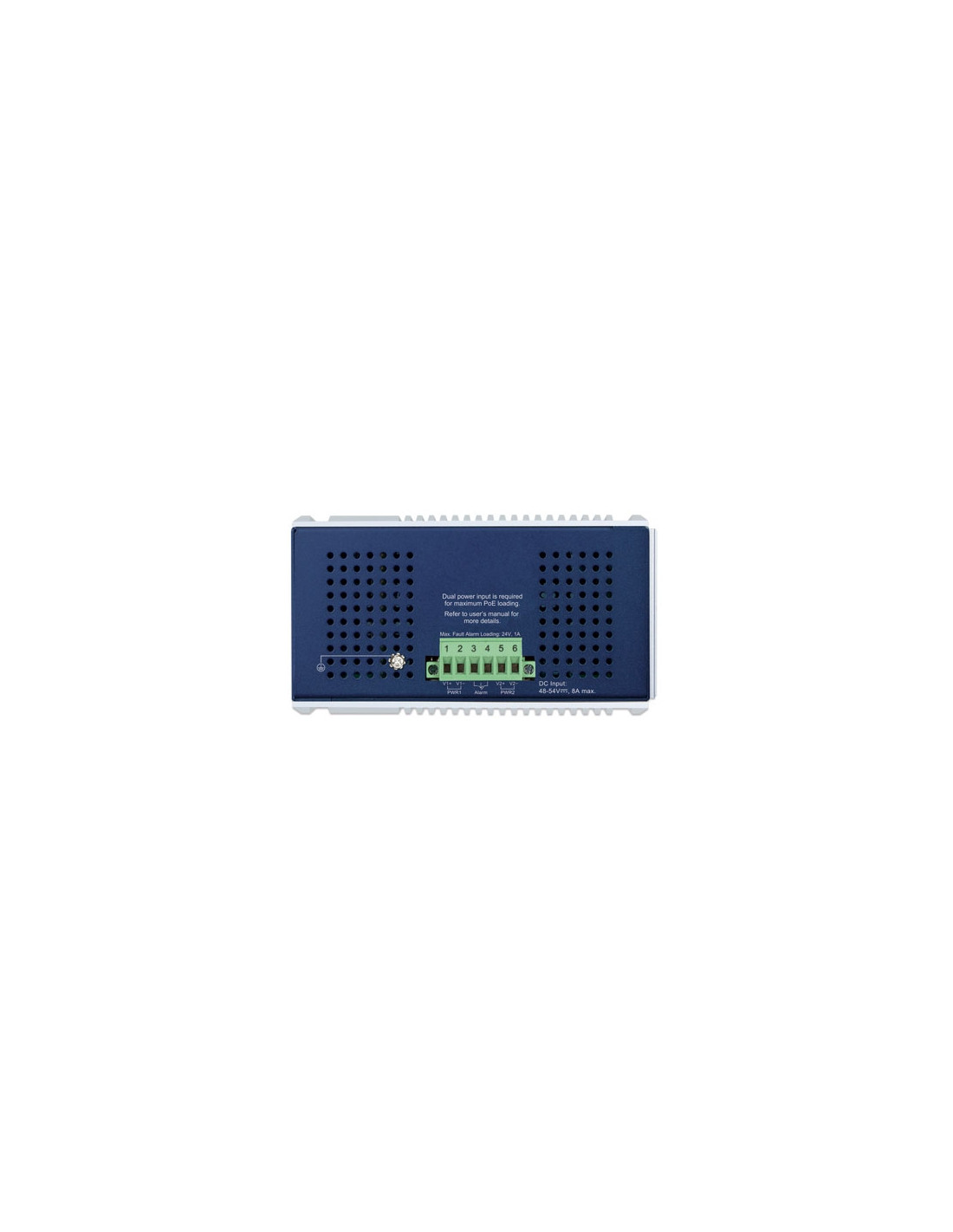

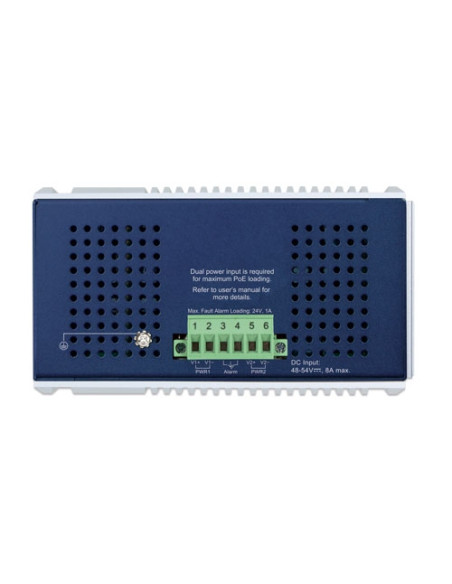

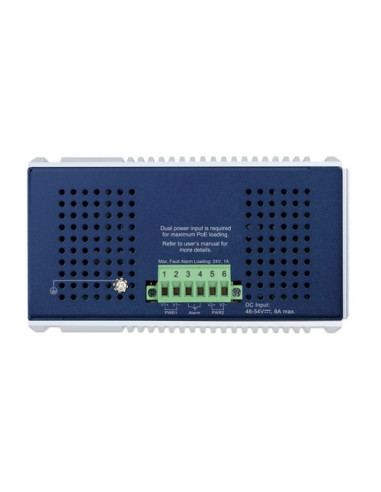

To ensure high availability, the switch supports dual redundant DC power inputs (48–54V). In the event of a power failure, the system automatically switches to the backup input, maintaining uninterrupted operation for critical network infrastructure.

Technical Specifications:

Specification Value
Model IGS-1000-8UP4X
Switch Type Unmanaged Industrial Ethernet Switch
Interfaces
RJ45 Ports 8 × 10/100/1000BASE-T
PoE Ports 8 × IEEE 802.3bt PoE++
SFP+ Ports 4 × 10G SFP+
PoE
PoE Standard IEEE 802.3bt / 802.3at compatible
Max Power per Port 95W
PoE Budget Up to 360W
Power
Power Input 48–54V DC (dual redundant)
Power Redundancy Yes (failover support)
Environment
Operating Temperature -40°C to 75°C
Enclosure IP30 Metal Housing
Mounting DIN-rail / Wall mount
IGS-1000-8UP4X
