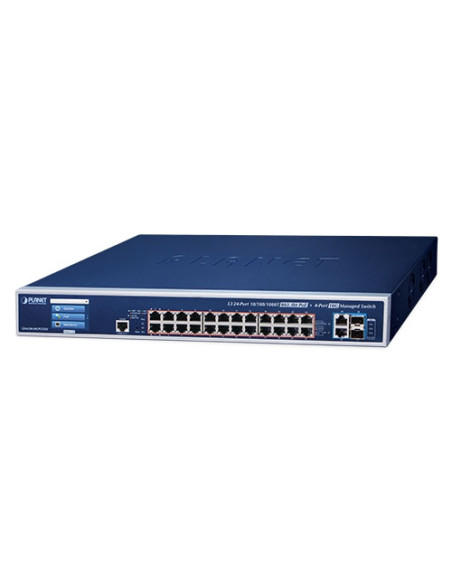

PLANET GS-6320-24UP2T2XV L3 24-Port 802.3bt PoE++ Managed Switch with 10GBASE-T 10G SFP+ and LCD Touch Screen
Planet GS-6320-24UP2T2XV|GS-6320-24UP2T2XV L3 24-Port 802.3bt PoE++ Managed Switch with 10GBASE-T 10G SFP+ |WISP Australia
Planet GS-6320-24UP2T2XV|GS-6320-24UP2T2XV L3 24-Port 802.3bt PoE++ Managed Switch with 10GBASE-T 10G SFP+ |WISP Australia

PLANET GS-6320-24UP2T2XV L3 24-Port 802.3bt PoE++ Managed Switch with 10GBASE-T 10G SFP+ and LCD Touch Screen

GS-6320-24UP2T2XV
*** Out of stock ATM, Available On Backorder ***
$1,999.07
Tax included
Planet GS-6320-24UP2T2XV

GS-6320-24UP2T2XV

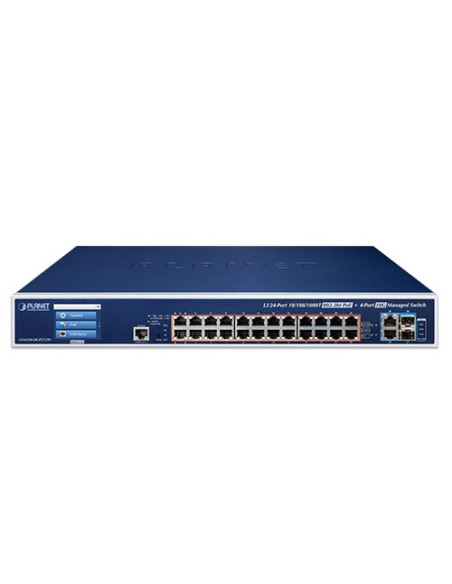

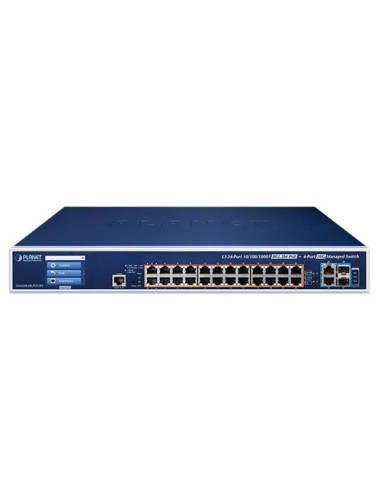

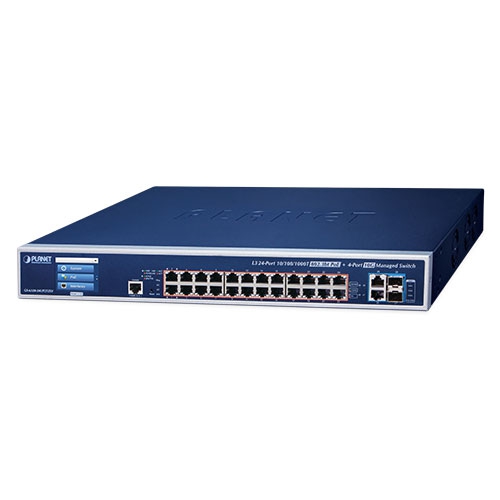

The GS-6320-24UP2T2XV is a Layer 3 managed PoE++ switch featuring 24 x 802.3bt Gigabit PoE++ ports, 2 x 10GBASE-T RJ45 ports, and 2 x 10G SFP+ uplink interfaces. Designed for enterprise, surveillance, and high-performance networking environments, it supports advanced Layer 2 and Layer 3 networking features including QoS, VLAN, and secure management via web, CLI, SNMP, SSH, and HTTPS.

The switch includes an integrated LCD touch screen for local monitoring and configuration, along with redundant AC/DC power input support for improved network reliability.

Key Features

  • ✓24 x 802.3bt PoE++ Gigabit ports (up to 90W per port)
  • ✓2 x 10GBASE-T RJ45 ports
  • ✓2 x 10G SFP+ uplink interfaces
  • ✓Layer 3 IPv4/IPv6 routing support
  • ✓Advanced security and management features
  • ✓LCD touch screen interface

- SFP Modules

Planet Multi-Mode MTB-TSR 300m 10G SFP+ Fiber Transceiver

$62.21

Planet MTB-RJ 30m 10GBASE-T SFP+ Copper RJ45 Transceiver

$180.46

Planet Multi-Mode MTB-SR 300M 10G SFP+ Fiber Transceiver (Multimode)

$46.11

Planet Single-Mode MTB-LR 10G SFP+ Fiber Transceiver – 10KM

$65.43

Planet Single-Mode MTB-LR20 10G SFP+ Fiber Transceiver (1310nm, DDM) – 20KM

$168.85

Planet Single-Mode MTB-TLR 10G SFP+ Fiber Transceiver (DDM, -40~75C) -10KM

$84.72

Planet Single-mode MTB-SR2 10G SFP+ Fiber Transceiver (1310nm, DDM) 2KM

$53.63

Planet Multi-Mode MGB-TSB Mini GBIC Multi-mode WDM Tx-1550, 2km ,1000Mbps Gigabit SFP Fiber Transcei

$45.80

Planet Multi-Mode MGB-TSA Mini GBIC Multi-mode WDM Tx-1310, 2KM, 1000Mbps SFP fiber transceiver

$45.80

Planet Single-Mode MGB-TLX Mini GBIC LX Module – 20KM, extended temperature 1000Mbps Gigabit SFP Fib

$42.90

Planet MGB-GT Mini GBIC TP Module – 100M, 1000Mbps Gigabit Ethernet SFP Fiber Transceiver

$58.99

Planet MGB-TGT Mini GBIC TP Module – 100M , extended temperature 1000Mbps Gigabit Ethernet SFP Fiber

$69.72

Planet Multi-mode MGB-SX2 Mini GBIC SX Module – 2KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tran

$40.76

Planet Single Mode MGB-LX Mini GBIC LX Module – 20KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tra

$40.55

Planet Multi-mode MGB-TSX Mini GBIC SX Module, DDM Supported – 220-550M, extended temperature 1000Mb

$41.82

Planet Single-Mode MGB-L40 Mini GBIC LX Module – 40KM ,1000Mbps Gigabit Ethernet SFP Fiber Transceiv

$64.35

Planet Single-Mode MGB-2GTLA20 2.5G SFP Transceiver (WDM, TX:1310nm RX:1550nm, DDM, -40~75°C) – 20km

$89.10

MGB-TSX2 Planet 1000BASE-SX mini-GBIC MultiMode module, SFP transceiver, up to 2Km, -40 to 75°C, DDM

$42.90

Planet MGB-SX Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)

$38.61

Quantity Unit price You Save
4 $1,939.10 $239.89

Related Products & Accessories



GS-6320-24UP2T2XV

Planet GS-6320-24UP2T2XV
Planet GS-6320-24UP2T2XV view 2 Planet GS-6320-24UP2T2XV view 3





Planet GS-6320-24UP2T2XV view 4

The GS-6320-24UP2T2XV is designed for demanding enterprise and surveillance network deployments requiring high-power PoE connectivity and advanced Layer 3 switching capabilities. Its IEEE 802.3bt PoE++ support enables deployment of high-power devices such as PTZ IP cameras, WiFi 6 access points, digital signage, and VoIP systems using a single Ethernet cable for both power and data transmission.

Built for modern business infrastructures, the switch provides advanced traffic management and network segmentation features including VLAN, QoS, multicast management, and IPv4/IPv6 routing functions. Secure management protocols such as SSH, HTTPS, SNMP, and IEEE 802.1X authentication help protect network integrity while simplifying administration.

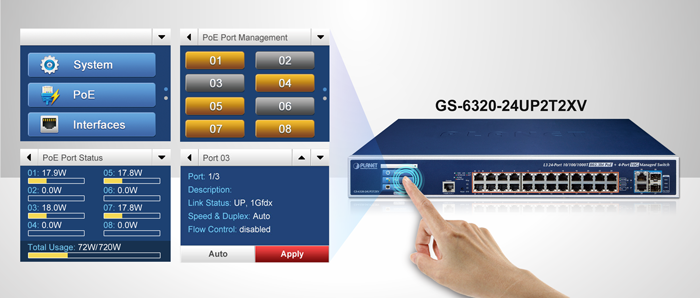

The integrated LCD touch screen allows administrators to monitor switch status, PoE utilization, and network activity directly from the device without requiring external management software. Redundant AC/DC power input support improves network reliability for critical environments where continuous operation is essential.

With high-speed 10G copper and fiber uplinks, the GS-6320-24UP2T2XV is well suited for enterprise edge networks, surveillance systems, campus deployments, and high-density PoE installations requiring reliable power delivery and advanced management capabilities.

Technical Specifications

Specification Value

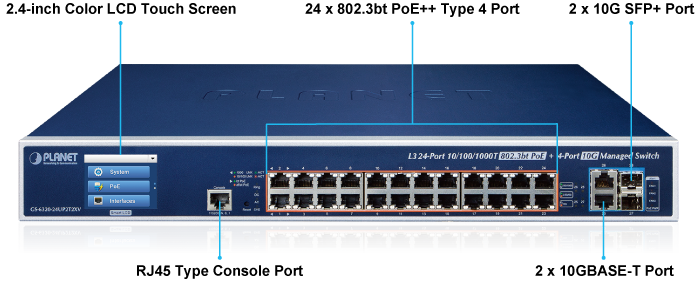

Copper Ports 24 x 10/100/1000BASE-T 802.3bt PoE++ RJ45 ports
2 x 10GBASE-T RJ45 ports supporting 10G/5G/2.5G/1G/100Mbps
SFP+ Slots 2 x 10G SFP+ interfaces compatible with 1000BASE-SX/LX/BX SFP transceivers
Console Port 1 x RJ45 serial console port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 128 Gbps (non-blocking)
Throughput 95.23 Mpps @ 64 Bytes
MAC Address Table 32K entries with automatic learning and aging
Shared Data Buffer 32 Mbits
Jumbo Frame 10K Bytes
PoE Standard IEEE 802.3bt PoE++ PSE
Backward compatible with IEEE 802.3af/at
PoE Output Up to 95W per port
802.3bt Type-4 and UPoE support
PoE Power Budget 720W @ <40°C
660W @ 40–49°C
600W @ 50°C
PoE Management PoE scheduling, PoE reboot, PD alive check, remote PD monitoring, PoE usage threshold control
PoE Extend Mode Up to 200 meters
Routing Functions IPv4/IPv6 Layer 3 routing
RIPv1/v2, OSPFv2/v3, static routing
VLAN Support 802.1Q VLAN, QinQ, Voice VLAN, MAC-based VLAN, Protocol VLAN, up to 4K VLAN groups
Link Aggregation IEEE 802.3ad LACP/static trunk
14 groups with 4 ports per trunk
QoS 8-level priority with WRR and strict priority scheduling
Security Features 802.1X authentication, IP source guard, Dynamic ARP inspection, ACL, DHCP snooping, RADIUS, TACACS+
Management Interfaces Console, Telnet, Web GUI, SNMP v1/v2c/v3, SSHv1/v2, HTTPS/TLS 1.2
ONVIF Support ONVIF device discovery, monitoring, and floor map support
ERPS Ring ITU-T G.8032 ERPS support
Recovery time < 50 ms

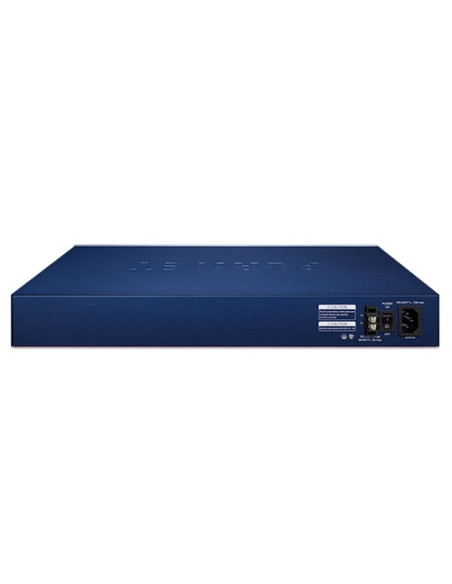

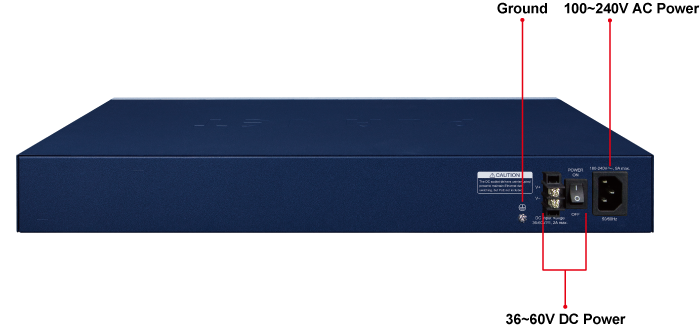

Power Input (AC) 100–240V AC, 50/60Hz, 8A
Power Input (DC) 36–60V DC, 2A
Cooling 3 smart fans
ESD Protection 5KV DC
Dimensions 440 x 300 x 56 mm (1.25U)
Weight 5417 g
Operating Temperature 0 ~ 50°C
Operating Humidity 5 ~ 95% non-condensing
Storage Temperature -10 ~ 70°C
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3af/at/bt, 802.1Q, 802.1X, 802.3ad, 802.1D/w/s, LLDP, OSPF, RIP, ERPS
