Procet PT-PSE118GR-OT AC to DC outdoor IP67 Waterproof AT PoE+ Injector

PT-PSE118GR-OT
In Stock
$162.80
Tax included

PT-PSE118GR-OT

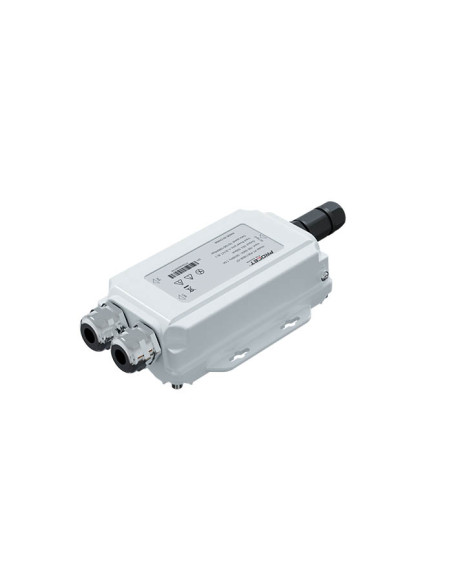

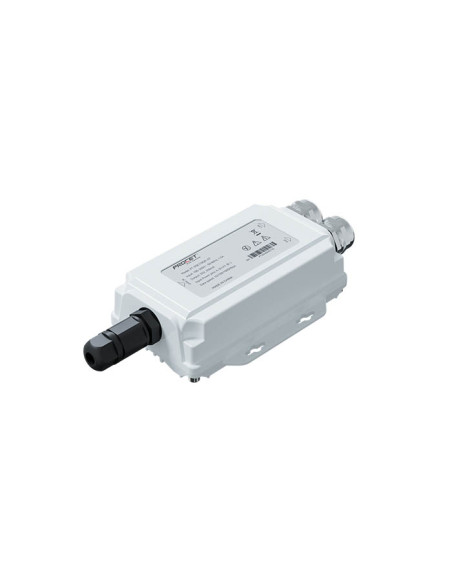

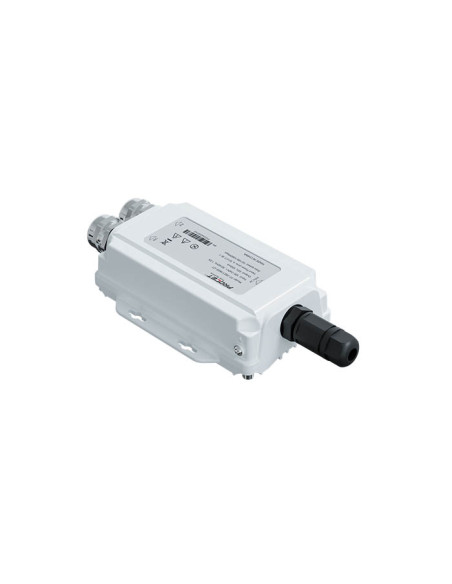

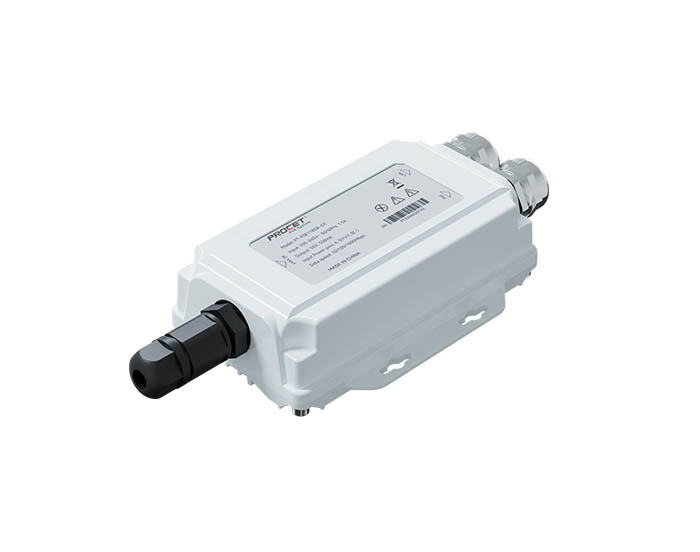

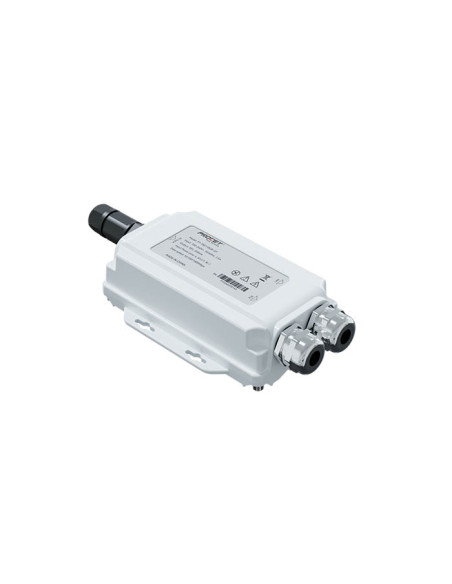

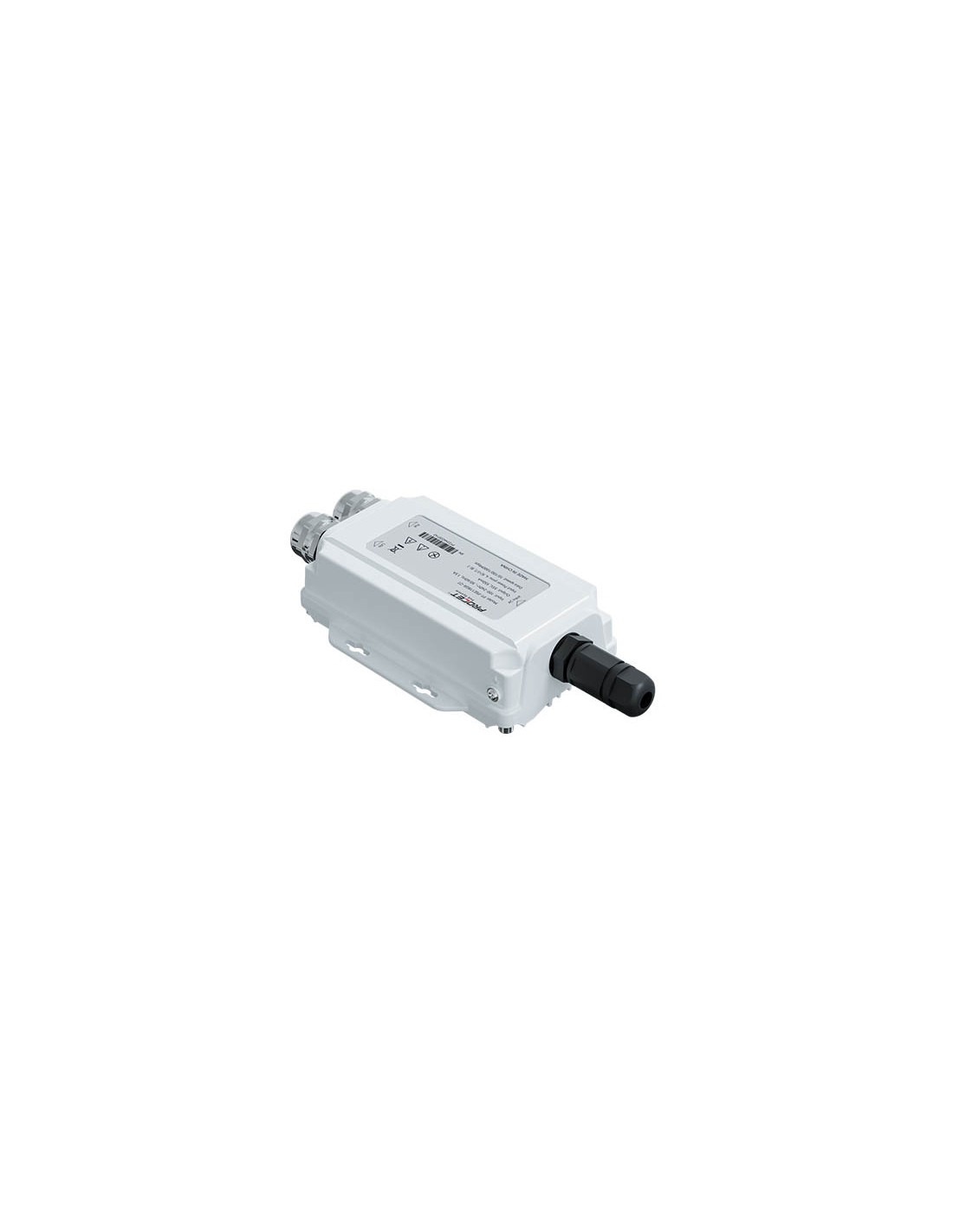

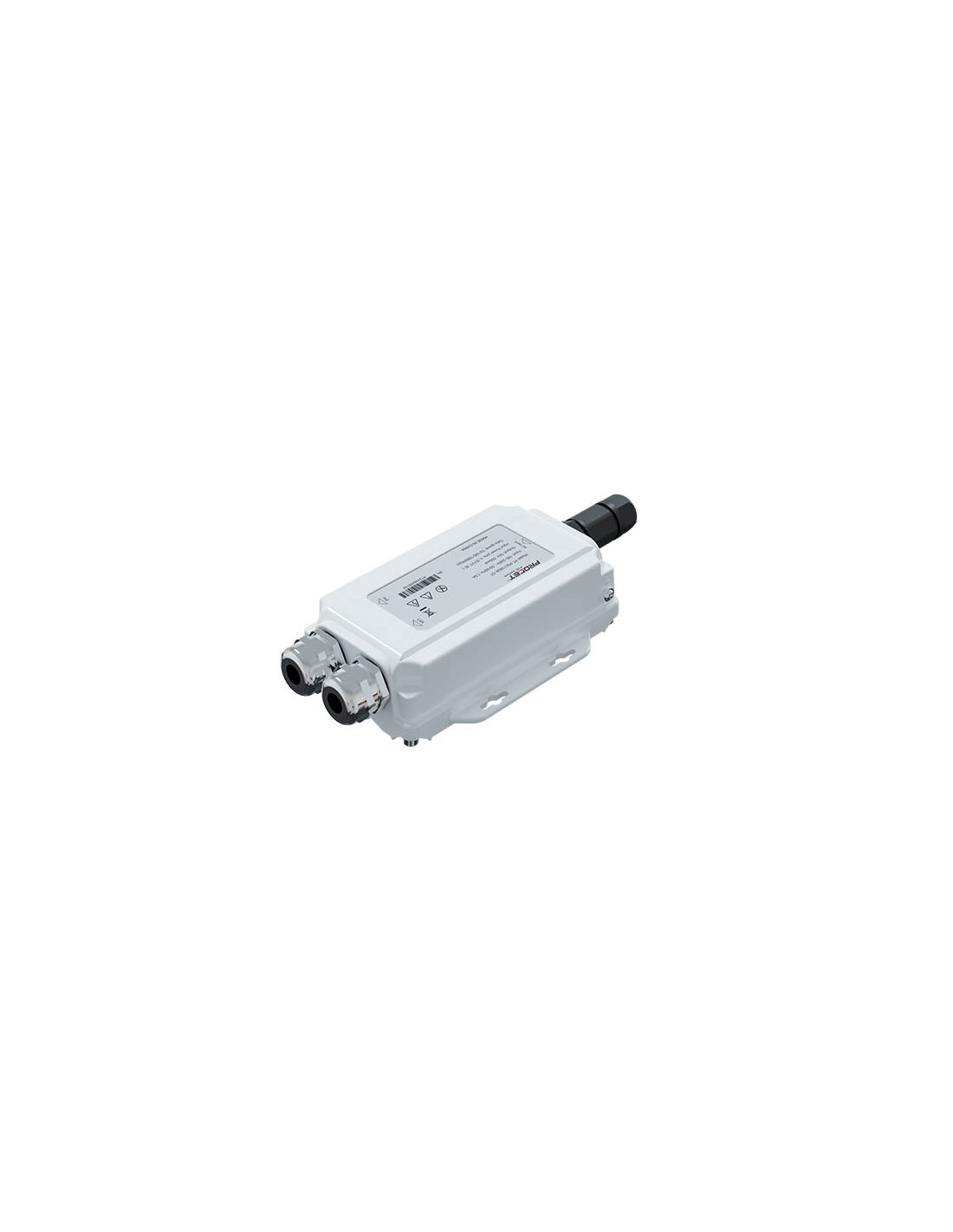

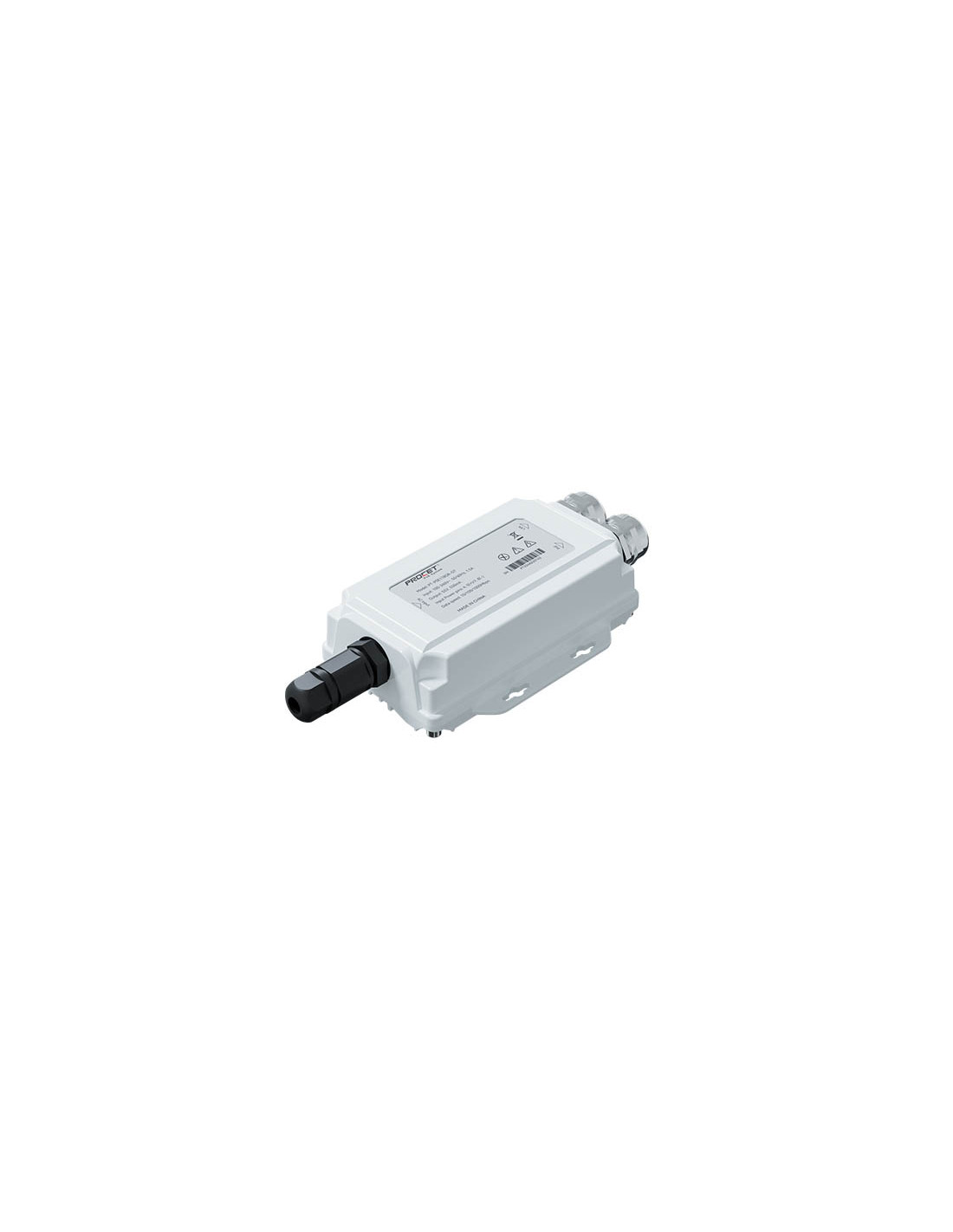

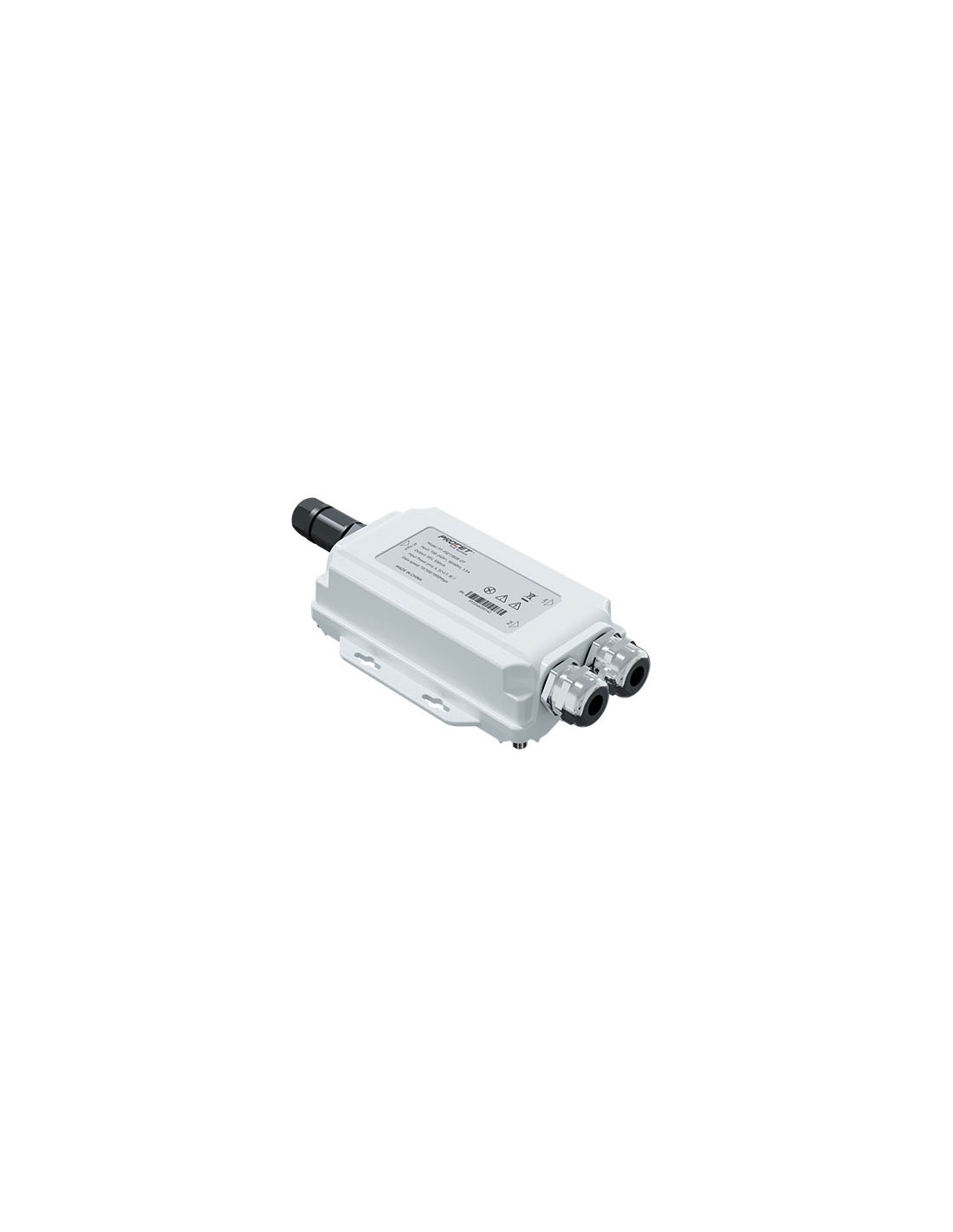

The PROCET PT-PSE118GR-OT is an industrial-grade outdoor PoE injector designed for reliable power delivery in harsh environments. It supports up to 30W output with compatibility across Gigabit and multi-gigabit (up to 10Gbps) networks. Featuring an IP67-rated aluminum enclosure and wide operating temperature range, it is ideal for outdoor and industrial deployments.

Key Features

  • ✓30W PoE output (55V DC)
  • ✓Supports 10/100/1000Mbps and up to 10Gbps transmission
  • ✓Wide operating temperature: -40°C to 65°C
  • ✓IP67 waterproof and corrosion-resistant aluminum enclosure
  • ✓Supports IEEE 802.3af/at devices
  • ✓ Designed for outdoor and industrial environments

Quantity Unit price You Save
4 $157.92 $19.54

Related Products & Accessories



Procet PT-PSE118GR-OT AC to DC outdoor IP67 Waterproof AT PoE+ Injector

ubiquiti UACC-PoE+++-10G

The PROCET PT-PSE118GR-OT is a rugged PoE injector engineered for outdoor and industrial networking applications. It provides stable power delivery with a maximum output of 30W, supporting IEEE 802.3af/at compliant devices.

With support for data transmission speeds up to 10Gbps (model dependent), the device ensures high-performance connectivity across modern network infrastructures. Its IP67-rated aluminum housing, combined with waterproof metal cable glands, provides excellent protection against dust, water, and corrosion.

Designed to operate in extreme conditions, the PT-PSE118GR-OT supports a wide temperature range from -40°C to 65°C and can achieve full-load startup at very low temperatures. Integrated surge protection ensures safe operation, making it suitable for demanding outdoor installations such as surveillance systems, wireless bridges, and industrial networks.

Technical Specifications

Specification Value
Input AC Input Voltage:100 to 240Vac 1.5A
Frequency: 50/60Hz Typ
Output Pin Assignment and Polarity:
4/5(+), 7/8(-)
Output Power Voltage: 55Vdc/0.55A
User Port Power: 30W Guaranteen
Data Speed 10/100/1000Mbps / 2.5G / 5G / 10Gbps
Power Pins 4,5(+)/7,8(-) or 3,6(+)/1,2(-)
IP Rating IP67
Operating Temperature -40°C to 65°C
Operating Humidity 20%–80% non-condensing
Operating Altitude Up to 2000 m
Network Standards IEEE802.3i / IEEE802.3u / IEEE802.3ab / IEEE802.3z
Dimensions / Weight 211 x 101 x 42 mm / 625 g
