Procet PT-PD208GBH-24 24V Gigabit PoE Splitter with IEEE 802.3bt 90W Input
Procet PT-PD208GBH-24 |Procet PT-PD208GBH-24 24V Gigabit PoE Splitter with IEEE 802.3bt 90W Input| Wisp Australia
Procet PT-PD208GBH-24 |Procet PT-PD208GBH-24 24V Gigabit PoE Splitter with IEEE 802.3bt 90W Input| Wisp Australia
Procet PT-PD208GBH-24 |Procet PT-PD208GBH-24 24V Gigabit PoE Splitter with IEEE 802.3bt 90W Input| Wisp Australia

Procet PT-PD208GBH-24 24V Gigabit PoE Splitter with IEEE 802.3bt 90W Input

PT-PD208GBH-24
Last items in stock
$84.70
Tax included

PT-PD208GBH-24

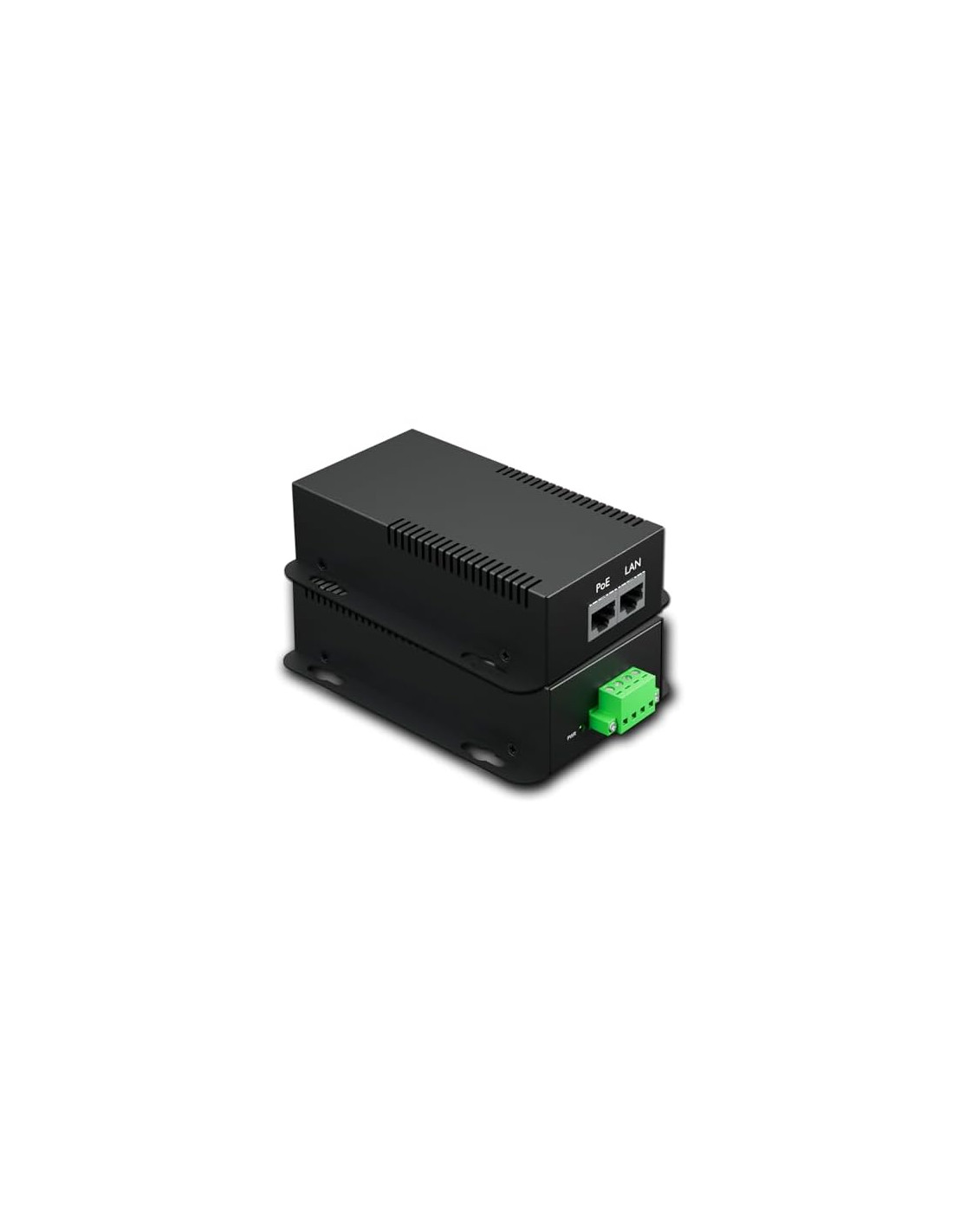

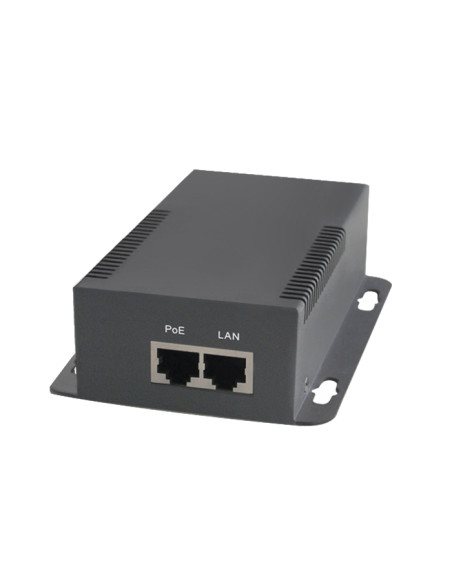

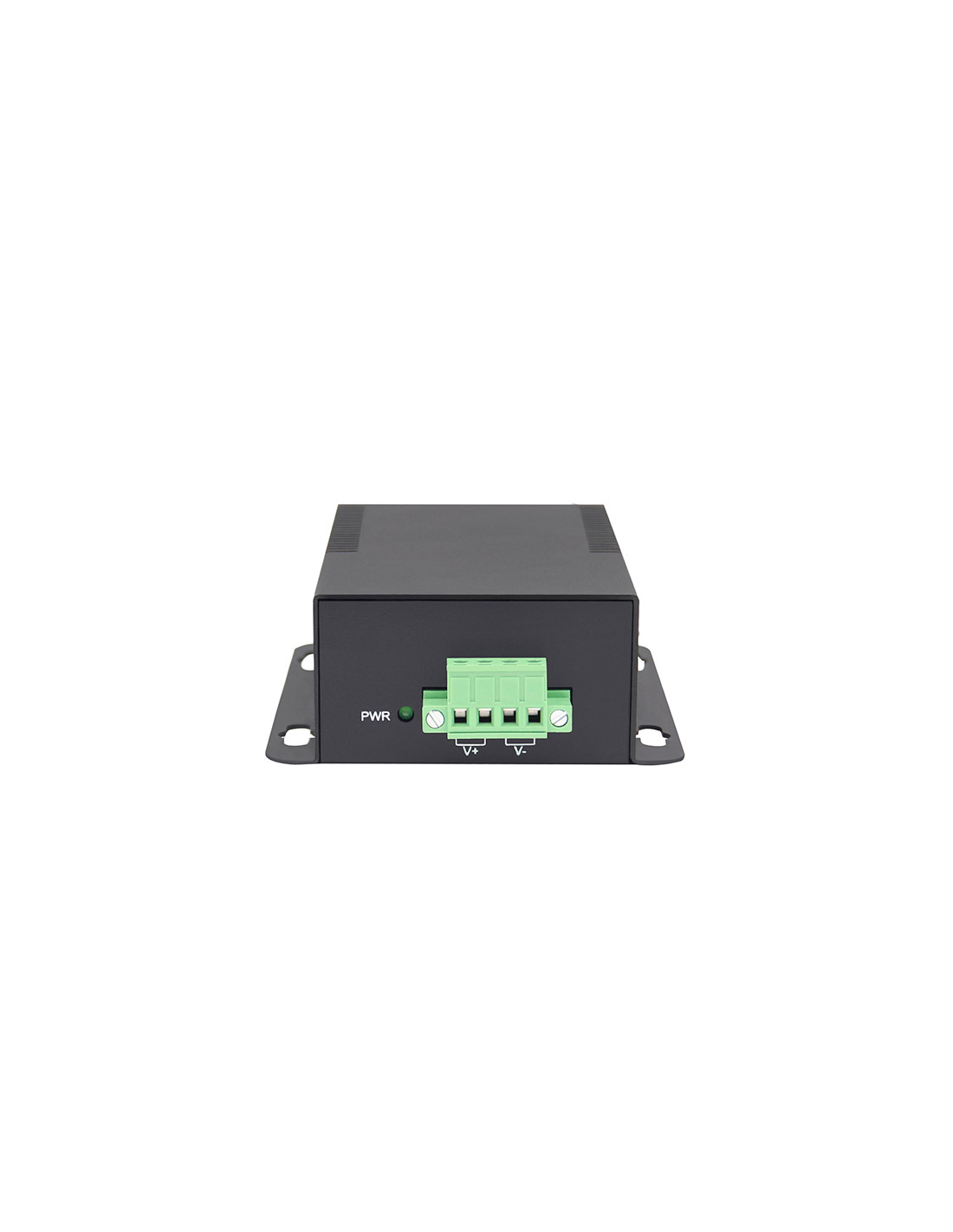

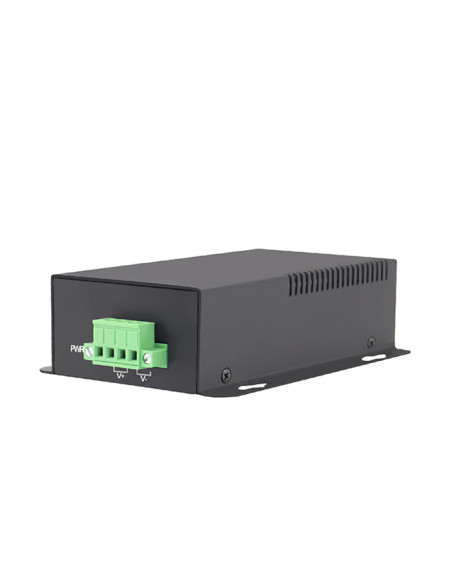

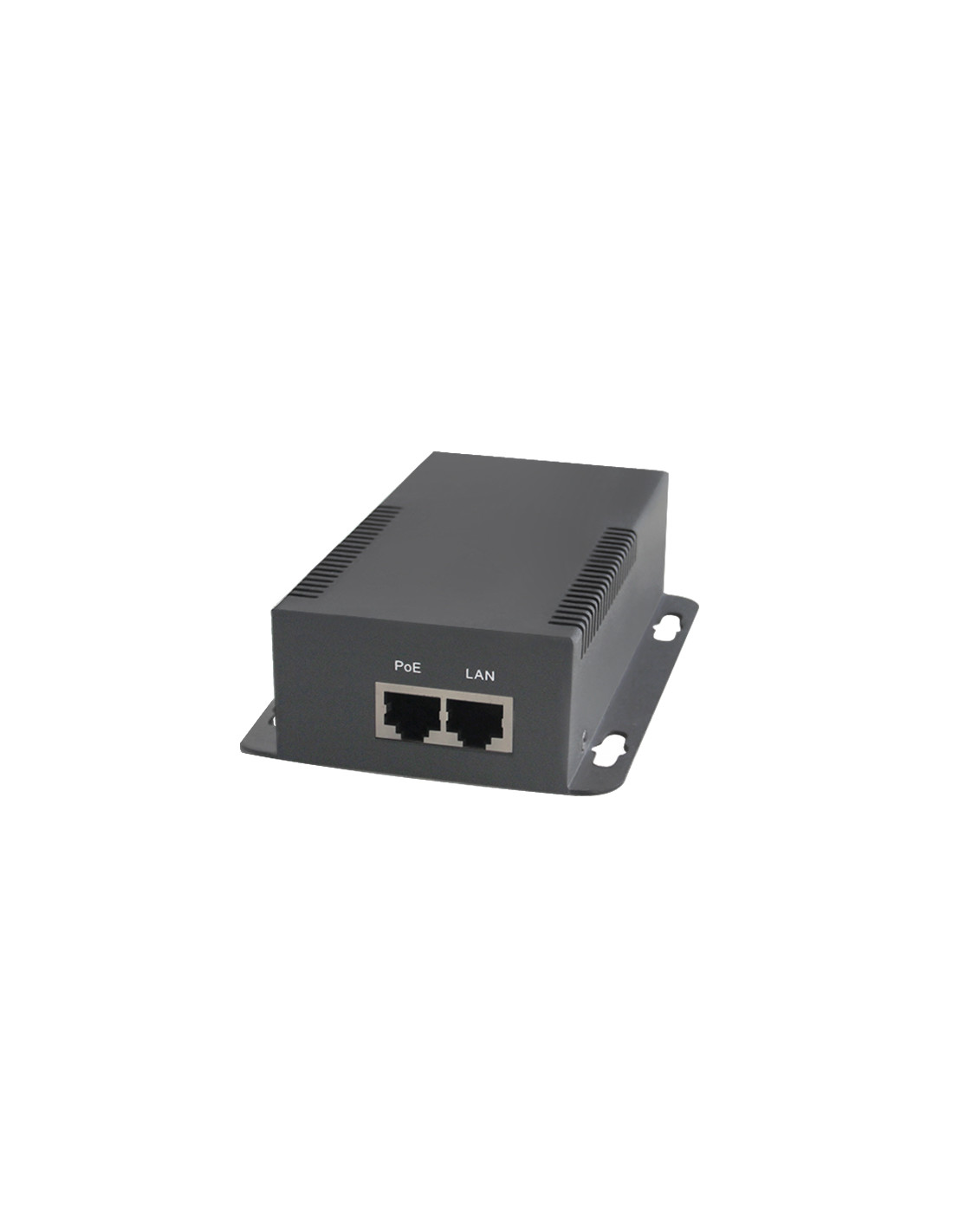

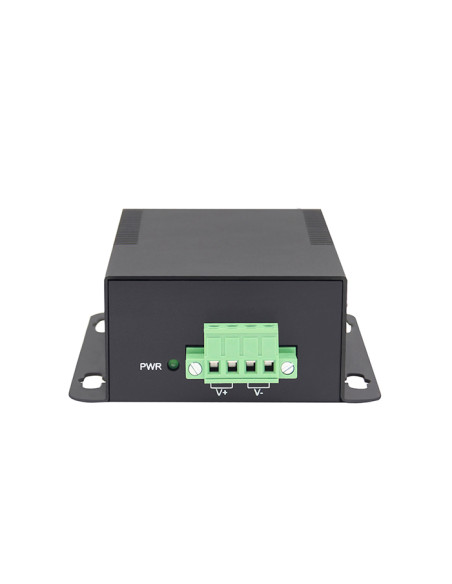

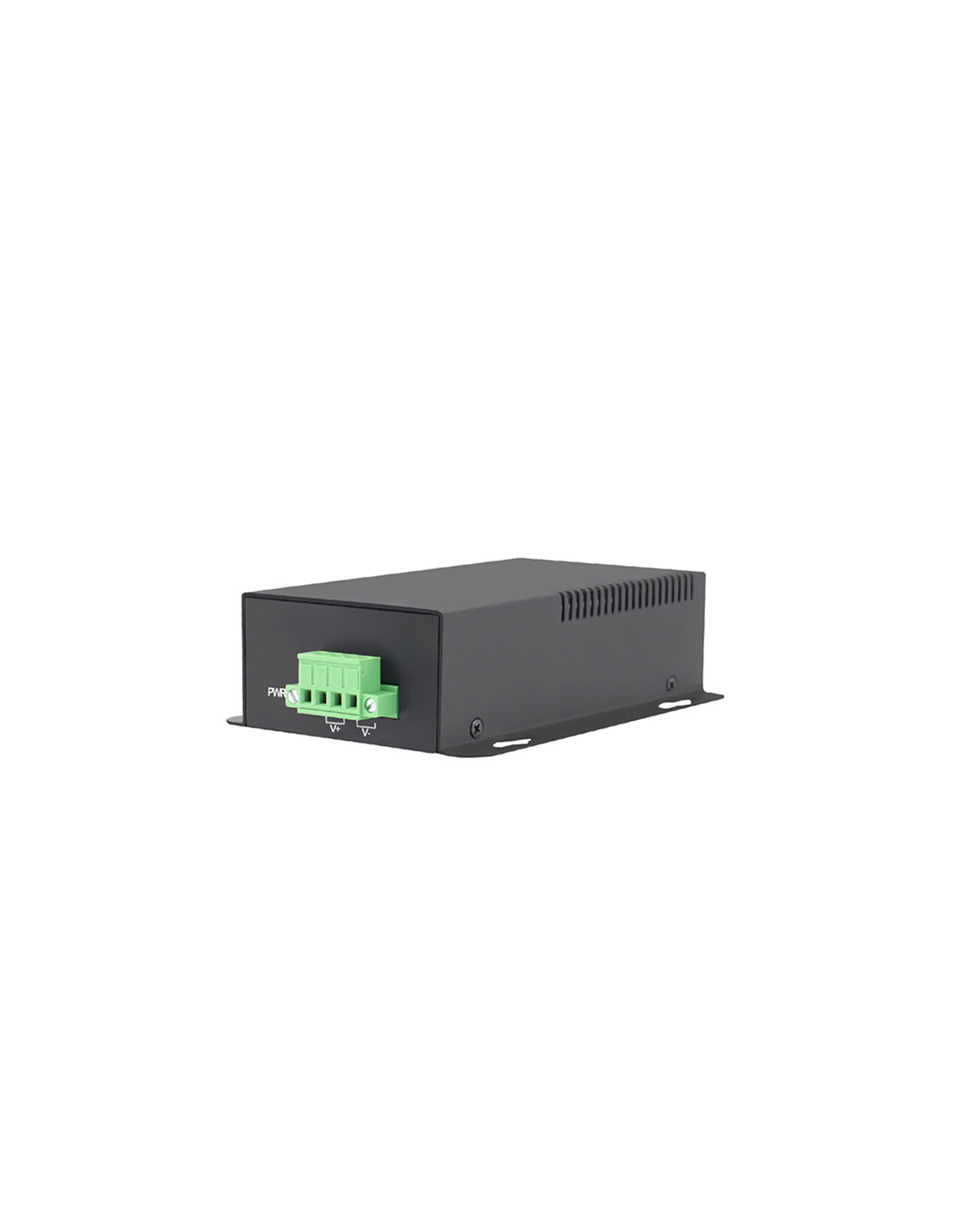

The PROCET PT-PD208GBH-24 is a single-port Gigabit PoE splitter designed to separate power and data from an IEEE 802.3bt PoE injector or PoE switch and deliver 24V DC power plus Ethernet data to non-PoE devices. Featuring a durable high-impact metal enclosure, it supports Gigabit Ethernet connectivity and provides 24V DC output for high-power wireless APs, communication stations, IP cameras, and other non-PoE equipment.

Designed for indoor installations, the splitter supports up to 100 meters transmission distance over Cat5e/Cat6 cabling and features isolated internal protection with high energy efficiency.

Key Features

  • ✓IEEE 802.3bt PoE splitter
  • ✓24V DC power output
  • ✓Supports 10/100/1000Mbps Ethernet
  • ✓High-impact metal enclosure
  • ✓Up to 100m transmission distance
  • ✓ Energy efficiency up to 94%

Quantity Unit price You Save
4 $82.16 $10.16

Related Products & Accessories



PT-PD208GBH-24 24V Gigabit PoE Splitter with IEEE 802.3bt 90W Input

The PROCET PT-PD208GBH-24 is a high-power single-port Gigabit PoE splitter designed to separate power and Ethernet data from an IEEE 802.3bt PoE source and deliver regulated 24V DC output to non-PoE devices. It supports Gigabit Ethernet transmission speeds and is suitable for wireless access points, communication stations, IP cameras, and other high-power networking equipment requiring 24V DC input. Featuring a high-impact metal housing and isolated internal protection design, the PT-PD208GBH-24 helps protect connected equipment from high current input damage while maintaining stable power and data delivery. The splitter supports transmission distances up to 100 meters over standard Cat5e/Cat6 Ethernet cabling. Designed for indoor deployment, the unit operates with 40–57V DC PoE input and delivers high energy efficiency up to 94%. Its compact wall-mountable design with four mounting holes allows flexible installation in networking cabinets, communication systems, and industrial networking environments.

Technical Specifications

Specification Value
Ethernet Standards IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Supports IEEE 802.3bt PoE injector / PoE switch
Compliance RoHS, WEEE
PoE Input IEEE 802.3bt PoE input up to 90W
DC Output 24V DC 2.96A
Input Power Pins 4/5(+), 7/8(-) and 3/6(+), 1/2(-)
Data Speed 10/100/1000Mbps
Operating Temperature 0°C to 40°C
Operating Humidity 20% to 80% non-condensing
Storage Temperature -20°C to 70°C
Storage Humidity 10% to 90% non-condensing
Operating Altitude Up to 2000 meters
Safety Approvals CE
EMI Standards FCC CFR47 Part 15, EN55032, EN55035
EMS Protection IEC61000-4-2 (ESD)
Air discharge: 8kV
Contact discharge: 4kV
Performance B

IEC61000-4-3 (RS)
80-1000MHz, 3V/m, 80%AM (1kHz)
Performance A

IEC61000-4-4 (EFT)
AC Power line: 1kV, Performance B
DC Power line: 0.5kV, Performance B
Signal line: 0.5kV, Performance B
Immunity Standards IEC60068-2-6 (Vibration)
IEC60068-2-27 (Impact)
IEC60068-2-32 (Free Fall)
LED Indicator Green power output indicator
Enclosure Metal
Color Black
Mounting Wall-mounted
IP Rating IP20
Dimensions 138.8 × 89 × 36 mm
Weight 350 g
