Procet PT-PSE108GRN-OT-DE-24 Outdoor DC to DC 24V PoE Injector,IP67 and 10/100/1000Mbps

Specifications

Standard

• IEEE802.3 10Base-T Ethernet
• IEEE802.3u 100Base-Tx Fast Ethernet
• IEEE802.3ab 1000Base-T Gigabit Ethernet
• RoHS Compliance
• WEEE Compliance

Input & Output

• Input 12-24 Vdc 4.0A
• Output 24 Vdc 1.25A
• Power Output Pins: 4/5(+),7/8(-)
• Data Speed: 10/100/1000 Mbps

Working Environment

• Operating Temperature -40°C to 65°C
• Operating Humidity" 20% to 80% , non-condensation
• Storage Temperature: -40°C to 85°C
• Storage Humidity: 10% to 95%, non-condensation
• Operating Altitude: up to 5000meters

PoE Surge Protection

• Protected line:1,2,3,4,5,6,7,8

• Common mode surge protection (10/700us):6kV
• Differential mode surge protection (10/700us)1.5KV

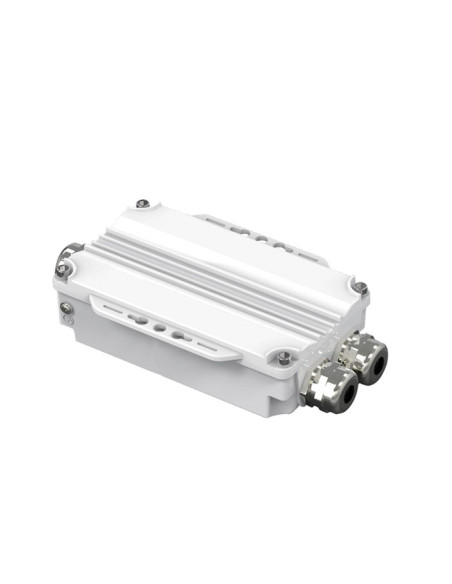

Mechanical Characteristics

• Case: Aluminum
• Color: White

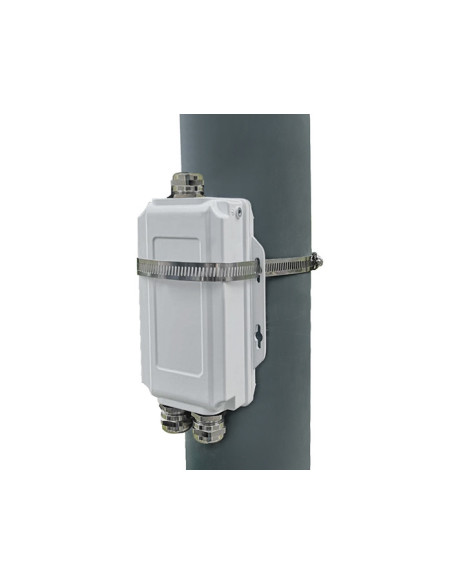

• Mounting:Wall-mounted/Pole-mounted
• IP Rated: IP67
• Size: 187mm X 104.79mm X 45mm
• Weight:565g

Safety Approvals

• CE
• FCC

EMI

• FCC CFR47 PART 15,EN55032,EN55035

EMS

• IEC61000-4-2(ESD)± 4kV (contact),±8k(air)
• IEC61000-4-3(RS)3V/m (80MHz~1000MHz)
• IEC61000-4-4(EFT)Power Port:± 1kV, Data Port:±0.5kV
• IEC61000-4-5(Surge)Line to Line:± 1kV,Line to Earth:±2kV
• IEC61000-4-6(CS)3V (0.15MHz ~10 MHz)

Immunity

• IEC60068-2-6(Vibration)
• IEC60068-2-27(Impact)
• IEC60068-2-32(Free Fall)
