Procet PT-PD208GBHO-24 24V Gigabit PoE Splitter for 95W Non-PoE Devices
Procet PT-PD208GBHO-24|Procet PT-PD208GBHO-24 24V Gigabit PoE Splitter for 95W Non-PoE Devices| Wisp Australia
  • New
Procet PT-PD208GBHO-24|Procet PT-PD208GBHO-24 24V Gigabit PoE Splitter for 95W Non-PoE Devices| Wisp Australia
Procet PT-PD208GBHO-24 24V Gigabit PoE Splitter for 95W Non-PoE Devices
Procet PT-PD208GBHO-24|Procet PT-PD208GBHO-24 24V Gigabit PoE Splitter for 95W Non-PoE Devices| Wisp Australia

Procet PT-PD208GBHO-24 24V Gigabit PoE Splitter for 95W Non-PoE Devices

PT-PD208GBHO-24
Last items in stock
$94.60
Tax included

PT-PD208GBHO-24

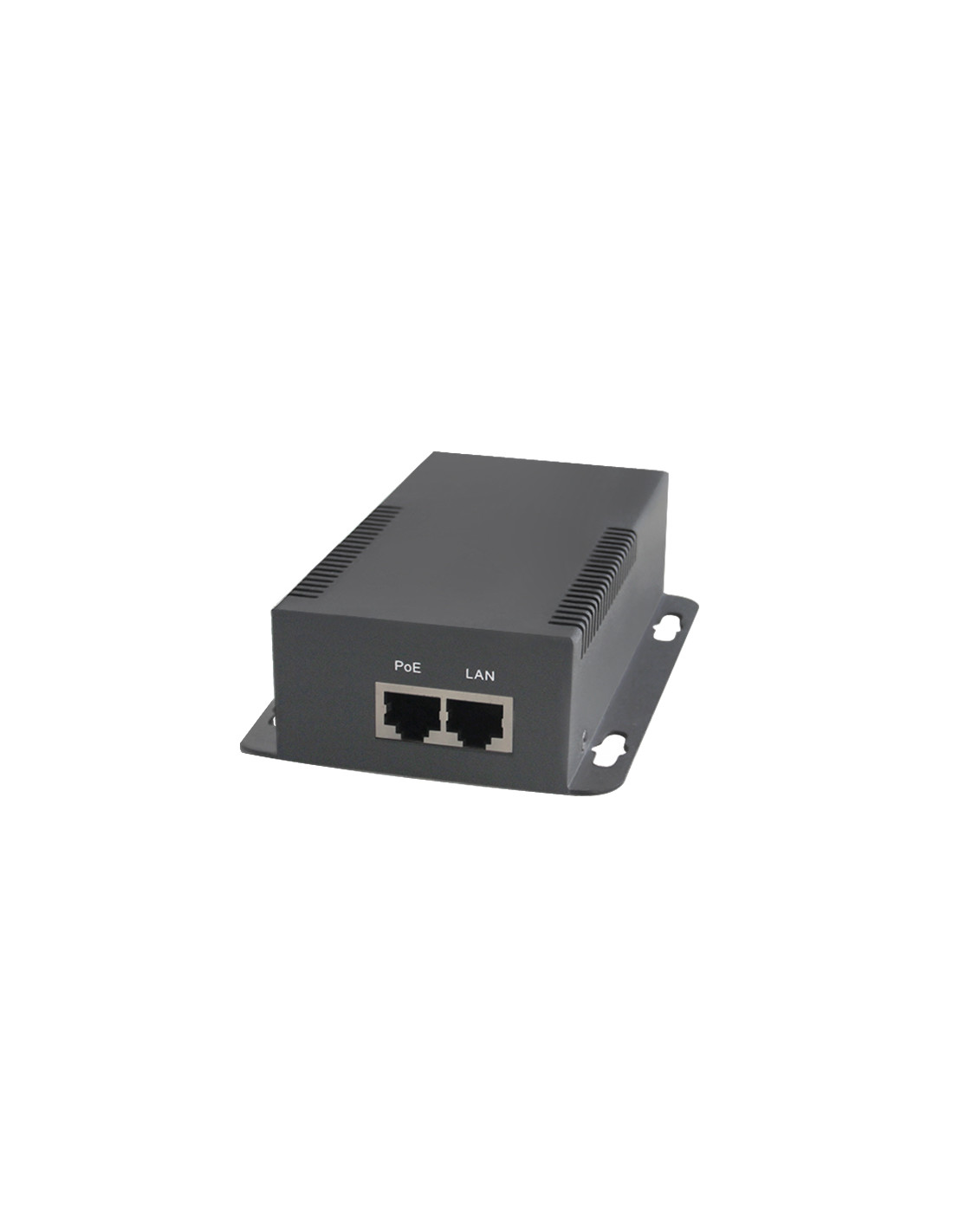

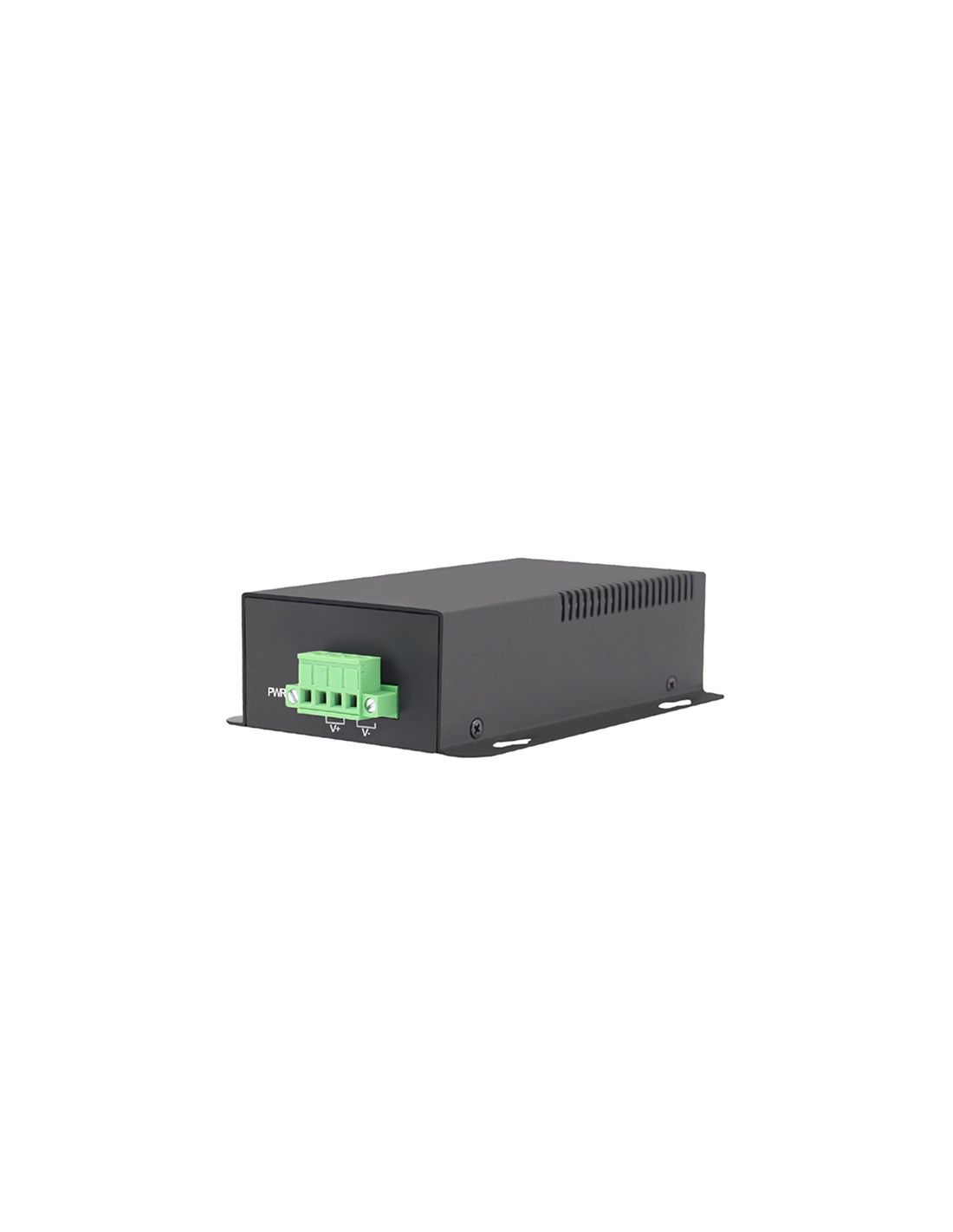

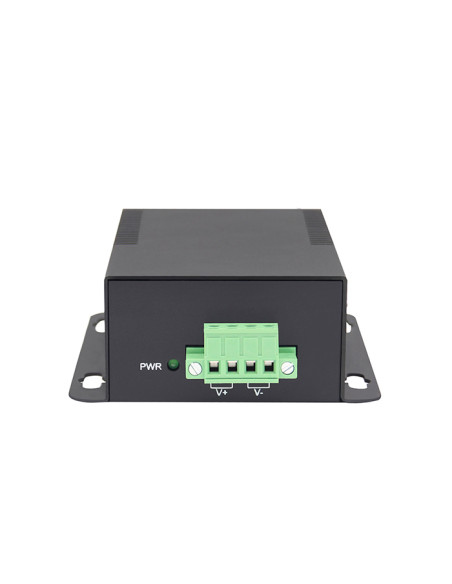

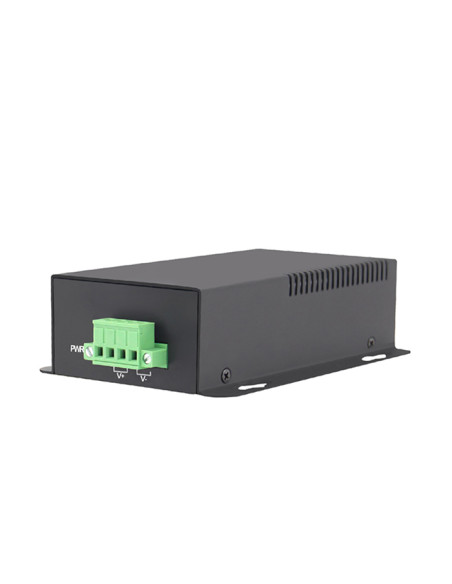

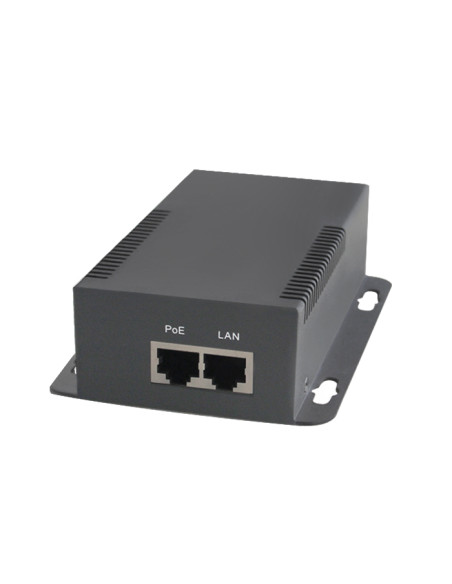

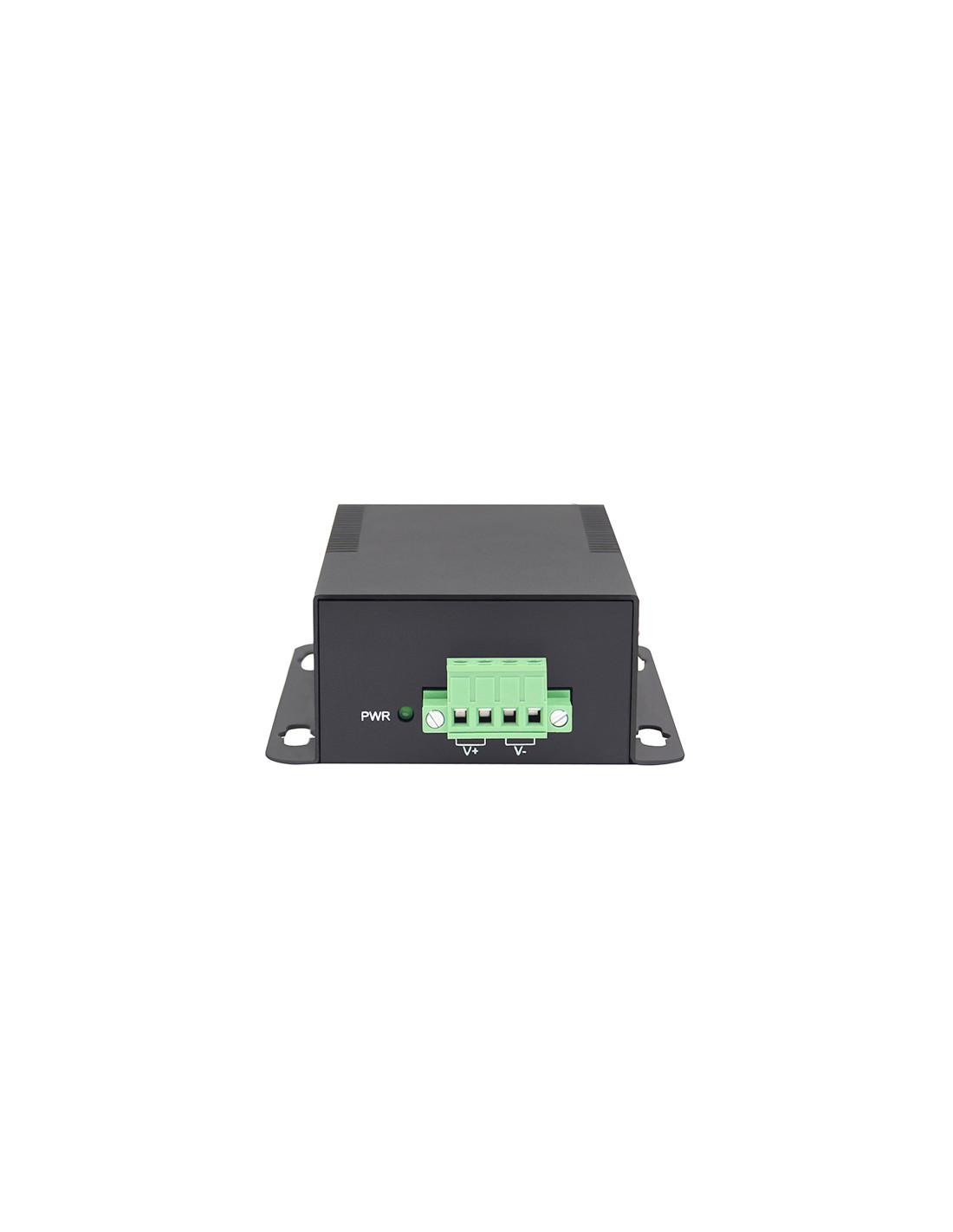

The PROCET PT-PD208GBHO-24 is a single-port Gigabit PoE splitter with a high-impact metal enclosure designed to separate power and data from a PoE injector and deliver both Ethernet data and 24V DC power to non-PoE devices. Supporting Gigabit Ethernet transmission and 24V DC 3.4A output, it is suitable for high-power communication stations, wireless access points, network cameras, and other non-PoE terminals.

Designed for indoor installations, the splitter supports transmission distances up to 100 meters over Cat5e/Cat6 cabling and features isolated internal protection with energy efficiency up to 94%.

Key Features

  • ✓24V DC 3.4A output power
  • ✓Single-port Gigabit PoE splitter
  • ✓Supports non-PoE devices up to 95W
  • ✓10/100/1000Mbps Ethernet support
  • ✓  Designed for 24V non-PoE devices

Quantity Unit price You Save
4 $91.76 $11.35

Related Products & Accessories



PT-PD208GBHO-24 24V Gigabit PoE Splitter for 95W Non-PoE Devices

The PROCET PT-PD208GBHO-24 is a single-port PoE splitter designed to separate power and Ethernet data from a PoE injector and deliver both 24V DC power and Gigabit Ethernet connectivity to non-PoE devices. Featuring a high-impact metal enclosure, the splitter supports 10/100/1000Mbps data transmission and provides 24V DC 3.4A output for high-power communication stations, wireless access points, network cameras, and other non-PoE terminals. Designed for indoor installations, the PT-PD208GBHO-24 supports transmission distances up to 100 meters over Cat5e/Cat6 Ethernet cabling and operates with 40–57V DC PoE input. Its isolated internal protection design helps reduce the risk of damage caused by high current input while maintaining stable operation. The splitter delivers energy efficiency up to 94% and features a compact form factor with four mounting holes for flexible installation in communication systems, networking cabinets, and structured cabling environments.

Technical Specifications

Specification Value
Ethernet Standards IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Support PoE injector with IEEE 802.3af/at/bt
Compliance RoHS, WEEE
PoE Input 40-57Vdc (typical 48V) 1.0A
DC Output 24V DC  3.4A
Input Power Pins 4/5(+), 7/8(-) and 3/6(+), 1/2(-)
Data Speed 10/100/1000Mbps
Operating Temperature -40°C to 55°C
Operating Humidity 20% to 80% non-condensing
Storage Temperature -20°C to 70°C
Storage Humidity 10% to 90% non-condensing
Operating Altitude Up to 2000 meters
EMI Standards FCC CFR47 Part 15, EN55032, EN55035
EMS Protection IEC61000-4-2(ESD)
IEC61000-4-3(RS)
IEC61000-4-4(EFT)
Immunity Standards IEC60068-2-6 (Vibration)
IEC60068-2-27 (Impact)
IEC60068-2-32 (Free Fall)
LED Indicator Green power output indicator
Enclosure Metal
Color Black
Mounting Wall-mounted
IP Rating IP20
Dimensions 128 × 89 × 36 mm
Weight 490 g
PT-PD208GBHO-24
