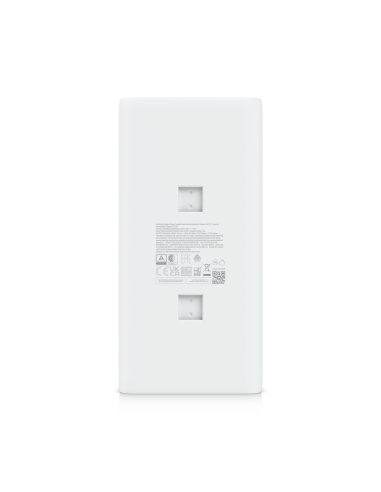

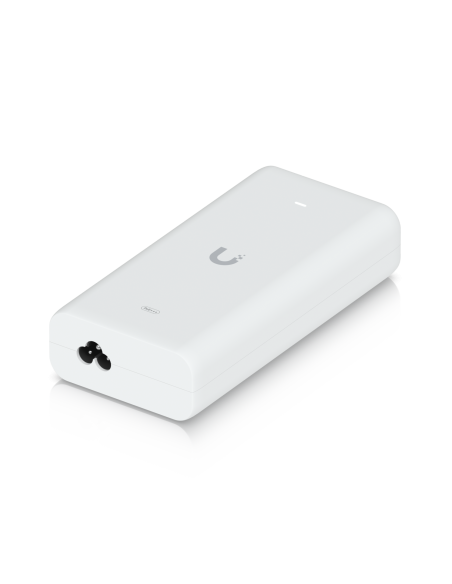

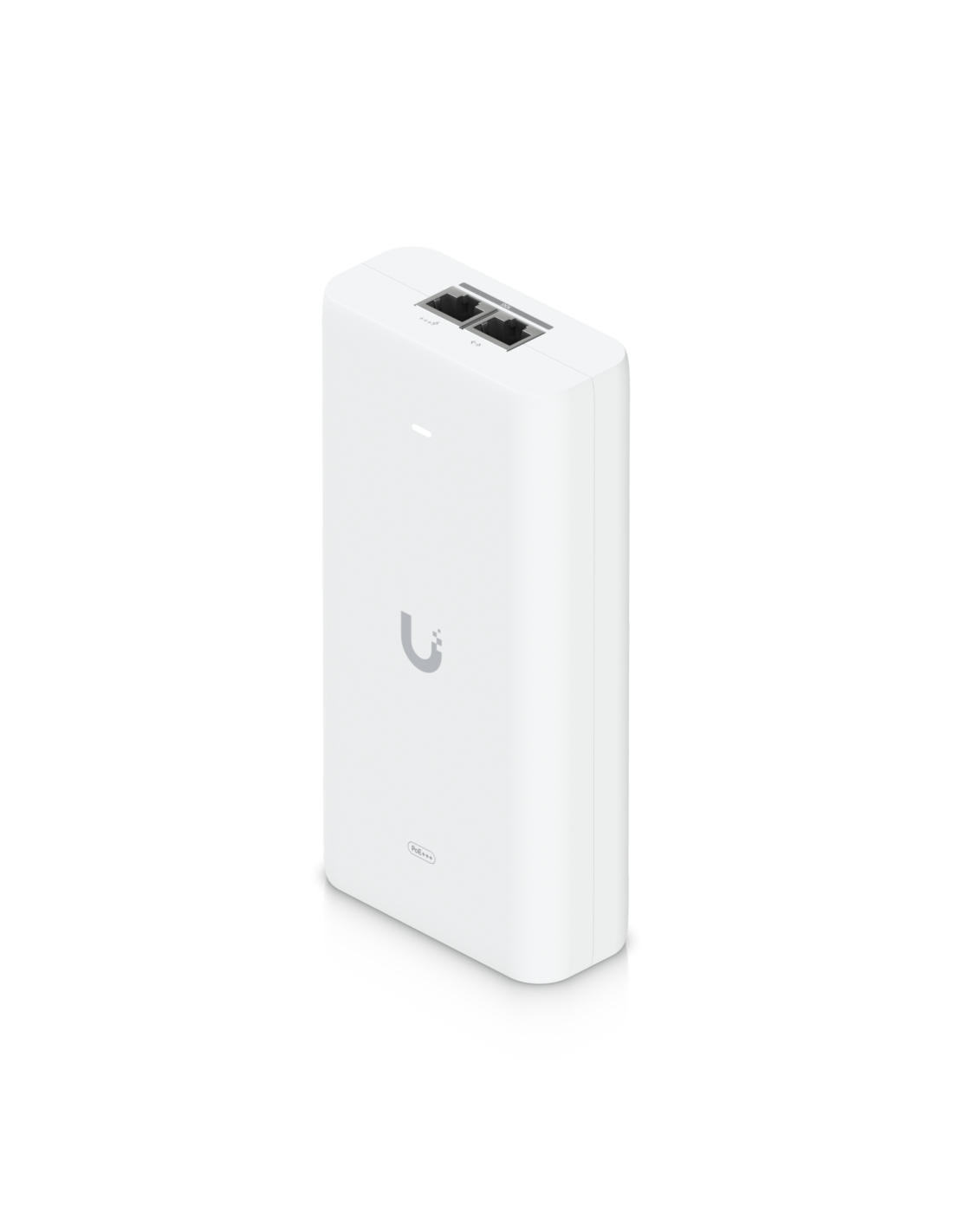

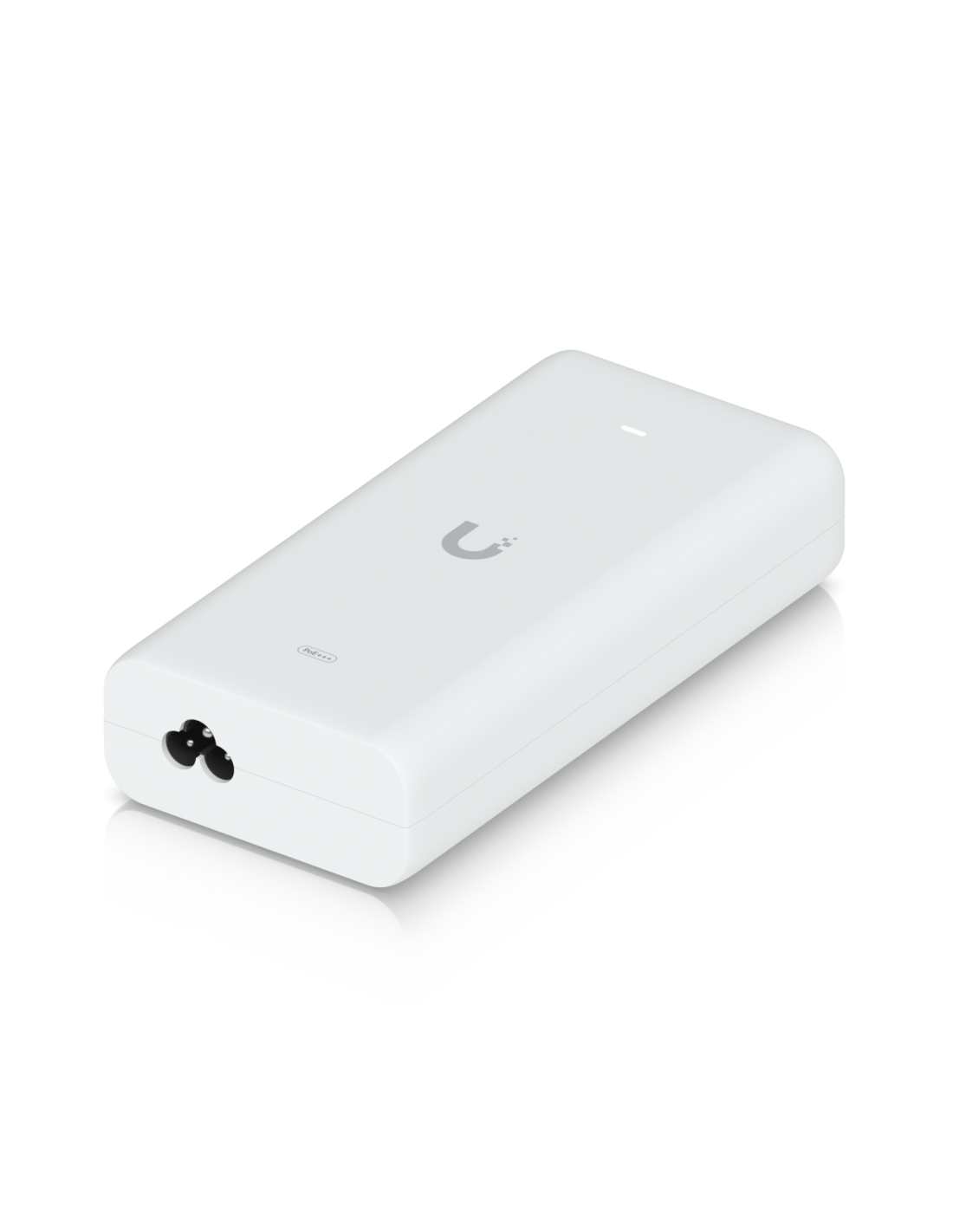

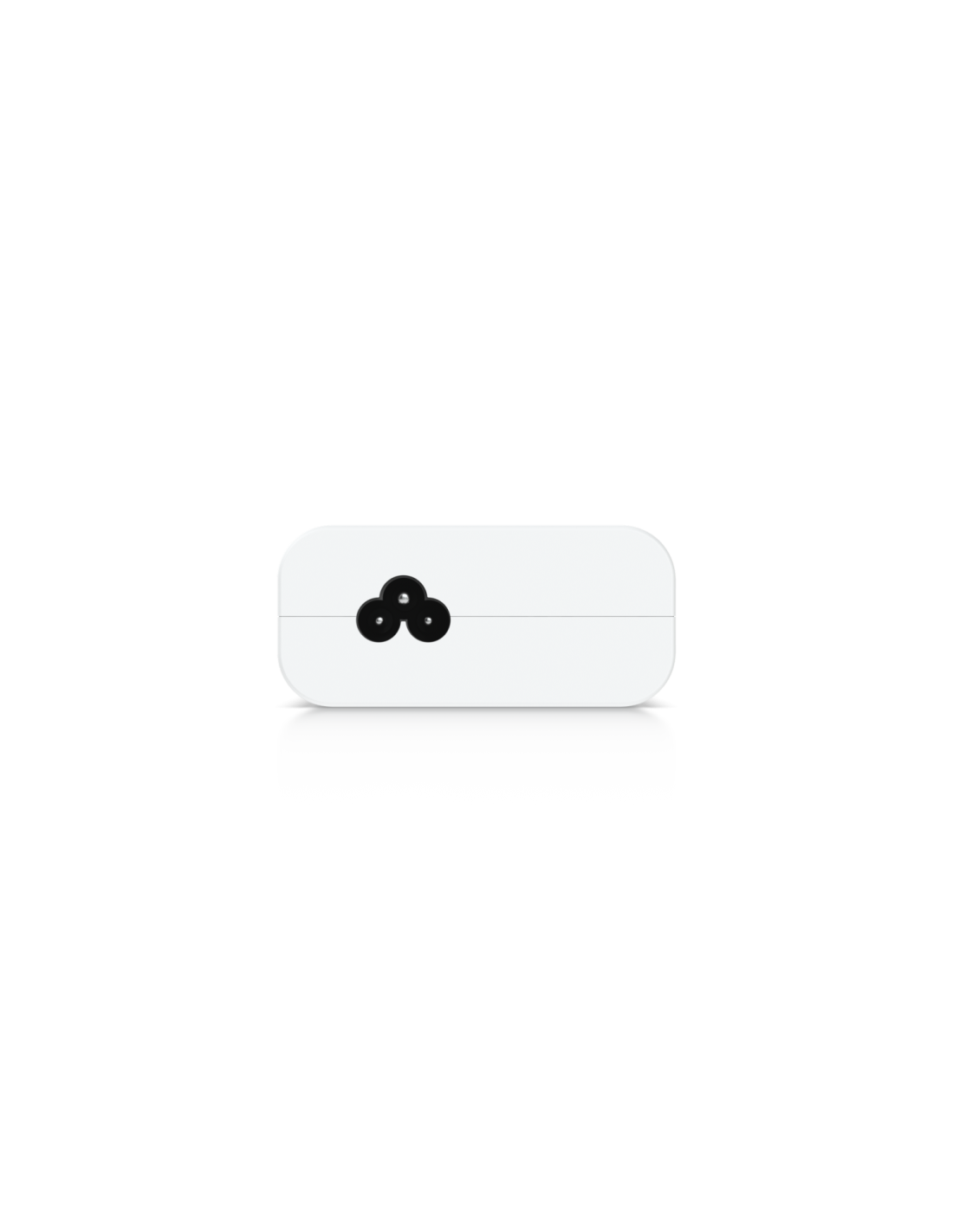

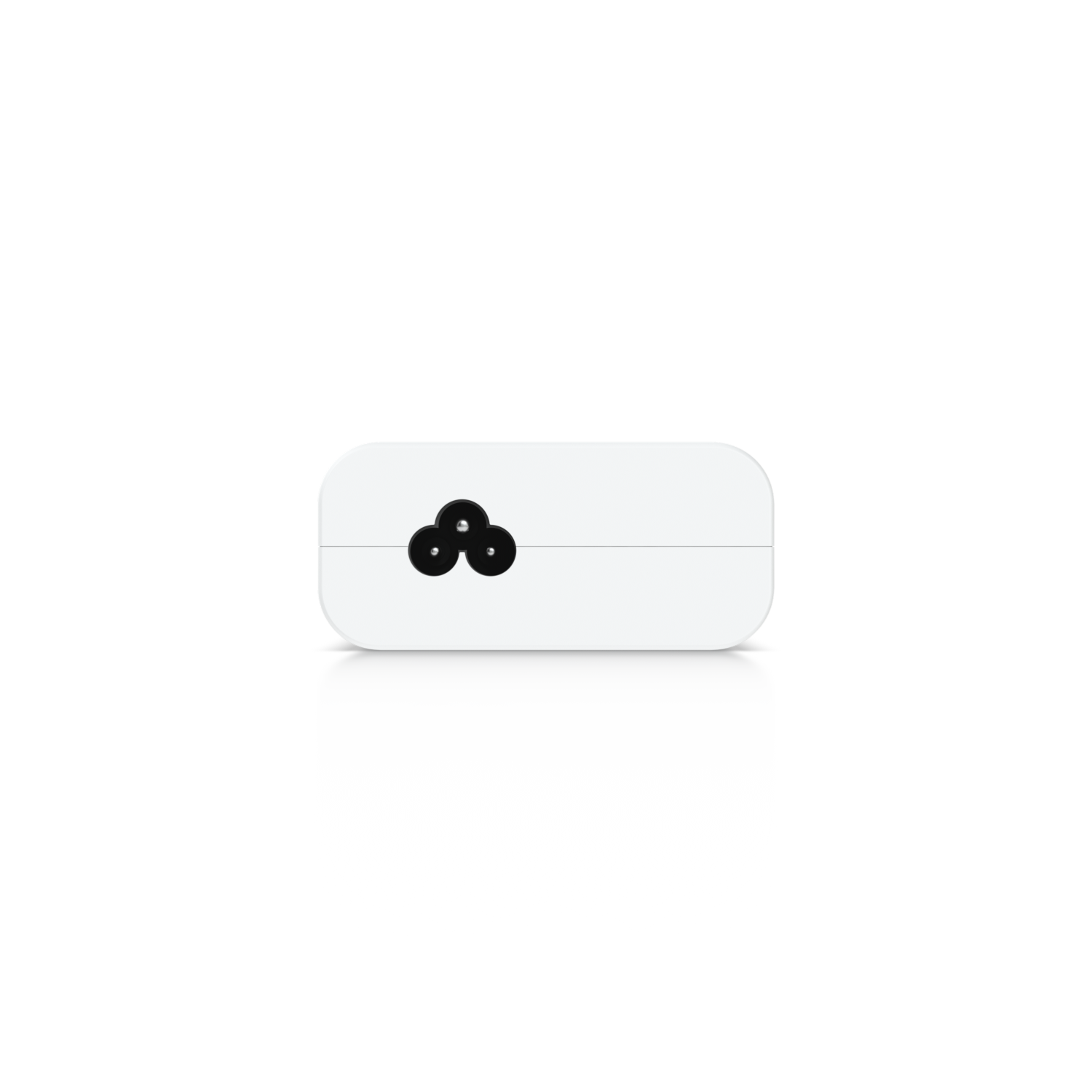

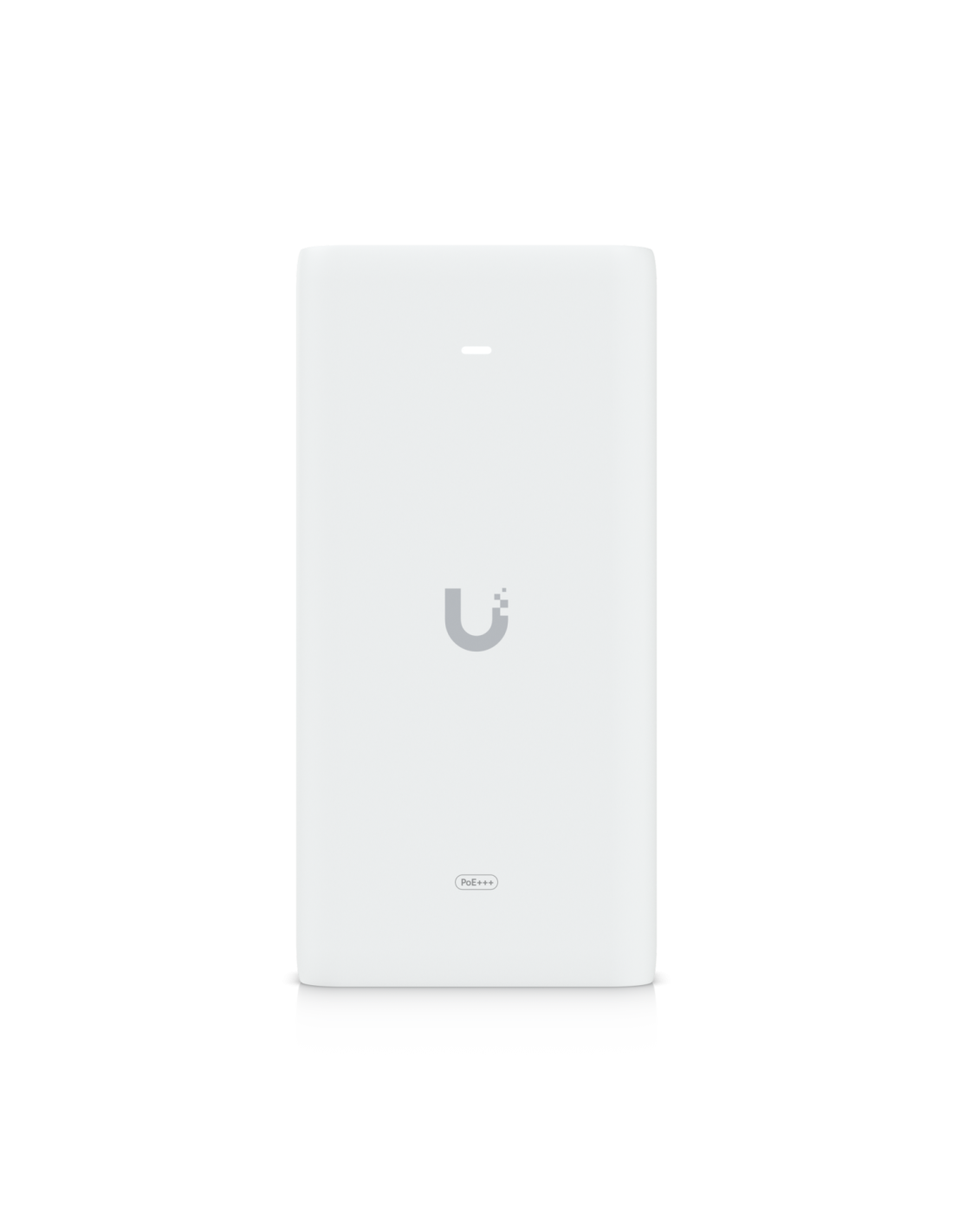

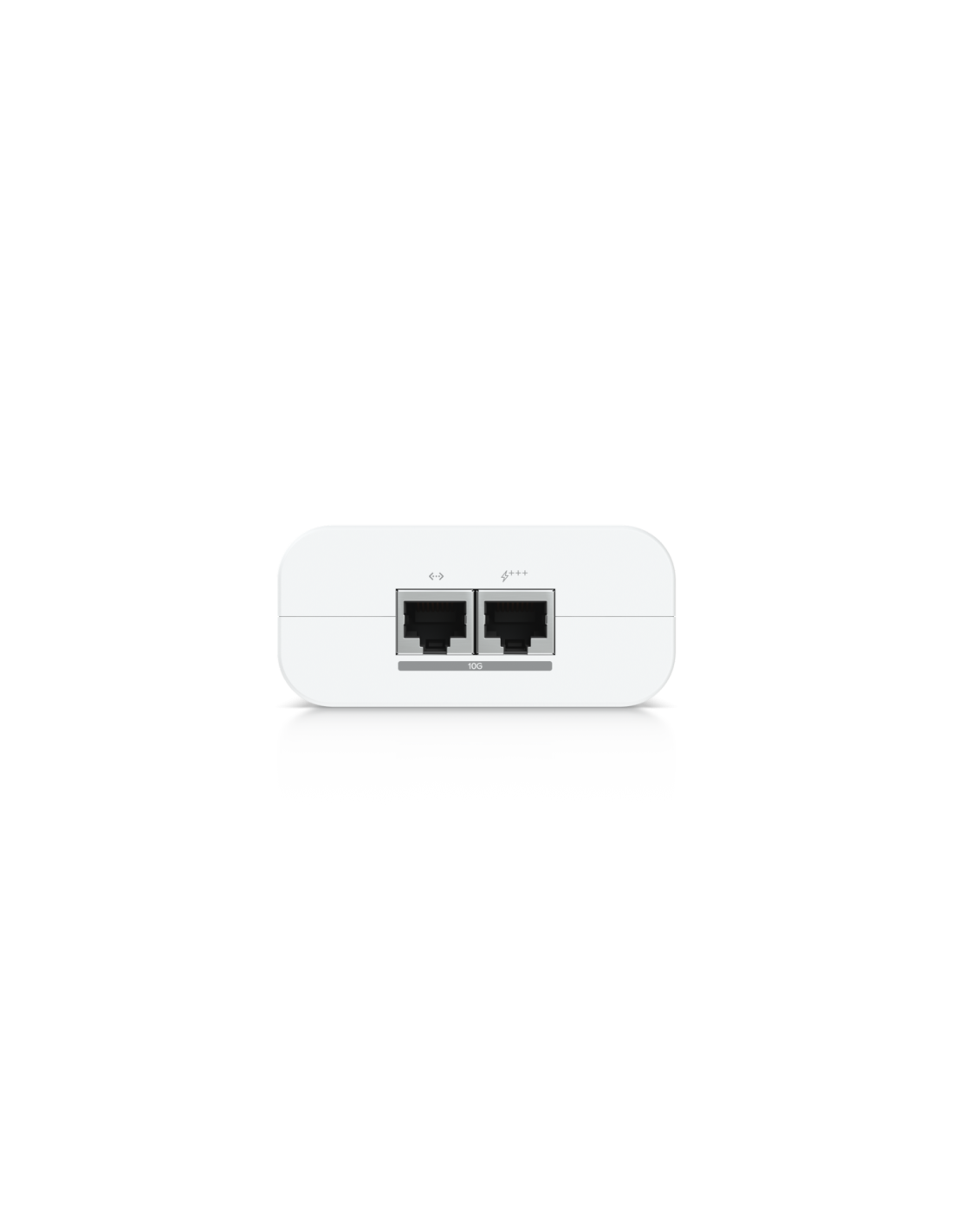

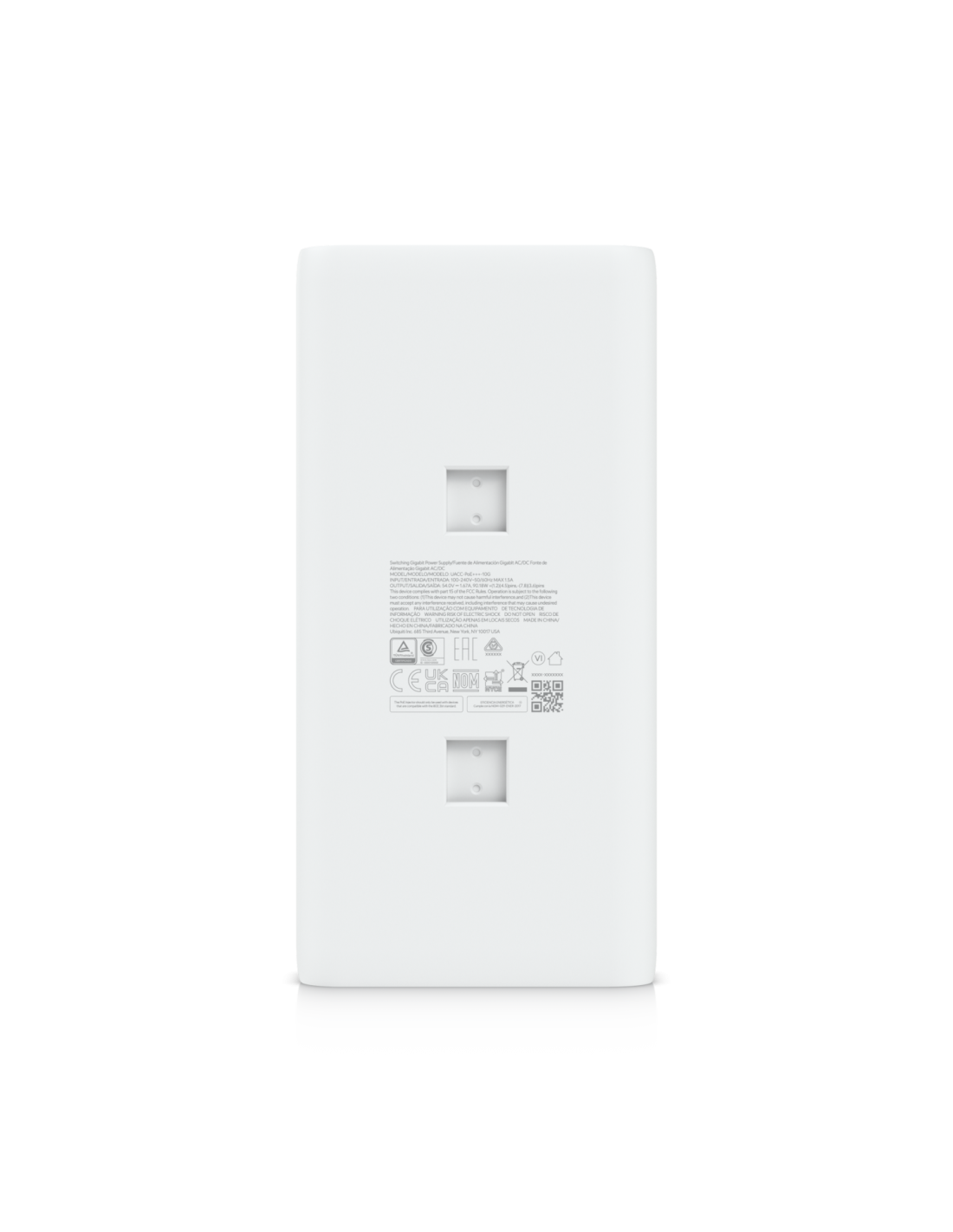

Ubiquiti UACC-PoE+++-10G 10G PoE+++ Adapter (90W)
UACC-PoE+++-10G

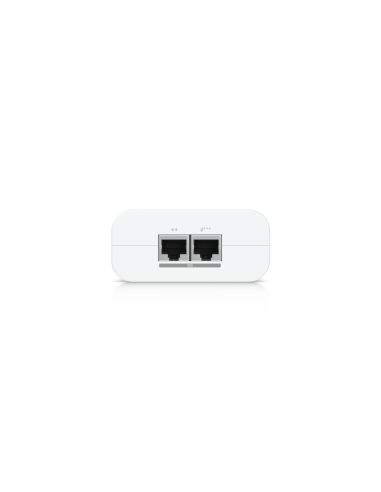

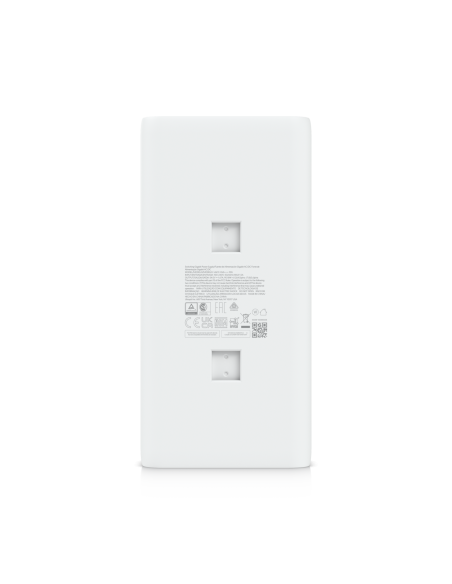

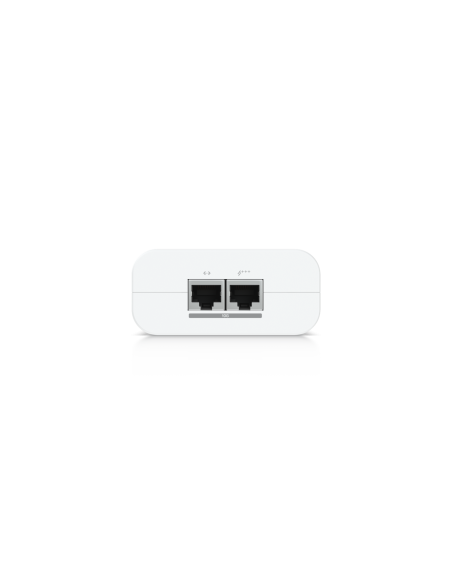

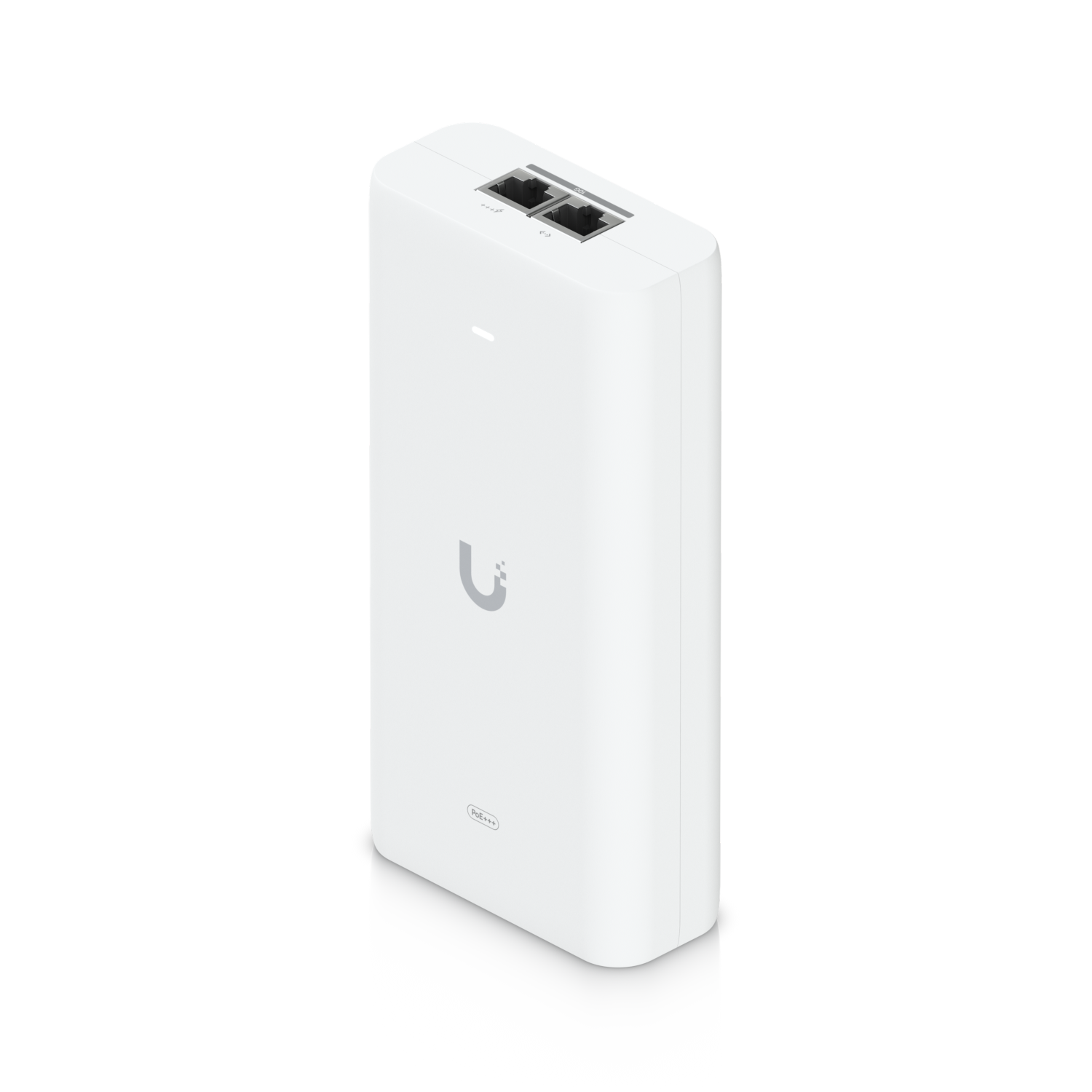

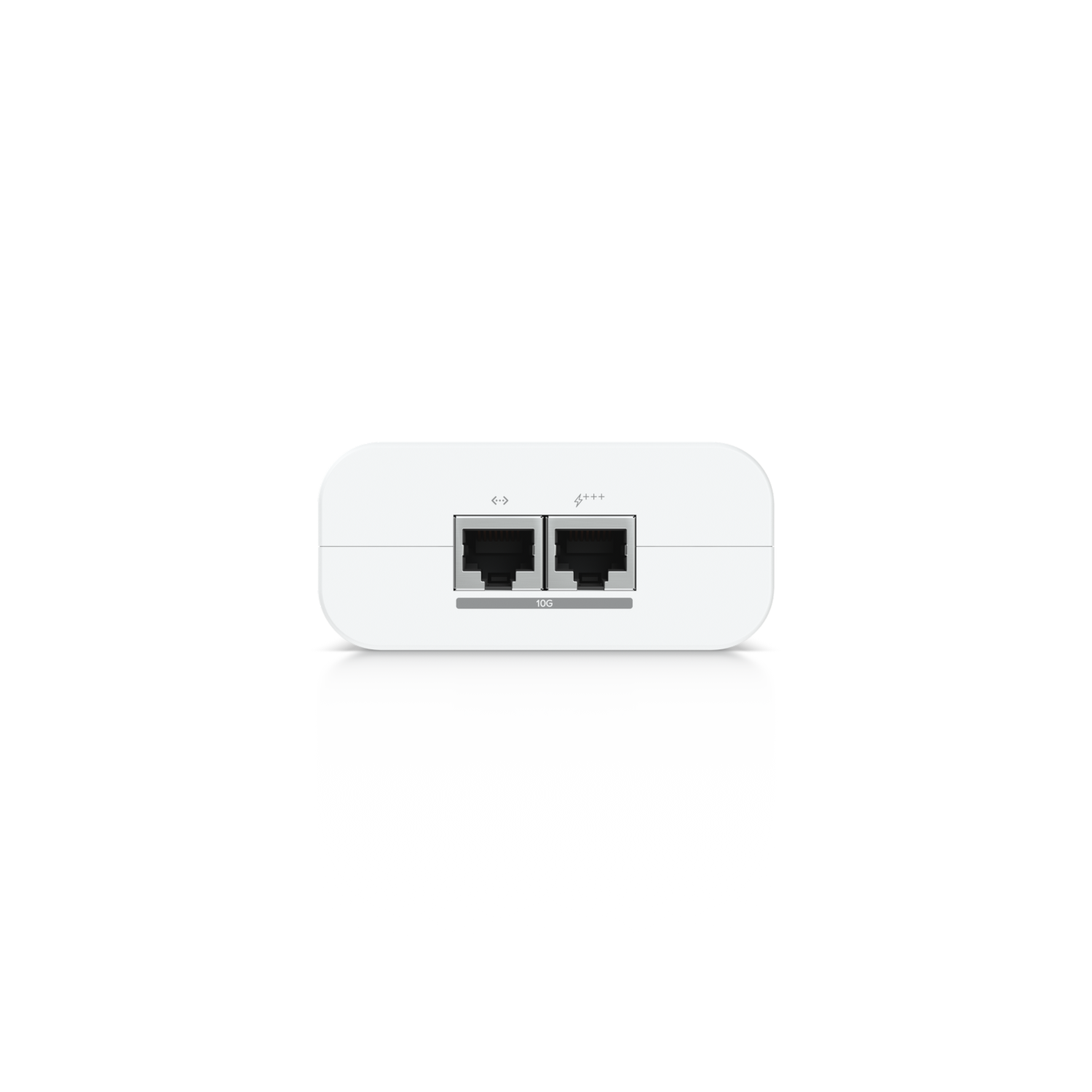

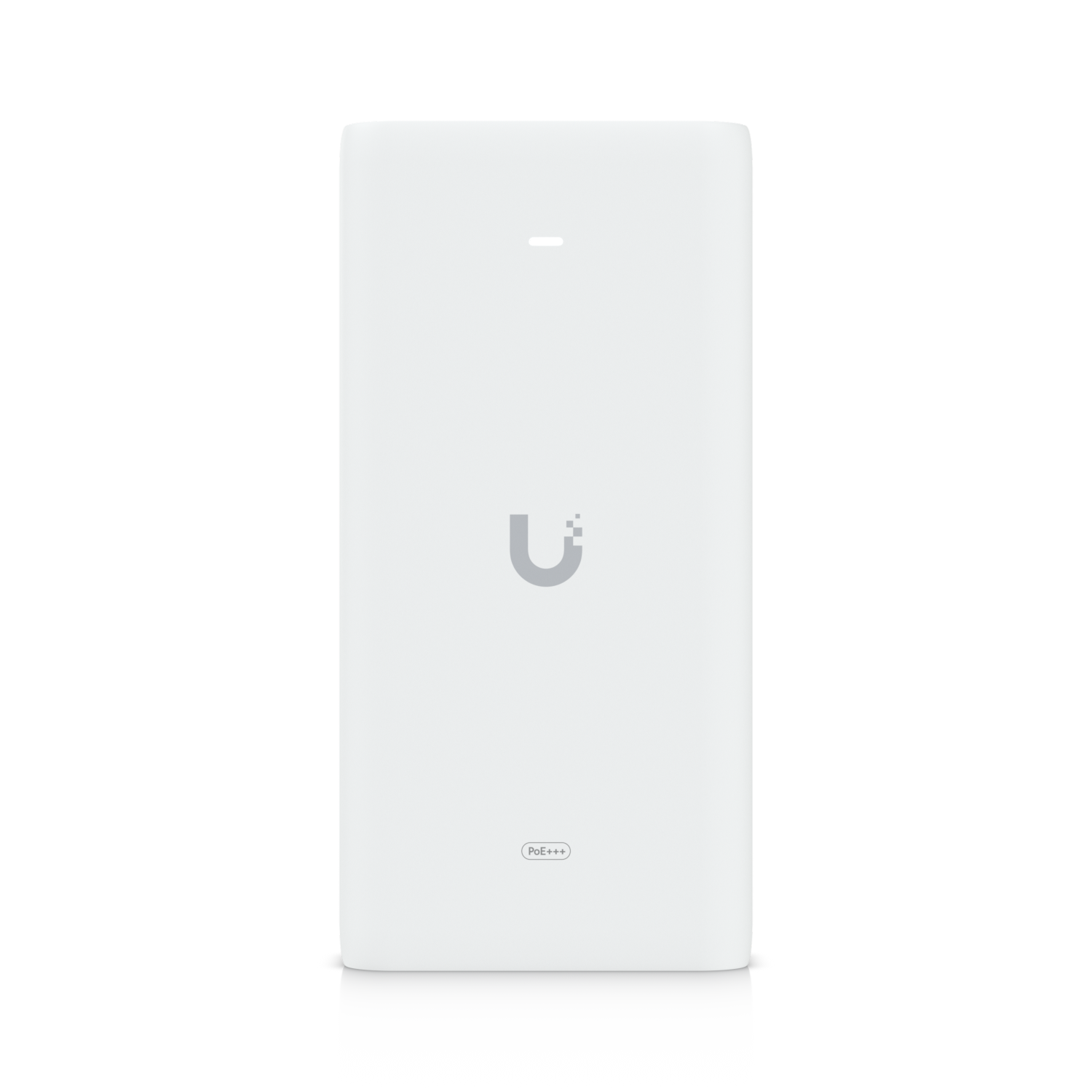

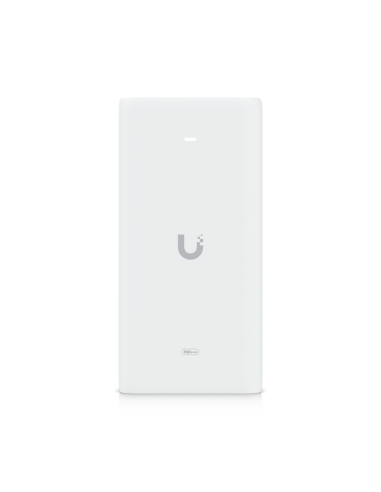

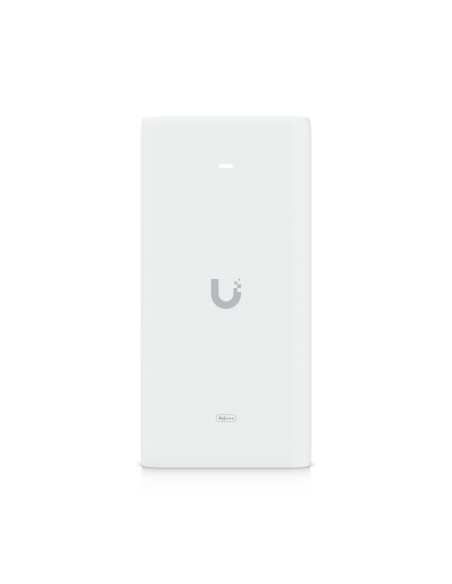

The UniFi 10G PoE+++ Adapter (90W) powers UniFi PoE+++ devices and reduces reliance on PoE switch power. It provides a Multi-Gigabit LAN connection with up to 90W of PoE+++ power delivery. The adapter includes surge, peak pulse, and overcurrent protection and supports wall mount, DIN rail, and floating mount options (DIN rail and floating mount sold separately). It features an LED indicator for status monitoring and is certified with CE, FCC, IC, UL, UKCA, KC, CCC, and RoHS.
Key Features
- ✓Powers UniFi PoE+++ devices
- ✓Reduces reliance on PoE switch power
- ✓Provides Multi-Gigabit LAN connection
- ✓Delivers 90W of PoE+++ power
- ✓Supports wall mount, DIN rail and floating mount*
UniFi 10G PoE+++ Adapter (90W) - UACC-PoE+++-10G
The Ubiquiti UACC-PoE+++-10G is designed to provide high-power PoE+++ output for demanding UniFi devices. With support for up to 90W, it enables reliable operation of devices requiring higher power without depending on PoE-capable switches.
Featuring 10GbE data connectivity, the adapter ensures high-speed network performance while delivering power over a single Ethernet cable. Its compact design allows for flexible installation, including wall mounting and optional DIN rail mounting.
Integrated protection features help safeguard connected devices, while the LED indicator provides quick status visibility. This makes it an ideal solution for enterprise and advanced network deployments.
Technical Specifications
| Specification | Value |
|---|---|
| Dimensions | 164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7") |
| Weight | 372 g (13.1 oz) |
| Power Cable | Included |
| Output Voltage | 54V DC @ 1.67A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| LAN Activity Indicator | — |
| Gigabit LAN Port | ✓ |
| Remote Reset Capability | — |
| Reset Button | — |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V data, 60V power |
| Data In / PoE | RJ45 shielded socket |
| Input Current | 1.5A Max. |
| Inrush Current | <120A peak @ 230V AC |
| Efficiency | >88% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 2% |
| Load Regulation | ≤ 5% |
| Max. PoE+ Wattage per Port by PSE | 90W |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Ambient Operating Temperature | 0 to 40°C (32 to 104°F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
