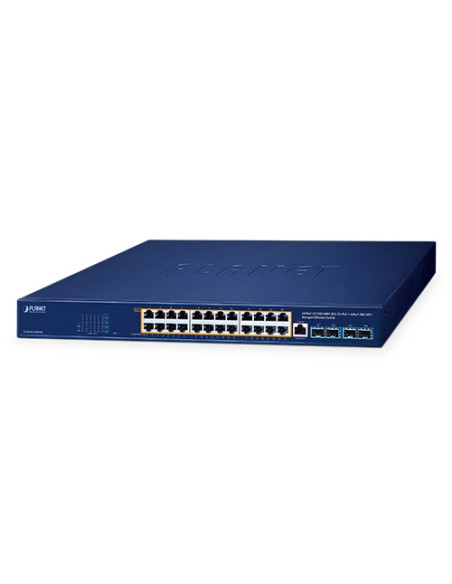

PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE ++ 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE ++ 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE ++ 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE ++ 4-Port 10G SFP+ Managed Ethernet Switch

PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE ++ 4-Port 10G SFP+ Managed Ethernet Switch

GS-4210-24UP4X
Last items in stock
$1,317.46
Tax included
planet GS-4210-24UP4X

GS-4210-24UP4X

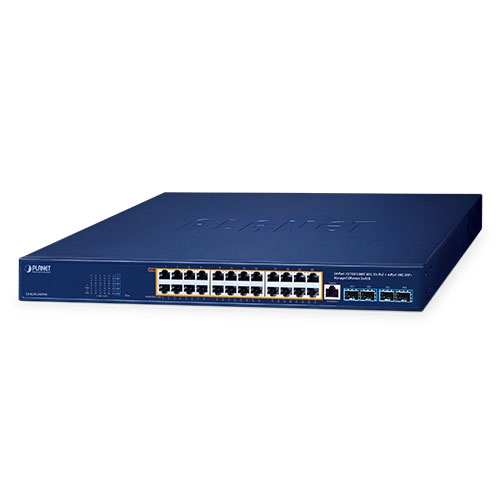

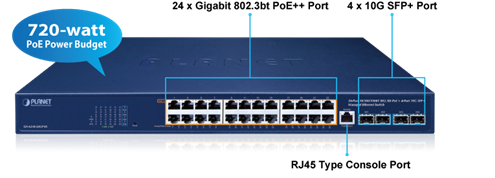

The PLANET GS-4210-24UP4X is a robust and feature-rich managed Ethernet switch designed for demanding network environments. It offers 24 10/100/1000BASE-T ports and four 10G SFP+ ports, providing ample bandwidth and connectivity options. The switch supports IEEE 802.3bt PoE++ with a total power budget of 720W delivering up to 95W per port to power devices like IP cameras, VoIP phones, and wireless access points. With its comprehensive management features and advanced security protocols, this switch ensures reliable, secure, and high-performance network operation.

Key Features

  • ✓24 10/100/1000BASE-T Ports
  • ✓4 10G SFP+ Ports
  • ✓802.3bt PoE++
  • ✓Managed Ethernet Switch
  • ✓Comprehensive Management Features
  • ✓Advanced Security Protocols

- SFP Modules

Planet Multi-Mode MTB-TSR 300m 10G SFP+ Fiber Transceiver

$62.21

Planet Multi-Mode MTB-SR 300M 10G SFP+ Fiber Transceiver (Multimode)

$46.11

Planet Single-Mode MTB-LR20 10G SFP+ Fiber Transceiver (1310nm, DDM) – 20KM

$168.85

Planet Single-mode MTB-SR2 10G SFP+ Fiber Transceiver (1310nm, DDM) 2KM

$53.63

Planet MTB-RJ 30m 10GBASE-T SFP+ Copper RJ45 Transceiver

$180.46

Planet Single-Mode MTB-LR 10G SFP+ Fiber Transceiver – 10KM

$65.43

Planet Single-Mode MTB-TLR 10G SFP+ Fiber Transceiver (DDM, -40~75C) -10KM

$84.72

Planet Multi-Mode MGB-TSB Mini GBIC Multi-mode WDM Tx-1550, 2km ,1000Mbps Gigabit SFP Fiber Transcei

$45.80

Planet Multi-Mode MGB-TSA Mini GBIC Multi-mode WDM Tx-1310, 2KM, 1000Mbps SFP fiber transceiver

$45.80

Planet Single-Mode MGB-TLX Mini GBIC LX Module – 20KM, extended temperature 1000Mbps Gigabit SFP Fib

$42.90

Planet MGB-GT Mini GBIC TP Module – 100M, 1000Mbps Gigabit Ethernet SFP Fiber Transceiver

$58.99

Planet MGB-TGT Mini GBIC TP Module – 100M , extended temperature 1000Mbps Gigabit Ethernet SFP Fiber

$69.72

Planet Multi-mode MGB-SX2 Mini GBIC SX Module – 2KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tran

$40.76

Planet Single Mode MGB-LX Mini GBIC LX Module – 20KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tra

$40.76

Planet Multi-mode MGB-TSX Mini GBIC SX Module, DDM Supported – 220-550M, extended temperature 1000Mb

$41.82

Planet Single-Mode MGB-L40 Mini GBIC LX Module – 40KM ,1000Mbps Gigabit Ethernet SFP Fiber Transceiv

$64.35

Planet Single-Mode MGB-2GTLA20 2.5G SFP Transceiver (WDM, TX:1310nm RX:1550nm, DDM, -40~75°C) – 20km

$89.10

MGB-TSX2 Planet 1000BASE-SX mini-GBIC MultiMode module, SFP transceiver, up to 2Km, -40 to 75°C, DDM

$42.90

Planet MGB-SX Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)

$38.61

Planet Multi-mode MFB-TSA SFP-Port 100BASE-BX Transceiver (WDM,TX:1310nm RX:1550nm / DDM) - 2km (-4

$84.29

Planet Multi-Mode MFB-TSB SFP-Port 100BASE-BX Transceiver (WDM,TX:1550nm RX:1310nm / DDM) - 2km (-40

$87.49

Planet MFB-F20 Single Mode, 100Mbps SFP Fiber Transceiver – 20KM

$41.82

Planet MFB-TFX Multimode 100Mbps SFP fiber transceiver 1310nm 2KM -40 to 75C

$49.34

Planet MFB-TF20 Single-Mode 100Mbps SFP Fiber Transceiver – 20km

$57.92

Quantity Unit price You Save
4 $1,277.94 $158.10

Related Products & Accessories



PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE ++ 4-Port 10G SFP+ Managed Ethernet Switch

planet GS-4210-24UP4X

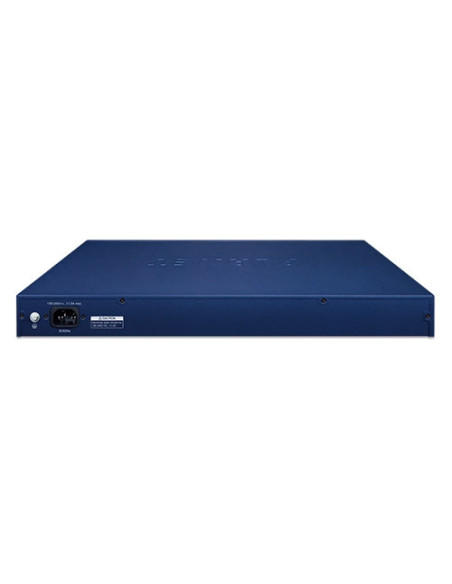

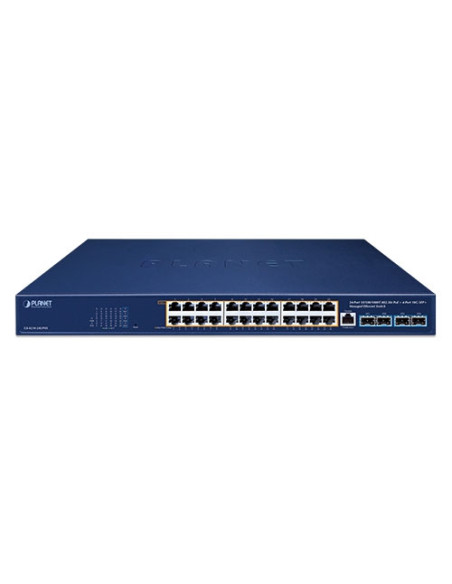

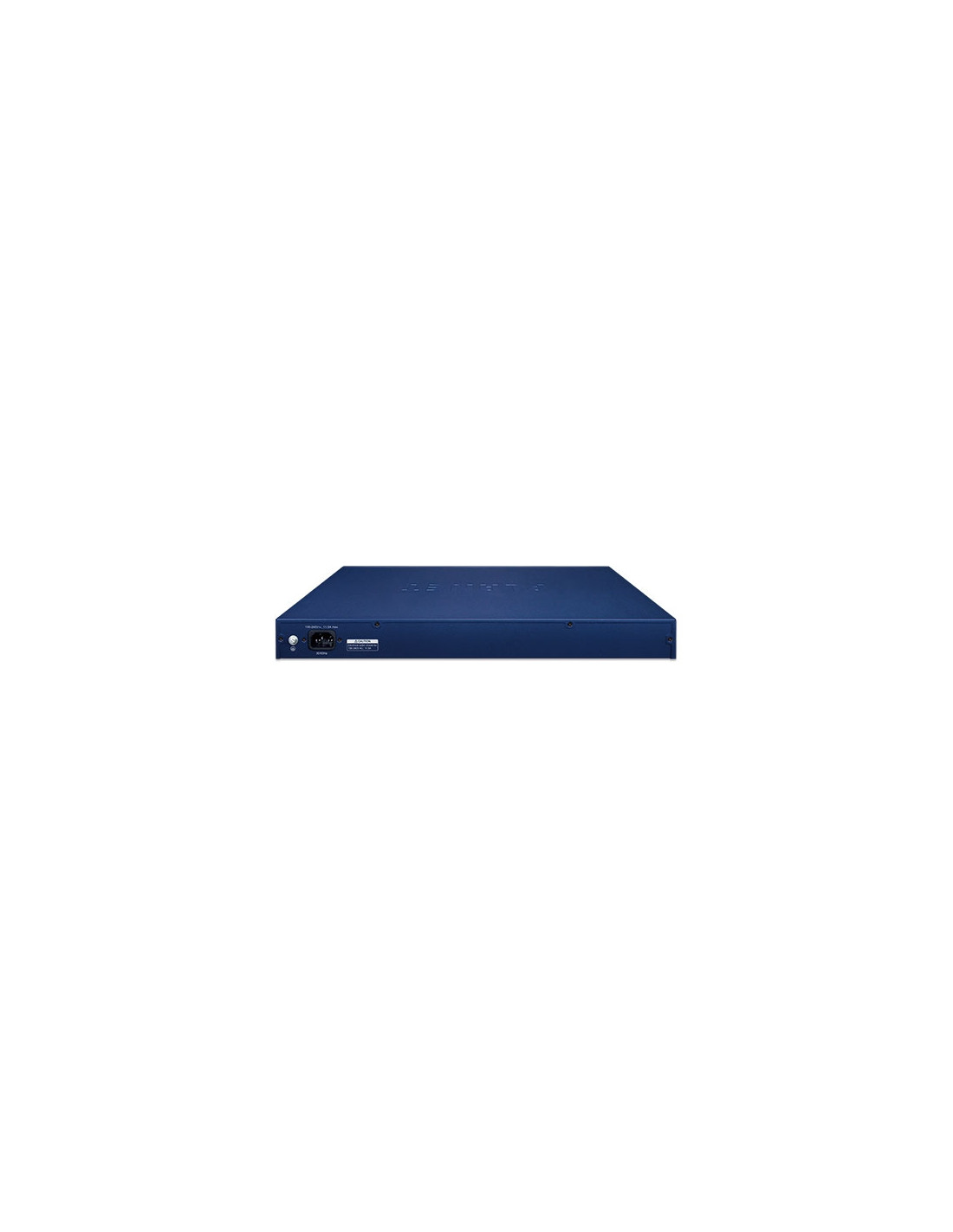

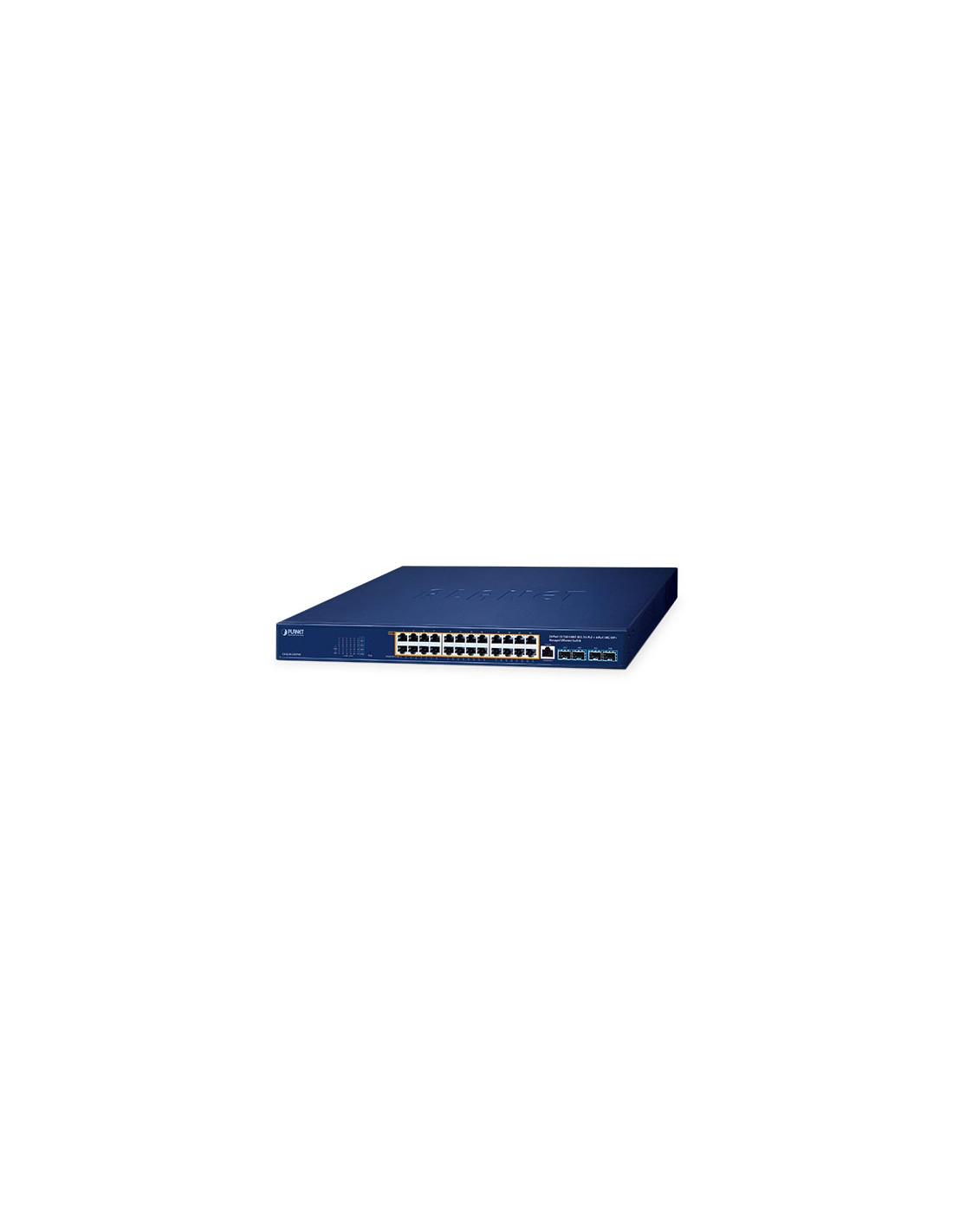

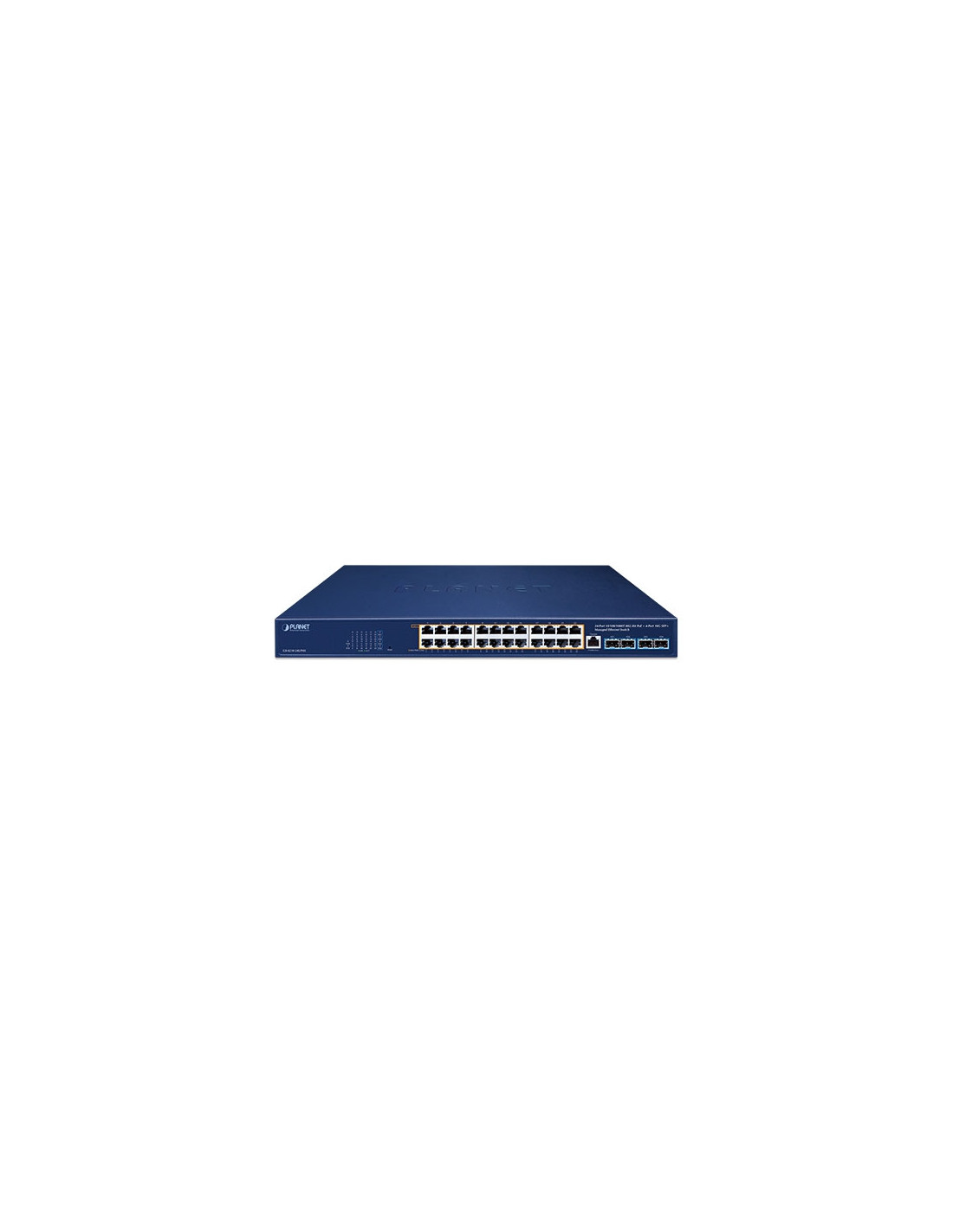

planet GS-4210-24UP4X view 2 planet GS-4210-24UP4X view 3 planet GS-4210-24UP4X view 4

The PLANET GS-4210-24UP4X is a fully managed, high-performance PoE+ switch designed to provide a cost-effective and reliable networking solution for small to medium-sized businesses, enterprises, and branch offices. It's equipped with 24 10/100/1000BASE-T ports, supporting Power over Ethernet Plus (PoE+) to deliver power and data over a single cable. The four 10G SFP+ ports provide high-speed connectivity for backbone links and server connections. The switch boasts a wide range of advanced features, including VLAN support, QoS, IGMP snooping, and security protocols, ensuring optimal network performance and security.

This switch offers sophisticated management capabilities including web-based configuration, SNMP, and CLI interfaces. These options allow for efficient monitoring, configuration, and troubleshooting of the network. The switch is designed for ease of installation and maintenance, with a user-friendly interface and comprehensive documentation. Energy-efficient features, like Energy-Efficient Ethernet (EEE), contribute to reduced power consumption and operating costs.

Security is a key focus of the GS-4210-24UP4X. It incorporates robust security measures, such as access control lists (ACLs), MAC address filtering, DHCP snooping, and ARP inspection, to protect the network from unauthorized access and malicious attacks. The switch supports RADIUS/TACACS+ authentication, enhancing security and centralized user management. It also contains a range of features designed to manage and mitigate against various denial-of-service (DoS) attack vectors.

The PLANET GS-4210-24UP4X is built for reliability and long-term operation. It's designed to withstand demanding environments and boasts a wide operating temperature range, ensuring consistent performance under various conditions. The switch undergoes rigorous testing and quality control procedures to provide a dependable network infrastructure. Its compliance with industry standards ensures interoperability and compatibility with other network devices.

Technical Specifications

Specification Value
Product Type Managed Ethernet Switch
Ports 24 x 10/100/1000BASE-T, 4 x 10G SFP+
PoE 802.3bt PoE++
Switch Fabric 128Gbps/non-blocking
Address Table 16K entries
Jumbo Frame Back pressure for half duplex
VLAN 802.1Q tagged VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
QoS 8 Mapping IDs to 8 level priority queues
IGMP Snooping Yes, up to 256 multicast groups
LLDP Yes
Ring Yes, supports ERPS (ITU-T G.8032)
Security ACLs, MAC Address Filtering, DHCP Snooping, ARP Inspection, RADIUS/TACACS+
Management Web-based GUI, SNMP, CLI
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab, ITU-T G.8032
Regulatory Compliance FCC Part 15 Class A, CE
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 60 degrees C
Humidity 5 ~ 95% (non-condensing)
SNMP MIBs RFC 1213, RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635, RFC 3621, PLANET-Aggr-MIB, PLANET-DDMI-MIB, PLANET-Firmware-MIB, PLANET-GVRP-MIB, PLANET-LACP-MIB, PLANET-SYSUTIL-MIB, PLANET-CONFIG-VLANDATA-MIB, PLANET-CONFIG-PORTDATA-MIB, PLANET-CONFIG-QOSDATA-MIB, PLANET-CONFIG-LACPPORTDATA-MIB, PLANET-CONFIG-REMOTESYSLOG-MIB, PLANET-CONFIG-SNTPDATA-MIB, PLANET-CONFIG-UPGRADEDATA-MIB, PLANET-CONFIG-BACKUPDATA-MIB, PLANET-CONFIG-SYSTEM-MIB_v2, PLANET-CONFIG-LLDPDATA-MIB
