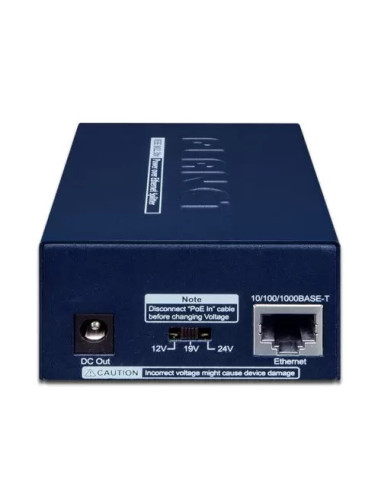

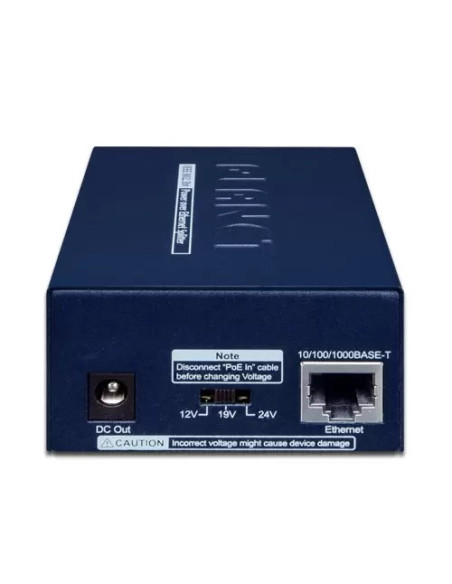

PLANET POE-173S 10/100/1000Mbps 802.3bt PoE Splitter

PLANET 60W 802.3bt Gigabit PoE 12V/19V/24V Splitter

*** Out of stock ATM, Available On Backorder ***
Tax included


The POE-173S from PLANET Technology is a Gigabit power over Ethernet splitter, which delivers the Ethernet digital data and PoE power from an 802.3bt Type 4 PSE over UTP cable. The device comes with a selectable 12V/19V/24V DC DIP switch, enabling the delivery of a maximum of 60W power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection up to a distance of 100m.


POE-173S - PLANET 60W 802.3bt Gigabit PoE 12V/19V/24V Splitter


  • 2 RJ45 interfaces
    • 1-port data + power input
    • 1-port data output
  • 1-port DC plug-in
  • 1 12V/19V/24V DC DIP switch

Power over Ethernet

  • Complies with 802.3bt Power over Ethernet end-span / mid-span PSE
  • Compatible with IEEE 802.3bt PoE++
  • Backward compatible with 802.3at PoE+ with up to 30-watt power output
  • Splits the PoE power over RJ45 Ethernet cable into 12V/19V/24V DC output
  • Distance up to 100 meters


  • Metal case
  • All-in-one compact size design
  • LED indicator for PoE in
  • Three-mode (12V/19V/24V) DC output DIP switch
  • Supports high Surge/ESD protection
  • Desktop, wall-mount or DIN-rail (optional) design
Device Type
Power Over Ethernet
POE Ports
1, 1
Power Input
Power Over Ethernet
48V 90W 802.3bt, 48V 30W 802.3at, 48V 60W 802.3bt, 48V 60W 802.3at, 48V 15W 802.3af
Ethernet Ports
1, 1
No reviews

Hardware Specifications
Interface Ethernet
1 x 10/100/1000BASE-T RJ45, Ethernet data output port

PoE in
1 x 10/100/1000BASE-T RJ45, PoE power input port

Power socket
1 x DC plug-in
DIP Switch 12V/19V/24V DC output
DC Socket DC receptacle 2.5mm
LED Indicators PoE in:
30W (Green)
60W (Green)
90W+ (Green)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 94 x 70.3 x 39.2 mm
Weight 265g
Installation Desktop/wall mountable/DIN-rail (optional)
ESD Protection 4KV
EFT Protection 4KV
Enclosure Metal case
Power Requirements 48~56V DC PoE
Unit Output Current (at 56VDC Input) With type 3 PoE++ input:
  • 4.5A@12V DC
  • 2.8A@19V DC
  • 2.2A@24V DC

With type 4 PoE++ input:
  • 5A@12V DC
  • 3.15A@19V DC
  • 2.5A@24V DC
Power Consumption System on:
6 watts
Ethernet full loading without DC output:
6.5 watts
Ethernet full loading with maximum 12V DC, 5A output:
70 watts
Network Cable PoE (60W+)
4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)

802.3at PoE (30W)
2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
Power over Ethernet
PoE Standard 802.3bt Type 3/4 Power over Ethernet
4-pair 802.3at PoE+
Compliant with voltage within 48-56V DC
Power Output DC 12V/19V/24V by DIP switch control
PoE Power Supply Type End-span + Mid-span
Power Pin Assignment 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Type 4
Regulatory Compliance FCC, CE
Environment Specifications
Operating Temperature 0~ 50 degrees C
Storage Temperature -10~ 70 degrees C
Humidity 5 ~ 95% (non-condensing)
Standard Accessories
Package Contents POE-173S x 1
User’s manual x 1
15cm UTP straight network cable x 1
External female plug cables x 2:
  • 5.5/2.5mm to 5.5/2.5mm
  • 5.5/2.5mm to 5.5/2.1mm
