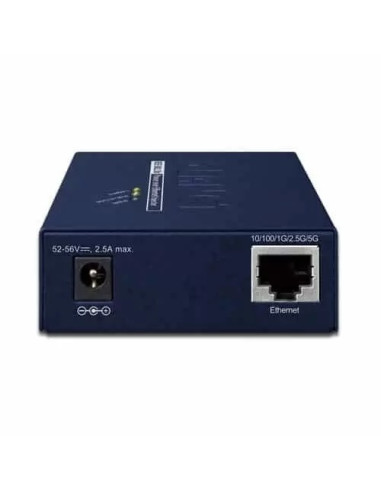

PLANET 52-56V DC IN 60W 802.3bt Multi Gigabit PoE Injector

POE-171A-60
In Stock
$131.99
Tax included

The POE-171A-60 from PLANET Technology is a single-port 802.3bt power over Ethernet injector with a maximum of up to 60W of power output. It is also equipped with 10M/100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission. This device is designed specifically to meet the growing demand for higher powered networking devices like healthcare equipment, remote digital signage and all-in-one touch computers.

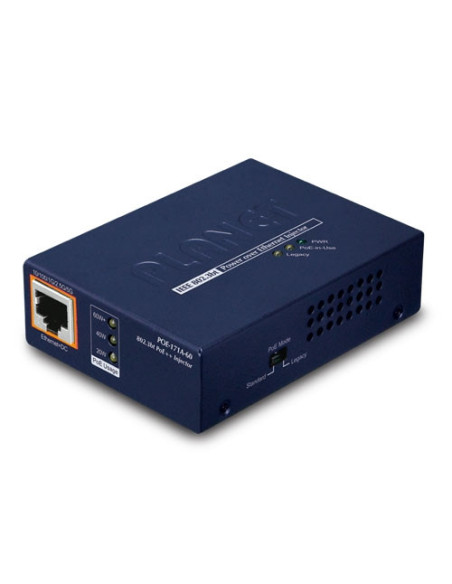

The POE-171A-60 is plug and play ready and comes in compact housing with (1) 52~56V DC input power jacket, (1) power LED, (1) PoE-in-use LED, and (1) legacy LED. Simply plug in the Ethernet cables and DC power cord and the POE-171A-60 is ready to provide high-speed network communication and 802.3bt PoE injector functions simultaneously with no need of software configuration.

POE-171A-60 Key Features

  • Intelligent LED indicator for PoE mode and real-time PoE usage
  • 60W power over Ethernet over 4-pair UTP
  • 10M/100M/1G/2.5G/5Gbps Data Rate


Device Type
Power Over Ethernet
POE Ports
1, 1
Power Input
DC
Power Over Ethernet
48V 60W 802.3bt
Ethernet Ports
1, 1
No reviews

Hardware Specifications
Input Port 1 x RJ45 STP
Data In
Output Port 1 x RJ45 STP
PoE (Data + Power) Out

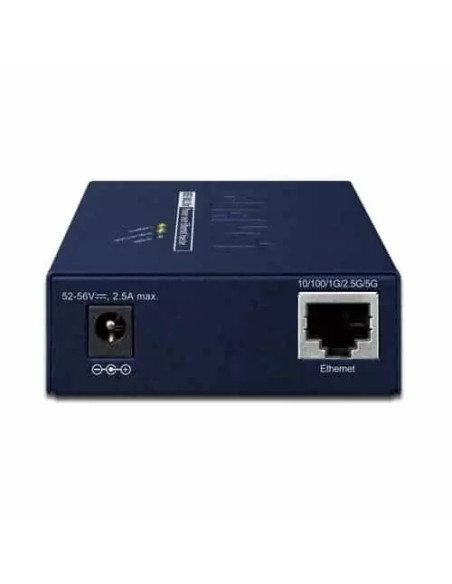

DC Socket 1 x 52~56V DC input socket
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5G: 4-pair UTP Cat. 5e, 6, 6A
5G: 4-pair UTP Cat. 6, 6A
LED Indicators System: Power x 1 (Green)
PoE Port: PoE-in-Use x 1 (Amber)
Legacy mode: Legacy x 1 (Amber)
PoE Usage: PoE Usage x 3 (Amber)
Data Rate 10M/100M/1G/2.5G/5Gbps
ESD Protection 6KV DC
Enclosure Metal case
Dimensions (W x D x H) 94 x 70.3 x 26.2 mm
Weight 200g
Power Requirements DC 52~56V, 1.4A max.
Power Consumption 72 watts max.
No. of devices that can be powered 1
Power over Ethernet
PoE Standard IEEE 802.3at/bt PSE
PoE Power Output Budget DC 52~56V / 60-watt PoE via 4-pair
PoE Power Output Max. 60W@1m cable
Max. 52W@100m cable
PoE Power Supply Type End-span + Mid-span
Power Pin Assignment Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE mode Standard mode
Legacy and Force mode
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3bt 4-pair Power over Ethernet Type 3
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Operating Humidity 5 ~ 90%, relative humidity, non-condensing
Storage Humidity 5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package Contents POE-171A-60
User's Manual
100 ~ 240V AC-to-DC power adaptor
AC power cord
