Planet IGS-620TF Industrial 4-Port 10/100/1000BASE-T + 2-Port 100/1G/2.5GBASE-X SFP Ethernet Switch

IGS-620TF

The IGS-620TF is a 6 port industrial Gigabit Ethernet Switch that showcases wire-speed performance that is non-blocking.

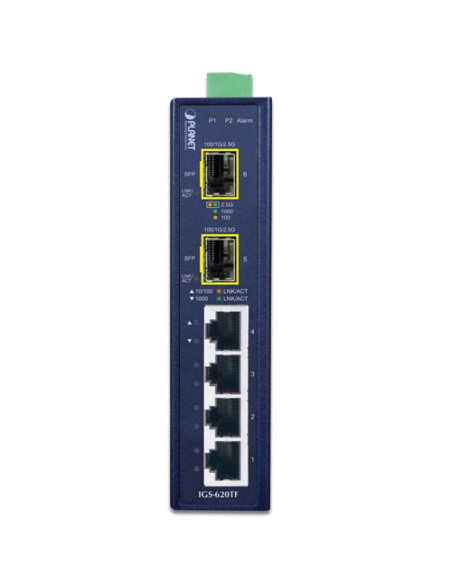

Fiber Optic Link Capability Enables Extension of Network Deployment

The two SFP ports are compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP (small form factor pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 300 meters (Multi-mode fiber cable) to 10/20/30/40/50/70/120 kilometers (Single-mode fiber cable). The Fast Ethernet distance can also be extended from 2km (Multi-mode fiber cable) to 20/40/60 kilometers (Single-mode fiber cable). They are well suited for applications within the factory data centers and distributions.

Adjustable 6-Port Switch Mode or 4 + 2 Fiber Redundant Mode

The two SFP ports allow to change the operation mode with its built-in DIP switch. Via the built-in DIP switch, the IGS-620TF can be configured as 6-port Ethernet switch or 4+2 fiber redundant mode. With the 6-port switch mode, the IGS-620TF can operate in Store-and-Forward mechanism with high performance; on the other hand, when in the 4+2 fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

Environmentally Hardened Design

The IGS-620TF is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-620TF provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-620TF can be placed in almost any difficult environment.  The IGS-620TF also allows either DIN-rail or wall mounting for efficient use of cabinet space.

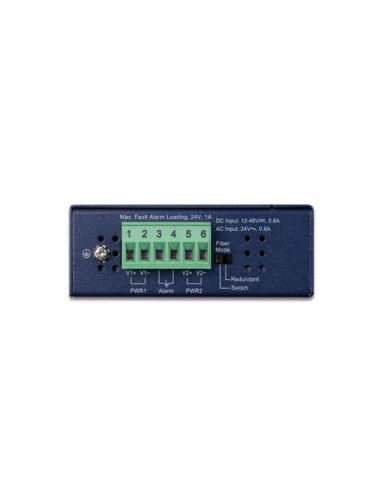

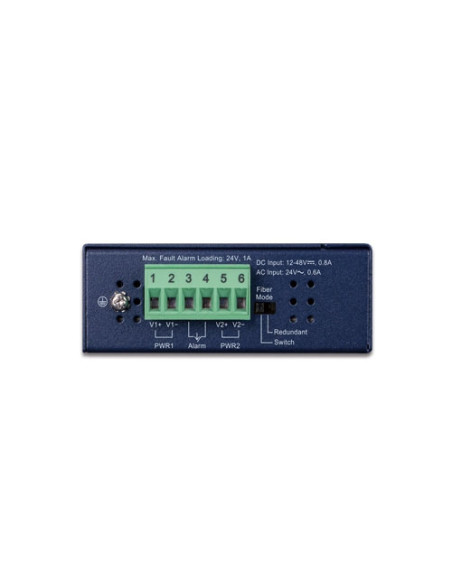

Convenient and Reliable Power System

To enhance the operating reliability and flexibility, the IGS-620TF is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs.



Flexible and Easy Installation with Limited Space

The compact-sized IGS-620TF is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.

Applications

Hardened Environment Application

The IGS-620TF Industrial Gigabit Ethernet Switch offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as control cabinet of transportation, factory, outdoors and places where extreme low or high temperatures can be experienced. Moreover, the IGS-620TF is also compatible with 100Mbps, 1000Mbps and 2500Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.

Redundancy Application

The IGS-620TF Industrial Gigabit Ethernet Switch provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recover function. If the destination port of a packet is link-down, it forwards the packet to the other port of the backup pair.
