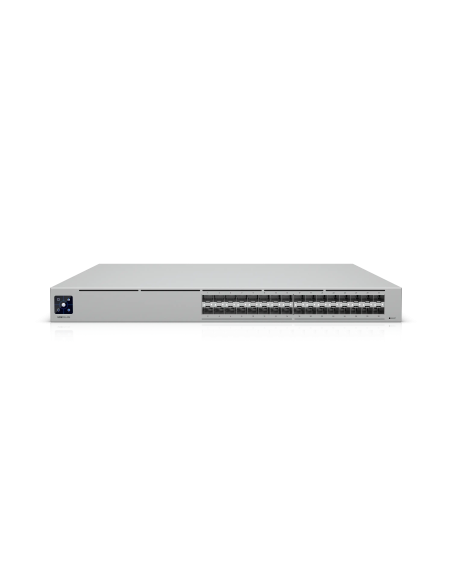

Ubiquiti USW-Pro-XG-Aggregation Professional 32-Port 25G Aggregation Switch with Layer 3 & Etherlighting™

USW-Pro-XG-Aggregation|Buy Ubiquiti USW-Pro-XG-Aggregation Professional 32-Port 25G Aggregation Switch with Layer 3 & Etherlight

Ubiquiti USW-Pro-XG-Aggregation Professional 32-Port 25G Aggregation Switch with Layer 3 & Etherlighting™

Name: Ubiquiti USW-Pro-XG-Aggregation Professional 32-Port 25G Aggregation Switch with Layer 3 & Etherlighting™
Brand: Ubiquiti
SKU: USW-Pro-XG-Aggregation
Price: 4656.3 AUD
Availability: InStock

Reference USW-Pro-XG-Aggregation

Last items in stock

$4,656.30

Tax included

USW-Pro-XG-Aggregation

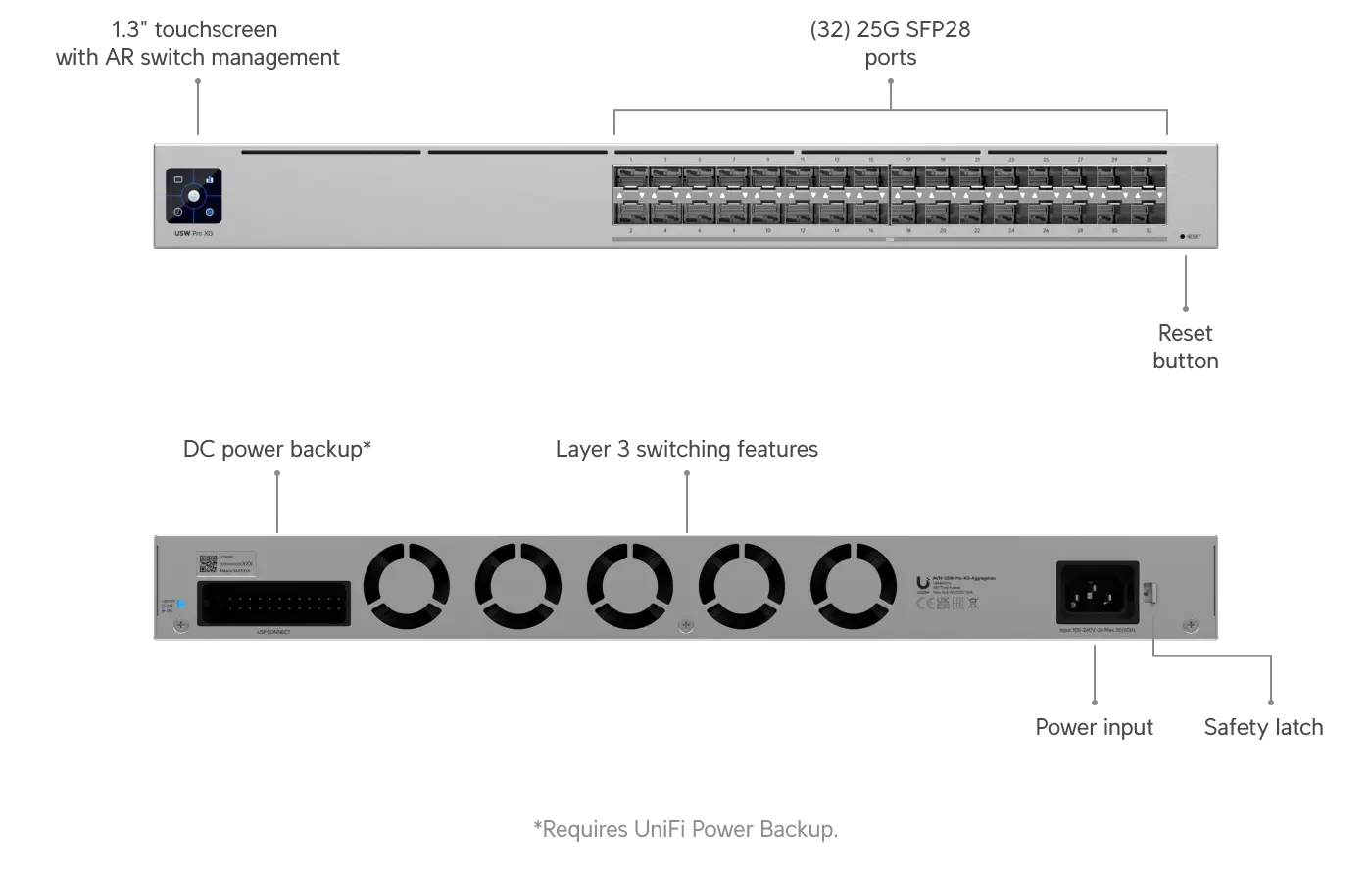

Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections. Features a 1.3" touchscreen with AR switch management.

Key Features

32 x 25G SFP28 ports
Layer 3 Etherlighting™
1.3" Touchscreen with AR switch management
DC Power Backup
NDAA Compliant

*Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!

SFP Modules

UACC-OM-SFP28-SR Ubiquiti UniFi 100m 25Gbps SFP28 Multi-Mode Optical Module

$94.70

Accessories

	Ubiquiti UI Care Five-Year Extended Replacement Protection, For NEW Sales Only $948.20
	UACC-DAC-SFP28-0.5M Ubiquiti 25G Direct Attach Cable $48.46

Description
Product Details

USW-Pro-XG-Aggregation Ubiquiti Professional 32-Port 25G Aggregation Switch with Layer 3 & Etherlighting™

The Ubiquiti UniFi Pro XG Aggregation is a professional-grade, Layer 3 Etherlighting™ switch designed for high-capacity network aggregation. It is engineered for demanding enterprise environments, providing a robust foundation for scalable and high-performance networks. This switch is ideal for aggregating multiple high-speed devices and providing fast uplinks to the core network, eliminating bottlenecks and ensuring smooth data flow. With its advanced Layer 3 capabilities, including inter-VLAN routing and static routing, it offers sophisticated traffic management and network segmentation to optimise performance and security. The innovative Etherlighting™ feature provides intuitive, at-a-glance port status identification, simplifying network monitoring and troubleshooting.

Product Specifications:

Specification	Details
Dimensions	442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
Port Layout	25G SFP28: 32 (25G/10G/1G)
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack Mount (1U)
Etherlighting™	✓
Switching Capacity	1.6 Tbps
Total Non-Blocking Throughput	800 Gbps
Forwarding Rate	1.2 Bpps
Supported VLANs	1,000
MAC Address Table Size	32,000
L3 Table Size	ARP Entries: 128,000, IPv4 Routes: 256,000
Packet Buffer Size	8 MB
Access Lists	IPv4: 256, MAC: 256
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration	Querier, Fast Leave, Router Port
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Max. Power Consumption	200W
Power Method	1 x Universal input, 100—240V AC, 50/60 Hz, 1 x USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 200W
Supported Voltage Range	100—240V AC
Management	Ethernet, AR
Heat Dissipation (Excluding PoE Output)	457 BTU/hr
Weight	Without mounting bracket: 7.1 kg (15.7 lbs), With mounting bracket: 7.2 kg (15.9 lbs)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	482.6 mm (19") four-post racks, Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 12kV, contact: ± 8kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting™	SFP28 ✓
LEDs	RPS ✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 05977-25-08356

MPN USW-Pro-XG-Aggregation
