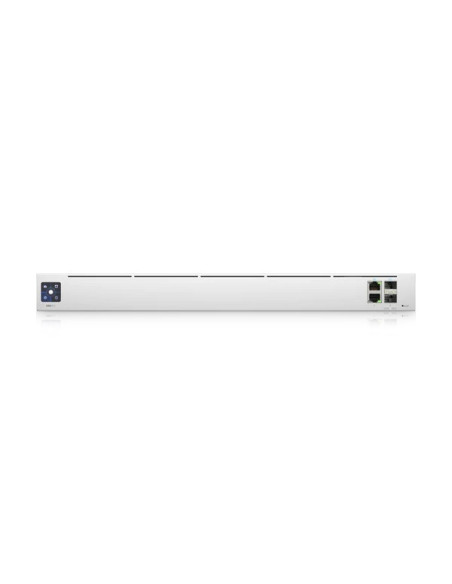

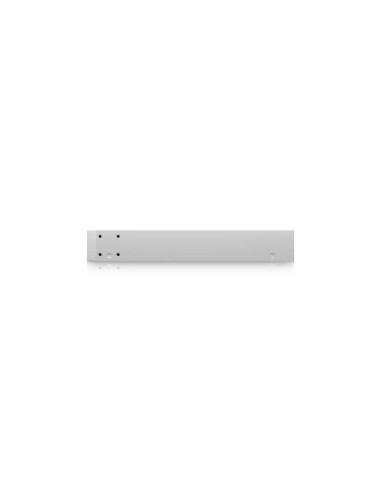

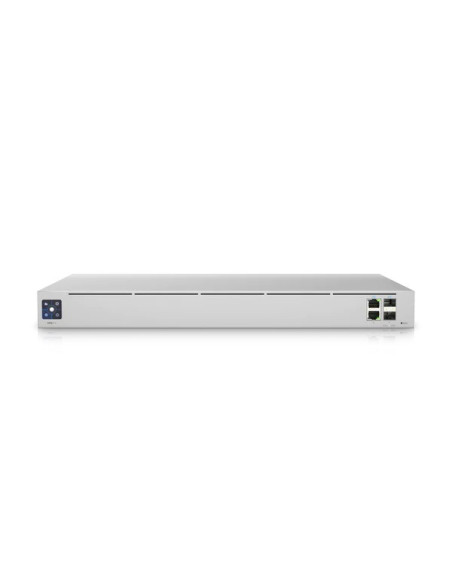

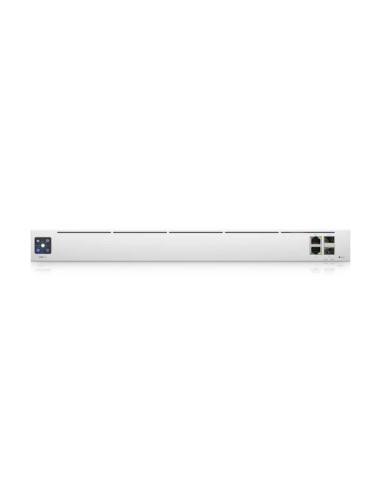

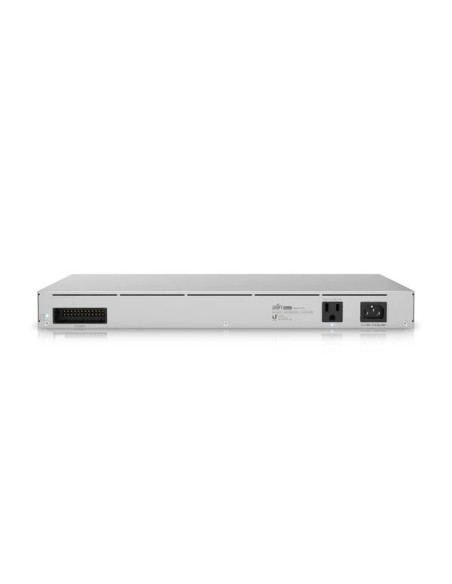

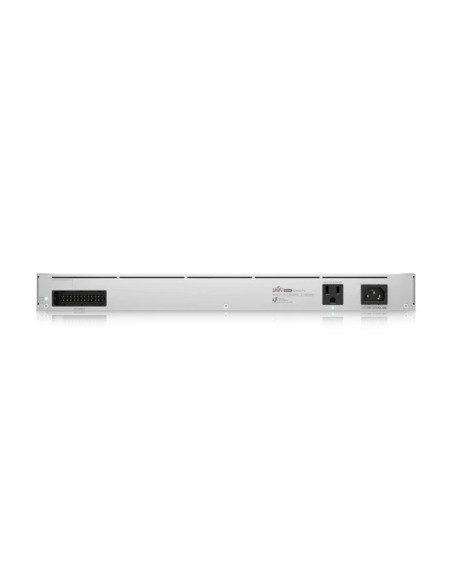

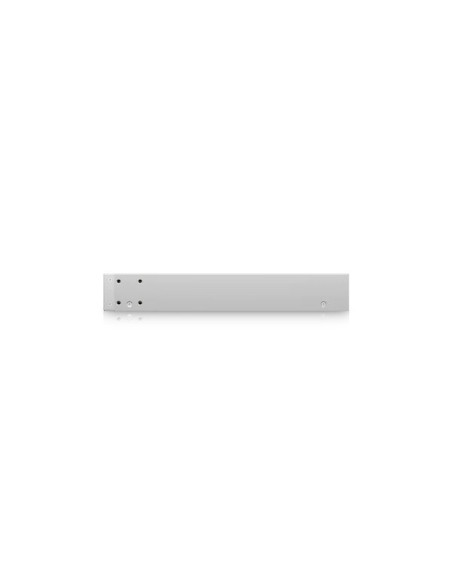

Ubiquiti UniFi Next-generation Gateway Pro

UXG-Pro
*** Out of stock ATM, Available On Backorder ***
$898.00
Tax included

UXG-Pro

Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features.

The UniFi Next-generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. The UXG Pro can be paired with a Cloud Key Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).



UXG-Pro - Ubiquiti UniFi Next-generation Gateway Pro

Product Features:

  • 1.7 GHz quad-core processor
  • (2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
  • (2) LAN ports (GbE RJ45 and 10G SFP+)
  • Enterprise-class DPI, IPS/IDS, and layered firewall configuration
  • Power redundancy when connected to the UniFi SmartPower RPS (sold separately)
  • SmartPower outlet (125VAC/2A) for an external modem
  • 1U-sized, rack-mountable device

Managed with the UniFi Network application: Version 5.14.11 and later

Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight 3.42 kg (7.54 lb)
Enclosure materials Front panel: aluminum CNC
Top cover/base: SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory information 2 GB DDR4
Management interface Ethernet
Networking interface LAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port

WAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port
LCM display (1) 1.3" touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading
Button Factory reset
Power method
US

(1) Universal AC input, 125VAC, 2.7A max., 60 Hz
(1) RPS DC input, 11.5VDC, 2.87A

Worldwide

(1) Universal AC input, 200-240VAC, 1.7A max., 50/60 Hz
(1) RPS DC input, 11.5VDC, 2.87A

Power supply AC/DC, internal, 50W
Max. power consumption 30W
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC
LEDs
AC outlet/ RPS Blue
Ethernet Green/amber
SFP+ White/green

Device Features
Rackmount, Managed
SFP
Yes, 10G SFP+
