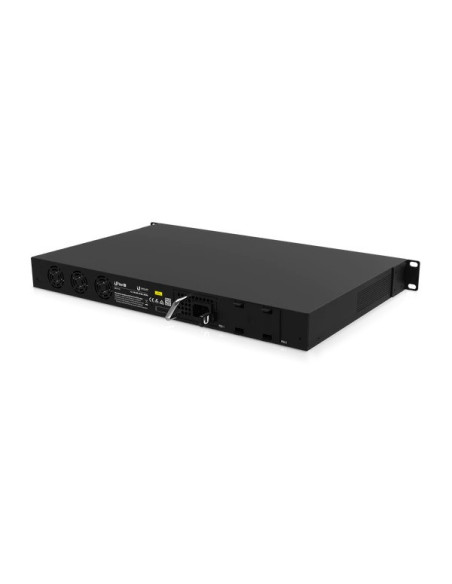

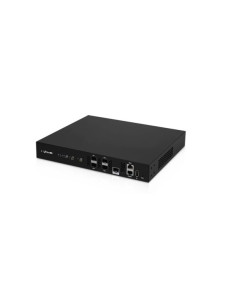

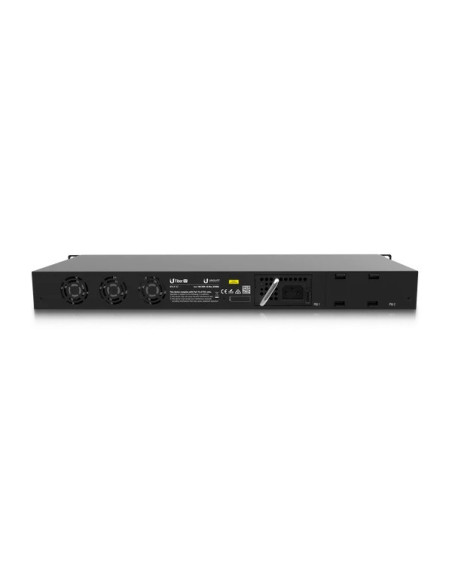

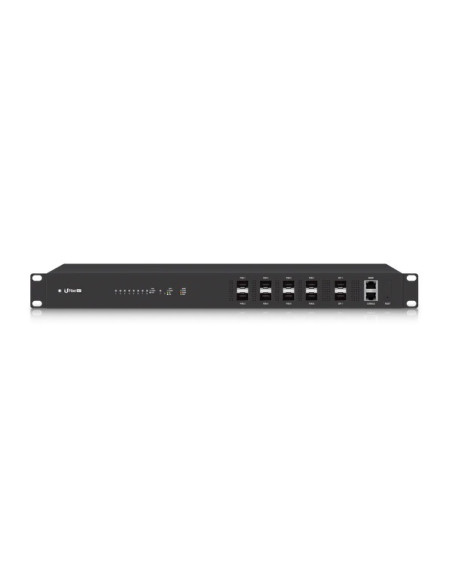

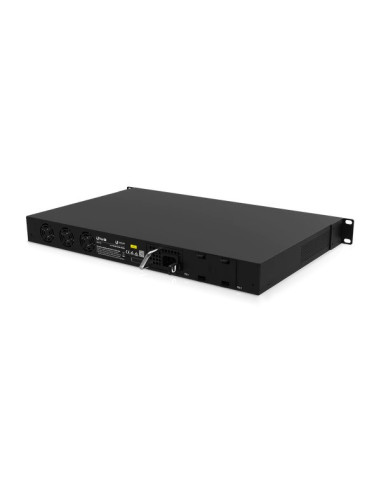

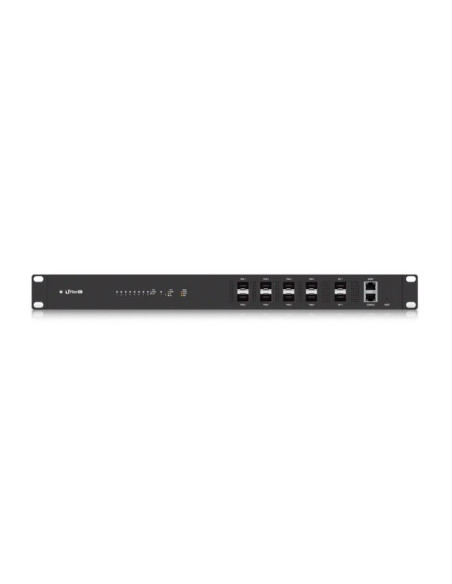

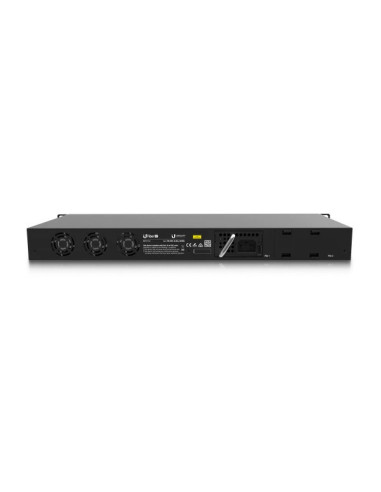

UISP-ready optical line terminal with (8) Gigabit optical network ports, (2) fiber uplinks, and Layer 2/3 switching capability.
UFiber OLT supports up to 128 ONU CPEs per GPON port with physical links of up to 20 km in distance. It also features SFP+ connectivity for uplinking. The UFiber OLT can be mounted in a 1U rack, mounted on a wall, or placed on a desktop. Management options include the Gigabit Ethernet port (out‑of‑band), RJ45 serial console port (CLI), and uplink (in‑band) – configured via the UFiber UI or UISP.
Related Products & Accessories
Product Features:
| UF-OL | |
|---|---|
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight Without Mount Brackets With Mount Brackets |
4.400 kg (9.70 lb) 4.495 kg (9.91 lb) |
| Max. Power Consumption | 40W (Excluding SFP Transceivers) |
| Power Method | 110 - 240VAC Modular PSU |
| Power Supply | (1) Hot-Swappable AC/DC 100W PSU (Included) |
| Supported Voltage Range | AC Input: 100 to 240VAC |
| Button | Reset |
| Processor | MIPS 1004Kc 880 MHz Dual-Core |
| System Memory | 512 MB DDR3, 512 MB NAND |
| LEDs System PON Data Ports SFP+ Data Ports RJ45 (MGMT) Port |
Status Link/Activity Link/ActivityLink/Activity Link/Activity |
| Data Ports Interfaces | (8) GPON Ports (2.488 Gbps TX/1.244 Gbps RX per Port) (2) 1G/10G SFP+ Ports |
| Serial Console Port Interfaces | (1) RJ45 Ethernet Port (1) RJ45 Serial Port |
| Rackmount | Yes |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| GPON SFP OLT Transceiver (UF-GP-B+ ) |
Single Fiber, SM SC/UPC, 20 km, 1490 nm TX/1310 nm RX, ITU-T G984.2 Class B+ |
