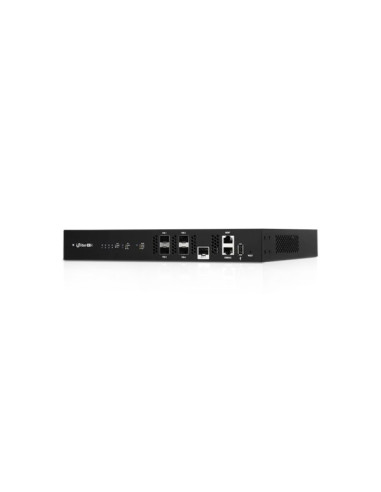

Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal
Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal

Ubiquiti UF‑OLT‑4 UFiber OLT 4-Port GPON Optical Line Terminal

UF-OLT-4
Out Of Stock
$2,039.40
Tax included

UF‑OLT‑4

UISP-ready optical line terminal with (4) Gigabit optical network ports, (2) fiber uplinks, and Layer 2/3 switching capability.
Introducing UFiber OLT – a fiber solution that anyone can deploy. UFiber offers internet and telecom service providers a cost‑effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream. The UFiber network is intelligently managed using the included UISP application. UFiber devices consist of the UFiber OLT or OLT-4 (deployed at the provider premises) and the UFiber Nano™ G, loco, or UF-WiFi clients, which function as ONU CPEs (Customer Premises Equipment).

Related Products & Accessories



UF‑OLT‑4 - Ubiquiti UFiber OLT 4-Port GPON Optical Line Terminal

Product Features:

  • 4-Port GPON Optical Line Terminal
  • 4 Gigabit Passive Optical Network Ports
  • Supports up to 512 Clients (128 per PON Port)
  • Up to 2.488 Gbps TX and 1.244 Gbps RX
  • One 1G/10G SFP+ Ethernet Ports
  • Flexible Layer 2/3 Management Features
  • Ethernet port for management
  • Console serial port for management
  • 24V DC Input Option (Redundant or Stand-Alone)

Dimensions 299.8 X 258.95 X 42.55 mm
Weight 1930g (without hangers)
2130g (with hangers)
Enclosure Characteristics SGCC steel
HARDWARE
Processor MIPS 1004Kc 880 Mhz dual core
Memory 512 Mbyte DDR3, 512M Byte NAND
Management Interface (1) Ethernet out-of-band management
(1) Ethernet in-band management
(1) RJ45 Serial Console Port
Networking Interface (4) GPON OLT SFP
(1) 10 Gbps SFP+
Buttons (1) Reset, Press 5 seconds - Reset to default
LEDs/Display (1) Power: Blue/White
Blinking Blue: reset to default
Steady Blue: system is booting
Steady White: service is ready
(4) GPON OLT SFP
Steady/Blinking white : GPON link/activity
(1) SFP+ Ethernet: White(10G) Green(1G), steady on after link is up, blinking while activity
(1) Ethernet RJ45 Out-of-band Management: Green(1G), steady on after link is up, blinking while activity
Power Method 100-240VAC/50-60 Hz universal input / 25VDC
Power Supply AC/DC internal 56W DC / DC barrel jack connector
Supported Voltage Range AC input: 100 to 240 VAC / 25 to 16VDC
Max. Power Consumption 35W (Excluding SFP modules)
Operating Temperature -10 to 45°C (14 to 113°F)
Operating Humidity 10% to 90% Non-Condensing
SOFTWARE
Mode OLT 2/3 Ethertnet Switch and GPON Core
Advanced QoS Support 8 priority queues per user port and traffic classification
Concurrent Clients 512 ONUs/ONTs registered
Ubiquiti Specific Features UBNT Discovery and UBNT mcagent
Minimum Software Requirements Any Modern Web Browser

Device Features
Managed
Rackmount
Redundant Power
SFP Ports
4 Ports
SFP+ Ports
1
Power Input
AC
DC
Ethernet Ports
1 Eth port
Environment Temperature
-10℃~60℃
Management
Smart Management
Installation Type
Rack-mount
817882023672
UF-OLT-4
