UAP-AC-IW
*** Out of stock ATM, Available On Backorder ***
$202.84
Tax included

UAP-AC-IW

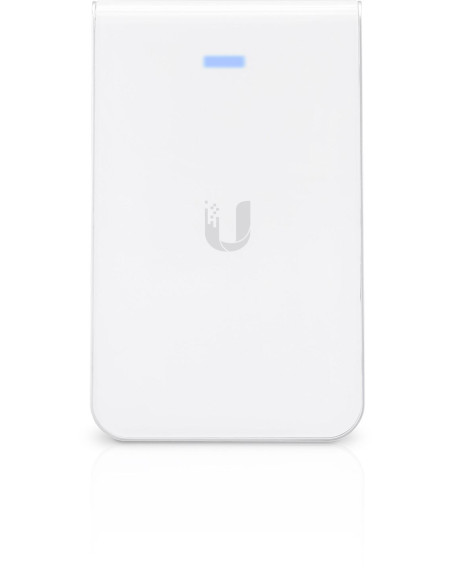

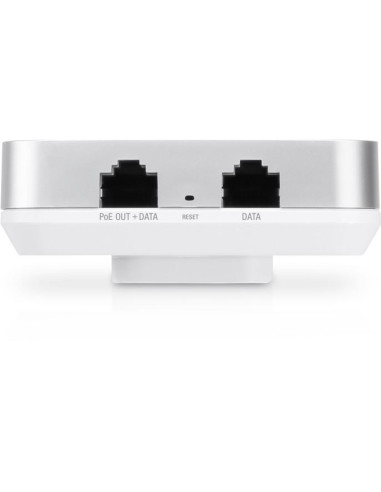

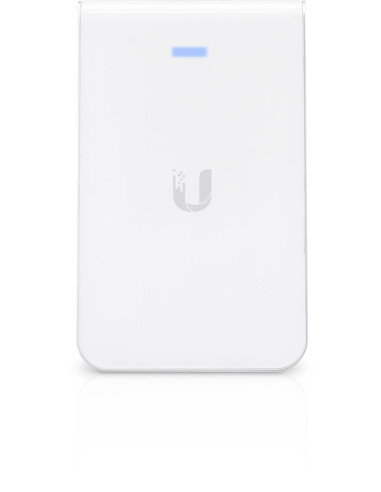

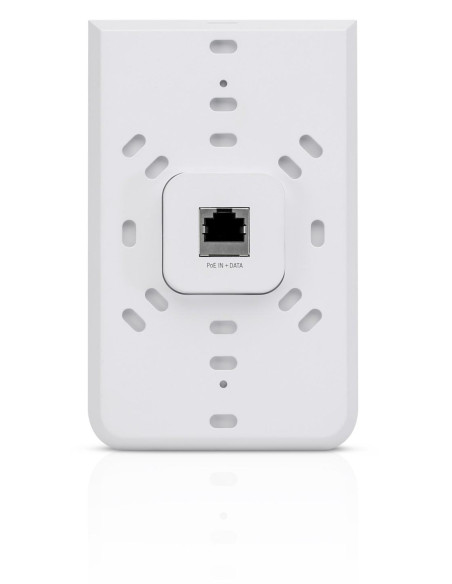

The UniFi UAP-AC-IW In-Wall Access Point transforms an Ethernet wall connection into a dual-band 802.11ac WiFi access point. It features two Gigabit Ethernet ports, one of which delivers PoE to power and connect an 802.3af device to the network. The UniFi AC In-Wall AP provides simultaneous, dual-band, and 2x2 MiMO technology.

Quantity Unit price You Save
5 $197.84 $25.00

Related Products & Accessories



UAP-AC-IW - Ubiquiti UniFi IW Dual Band 2x2 In-Wall Access Point

Technical Specifications:

  • Dimensions: 139.7 x 86.7 x 25.75 mm

  • Weight: 200 g

  • Networking Interface: (3) 10/100/1000 Ethernet Ports

  • Buttons: Reset

  • Power Method: Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57 VDC)

  • Power Supply: UniFi Switch (PoE)

  • Power Save: Supported

  • PoE Out: 48V Pass-Through (Pins 1,2+; 3,6-)

  • Maximum Power Consumption: 7W

  • Maximum TX Power:

    2.4 GHz: 20 dBm

    5 GHz: 20 dBm

  • Antennas: (1) Dual-Band Antenna, Single-Polarity

    2.4 GHz: 1 dBi

    5 GHz: 2 dBi

  • Wi-Fi Standards: 802.11 a/b/g/n/ac

  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

  • BSSID: Up to Four per Radio

  • Mounting: 1-Gang Electrical Wall Box (Not Included)

  • Operating Temperature: -10 to 50°C

  • Operating Humidity: 5 to 95% Noncondensing

  • Certifications: CE, FCC, IC

  • Advanced Traffic Management

  • VLAN: 802.1Q

  • Advanced QoS: Per-User Rate Limiting

  • Guest Traffic Isolation: Supported

  • WMM: Voice, Video, Best Effort, and Background

Antenna Gain (dBi)
2
Device Type
Access Point
Device Features
Mountable
MIMO
2x2
Wireless System
2.4GHz
5GHz
Power Over Ethernet
48V 15W (802.3af)
Ethernet Ports
3
810354025549
UAP-AC-IW
