U7-Pro-Wall Ubiquiti Unifi Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz

U7-Pro-Wall
Last items in stock
$380.60
Tax included

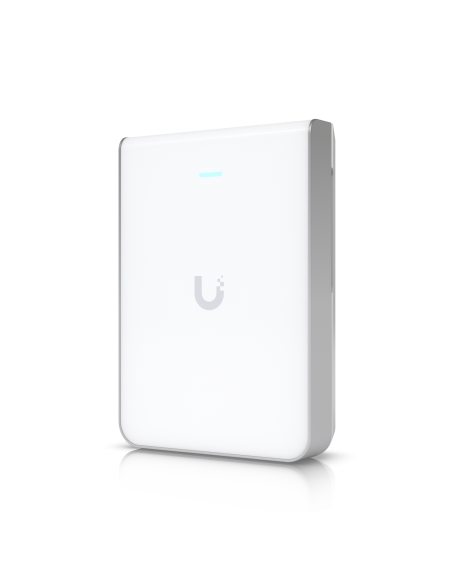

U7-Pro-Wall, Ubiquiti Unifi Wall-mounted WiFi 7 AP

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.

Features:

  • WiFi 7 with 6 GHz support
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
  • Versatile deployment with optional Flush Mount and Table Stand accessories*

Quantity Unit price You Save
3 $370.60 $30.00

Related Products & Accessories



U7-Pro-Wall, Ubiquiti Unifi Wall-mounted WiFi 7 AP

Product Specification
Mechanical
Dimensions 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
Weight 580 g (1.3 lb)
Enclosure material Polycarbonate, aluminum
Mount material Aluminum
Hardware

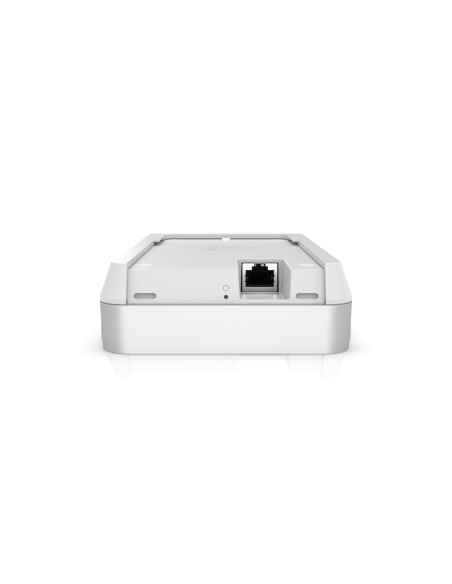

Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 22W
Max. TX power
  • 2.4 GHz: 22 dBm
  • 5 GHz: 26 dBm
  • 6 GHz: 23 dBm
MIMO
  • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz: 2 x 2 (DL/UL MU-MIMO)
  • 6 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. data rate
  • 2.4 GHz: 688 Mbps (BW40)
  • 5 GHz: 4.3 Gbps (BW240)
  • 6 GHz: 5.7 Gbps (BW320)
Antenna gain
  • 2.4 GHz: 4 dBi
  • 5 GHz: 5 dBi
  • 6 GHz: 6 dBi
LEDs White/blue
Button Factory reset
Mounting Wall (Included), Table stand, flush mount (Optional)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network Version 8.1 and later
UniFi OS Version 3.2 and later
Antenna Gain (dBi)
4
5
6
Device Type
Access Point
MIMO
2x2
Wireless System
2.4GHz
5GHz
6GHz
Wi-Fi 6
Wi-Fi 7
Ethernet Ports
1 Eth port
