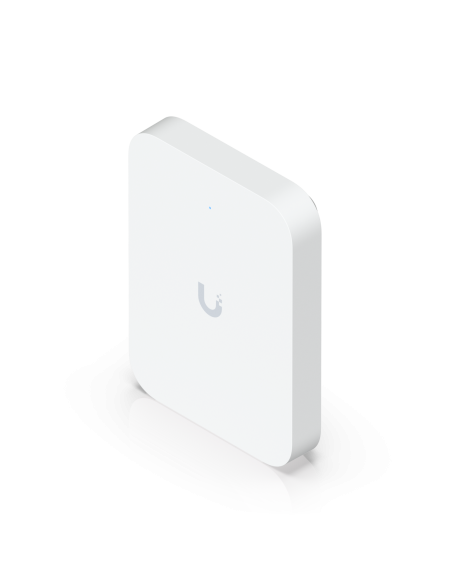

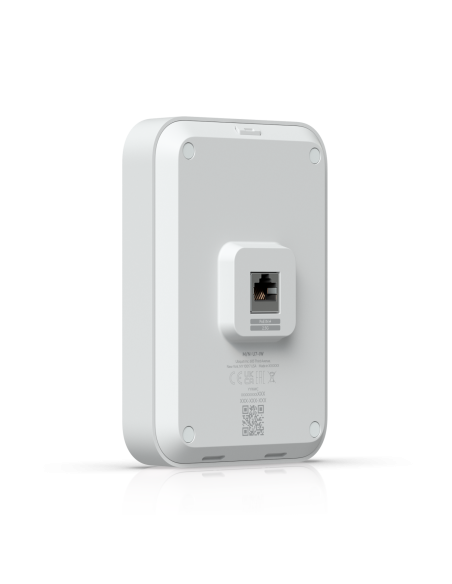

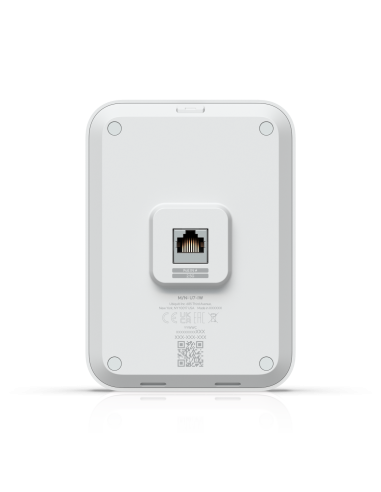

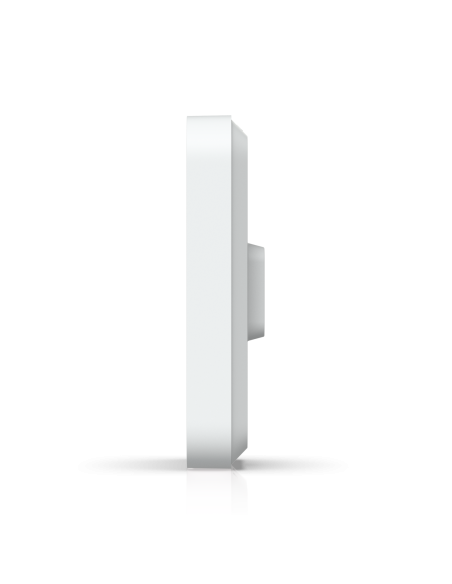

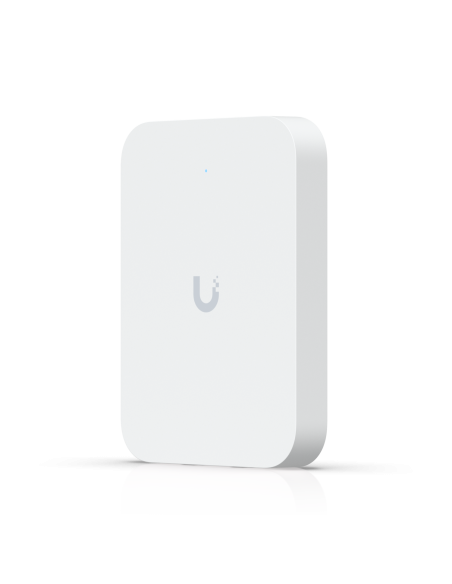

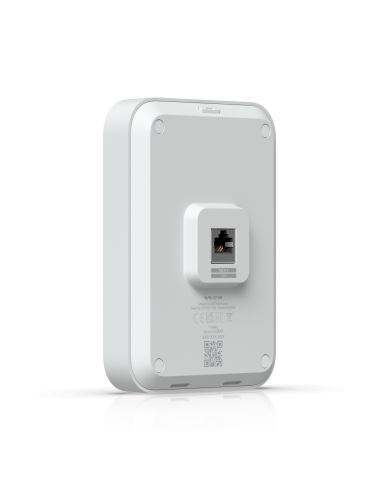

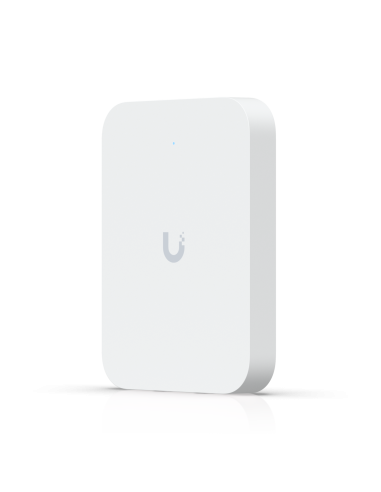

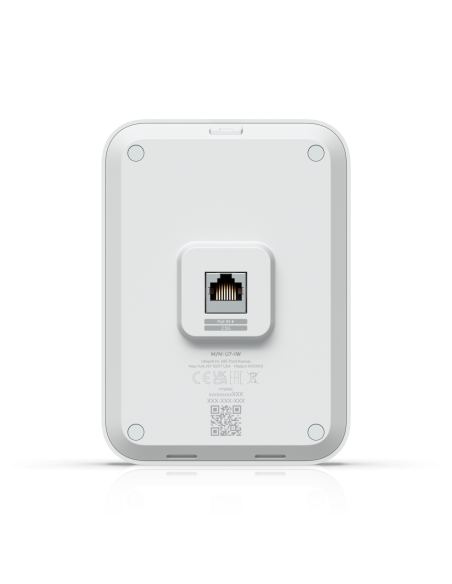

Ubiquiti UniFi U7-IW, Wall-mounted WiFi‎ 7 AP with 4 spatial streams and 2.5 GbE PoE switch

U7-IW
In Stock
$344.30
Tax included

U7 In-Wall

The Ubiquiti U7-IW is a WiFi 7 in-wall access point with tri-band support, PoE power, and multiple Gigabit Ethernet ports, ideal for seamless, high-speed connectivity

Features:

  • WiFi 7 support (2.4/5 GHz bands)
  • 5.3 Gbps aggregate throughput rate

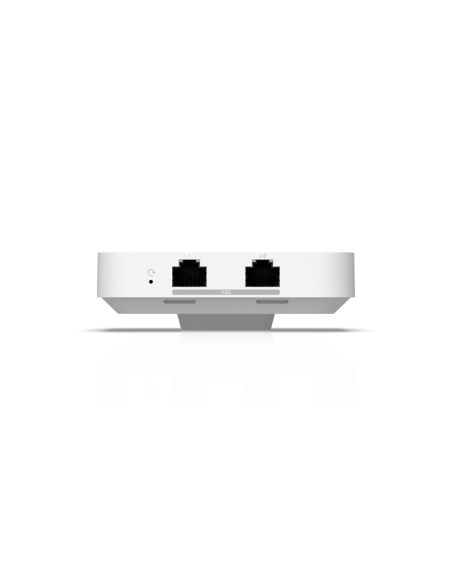

  • (3) 2.5 GbE RJ45 ports

*PoE+ input required for single-port PoE output.

Quantity Unit price You Save
10 $336.04 $82.63


U7 In-Wall

Technical Specifications:

Overview

Dimensions
137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
200+
Uplink
2.5 GbE
Mounting
Wall (Metal Wall Mount Included)
Power Method
PoE PoE+ (Required for PoE output)
Performance
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
8 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Antenna Gain (dBi)
4
8
Device Type
Access Point
Device Features
Mountable
MIMO
2x2
Wireless System
2.4GHz
5GHz
Wi-Fi 7
Ethernet Ports
3
