Ubiquiti UACC-PoE++-10G, PoE++ Adapter with 10G LAN Support (60W Output)

UACC-PoE++-10G
In Stock
$88.00
Tax included

Ubiquiti 10G PoE++ Adapter (60W)

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Key Features:

  • Delivers up to 60W of PoE++
  • Surge, peak pulse, and overcurrent protection

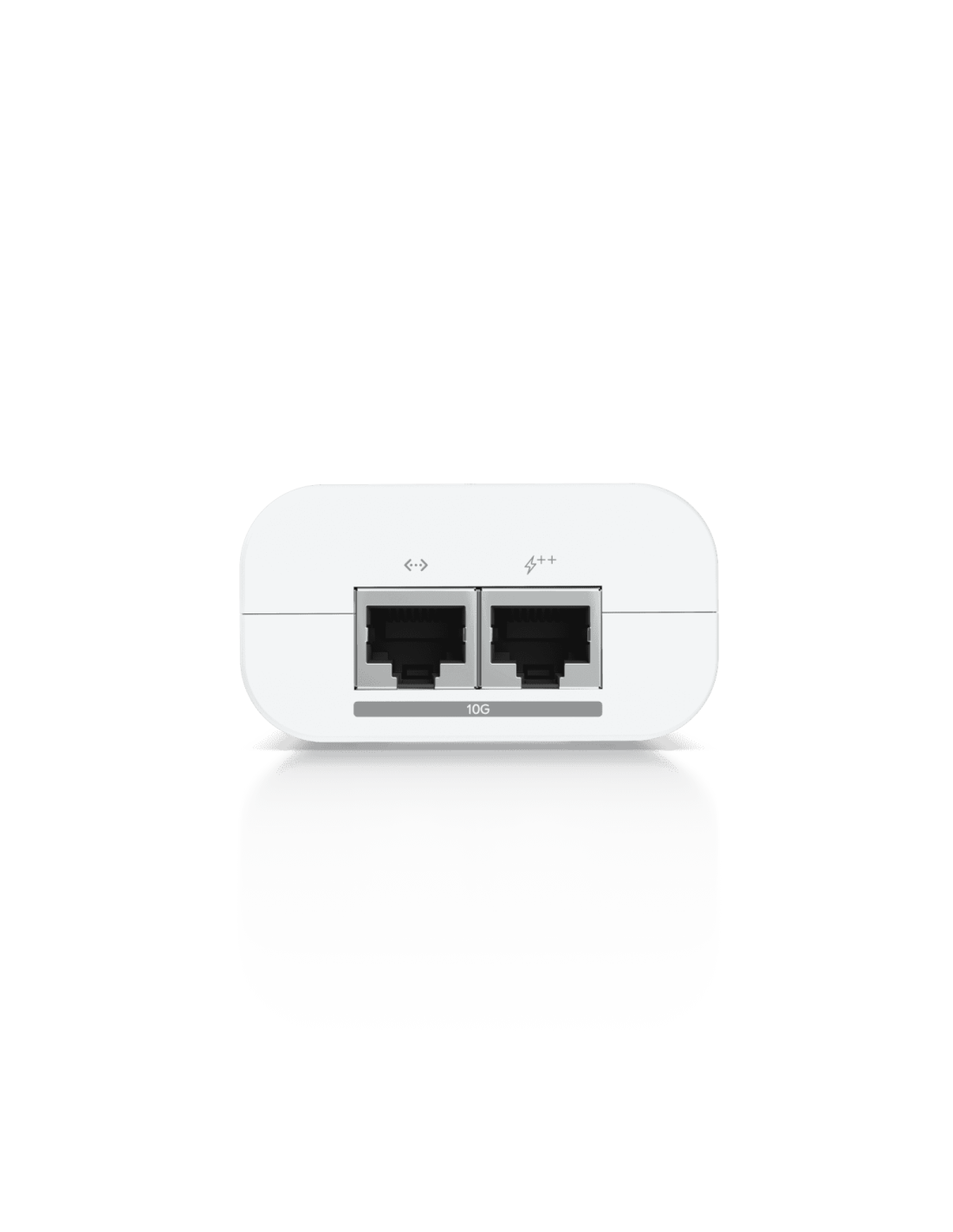

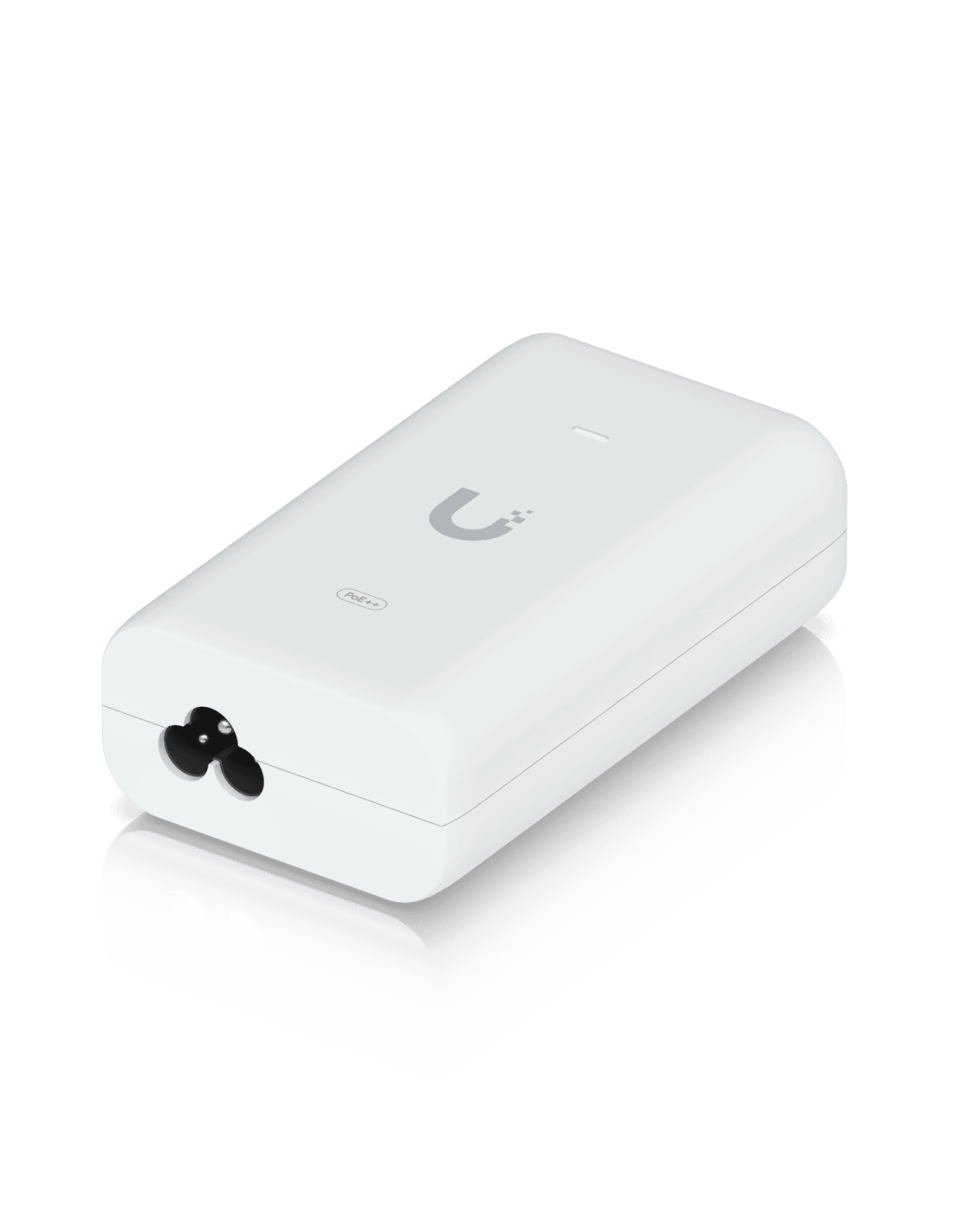

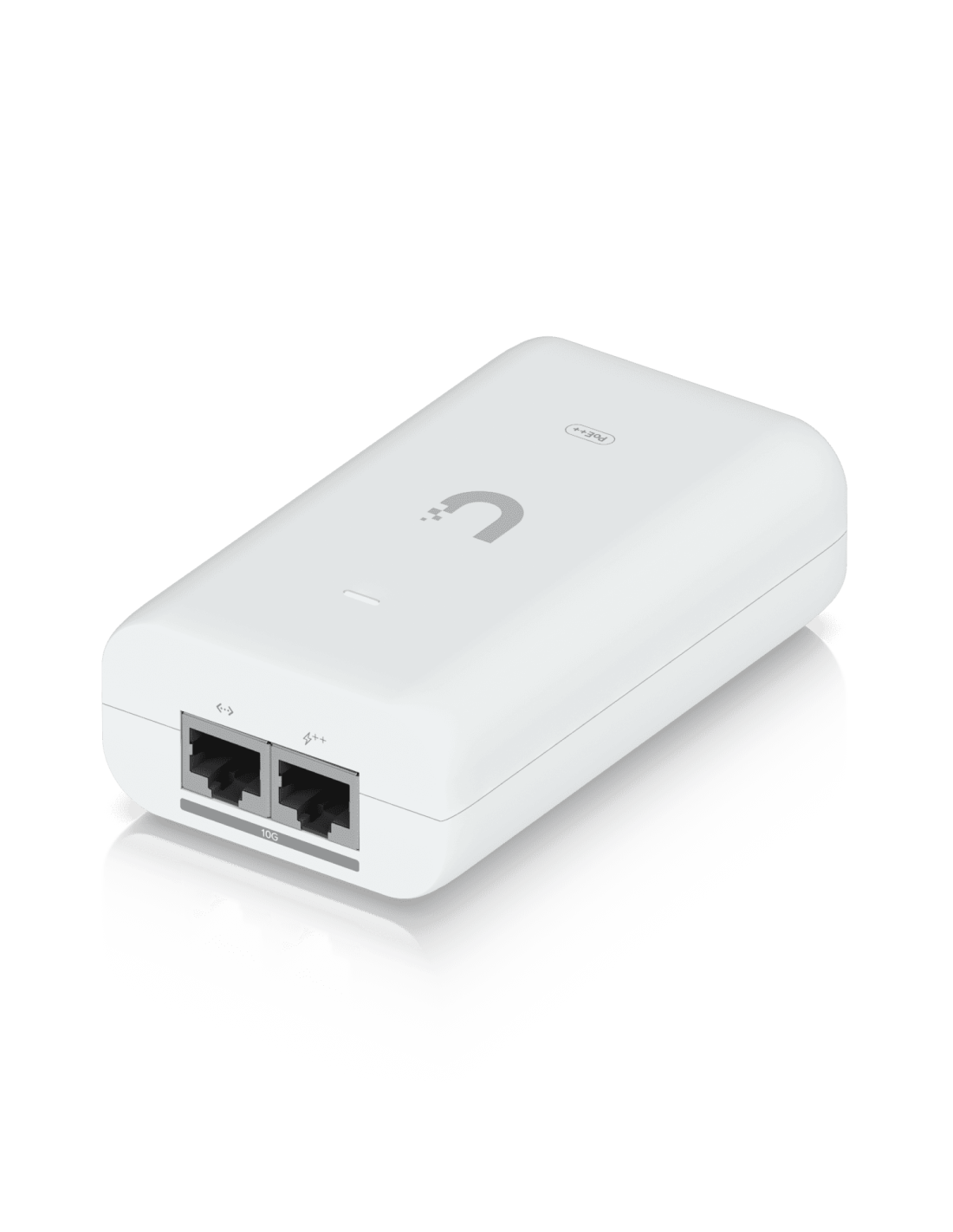

  • Contains RJ45 data input, AC cable with earth ground, and PoE++ output
  • LED indicator for status monitoring


Ubiquiti 10G PoE++ Adapter (60W)

Specifications:

Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight 210 g (7.4 oz)
Output Voltage 54V DC at 1.12A
Rated Voltage 100—240V AC at 50/60Hz
Gigabit LAN Port
4-pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection 11V Data, 60V power
Data In / PoE RJ45 Shielded Socket
Input Current 1.5A Max.
Inrush Current <150A peak at 230V AC
Efficiency >88%
Switching Frequency 65 kHz
Output Ripple 1% Max.
Line Regulation ≤ 2%
Load Regulation ≤ 5%
Max. PoE+ Wattage per Port by PSE 60W
Max. Surge Discharge 1500A (8/20 μs) power
Peak Pulse Current 36A (10/1000 μs) data
Response Time <1 ns
Shunt Capacitance <5 pF data
Surge Protection Difference and Common Mode
Ambient Storage Temperature -30 to 70°C (-22 to 158°F)
Ambient Operating Temperature 0 to 40°C (32 to 104°F)
Ambient Operating Humidity 10 to 95% non-condensing
NDAA Compliant
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
Device Type
Power Adapter
Power Supply
AC/DC
Output Voltage
54V DC
UACC-PoE++-10G
