U-POE-AF
*** Out of stock ATM, Available On Backorder ***
$21.45
Tax included

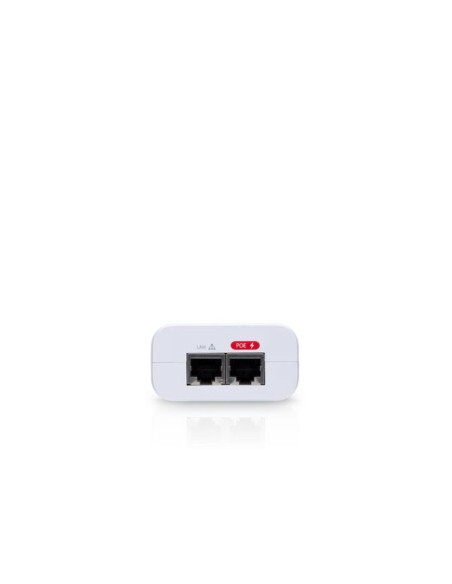

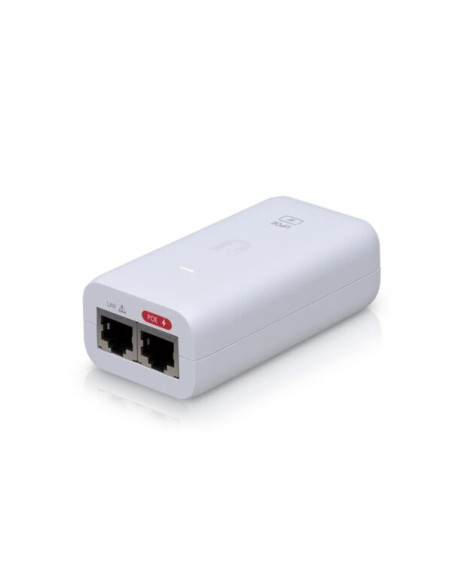

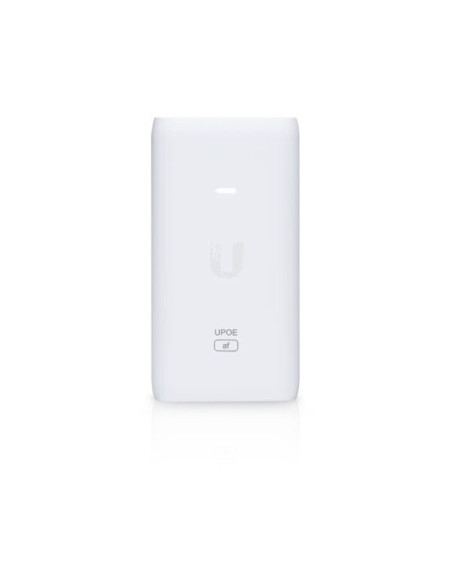

Ubiquiti U-POE-AF

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

      • Surge protection
      • Clamping protection
      • Maximum surge discharge
      • Peak pulse current
      • AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

Related Products & Accessories



Ubiquiti U-POE-AF

U-POE-af
Dimensions 86 x 46 x 33 mm
(3.39 x 1.81 x 1.30")
Weight 100 g
(3.53 oz)
Output Voltage 48VDC @ 0.32A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 500mA @ 90VAC
Inrush Current <100A Peak @ 25°C
Efficiency 0.8425
Output Ripple 200mV p-p
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering –
Operating Temperature 0 to 40° C
(32 to 104° F)
Storage Temperature -30 to 70°C
(-22 to 158° F)
Operating Humidity 5 to 90% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
POE Ports
1
817882025003
U-POE-AF
No reviews

Related Products & Accessories

MikroTik Gigabit PoE Injector w/ Battery Backup
  • On sale!
*** Out of stock ATM, Available On Backorder ***
Power Over Ethernet

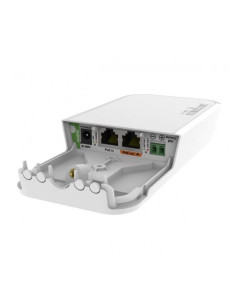

MikroTik Gigabit PoE Injector w/ Battery Backup

MikroTik
mUPS
$49.54
mUPSThe mUPS Smart PoE Injector from MikroTik is a smart PoE injector with a 12V battery connector. This unit is a simple and compact device to make your network more reliable or for situations where stable power input is not available, like solar or automotive installations. It works just like a Gigabit PoE injector, but when power is lost, it switches...
PLANET 60W 802.3bt Gigabit PoE Injector
In Stock
Power Over Ethernet

Planet POE-173 10/100/1000Mbps Ultra PoE Injector (60W, Integrated)

PLANET
POE-173
$79.20
POE-173 60-Watt Ultra Power over Ethernet Injector The PLANET POE-173 Ultra Power over Ethernet Injector provide a maximum of up to 60-watt power and high speed Ethernet data connection anywhere in your network infrastructure. The PLANET Ultra Power over Ethernet solution contains two brand-new products: POE-173: 60-watt Ultra Power over Ethernet...
24VPOEC Alfa 24V Passive PoE Injector
  • On sale!
*** Out of stock ATM, Available On Backorder ***
Power Over Ethernet

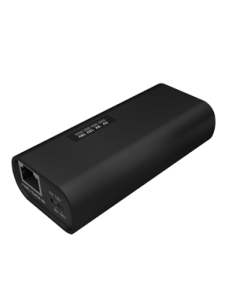

24VPOEC Alfa 24V Passive PoE Injector

Alfa
24VPOEC
$33.04
 1000Mbps 802.3af/at to 24V passive  POE converter WIth some many devices that require passive (no power over data cables) POE, this product finally makes it happen with 1Gbit LAN speed. Standard POE switches have 802.3af POE outputs (48V and power goes out via data cables) which makes them unusable for most of Mikrotik devices and many of Ubiquiti...
F-POE Ubiquiti FiberPoE Outdoor PoE Injector
*** Out of stock ATM, Available On Backorder ***
Power Over Ethernet

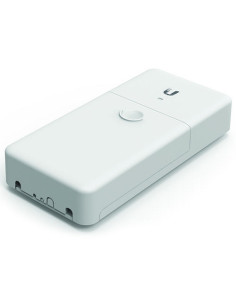

F-POE Ubiquiti FiberPoE Outdoor PoE Injector
