U6-Mesh
In Stock
$370.70
Tax included

U6-Mesh

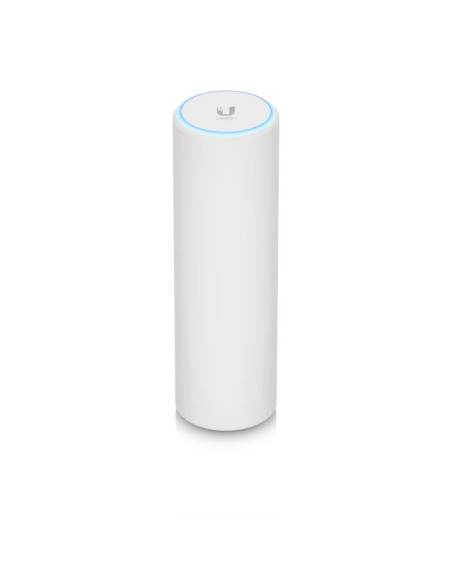

Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.

The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.



U6-Mesh - Ubiquiti UniFi Indoor/Outdoor 4x4 WiFi 6 Access Point Mesh

Product Features:

  • High-efficiency 4x4 WiFi 6 (802.11ax)
  • 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
  • 2.4 GHz (2x2 MIMO) band with a 573.5 throughput rate
  • Operates at full 4x4 MIMO with 160 MHz bandwidth
  • Powered with 802.3af PoE (PoE adapter included)

Mechanical
Dimensions Ø48.5 x 159.5 mm (Ø1.9 x 6.28")
Weight 400 g (0.88 lb)
Enclosure material Plastic, aluminum
Mount materials Plastic
Weatherproofing IPX5
Hardware
Management interfaces Ethernet
Bluetooth
Networking interface (1) GbE RJ45 port
Button Factory reset
LED* White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
Power method 802.3af PoE
Power supply UniFi PoE switch
48V, 0.32A PoE adapter (included)
Supported voltage range 44 to 57VDC
Max. power consumption 11.4W
Max. TX power
2.4 GHz
5 GHz

22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz

2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz

573.5 Mbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz

3 dBi
5 dBi

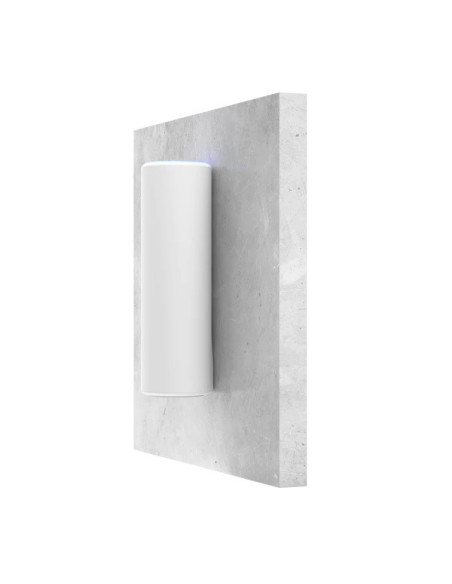

Mounting Wall, desktop, pole mount(included)

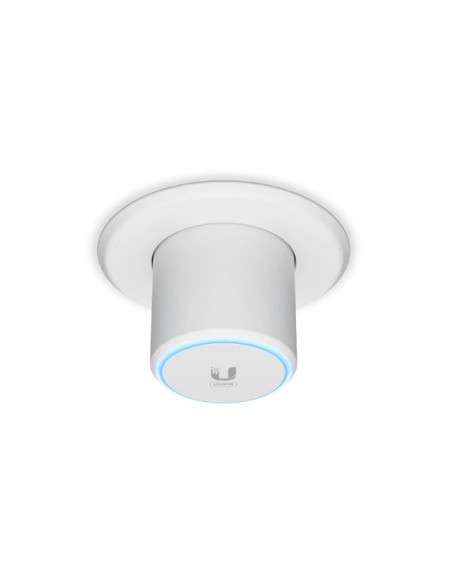

Ceiling mount (optional)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero wait DFS Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Antenna Gain (dBi)
3
5
Device Type
Access Point
Device Features
Mesh Wireless
Outdoor
Wireless System
2.4GHz
5GHz
Wi-Fi 6
Power Over Ethernet
48V 15W 802.3af
Ethernet Ports
1 Eth port
810010078278
U6-Mesh
