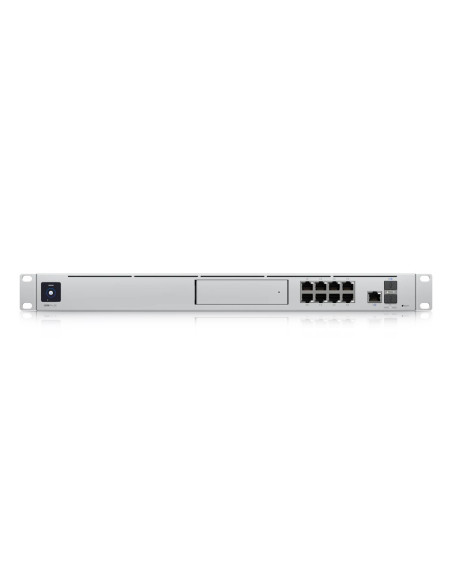

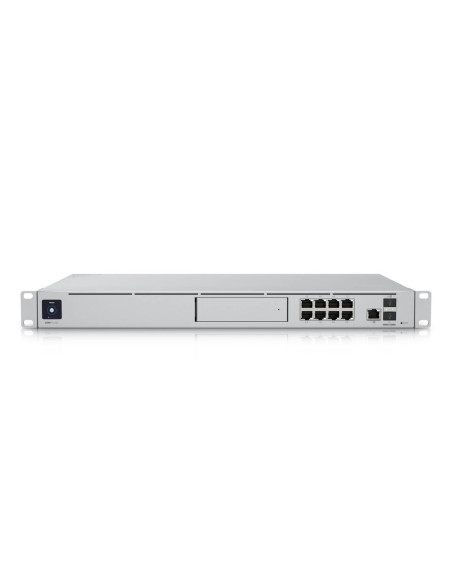

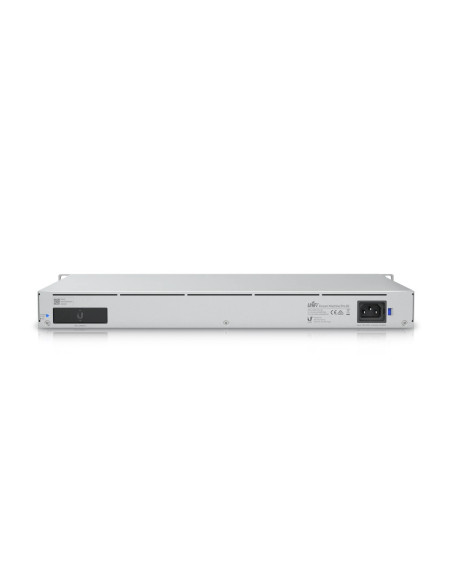

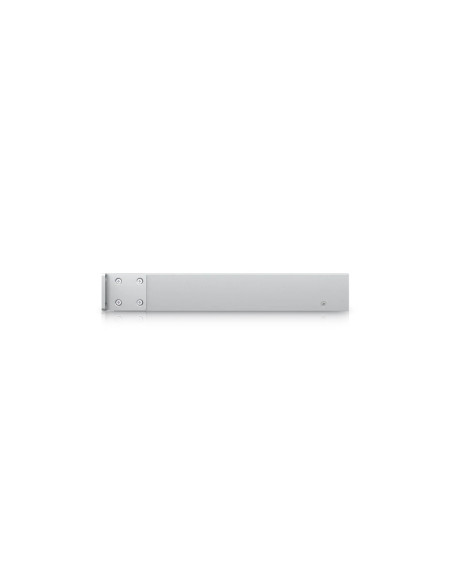

Ubiquiti UniFi Dream Machine Special Edition

UDM-SE
In Stock
$994.40
Tax included

UDM-SE

All-in-one router and security gateway with an integrated PoE switch and network video recorder.

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).



UDM-SE - Ubiquiti UniFi Dream Machine Special Edition

Product Features:

  • 1.7 GHz quad-core processor
  • Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
  • (8) GbE RJ45 ports, including (6) 802.3af PoE and (2) 802.3at PoE+ LAN ports
  • (1) 10G SFP+ LAN port
  • (1) 1.3" LCM color touchscreen for at-a-glance network monitoring
  • Customizable internet threat filtration and traffic identification for enhanced network security
  • Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app
  • 1U-sized, rack-mountable device
  • Connect a SmartPower Redundant Power System to create an uninterruptible network
  • Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5" HDDs
  • 128 GB integrated storage for full UniFi OS Application experience

Mechanical
Dimensions

442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")

Weight

4.95 kg (10.91 lb)

Enclosure materials

Aluminium CNC, SGCC steel

Mount material

SGCC steel rack mount

Hardware
Processor

Quad-Core ARM® Cortex®-A57 at 1.7 GHz

System memory

4 GB DDR4

On-board storage

16 GB eMMC
Integrated 128 GB SSD

IDS/IPS throughput

3.5 Gbps*

*Measured with iPerf3

Max. power consumption (excluding PoE output)

50W

Power method

(1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz

(1) USP-RPS DC input, 52VDC, 3.94A

Power supply

AC/DC, Internal, 240W

Supported voltage range

100 to 240VAC

Management interfaces

Ethernet
Bluetooth

Networking interfaces

(1) WAN: 2.5 GbE RJ45 port
(8) LAN: 1 GbE RJ45 ports

SFP+ interfaces

(1) WAN: 10G SFP+

(1) LAN: 10G SFP+

PoE interfaces

(2) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)

(6) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)

Max. PoE wattage per port by PSE 802.3af

15.4W

Max. PoE wattage per port by PSE 802.3at

30W

Voltage range 802.3af mode

44 to 57V

Voltage range 802.3at mode

50 to 57V

ESD/EMP protection

Air: ± 15 kV, contact: ± 8 kV

LCM display

(1) 1.3" touchscreen

Bootup animation: bootup in progress

Firmware upgrade icon: firmware upgrading

Button

Factory reset

Operating temperature

-10 to 40° C (14 to 104° F)

Operating humidity

5 - 95% noncondensing

Certifications

CE, FCC, IC

LEDs
Ethernet

White: link/activity

SFP+

White: link/activity

HDD

White: disk activity

Amber: disk error

RPS

Blue: ready

Device Type
Network Switch, Access Point, Router
Device Features
Managed, Bluetooth Support, Rackmount
SFP+ Ports
1
Power Input
AC, DC
SFP
Yes, 10G SFP+
Ethernet Ports
8
