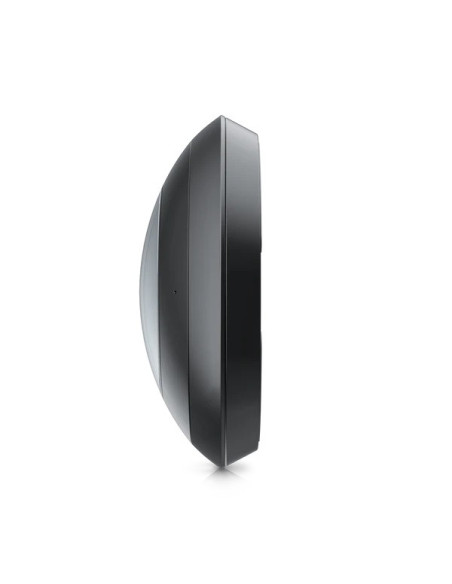

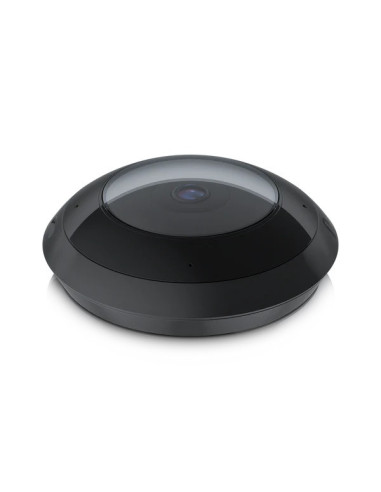

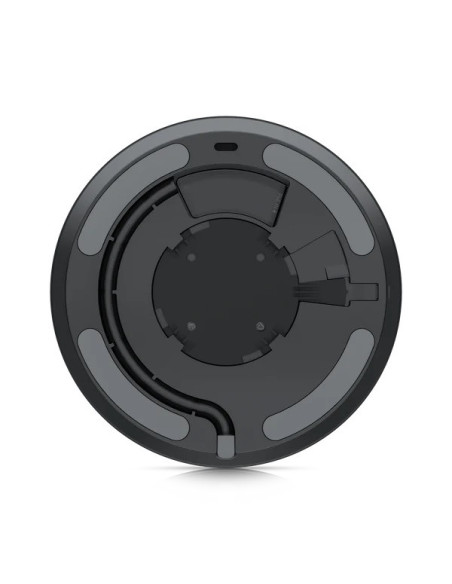

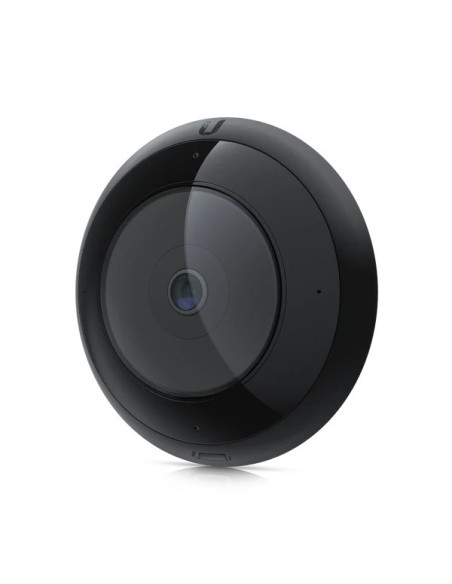

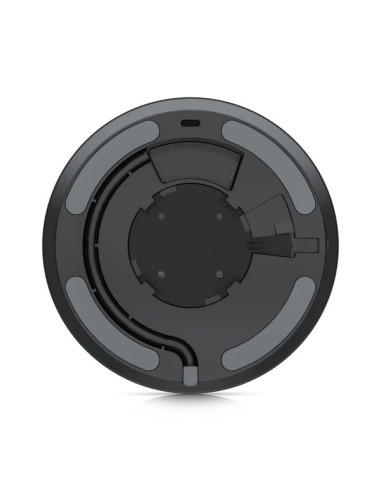

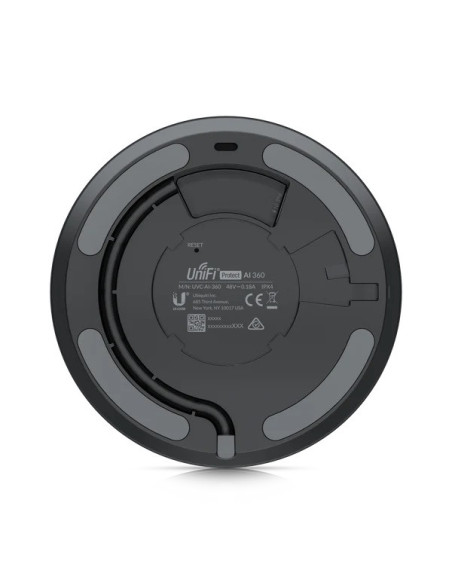

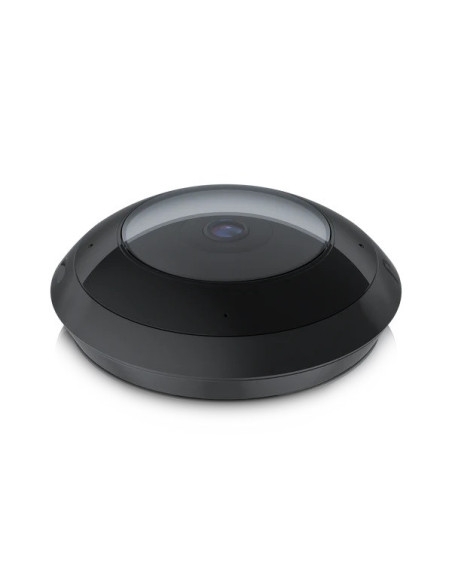

Indoor/outdoor HD PoE camera with pan-tilt-zoom functionality that offers full 360° surveillance.
Features:
Related Products & Accessories
Monitor and analyze foot traffic in real-time with a next-generation PTZ camera.
360° Fish-eye Lens
Provides full vantage over densely-populated areas.
Indoor / Outdoor
Impressive, IPX4-rated durability and all-weather resistance.
Vandal-proof Casing
Protected with an IK08-rated enclosure.
| Mechanical | |
|---|---|
| Dimensions |
Ø147 x 49 mm (Ø5.77 x 1.94") |
| Weight |
Without mount: 655 g (1.44 lb) With outdoor accessory: 685 g (1.51 lb) |
| Enclosure materials |
Aluminum alloy, polycarbonate, hard-coated dome |
| Mounting materials |
Polycarbonate, stainless steel |
| Weatherproofing |
IPX4 |
| Resistance |
IK08 |
| Optics | |
| Sensor |
5 MP CMOS sensor |
| Lens |
Fisheye lens |
| View angle |
360° |
| Night mode |
Built-in IR LED illumination and IR cut filter |
| Video | |
| Video compression |
H.264, MJPG |
| Resolution |
1920 x 1920 (1:1) |
| Maximum frame rate |
30 FPS |
| Image settings |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, masking, text overlay |
| System | |
| Processor specs |
ARM® quad-core Cortex™-A53 |
| Memory information |
2 GB LPDDR4 |
| Flash memory support |
8GB eMMC |
| Management interface |
UniFi Protect |
| Networking interface |
GbE RJ45 port |
| Power method |
PoE |
| Power supply |
48VDC, 0.18A PoE |
| Max. power consumption |
8.64W |
| Supported voltage range |
37 to 57VDC |
| Link/activity LED |
Yes |
| Button |
Factory reset |
| Operating temperature |
-20 to 40° C (-4 to 104° F) |
| Operating humidity |
10 to 90% noncondensing |
| Certifications |
FCC, IC, CE |
| Audio | |
| Microphone |
Yes (can be disabled in software) |
| Speaker |
Yes |
| Software | |
| UniFi OS application |
UniFi Protect |
| Mobile apps |
UniFi Protect iOS and Android |
