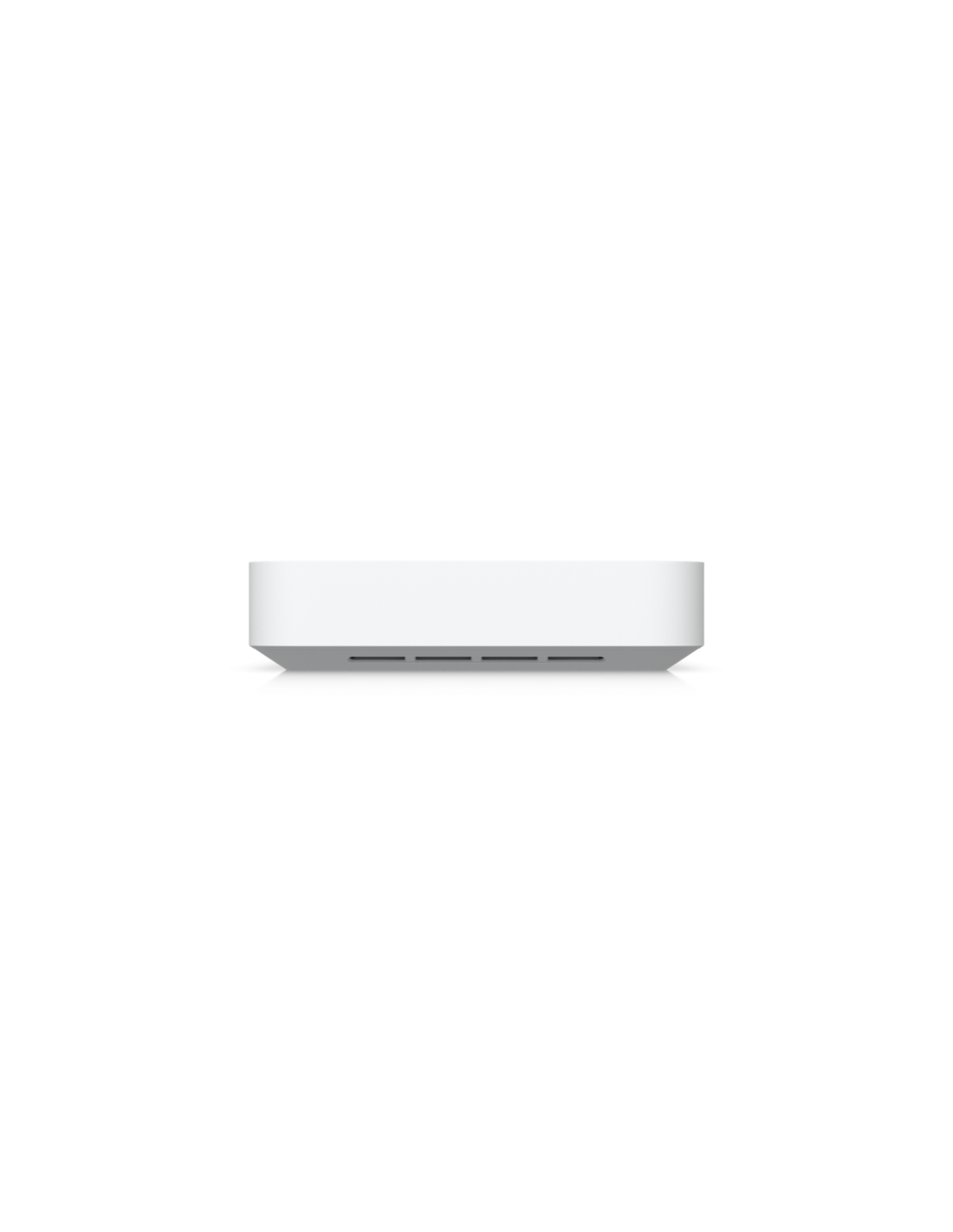

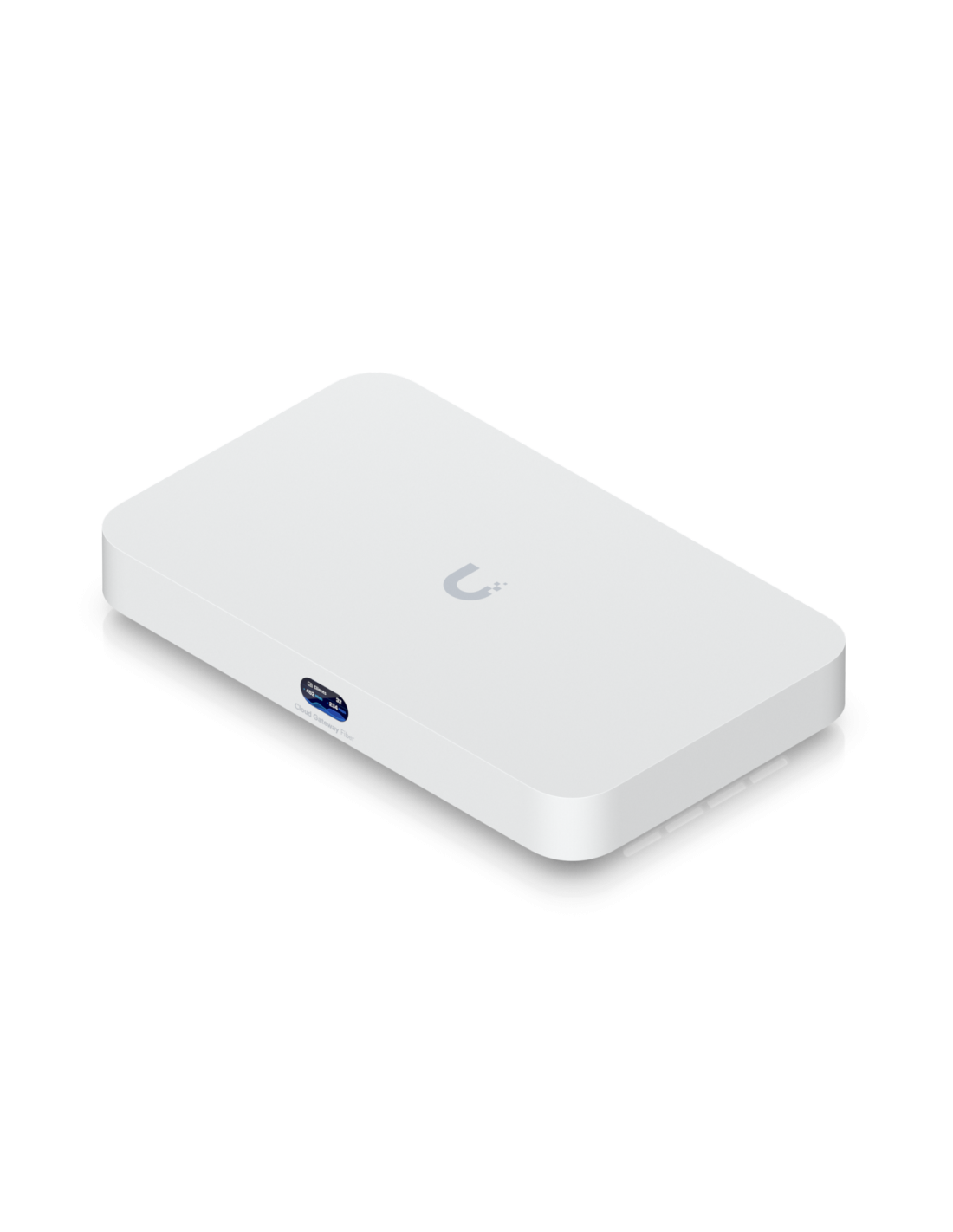

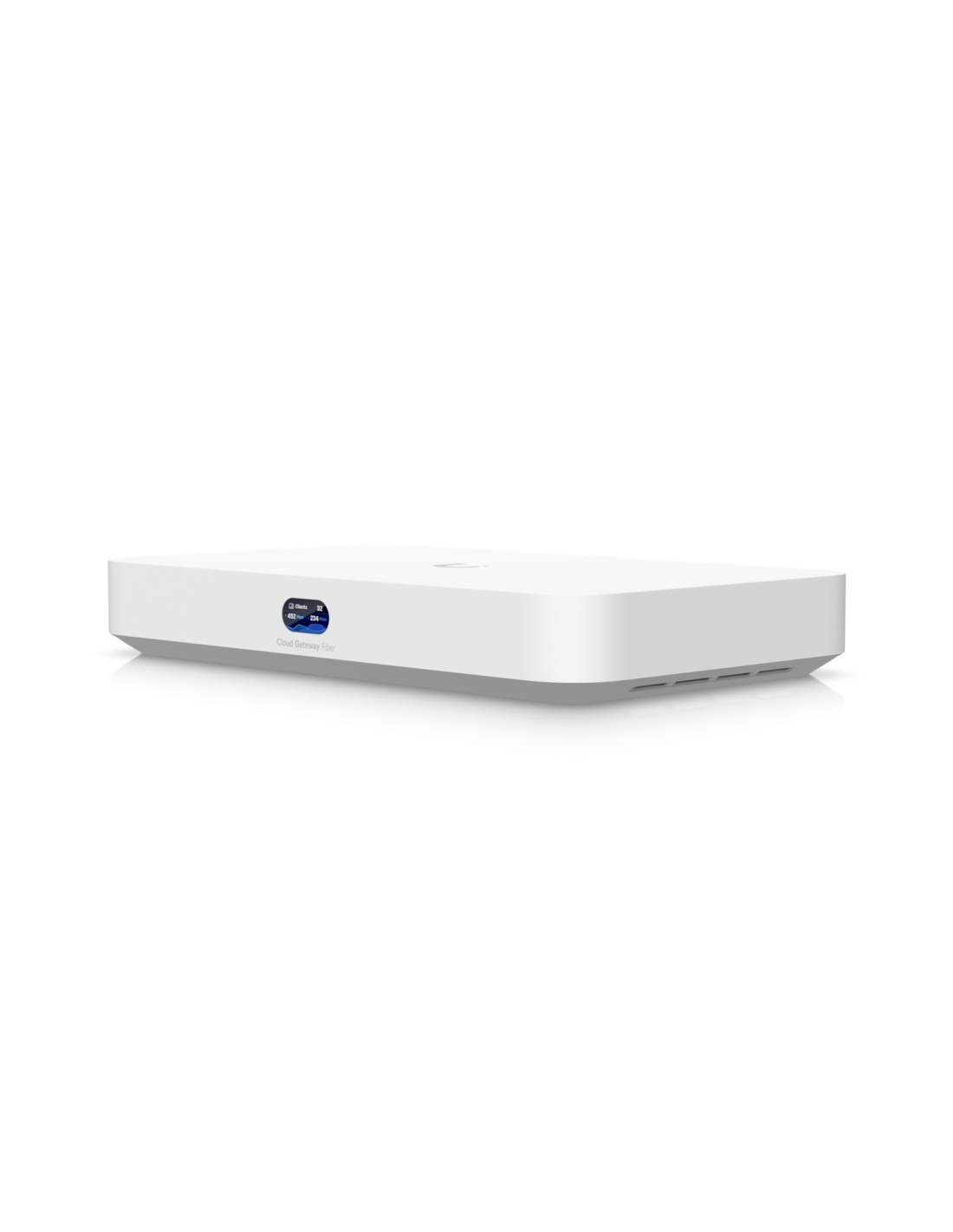

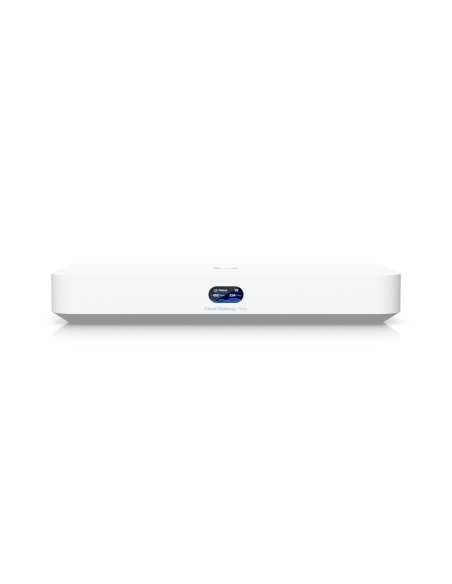

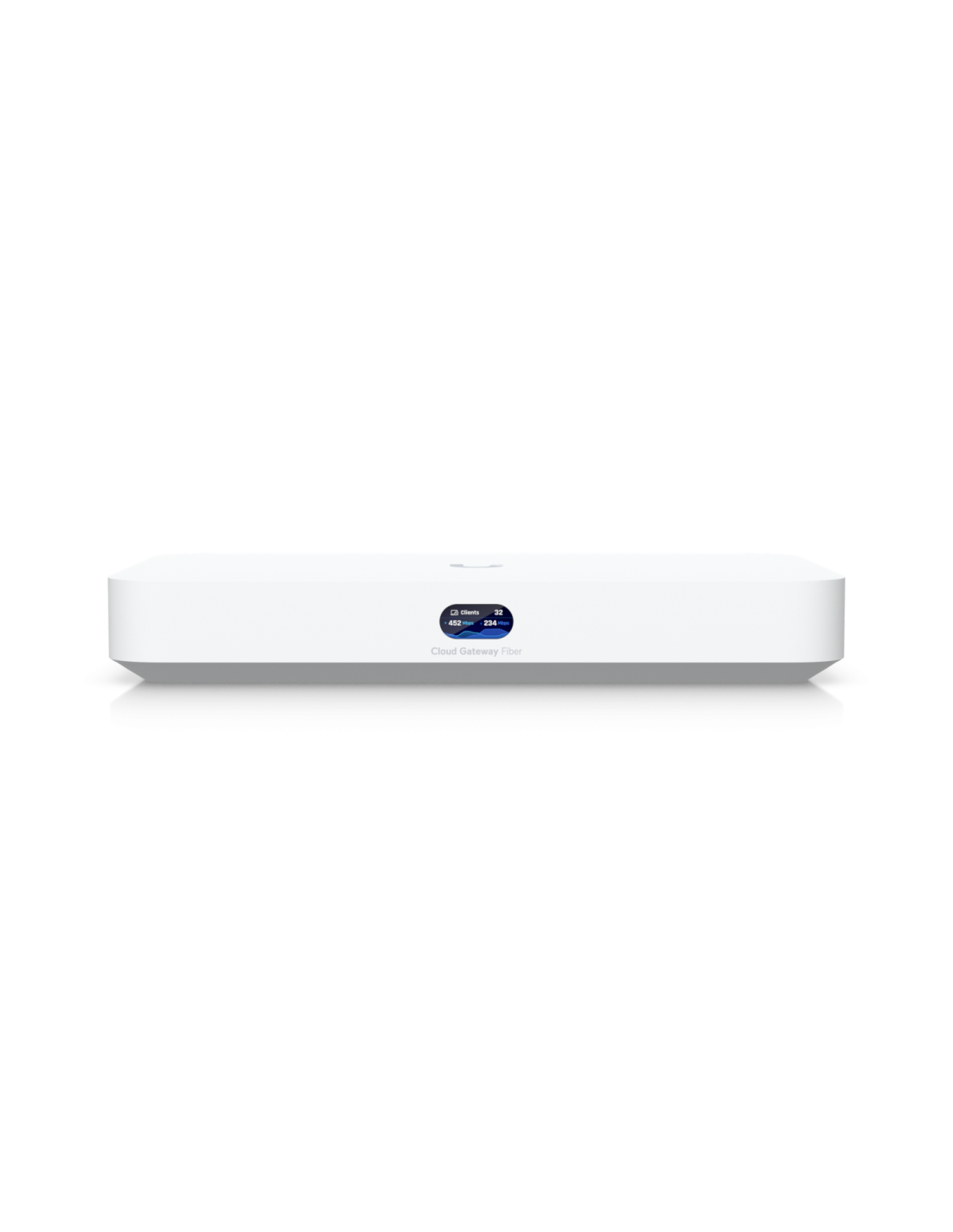

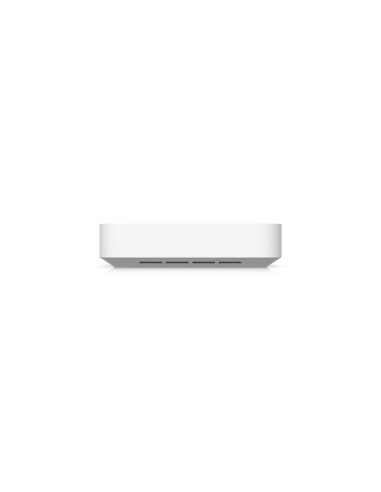

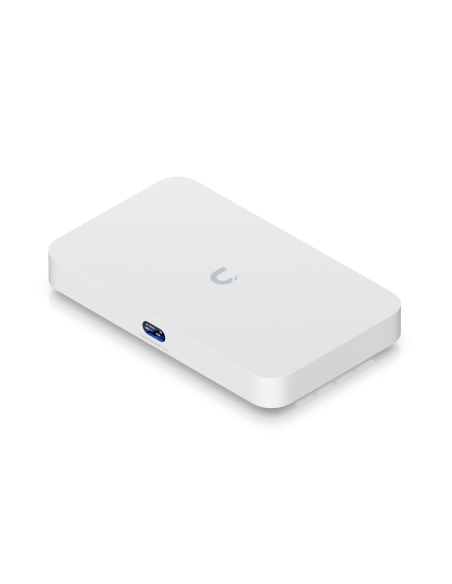

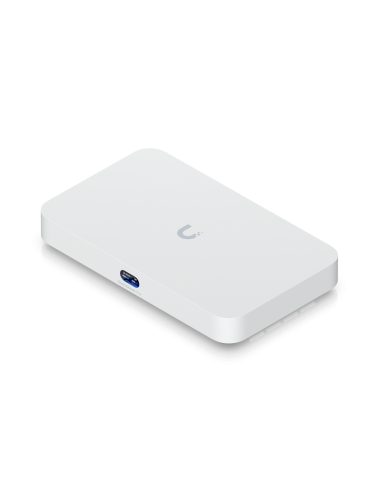

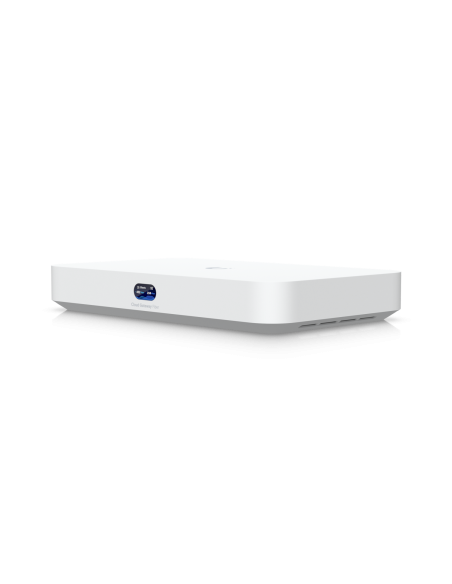

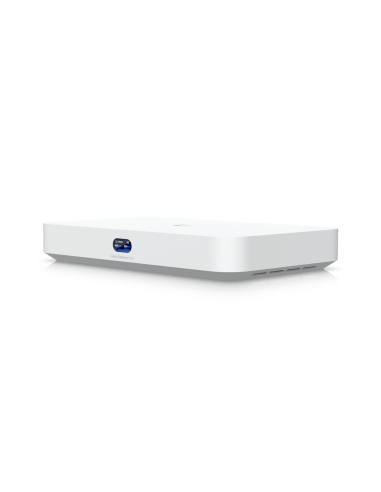

Ubiquiti UCG-Fiber Desktop 10G Cloud Gateway with 4-Port 2.5 GbE Switch, Selectable NVR Storage and Full UniFi Apps Support

UCG-Fiber
Last items in stock
$608.00
Tax included

UCG-Fiber

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.

key Features:

  • Includes full UniFi application suite for device management

  •  Manages 50+ UniFi devices and 500+ clients

  • 5 Gbps routing with IDS/IPS

  • 0.96" LCM status display

  • Selectable NVR storage

Related Products & Accessories



 UCG-Fiber - Ubiquiti Desktop 10G Cloud Gateway with 4-Port 2.5 GbE Switch, Selectable NVR Storage and Full UniFi Apps Support



Product Specifications

Specification Details
Dimensions 212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5")
UniFi Application Suite Network, Protect, Access, Talk, Connect
Managed UniFi Devices 50+
Managed Cameras (15) HD, (8) 2K, (5) 4K
Simultaneous Users Connected 500+
Max. WAN Port Count 6
Default WAN Ports (1) 10G SFP+, (1) 10 GbE RJ45

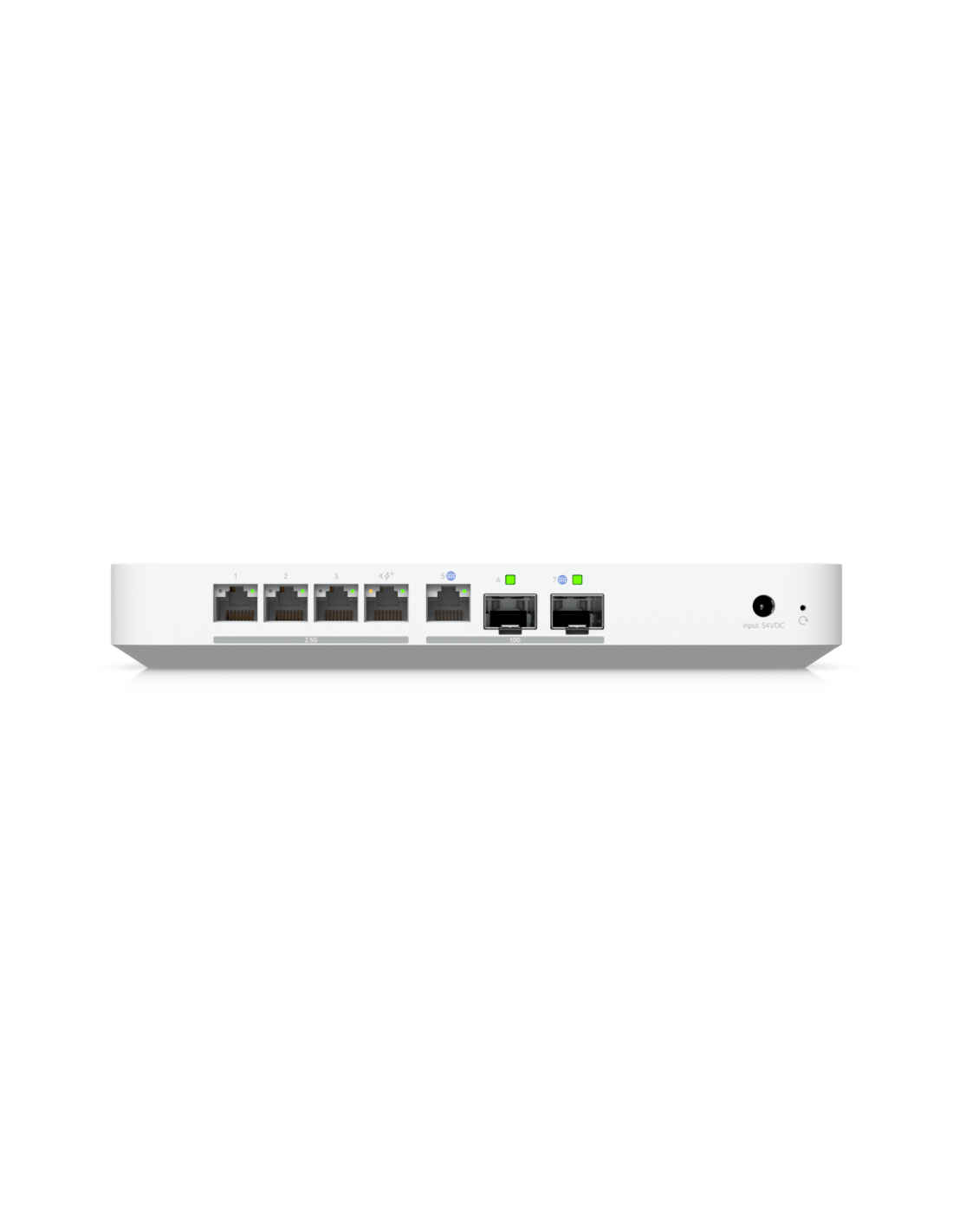

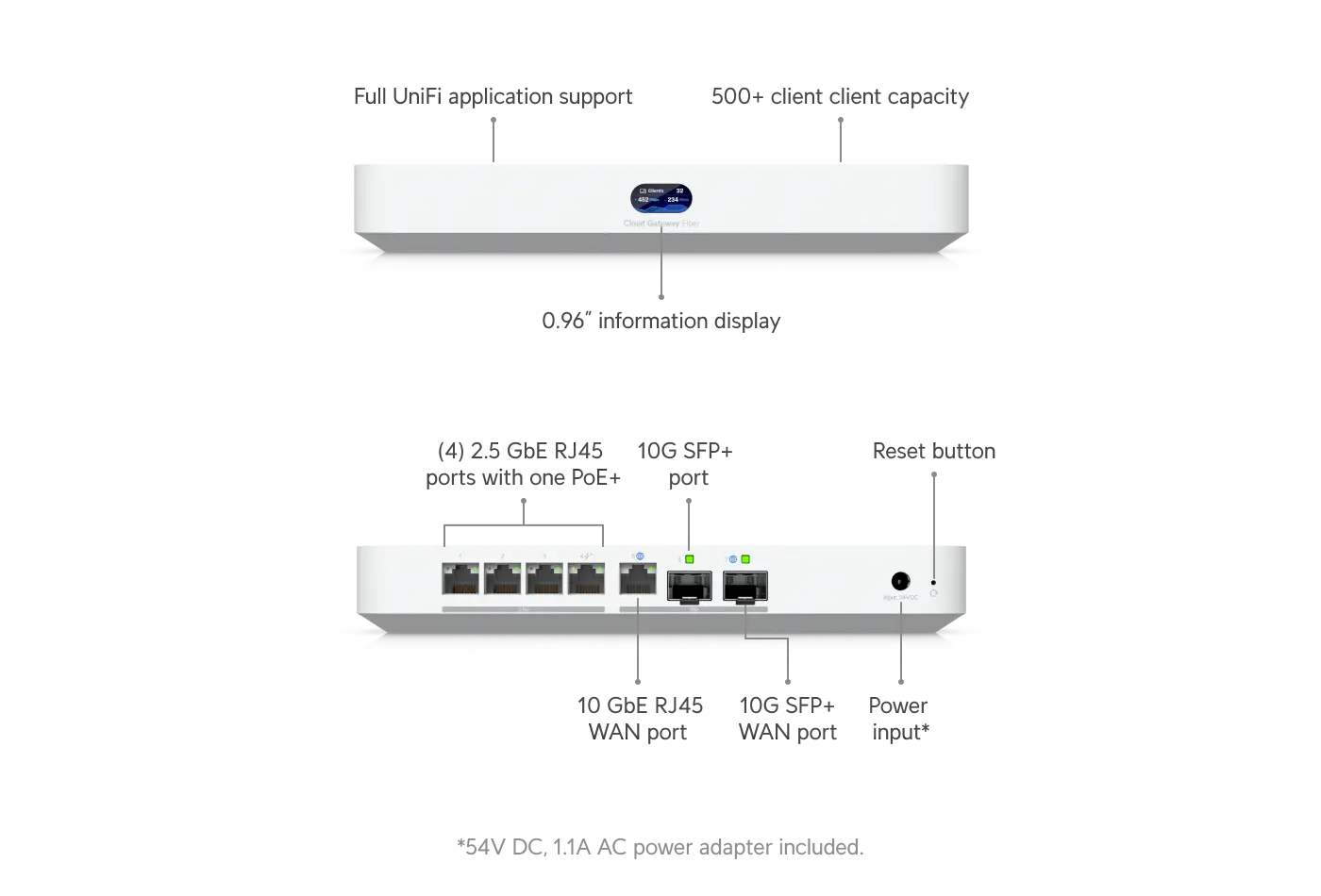

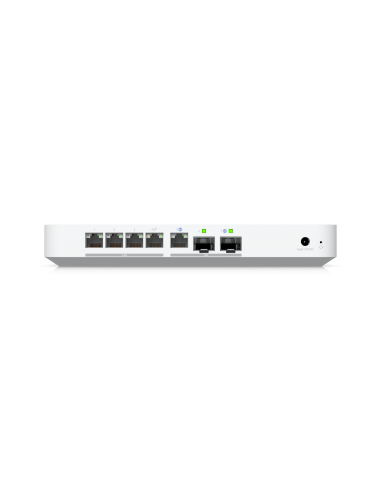

Port Layout 2.5 GbE RJ45 (4) (2.5G/1G/100M/10M), 10 GbE RJ45 (1) (10G/2.5G/1G), 10G SFP+ (2) (10G/1G)
IDS/IPS Throughput 5 Gbps
Form Factor Compact desktop
Stateful Firewall ✓
Application-Aware Layer 7 Firewall ✓
DPI & Traffic Identification ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
Content Filtering ✓
Intrusion Prevention (IPS/IDS) ✓
Ad Blocking ✓
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation ✓
License-Free SD-WAN ✓
Site-to-Site VPN Site Magic, IPsec, OpenVPN
VPN Server Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
VPN Client OpenVPN, WireGuard
Multi-WAN Load Balancing ✓
Dynamic Routing OSPF
Advanced QoS ✓
Multicast DNS (mDNS) ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
Integrated RADIUS Server ✓
RADIUS over TLS (RadSec) ✓
Additional Internet Failover with UniFi LTE Backup ✓
Internet Quality and Outage Reporting ✓
MAC Address Table Size 4,000
NVR Storage Selectable NVMe SSD up to 2 TB
PoE Budget 30W
Voltage Range PoE Mode 50-57V
Max. Power Consumption 29.4W (Excluding PoE output)
Power Method DC jack (54V DC/1.1A)
Power Supply 54V DC/1.1A (adapter included)
Supported Voltage Range 100—240V AC
Processor Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory 3 GB
Weight (Without SSD) 675 g (1.5 lb)
Weight (With SSD) 734 g (1.6 lb)
Enclosure Material Polycarbonate
LCM Display 0.96" status display
Management Ethernet, Bluetooth
LEDs Ethernet, SFP+
Button (1) Factory-reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC
Device Type
Gateway
UCG-Fiber
