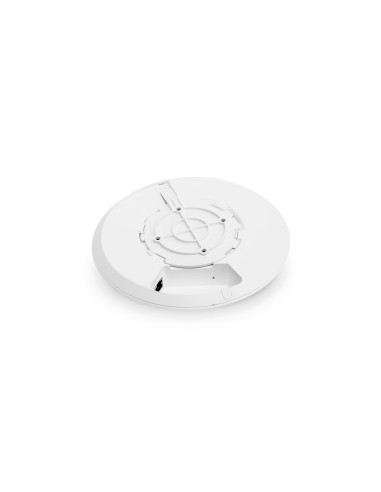

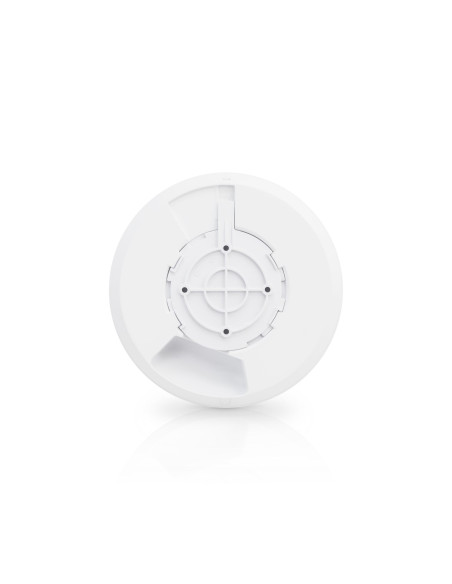

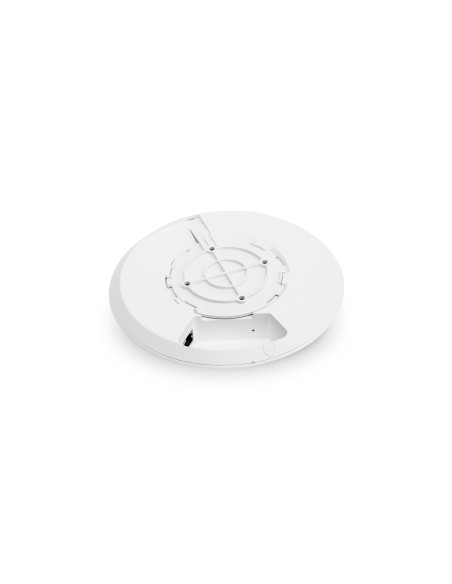

U6-LR
Last items in stock
$381.92
Tax included

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.

It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Features:

  • 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
  • Four-stream high-efficiency Wi-Fi 6 technology
  • 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
  • 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
  • Powered with 802.3at PoE (PoE injector not included)

  Managed by UniFi Network Controller version: 6.0.34 or higher

Quantity Unit price You Save
5 $376.57 $26.73


U6-LR - Ubiquiti UniFi 6 Dual Band 4x4 Long Range Access Point

Mechanical
Dimensions Ø220 x 48 mm (Ø8.66 x 1.89")
Weight Without Mount: 800 g (1.76 lb)
With Mount: 930 g (2.05 lb)
Enclosure Material Plastic
Mounting Material SGCC Steel
Weatherproofing IP54
Hardware
Processor Specs Dual-Core® Cortex® A53 at 1.35 GHz
Memory Information 512 MB
Management Interface Ethernet
Networking Interface (1) 1 Gbps Ethernet RJ45
Button Factory Reset
LEDs RGB
Power Method PoE+, Passive PoE (48V)
Power Supply UniFi PoE Switch
48V, 0.5A PoE Adapter (Not Included)
Supported Voltage Range 44 to 57VDC
Max. Power Consumption 16.5W
Max. TX Power
2.4 GHz
5 GHz

26 dBm
26 dBm
MIMO
2.4 GHz
5 GHz

4 x 4
4 x 4
Throughput Speeds
2.4 GHz
5 GHz

600 Mbps
2400 Mbps
Antenna Gain
2.4 GHz
5 GHz

4 dBi
5.5 dBi
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -30 to 60° C (-22 to 140° F)
Operating Humidity 5 - 95% Noncondensing
Certifications CE, FCC, IC
Software
Wi-Fi Standards 802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

*Supported With Upcoming Controller Versions

BSSID 8 per Radio
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
Concurrent Clients 300+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (Wi-Fi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Antenna Gain (dBi)
3
Device Type
Access Point
Device Features
Mountable
MIMO
4x4
Wireless System
2.4GHz
5GHz
Wi-Fi 6
Ethernet Ports
1 Eth port
810010073389
U6-LR
