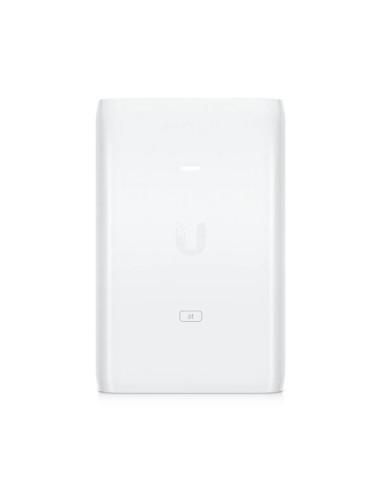

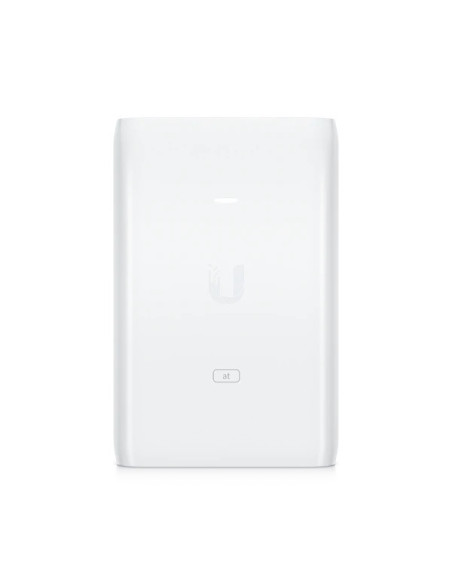

U-POE-at
In Stock
$32.74
Tax included

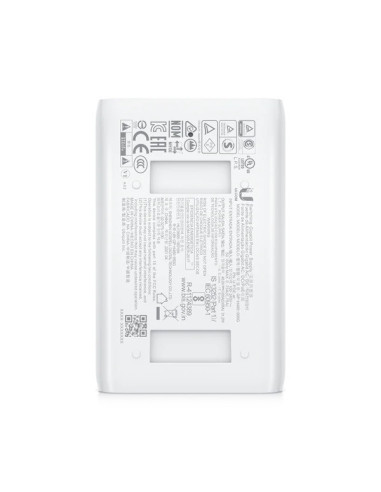

U-POE-at

Compact adapter capable of delivering 30W of PoE+ to the U6 LR, U6 Pro, and other 802.3at devices.

The 802.3at PoE+ Injector (U PoE AT) is designed to power 802.3at PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the Access Point WiFi 6 Long-range (U6 LR), Pro (U6 Pro), and other devices that adhere to the 802.3at PoE+ standard. It also provides enhanced protection against electrical surges.

Features:

  • Delivers up to 30W of PoE+
  • Compatible with the U6 LR, U6 Pro, and other 802.3at PoE+ devices
  • Surge and clamping protection
  • AC cable with earth ground

Related Products & Accessories



U-POE-at - Ubiquiti PoE Injector 802.3at

Mechanical
Dimensions 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
Weight 156 g (5.5 oz)
Output Voltage 48VDC @ 0.65A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.75A@90VAC
Inrush Current <100A Peak @230VAC, 26℃
Efficiency 87%
Output Ripple 1% Max.
Switching Frequency 70 kHz Max.
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering –
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 90% Noncondensing

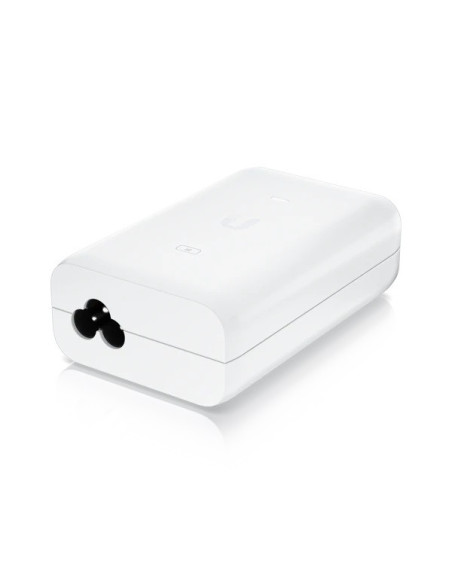

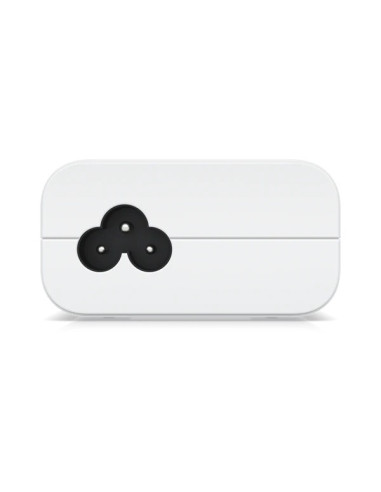

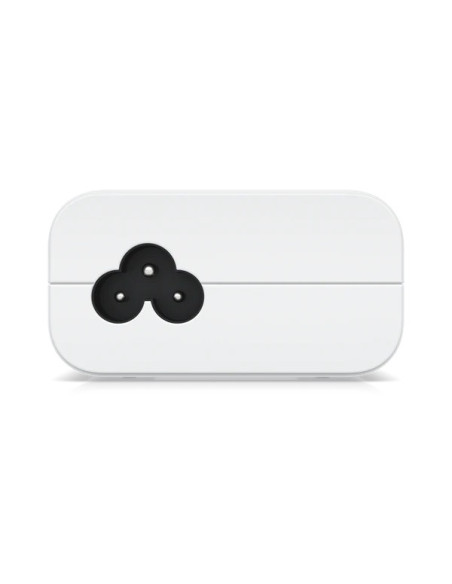

AC Connector IEC-320 C6

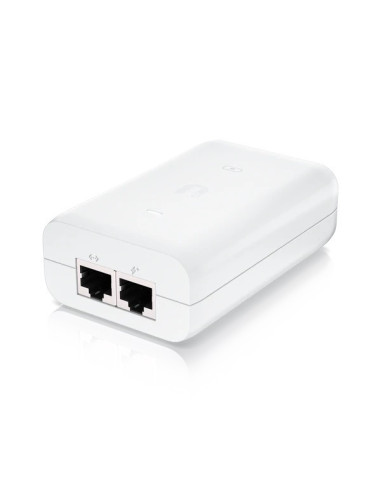

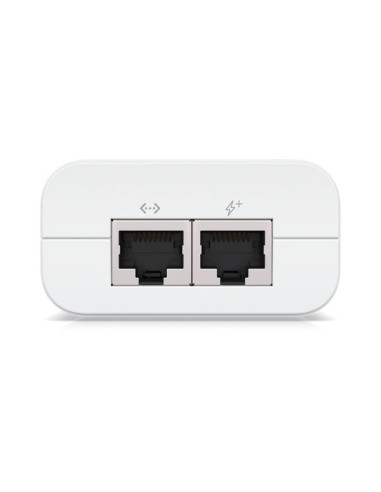

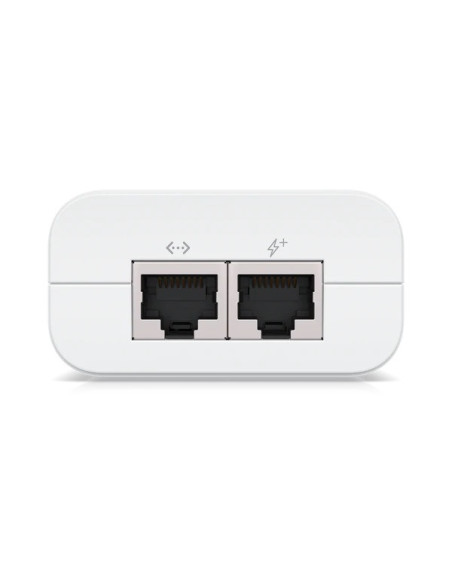

Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns

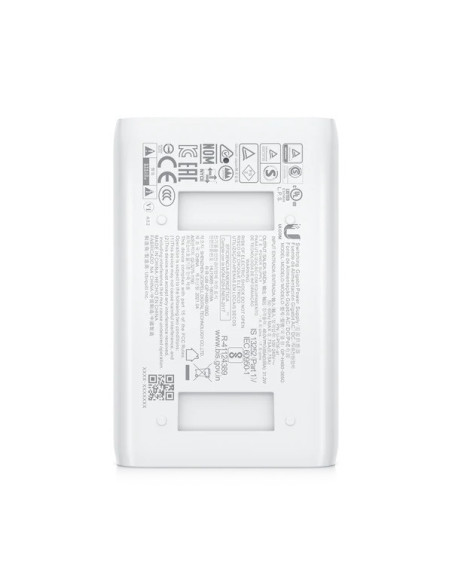

Certifications CE, FCC, IC, UL

POE Ports
1
Power Over Ethernet
48V 30W 802.3at
802.3at PoE
817882027236
U-POE-at
