Ubiquiti UACC-PoE+-2.5G, 2.5G PoE+ Adapter Delivers up to 30W of PoE+ Surge, peak pulse, and overcurrent protection RJ45 AC

UACC-PoE+-2.5G
April
$49.50
Tax included

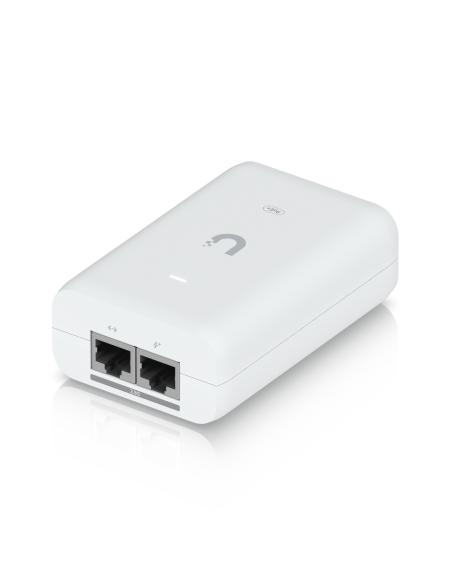

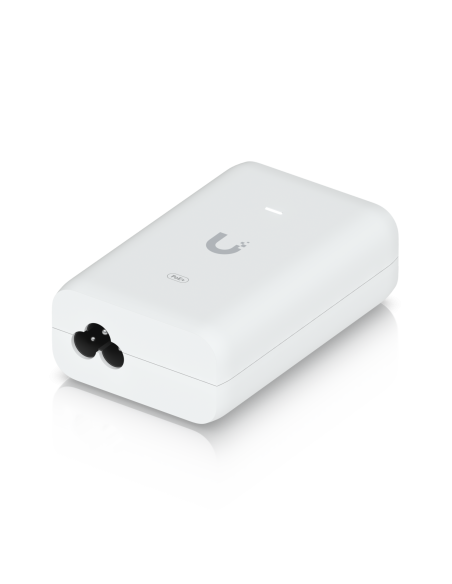

UACC-PoE+-2.5G,  2.5G PoE+ Adapter (30W)

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Key Features:

  • Delivers up to 30W of PoE+
  • Surge, peak pulse, and overcurrent protection

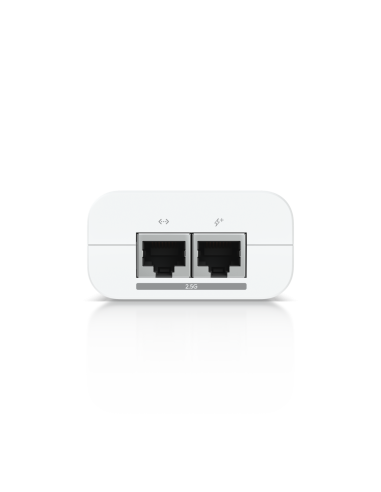

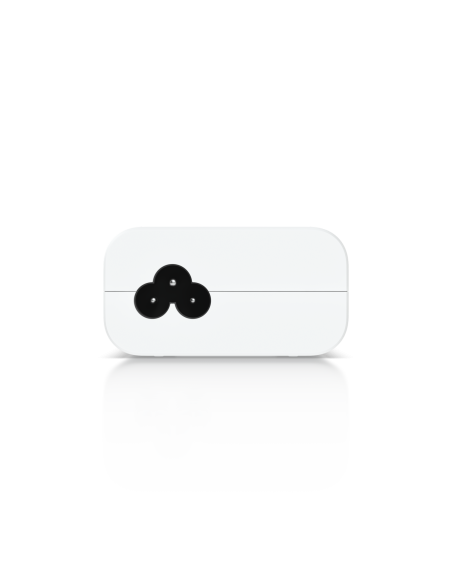

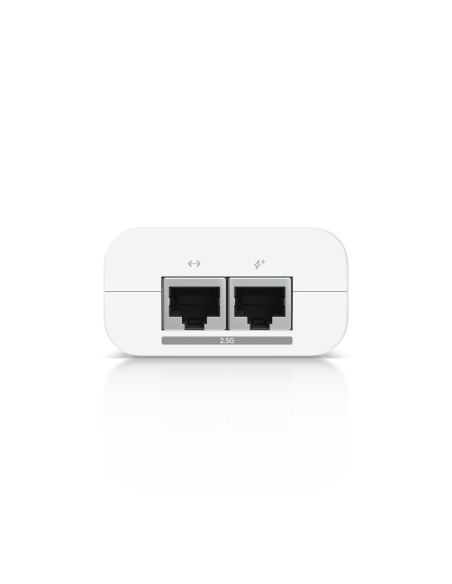

  • Contains RJ45 data input, AC cable with earth ground, and PoE+ output

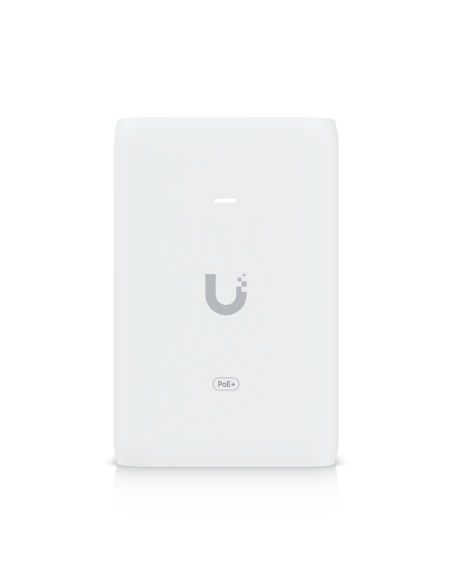

  • LED indicator for status monitoring


UACC-PoE+-2.5G, 2.5G PoE+ Adapter (30W)

Technical Specification:

Dimensions 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight 156 g (5.5 oz)
Output voltage 48V DC @ 0.65A
LAN activity indicator No
Gigabit LAN port Yes, up to 2.5 GbE
Remote reset capability No
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 0.75A max.
Inrush current <150A peak @ 230V AC
Efficiency >87%
Output ripple 1% max.
Switching frequency 65 kHz max.
Line regulation ≤ 1%
Load regulation ≤ 3%
2-pair powering Pins 4, 5 (+) and 7, 8 (-)
4-pair powering No
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Ambient operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
Device Type
Power Adapter
Power Supply
AC/DC
Output Voltage
48V DC @ 0.65A
UACC-PoE+-2.5G
