DrayTek DV130 Vigor130 VDSL2/ADSL2+ Modem Router with Firewall IPv6 1 x VDSL2/ADSL2/2+ port, RJ-11 (Annex A) or RJ-45 (Annex B) - 1 x 10/100/1000 Base-Tx LAN port, RJ-45 - Firewall, CSM , IPv6 NBN READY !!!

Features of Vigor130:

1. ADSL2/2+ & VDSL2
   • Compliant with ITU-T VDSL2 G.993.2
   • Compliant with ITU-T G.997.1
   • Capability Fall back to ADSL2/2+ Standards
   • ANSI T1.413 Issue2
   • ITU-T G.992.1 G.dmt
   • ITU-T G.992.3 ADSL2 G.dmt.bis
   • ITU-T G.992.5 ADSL2+
   • VDSL Band Plan: 997, 998
   • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
   • Annex A, Annex B, Annex M, Annex J
   • Loop diagnostic Mode
   • Compatible with POTS/PSTN
   • Multi-PVC
2. IP Version
   • IPv4
   • IPv6
     • Tunnel Mode: TSPC, AICCU, 6in4, 6rd
     • Dual Stack: PPP, DHCPv6 Client, Static IPv6
3. WAN Protocol
   • DHCP Client
   • Static IP
   • PPPoE
   • PPPoA (ADSL2/2+ only)
   • MPoA (RFC1483/2684)
   • PPTP/L2TP (VDSL2 only)
   • 802.1q VLAN Tagging
4. Content Security Management
   • URL Content Filter:
     • Tunnel Mode: TSPC, AICCU, 6in4, 6rd
     • Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
5. Firewall
   • Multi-NAT, DMZ Host, Port-redirection and Open Port
   • MAC Address Filter
   • SPI (Stateful Packet Inspection)
   • DoS/DDoS Prevention
   • E-mail Alert and Logging via Syslog
   • Time Schedule Control
   • VPN Pass-through (IPsec, PPTP, L2TP)
6. Network Features
   • Router/Bridge Configurable
   • IGMP Proxy V2/V3
   • DHCP Client/Relay/Server
   • UPnP 100 Sessions
   • DNS Cache/Proxy
   • Dynamic DNS
   • NTP Client
   • Static Route
   • RIP v1/v2
7. Network Management
   • Web-based User Interface (HTTP/HTTPS)
   • Quick Start Wizard
   • CLI (Command Line Interface, Telnet/SSH)
   • Configuration Backup/Restore
   • Built-in Diagnostic Function
   • Firmware Upgrade via TFTP/FTP/WUI/TR-069
   • Administration Access Control
   • Logging via Syslog
   • TR-069 Compliance with VigorACS SI
   • SNMP v1/v2c

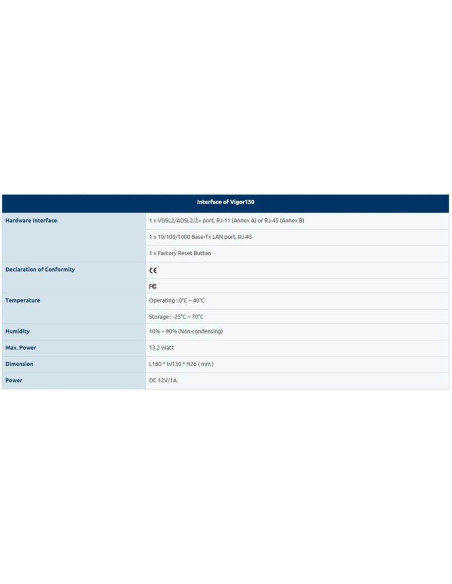

Hardware Interface

Applications
