The EdgePoint R8 EP-R8 by Ubiquiti Networks offers an innovative combination of robust routing performance, fibre backhaul capability and the convenience of passive power over Ethernet support on the EdgeMAX platform. The EdgePoint series is purpose-built as an all-in-one wireless control point solution to eliminate cabinet clutter and excessive maintenance. The EP-R8 features FiberProtect, as well as powerful Layer 3 routing features, like link balancing, to provide redundancy and increased performance for outdoor wireless links. The EP-R8 also features a weatherproof enclosure for outdoor use.
All-in-One Design: A single, compact controller eliminates clutter, expensive cabinets, and excessive maintenance.
Robust Construction: The ruggedized case withstands outdoor conditions including wind and snow. Included cable sleeve protects cables and openings.
Routing Features: Including VLAN interfaces, static router, DHCP, QoS, NAT rules, and all you need for a robust set-up.
Dimensions: 326.6 x 382.7 x 88.8 mm (12.86 X 15.07 X 3.50")
Dimensions (w/ Wall Mount): 326.6 x 387.2 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight: 3.4 kg (7.50 lbs)
Weight (w/ Wall Mount): 3.8kg (8.38 lbs)
Enclosure Characteristics: Diecast Aluminum Alloy and Polycarbonate with UV Resistance
Max. Power Consumption: 40W (Excludes PoE Output)
Power Input: (1) DC Terminal Block or (2) RJ45 (PoE In and eth0)
Power Supply: Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input: 54VDC, 6A
Power Monitoring: (1) DC Terminal Block, Input Power ; (2) RJ45, PoE In and eth0, Input Power
Supported Voltage Range: 56 to 42VDC
Serial Console Port: (1) RJ45 Serial Port
PoE In Port: (1) RJ45 Port

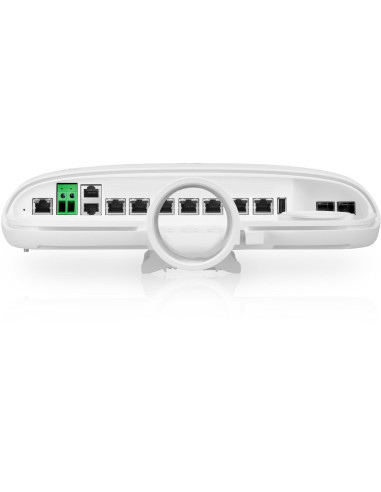

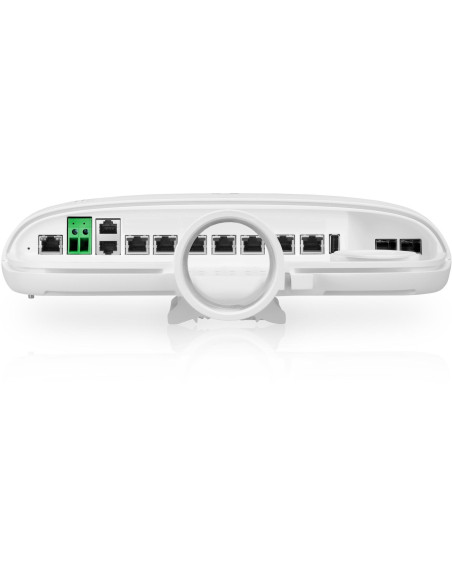

Data Ports: (6) 10/100/1000 RJ45 Ports ; (2) 10/100/1000 RJ45/SFP Combination ports
Processor: Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory: 2 GB DDR3-1600 RAM
Code Storage: 4 GB
Certifications: CE, FCC, IC
Operating Temperature: -40 to 65°C (-40 to 149°F)
Operating Humidity: 10 to 90% Noncondensing
- Onboard RAM
- Device Features
- Outdoor, Complete With Case, POE Passive (24V)
- Device Type
- SFP Ports
- Yes, 1G SFP
- Ethernet Ports
