Ubiquiti UniFi 7 Pro WiFi 7 tri-radio 6 GHz PoE+ 2.5 GbE Access Point

U7-Pro
Out Of Stock
$366.30
Tax included

U7-Pro

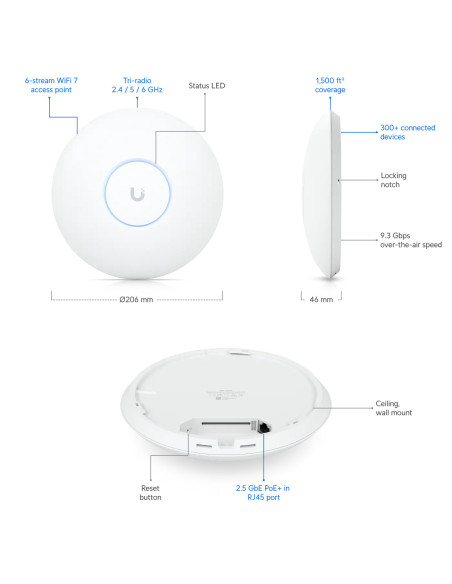

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Features:

  • WiFi 7 tri-radio with 6 GHz
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
  • PoE adapter (not included)


U7-Pro - Ubiquiti UniFi 7 Pro WiFi 7 tri-radio 6 GHz PoE+ 2.5 GbE Access Point

Technical Specifications
Mechanical
Dimensions Ø206 x 46 mm (Ø8.1 x 1.8")
Weight 680 g (1.5 lb)
Enclosure material Polycarbonate, metal
Mount material Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 21W
Max. TX power
2.4 GHz
5 GHz
6 GHz

22 dBm
26 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz

688 Mbps
2882 Mbps
5765 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

4 dBi
6 dBi
5.8 dBi
LEDs White/blue
Button Factory reset
Mounting Wall/ceiling (Included)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network Version 8.0.26 and later
UniFi OS Version 3.2 and later

Antenna Gain (dBi)
4
5.8
6
Device Type
Access Point
MIMO
2x2
Wireless System
2.4GHz
5GHz
Wi-Fi 7
Ethernet Ports
1 Eth port
