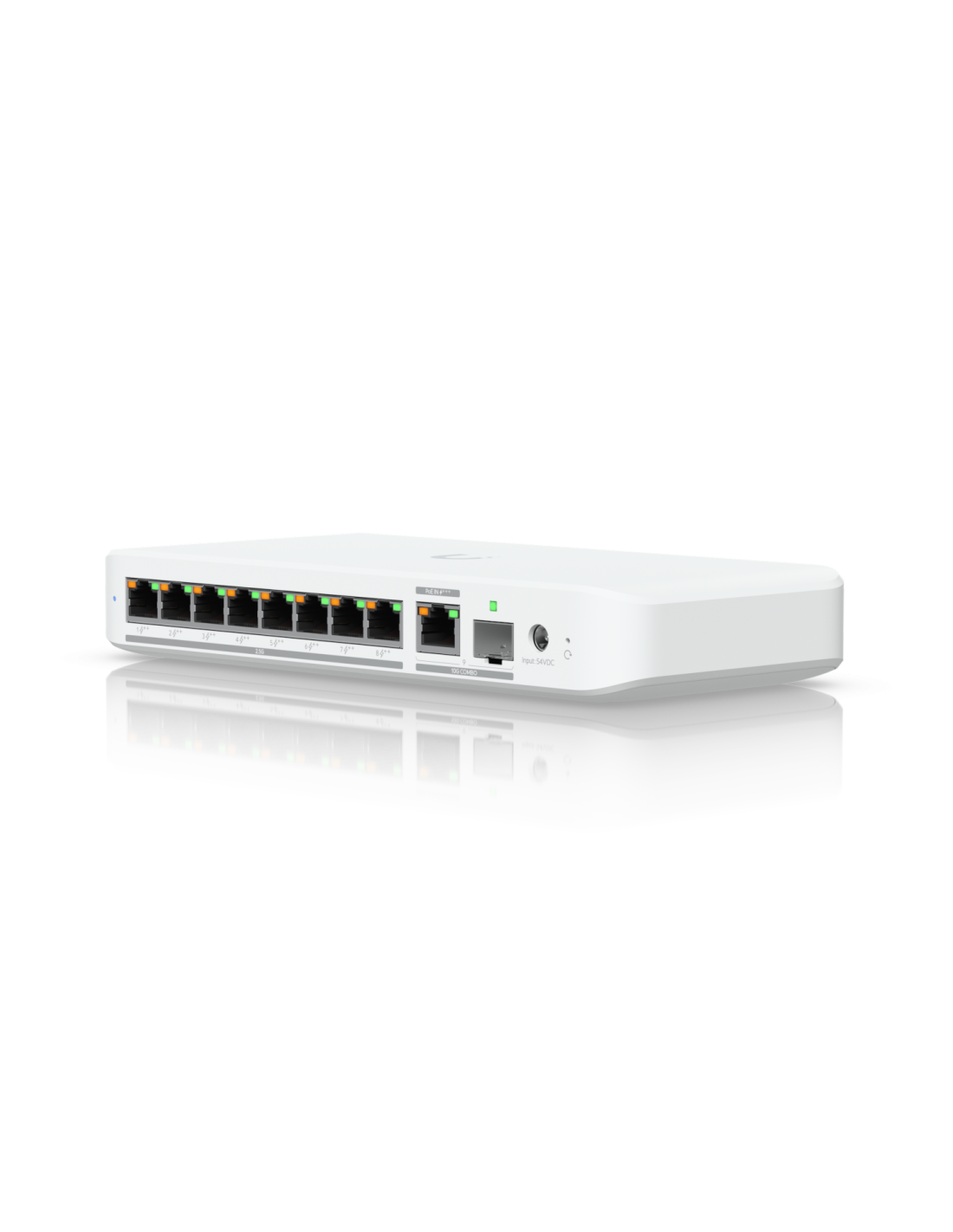

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.
Related Products & Accessories
Mechanical |
|
|---|---|
| Dimensions | 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3") |
| Weight | 567 g (20 oz) |
| Enclosure material | Polycarbonate |

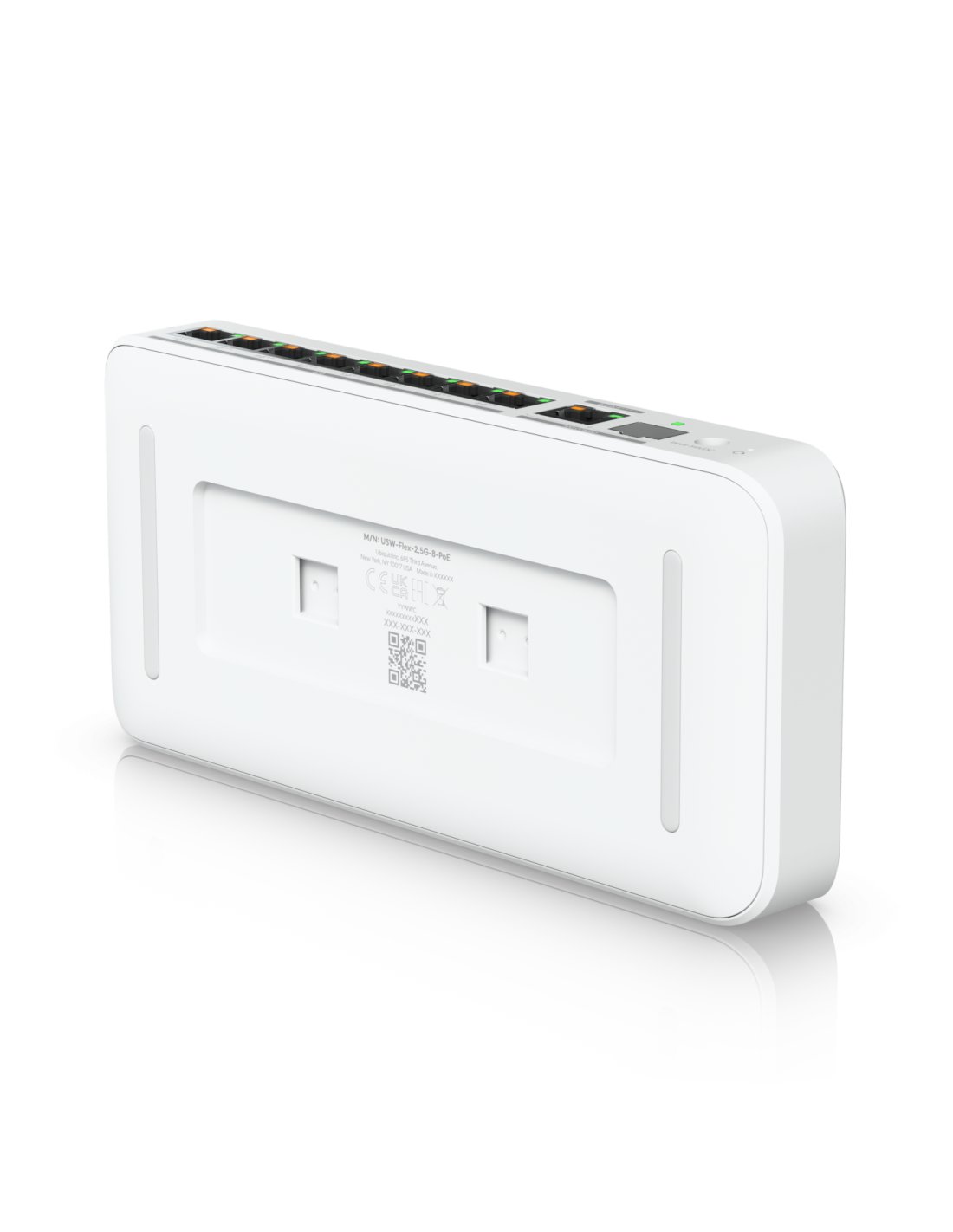

| Mounting | Wall-mountable (kit included) DIN rail-mountable (sold separately) |
Hardware |
|
| Management interface | Ethernet In-Band |

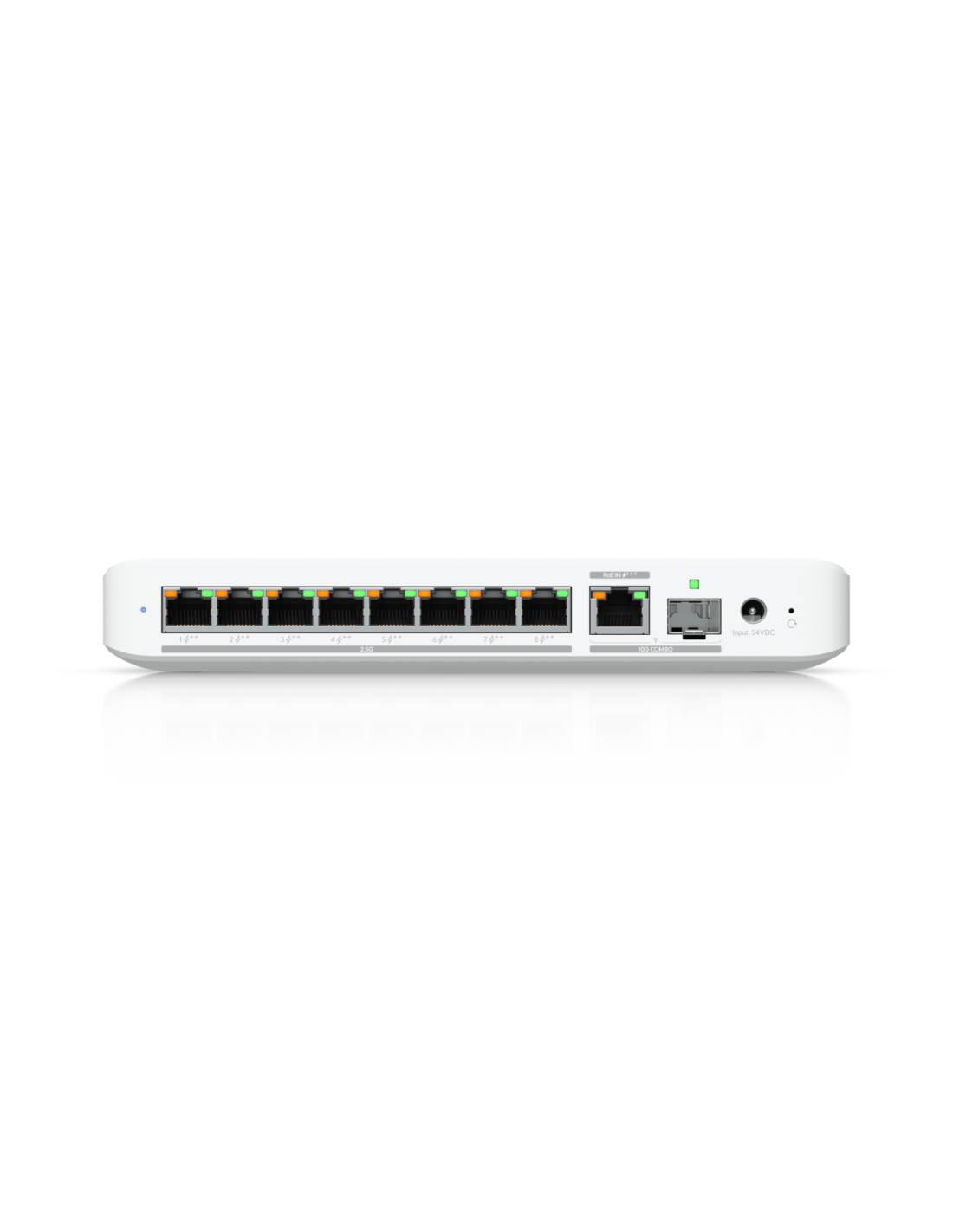

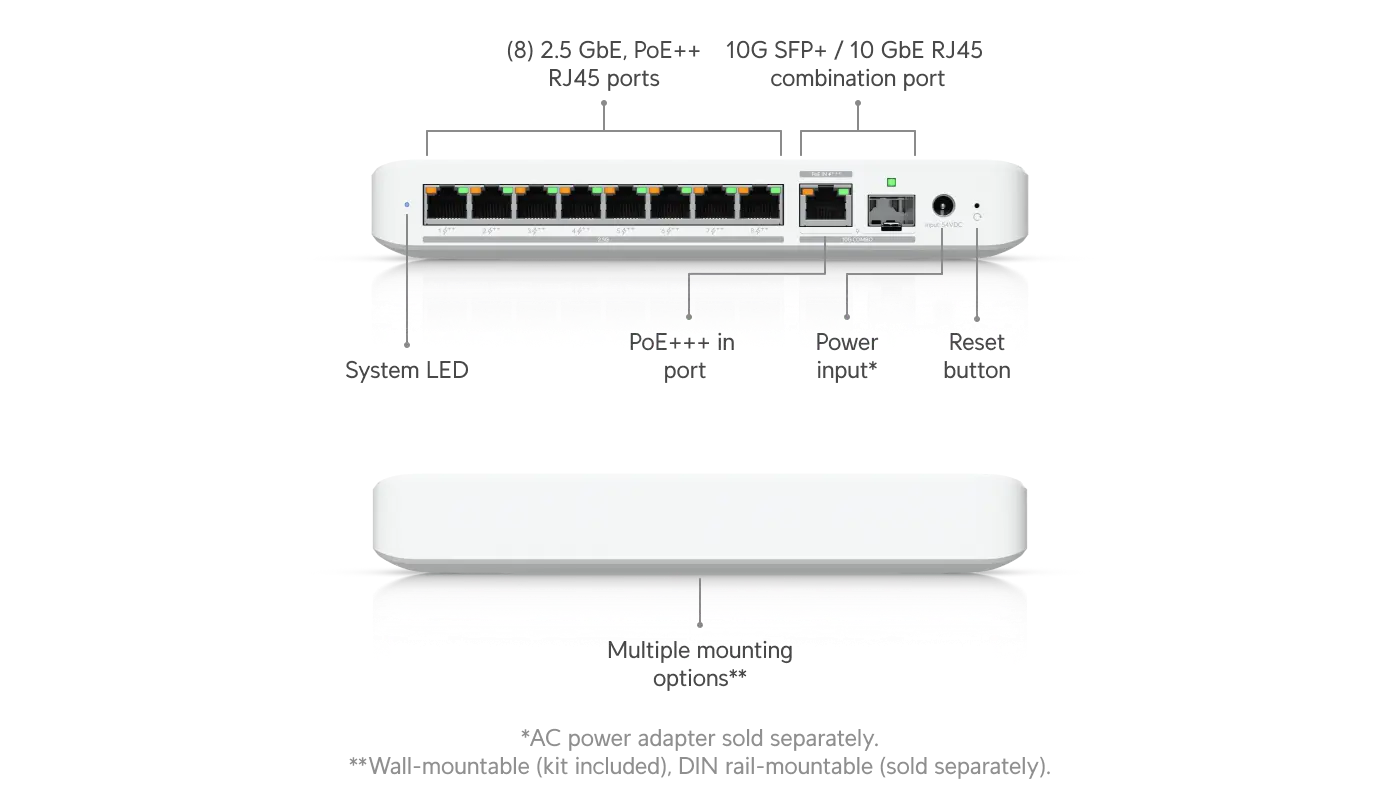

| Networking interface | (8) 2.5/1 GbE RJ45 ports (1) 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port* While only one is active, RJ45 can receive power and SFP+ can be utilized for data. |
| PoE interface | (8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 30 Gbps |
| Switching capacity | 60 Gbps |
| Forwarding rate | 44.64 Mpps |
| Power method | (1) AC power adapter, 54V DC, 3.9A (Not included) (1) PoE+++ (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-) |
| Power supply | External AC/DC adapter UniFi PoE switch |
| Supported voltage range | AC/DC input: 54V DC (DC jack) PoE input: 50—57V DC |
| Max. power consumption | PoE input: 14W (Excluding PoE output) AC input: 17W (Excluding PoE output) |
| Total available PoE | PoE+++ input: 57W PoE++ input: 37W PoE+ input: 12W 210W AC adapter input: 196W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| Button | Factory reset |
| Ambient operating temperature | -20 to 45° C (-4 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Switching Features |
|
| Layer 2 features | STP / RSTP with priorities and port-level disable Storm control Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit Proprietary loop protection Port isolation Port mirroring |
LEDs |
|
| System | Blue/white: power Blinking white: bootup in progress Blinking blue: firmware upgrading Steady white: factory defaults; unit is awaiting adoption Steady blue: unit is adopted |
| Ethernet | Link/activity PoE input/output |
| SFP+ | Link/activity |
Application Requirements |
|
| UniFi Network | Version 9.0.108 and later |
