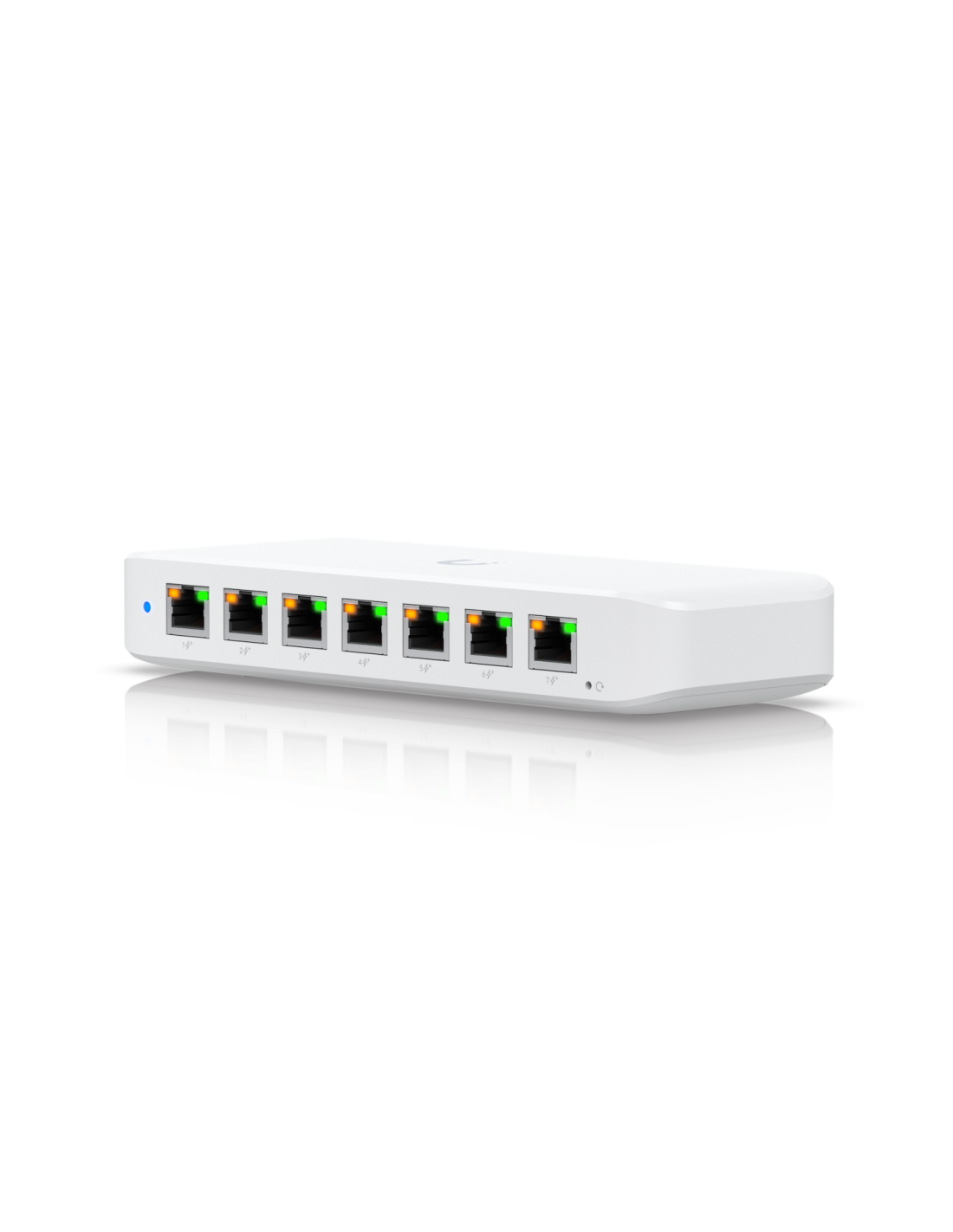

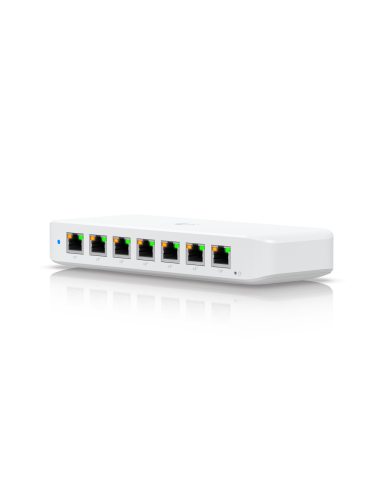

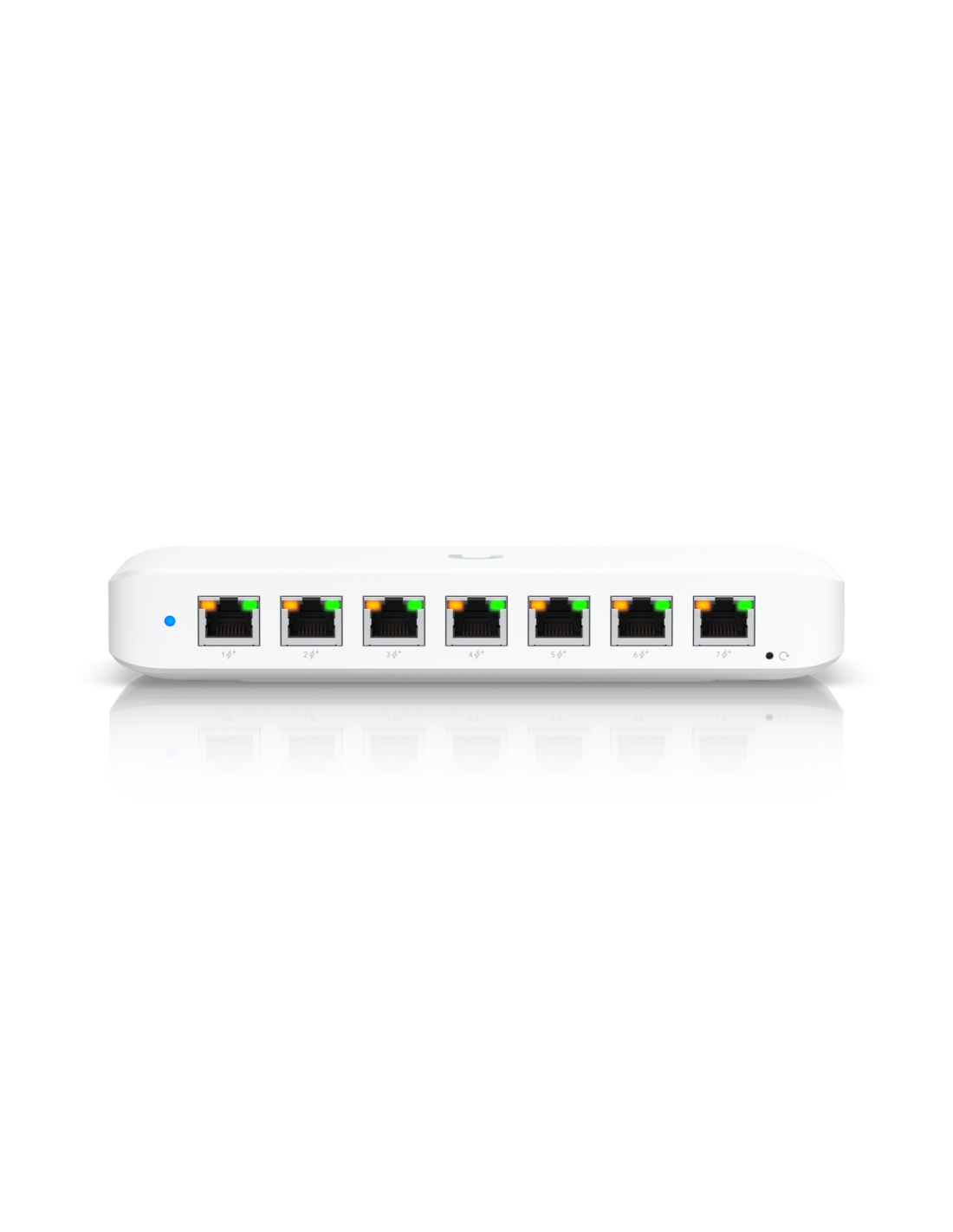

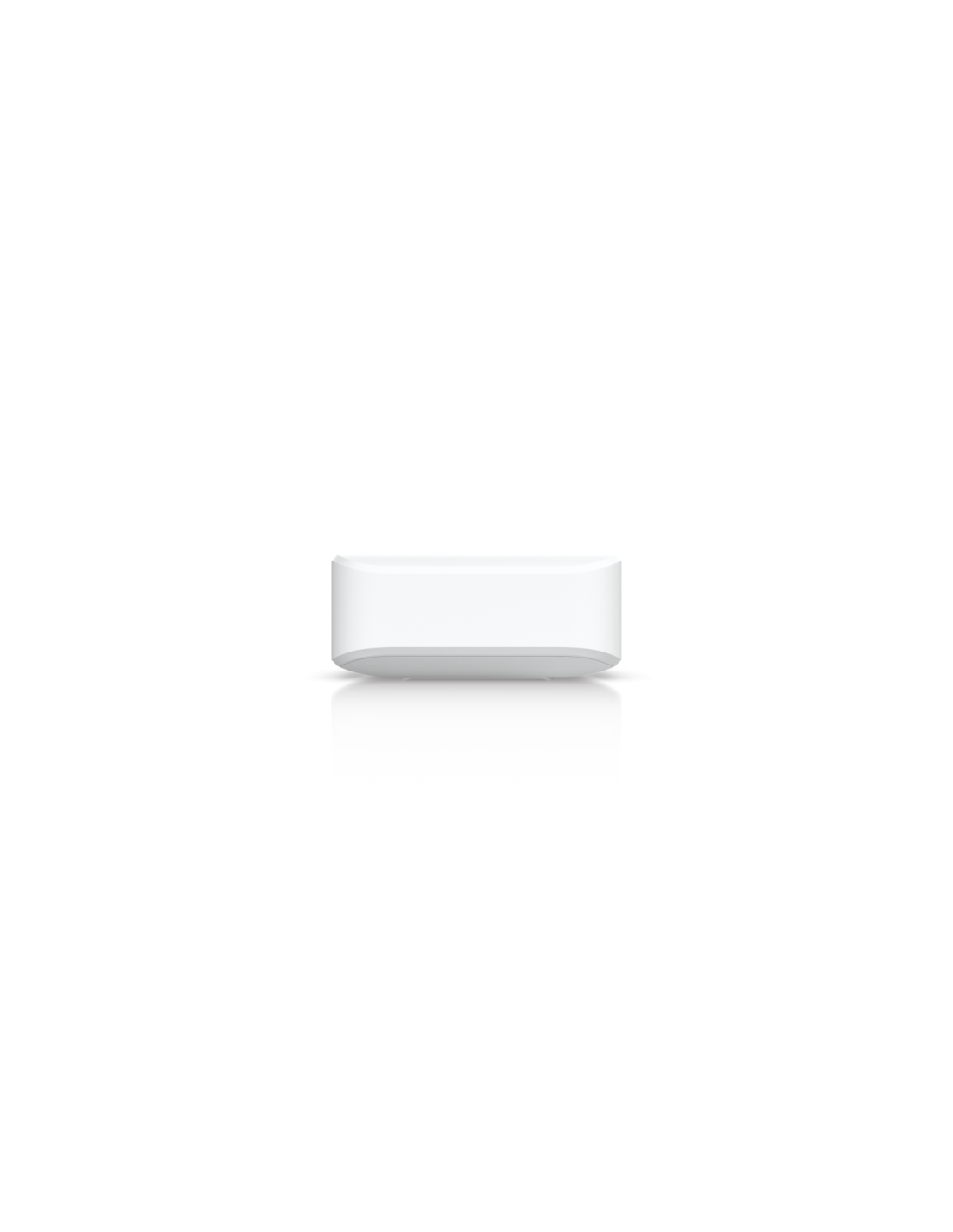

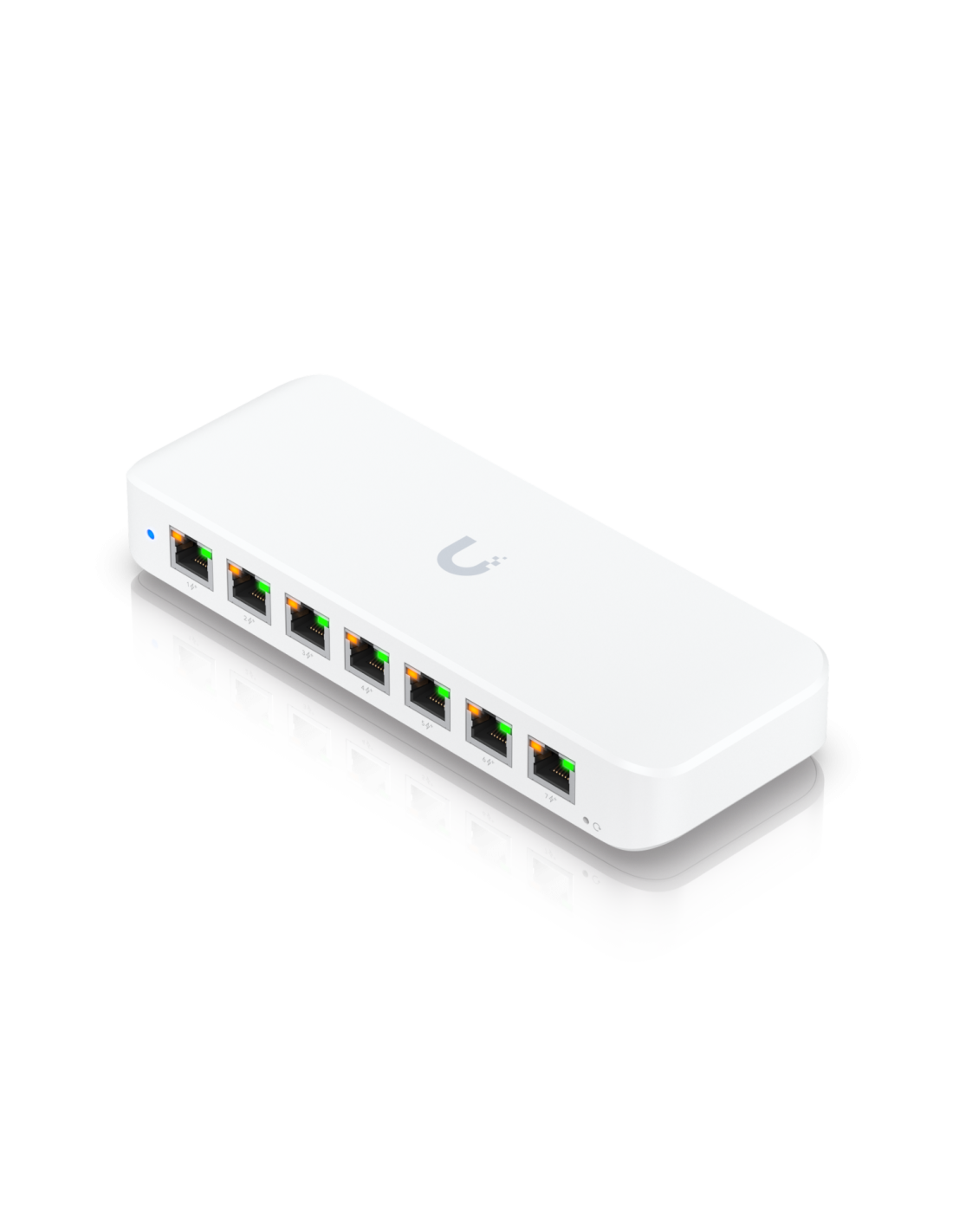

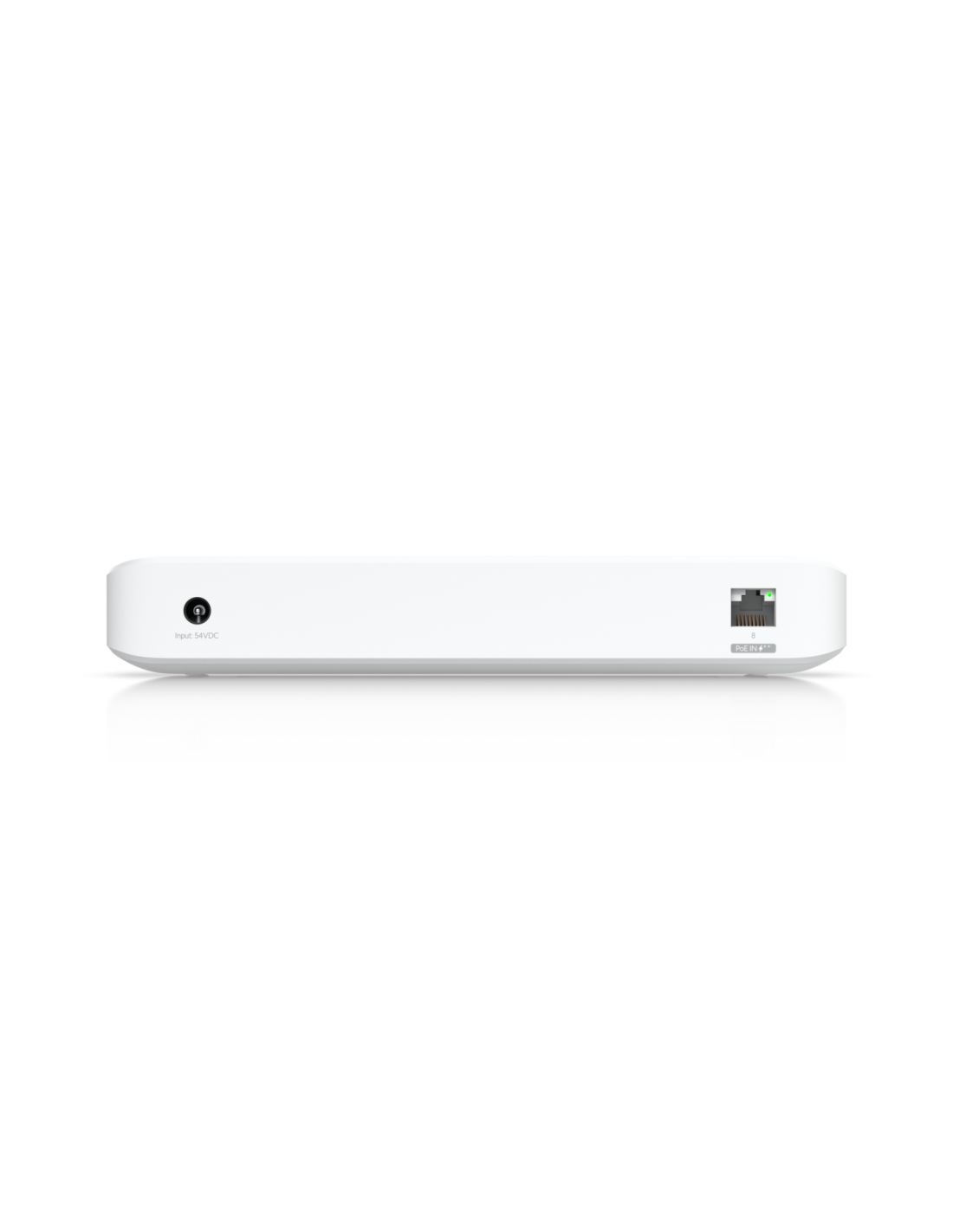

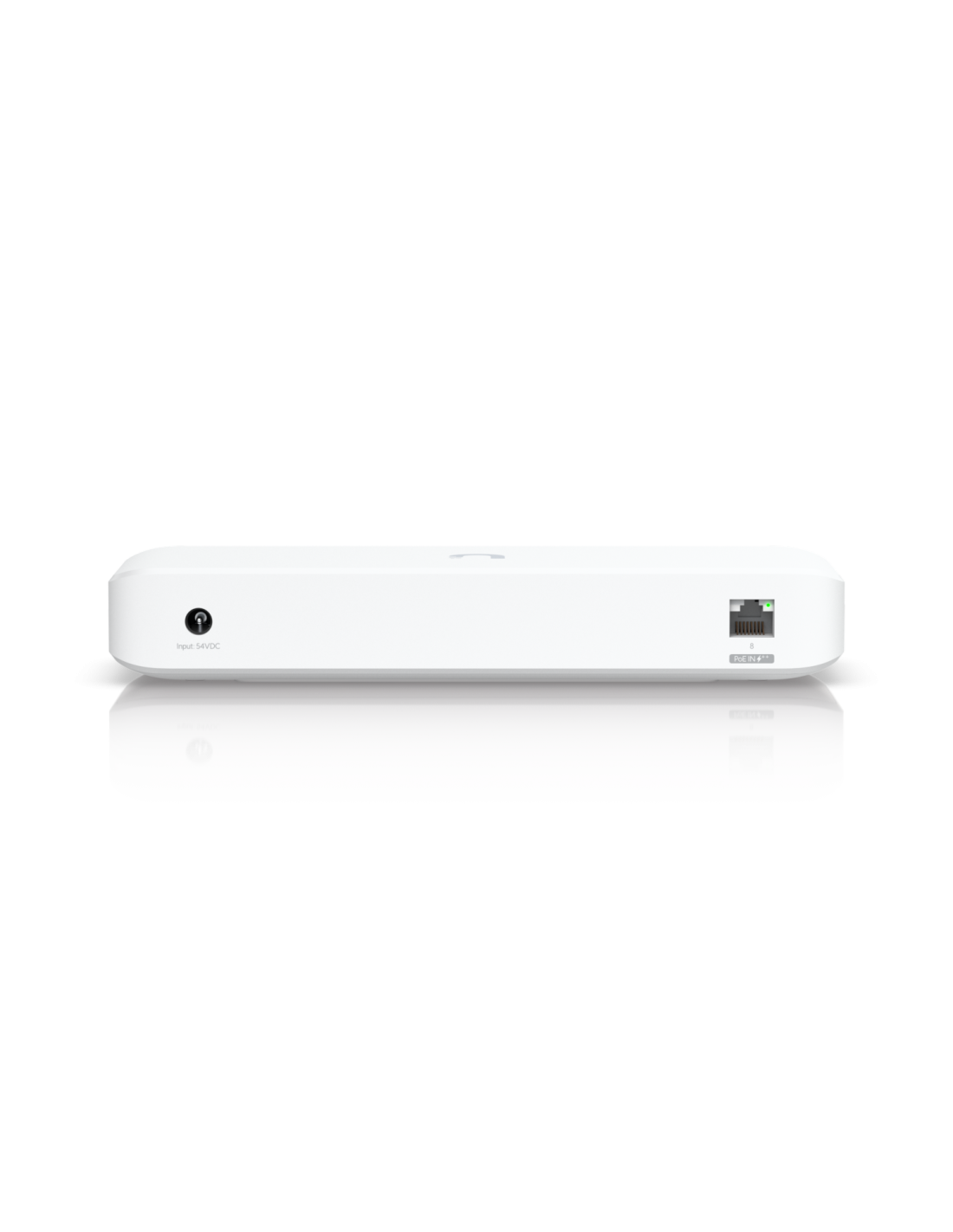

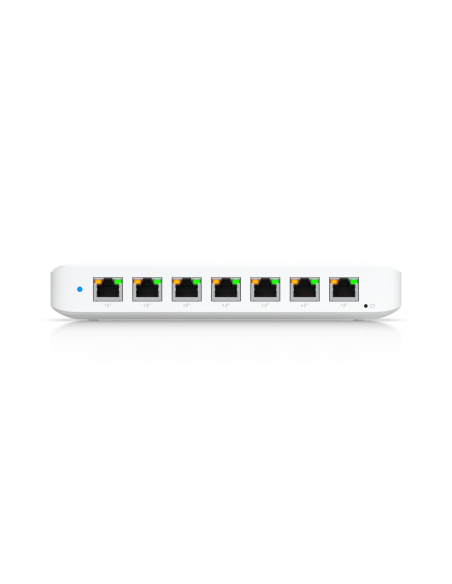

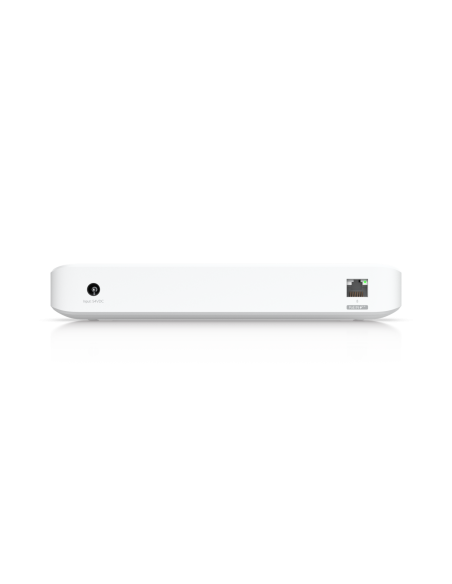

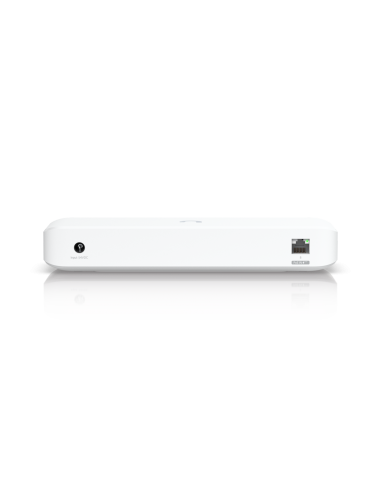

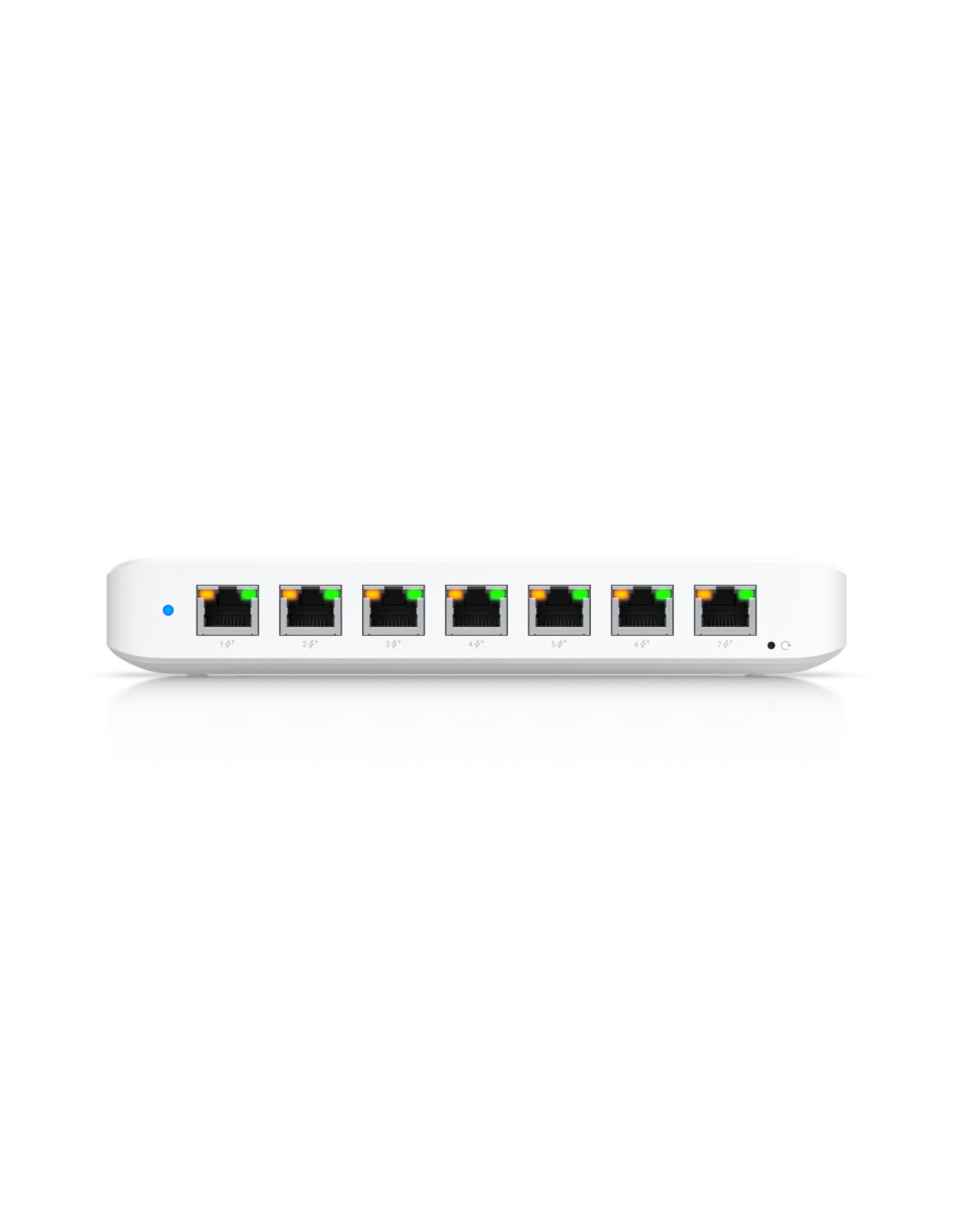

Ubiquiti USW-Ultra-60W, 8 Port Gigabit PoE+ Switch, Compact Layer 2, 60W PoE Budget, PoE++ Input, Wall/Desktop/Magnetic Mounting

USW-Ultra-60W
Last items in stock
$280.00
Tax included

USW-Ultra-60W

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

Key features:

  • 8 ports (7 PoE+; 1 PoE++ input) (1G/100M/10M)
  • 42W PoE availability with PoE++ input
  • 16W PoE availability with PoE+ input

Related Products & Accessories



USW-Ultra-60W - Ubiquiti , 8 Port Gigabit PoE+ Switch, Compact Layer 2, 60W PoE Budget, PoE++ Input, Wall/Desktop/Magnetic Mounting

Technical Specifications

Specification Details
Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")
Port Layout 1 GbE RJ45
8 (7 PoE+; 1 PoE++ input)
(1G/100M/10M)
Max. PoE Output Up to PoE+
Total PoE Availability PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W
Form Factor Compact desktop, wall, magnetic
Switching Capacity 16 Gbps
Total Non-Blocking Throughput 8 Gbps
Forwarding Rate 12 Mpps
Supported VLANs 256
MAC Address Table Size 4,000
STP & RSTP ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
Loop Protection ✓
PoE Ports PoE+: 7
PoE++: 1
Max. PoE Wattage per Port by PSE PoE+: 30W
Max. Power Consumption 9W (Excluding PoE Output) with PoE input
8W (Excluding PoE Output) with adapter input
210W (Including PoE Output) with 210W AC adapter input
Power Method (1) AC/DC adapter (Included)
(1) PoE++
Power Input Method DC Input
PoE
Power Supply AC/DC, external, 60W
Supported Voltage Range 50—57V DC/PoE
Management Ethernet
Heat Dissipation (Excluding PoE Output) 30.708 BTU/hr
27.296 BTU/hr
Weight Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
Adapter: 330 g (11.6 oz)
Enclosure Material Polycarbonate
Ambient Operating Temperature PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC
Application Requirements UniFi Network Version 8.0.7 and later
Device Type
Network Switch
Device Features
Mountable
Ethernet Ports
8 Eth ports
USW-Ultra-60W
