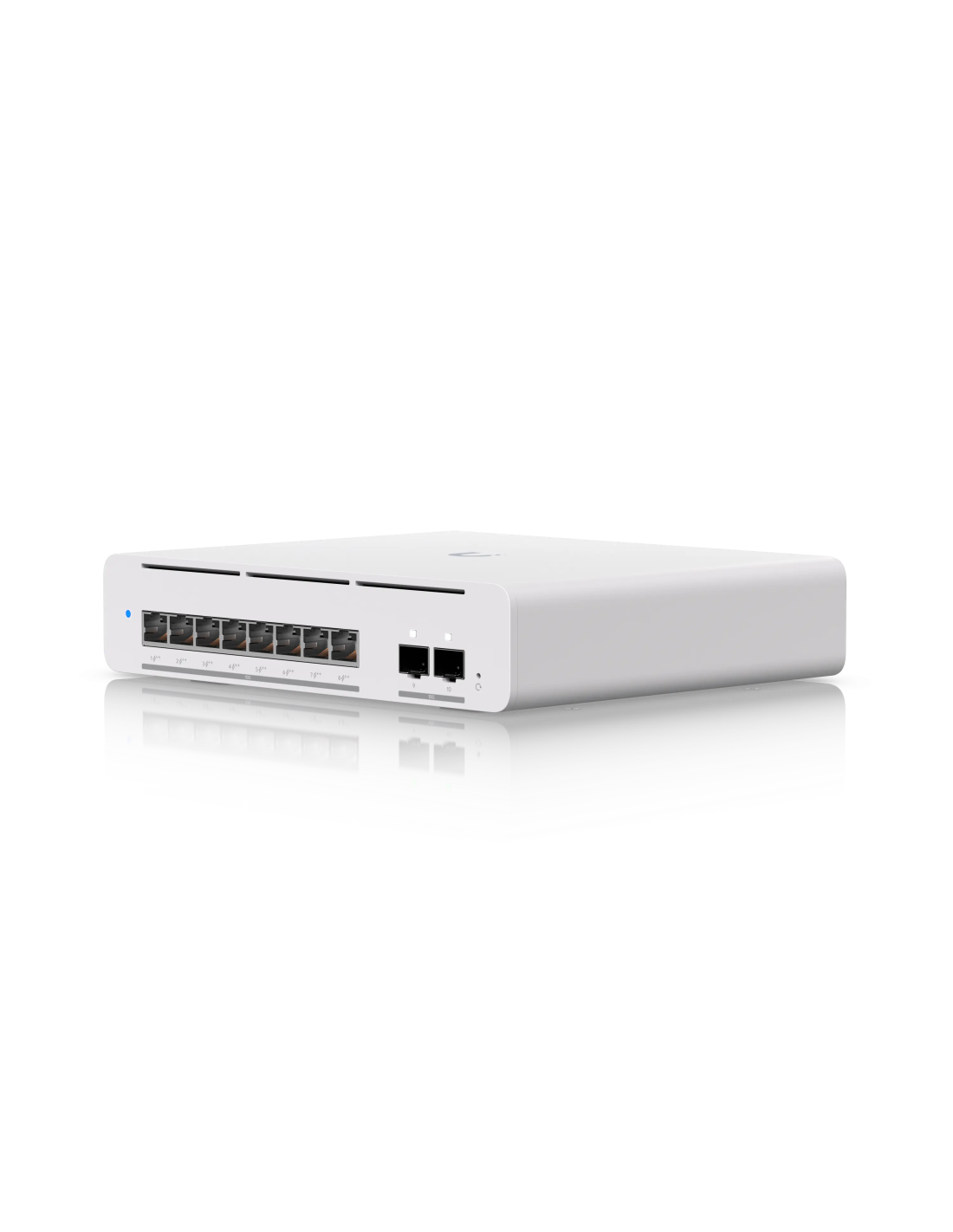

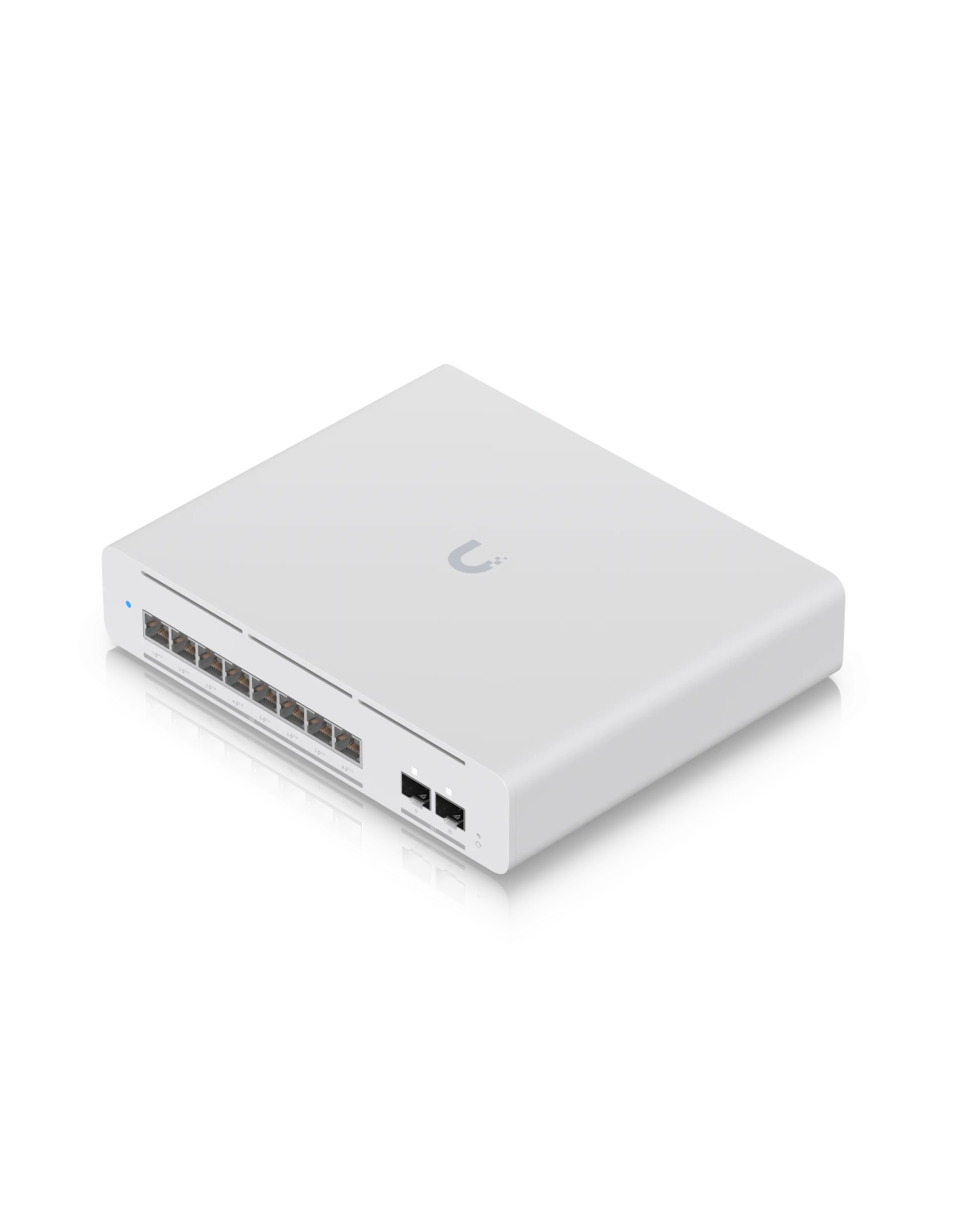

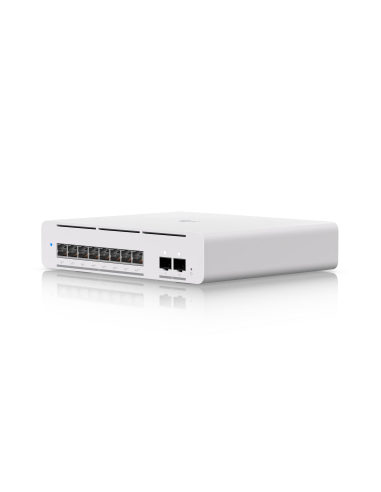

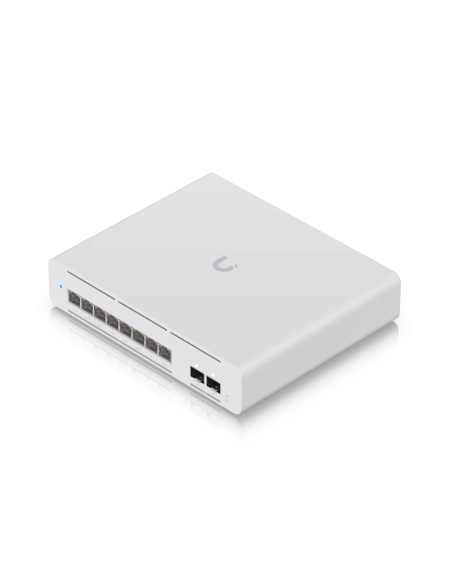

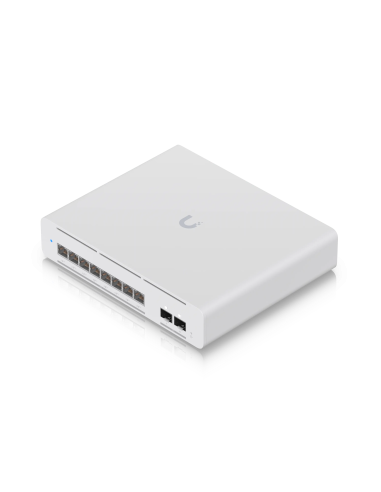

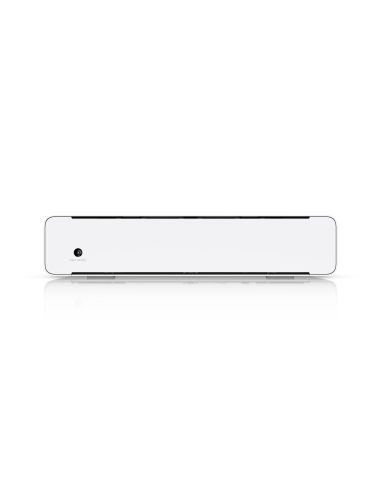

Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
Key Features
Related Products & Accessories
| Dimensions | 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7") |
|---|---|

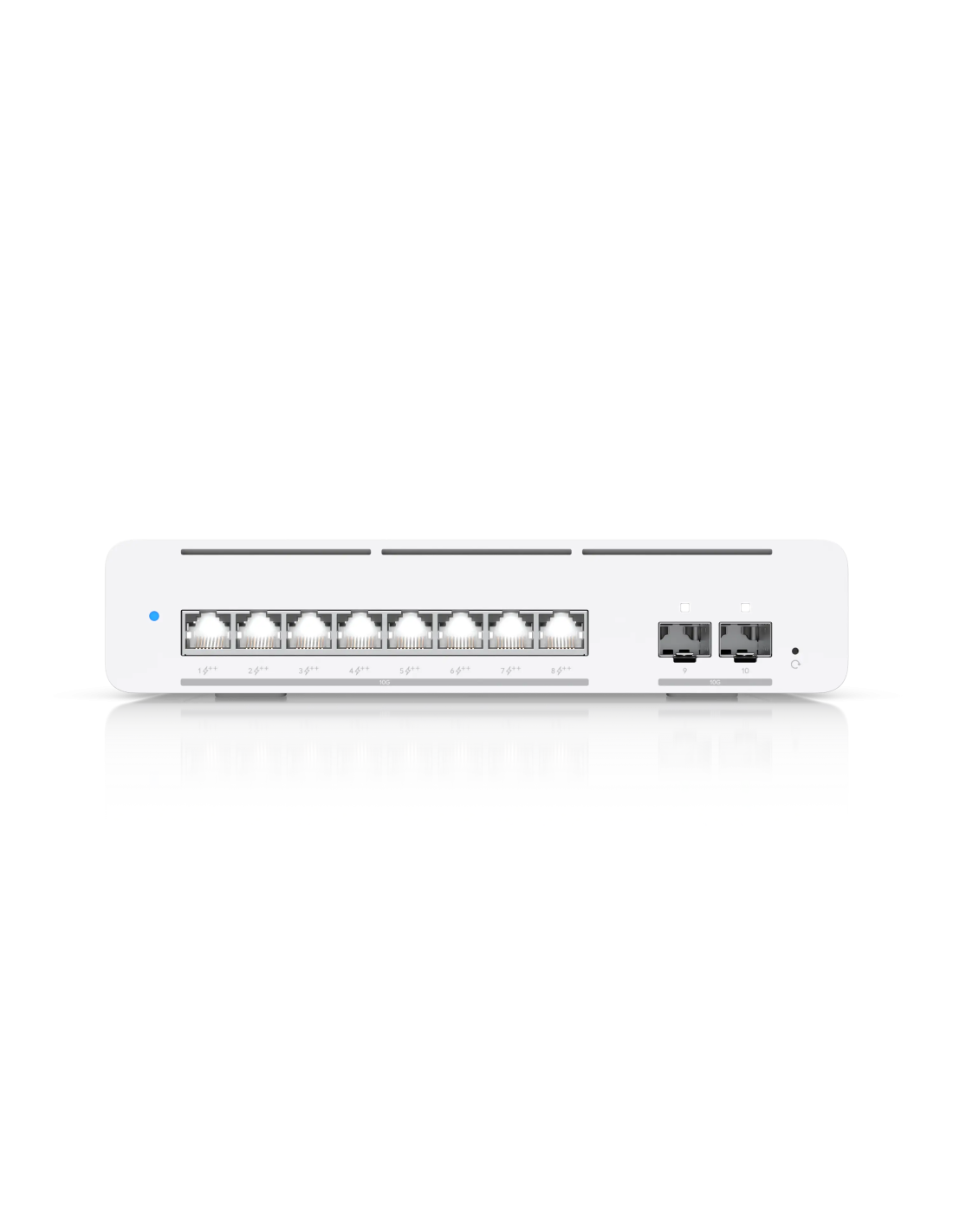

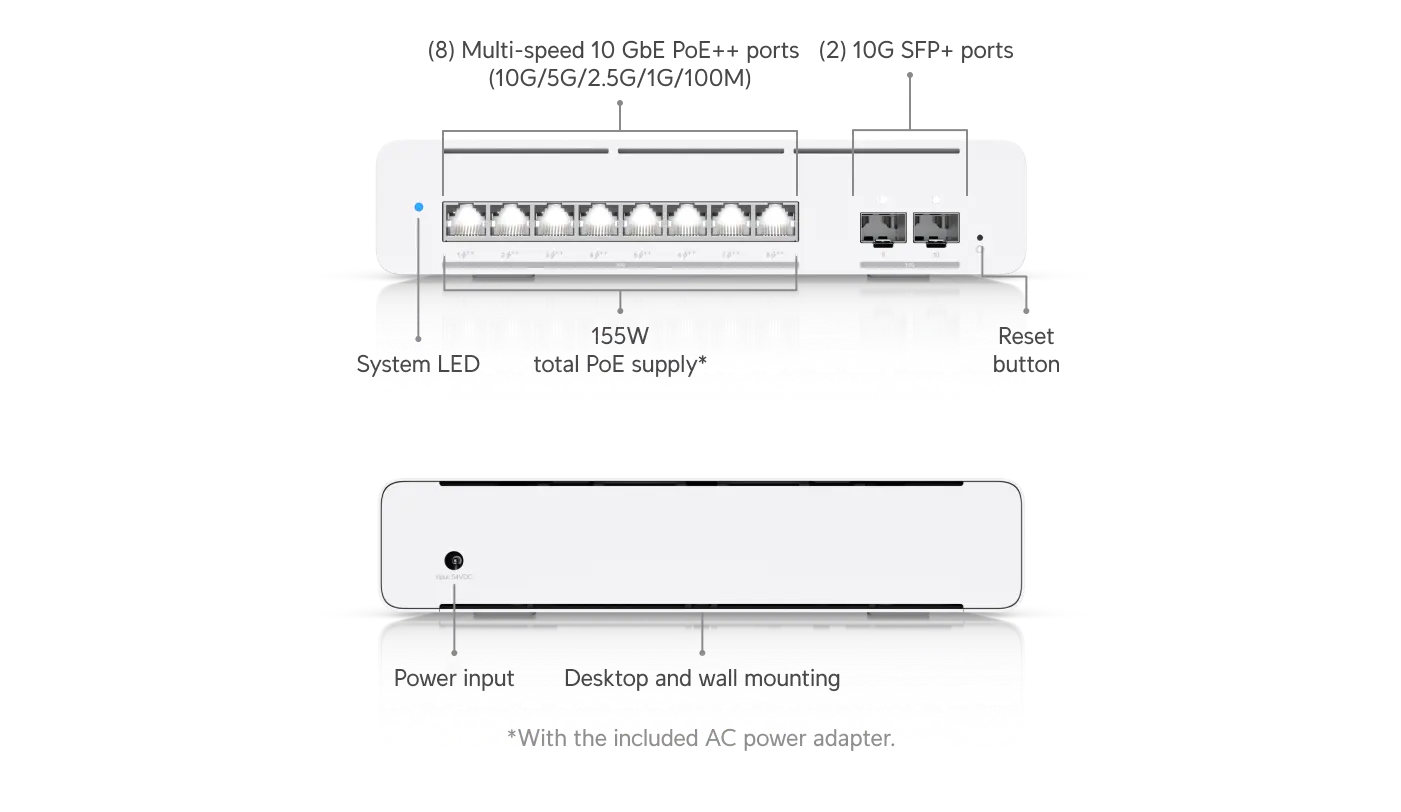

| Port Layout |
10 GbE RJ45: 8 (All PoE++)
|
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 155W |
| Layer 3 | ✓ |
| Form Factor | Compact desktop, wall |
| Etherlighting™ | ✓ |
| Switching Capacity | 200 Gbps |
| Total Non-Blocking Throughput | 100 Gbps |
| Forwarding Rate | 149 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| ARP Entries | 12,000 |
| IPv4 Routes | 12,000 |
| Packet Buffer Size | 2 MB |
| Access Lists | IPv4: 128 MAC: 128 |
|
LAYER 3 FEATURES DHCP Server (Local Networks) |
✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ |
|
LAYER 2 FEATURES LACP Port Aggregation |
✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
| Advanced IGMP Configuration | ✓ (Querier, Fast Leave, Router Port) |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| PoE Ports | PoE++: 8 |
| Max. PoE Wattage per Port | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Max. Power Consumption | 61W (Excl. PoE) 220W (Incl. PoE) |
| Power Method | AC/DC Adapter (included) |

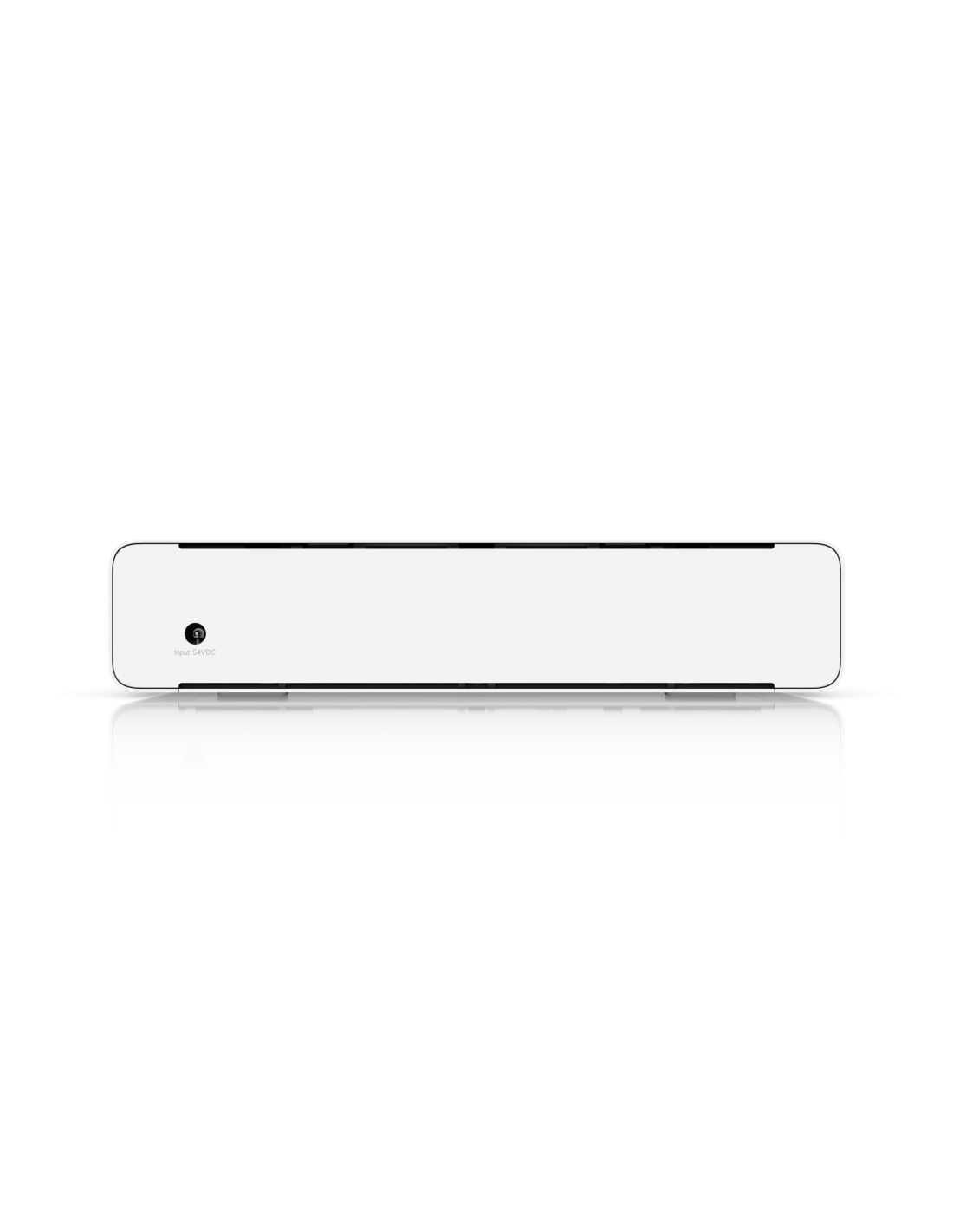

| Power Input Method | DC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50—57V DC |
| Management | Ethernet AR |
| Weight | 1.6 kg (3.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Polycarbonate |
| ESD Protection | Air: ±30kV, Contact: ±30kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | Ethernet: ✓ SFP+: ✓ |
| LEDs | System: ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Application Requirements | UniFi Network Version 9.0.114 and later |
