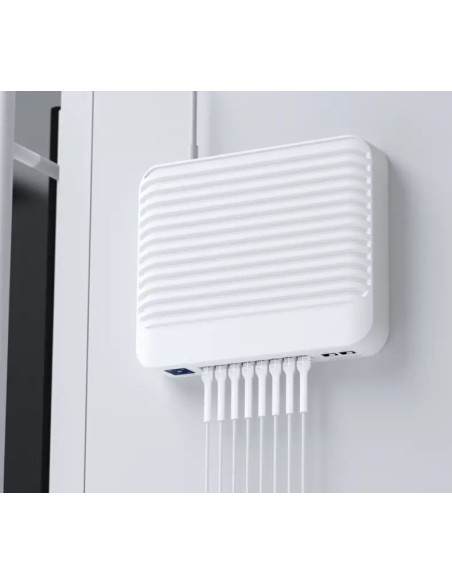

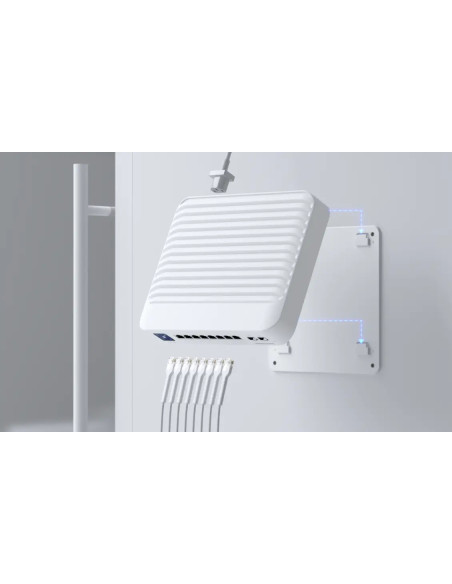

An 8-port, Layer 3 switch with PoE+ and PoE++ output.
USW-Pro-8-PoE Key Features
Note: Managed with UniFi Network Application version 7.5.176 and later.
Related Products & Accessories
| Mechanical | |
|---|---|
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure materials | Plastic, metal |
| Mount material | Plastic |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports (2) 10 Gbps SFP+ ports |
| PoE interface | (6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 28 Gbps |
| Switching capacity | 56 Gbps |
| Power method | Universal input, 100—240V AC, max. 2A |
| Power supply | AC/DC, internal |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W (Excluding PoE output) |
| Total available PoE | 120W |
| Max. PoE wattage per port by PSE | PoE: 15W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V PoE++: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| LEDs | RJ45 ports: link/activity |
| Button | Factory reset |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Application Requirements | |
| UniFi Network | Version 7.5.176 and later |
