USW-EnterpriseXG-24
In Stock
$2,376.00
Tax included

USW-EnterpriseXG-24

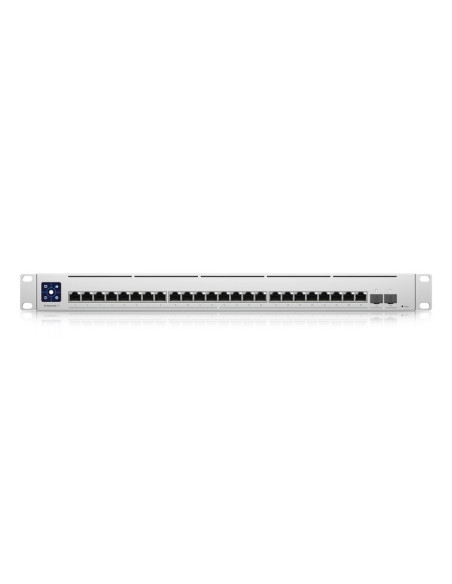

The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Related Products & Accessories



Ubiquiti UniFi USW-EnterpriseXG-24 Switch Enterprise XG 24 Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports

Product Features

  • (1) 1.3" LCM color touchscreen with AR switch management
  • (24) 10GbE RJ45 ports
  • (2) 25G SFP28 ports
  • (1) USP RPS DC input
  • Layer 3 switching features
  • Single-row RJ45 port layout for easy patch panel cable management

Managed with the UniFi Network application: Version 6.1.67 and later

Works with the UniFi Network Application

  • Manage your networks from a single interface.
  • Enjoy intuitive configuration options, as well as robust device control and monitoring.
  • Upgrade device firmware remotely.
  • Easily manage network users and guests.
  • Personalize the design, architecture, and privacy of guest hotspots.

Mechanical
Dimensions 442 x 44 x 285 mm (17.4 x 1.7 x 11.2")
Weight Without Mount: 4.47 kg (9.85 lb)
With Mount: 4.57 kg (11.02 lb)
Enclosure Materials SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 290 Gbps
Switching Capacity 580 Gbps
Forwarding Rate 431.52 Mpps
Max. Power Consumption 100W
Power Method (1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz
(1) USP-RPS DC input: 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 100W
Management Interface Ethernet In-Band
Networking Interfaces (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
SFP28 Interfaces (2) 1/10/25 Gbps SFP28*
*The two SFP28 ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is con gured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
Services SMB Layer 3 Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
LCM Display 1.3" Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Button Factory Reset
LEDs White: Link or Activity
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 95% Noncondensing
Certifications CE, FCC, IC
Device Type
Network Switch
Device Features
Managed
SFP Ports
2 Ports
Power Input
AC
DC
Ethernet Ports
24
810010072931
USW-EnterpriseXG-24
No reviews

Related Products & Accessories

UACC-DAC-SFP10-1M |Buy Ubiquiti 10Gbps SFP+ DAC Cable | WISP Australia
Last items in stock
Wired Networking

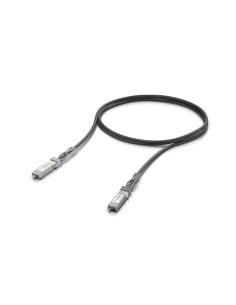

Ubiquiti 10Gbps SFP+ Direct Attach Cable

Ubiquiti
UACC-DAC-SFP10-1M
$31.35
UACC-DAC-SFP10-1M SFP+ direct attach cableSupported data rates: 10/1 GbpsSFP+ to SFP+ connectorCable length 1m
UC-DAC-SFP28 UBIQUITI Direct Attach Copper Cable, SFP28, 25Gbps, 0.5 meter
In Stock
Cables & Adapters

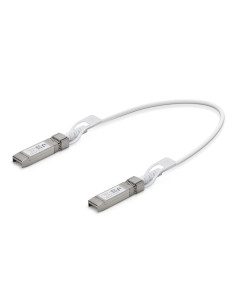

UC-DAC-SFP28 UBIQUITI Direct Attach Copper Cable, SFP28, 25Gbps, 0.5 meter
