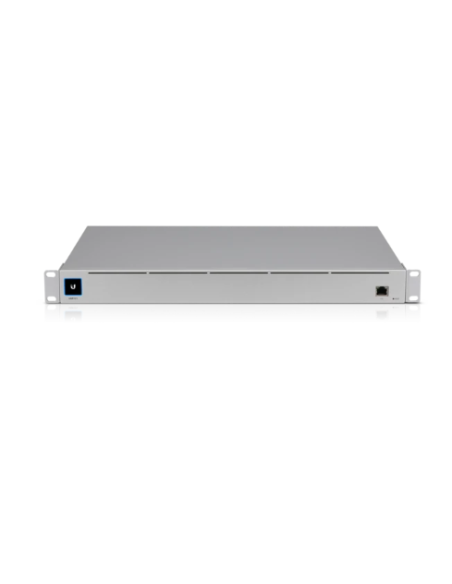

UniFi Redundant Power System - USP-RPS
UniFi Redundant Power System - USP-RPS
UniFi Redundant Power System - USP-RPS
UniFi Redundant Power System - USP-RPS
UniFi Redundant Power System - USP-RPS
UniFi Redundant Power System - USP-RPS
UniFi Redundant Power System - USP-RPS
UniFi Redundant Power System - USP-RPS

UniFi Redundant Power System - USP-RPS

USP-RPS
In Stock
$819.50
Tax included

USP-RPS

The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.

Features

    (6) USP DC output ports
    (1) Ethernet port
    1U Rackmountable (kit included)
    1.3" Touchscreen display with status information
    Managed by UniFi Network Controller version: 5.12.11 or later

Related Products & Accessories



USP-RPS - UniFi Redundant Power System

Dimensions 442.40 x 325.60 x 43.70 mm
(17.42 x 12.82 x 1.72")
Weight
With Mount Brackets		 5.500 kg (12.13 lb)
5.590 kg (12.32 lb)
Interfaces
Networking
Management
Power Output		 (1) 10/100/1000 Mbps RJ45 Port
Ethernet In-Band
(6) RPS DC Ports
Max. Power Consumption 995W
Power Method (1) Universal AC Input, 100 to 240VAC
Power Supply Internal 350W AC/DC
Internal 645W AC/DC
Supported Voltage Range 100 - 240VAC
Display 1.3" Color Touch Panel
LED
System
RJ45
USP RPS		 Status
Link/Activity
Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Total Output Power
52VDC
11.5VDC		 11.54A (600W)
30.44A (350W)
Max. Output Power per RPS Port
52VDC
11.5VDC		 11.54A (600W)
30.44A (350W)

817882029216
USP-RPS
