UNVR-Pro
Last items in stock
$1,012.00
Tax included

UNVR-Pro

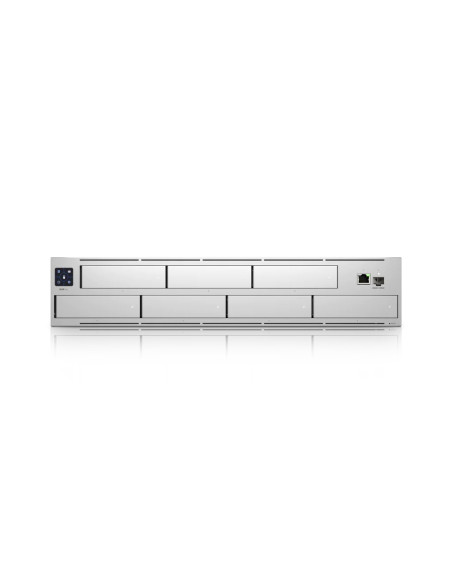

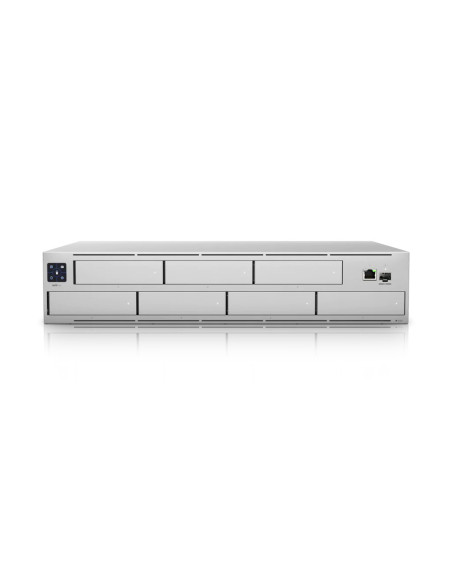

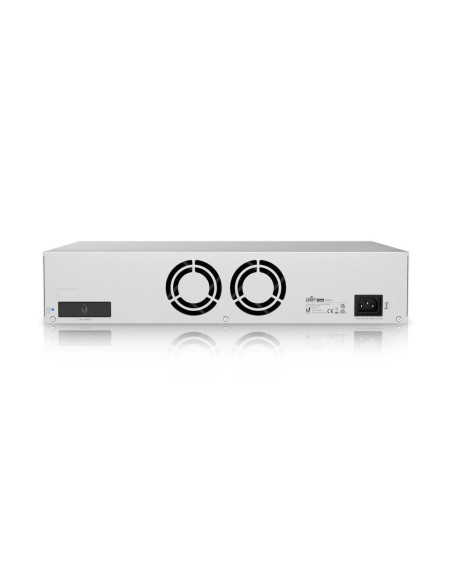

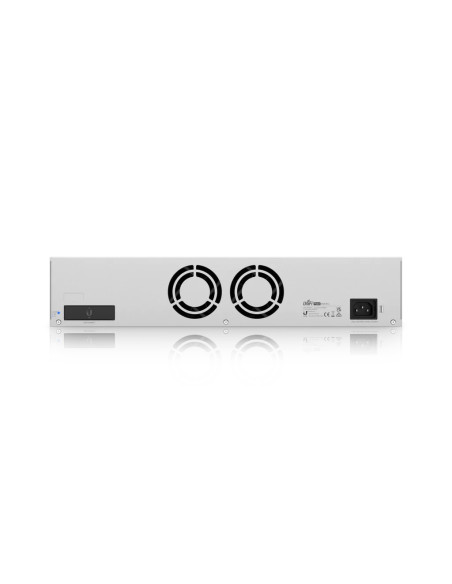

The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras).

The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.

The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.*

* Will be included in a future console update.



UNVR-Pro - Ubiquiti UniFi Network Video Recorder Pro 7xHDD 1x10G SFP+ 1xGbE RJ45

Features:

  • (7) 2.5"/3.5" HDD bays
  • (1) 10G SFP+ port
  • (1) GbE RJ45 port
  • 2U-sized, rack-mountable console (kit Included)
  • 1.3" touchscreen with video event previewing*
  • Pre-installed UniFi Protect application
  • Simple, Bluetooth-powered setup via the UniFi Protect mobile app
  • Automated RAID 1, 5, or 10 HDD configuration
  • Connect a USP RPS to create an uninterruptible network

Managed with the UniFi Protect application: Version 1.4.3 or later (iOS) or 1.3.9 or later (Android)

Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in our list of incompatible models.

* Will be included in a future console update.

Mechanical
Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
Weight Without Rackmount Brackets: 9.2 kg (20.28 lb)
With Rackmount Brackets: 9.45 kg (20.83 lb)
Enclosure Material SGCC Steel
Mount Materials SGCC Steel
Hardware
Max. Power Consumption 160W
Max. Power Budget for Drives 135W
Power Method (1) Universal AC input, 100-240VAC, 3A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 13.91A
Power Supply AC/DC, Internal, 200W
Networking Interfaces (1) 10/100/1000 Mbps RJ45 Ethernet
(1) 1/10 Gbps SFP+ Ethernet
RF Interface (1) Bluetooth v4.1
LCM Display (1) 1.3" Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Management Interface Ethernet In-Band Management
ESD/EMP Protection Air: ± 12kV, Contact: ± 8kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 - 95% Noncondensing
Certifications FCC, CE, IC
LEDs
Ethernet White: 10/100/1000 Mbps
SFP+ White: 1/10 Gbps
HDD Amber: Disk Error, White: Disk Detected
RPS Blue: Ready
Device Features
Bluetooth Support
Managed
Rackmount
SFP+ Ports
1
Power Input
AC
DC
SFP
Yes, 10G SFP+
Ethernet Ports
1 Eth port
Environment Temperature
0℃~50℃
810010075574
UNVR-Pro
