Ubiquiti UniFi UK-Ultra Swiss Army Knife Ultra Access Point

UK-Ultra
*** Out of stock ATM, Available On Backorder ***
$177.98
Tax included

UK-Ultra

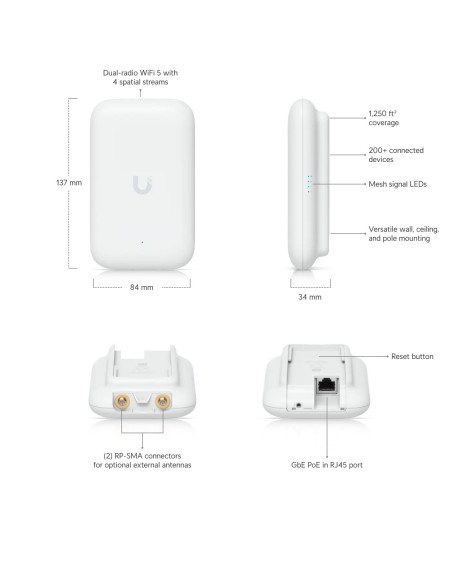

Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.

Features:

  • WiFi 5
  • 4 spatial streams
  • 115 m² (1,250 ft²) coverage with internal antenna
  • 200+ connected devices
  • Powered using PoE
  • GbE uplink
  • Versatile wall, ceiling, and pole mounting
  • (2) RP-SMA connectors for optional external antennas
  • Weatherproof (outdoor exposed)

Quantity Unit price You Save
10 $173.71 $42.72


UK-Ultra - Swiss Army Knife Ultra

Technical Specifications
Mechanical
Dimensions 137 x 84 x 34 mm (5.4 x 3.3 x 1.3")
Weight 173 g (6.1 oz)
Enclosure material UV-stabilized polycarbonate
Mount material Polycarbonate, SGCC steel, plastic
Pole mount diameter 1~2" on pipe outer diameter
Wind survivability 33.2 N at 200 km/h (7.5 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE
Power supply UniFi PoE Switch
Supported voltage range 44—57V DC
Max. power consumption 8W
Max. TX power
2.4 GHz
5 GHz
6 GHz

20 dBm
20 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz

300 Mbps
866.7 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

4.7 dBi
6 dBi
Antenna (1) Internal antenna
(2) RP-SMA connectors for optional external antennas
LEDs (1) Power: white/blue
(4) Mesh signal: blue
Button Factory reset
Mounting Wall, ceiling, pole (Included)
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 200+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Application Requirements
UniFi Network Web: Version 8.0.7 and later
iOS™: Version 10.11.1 and later
Android™: Version 10.10.1 and later

Antenna Gain (dBi)
4.7
6
Device Type
Access Point
Device Features
Mountable
MIMO
2x2
Wireless System
2.4GHz
5GHz
6GHz
Ethernet Ports
1 Eth port
0810084693636
UK-Ultra
