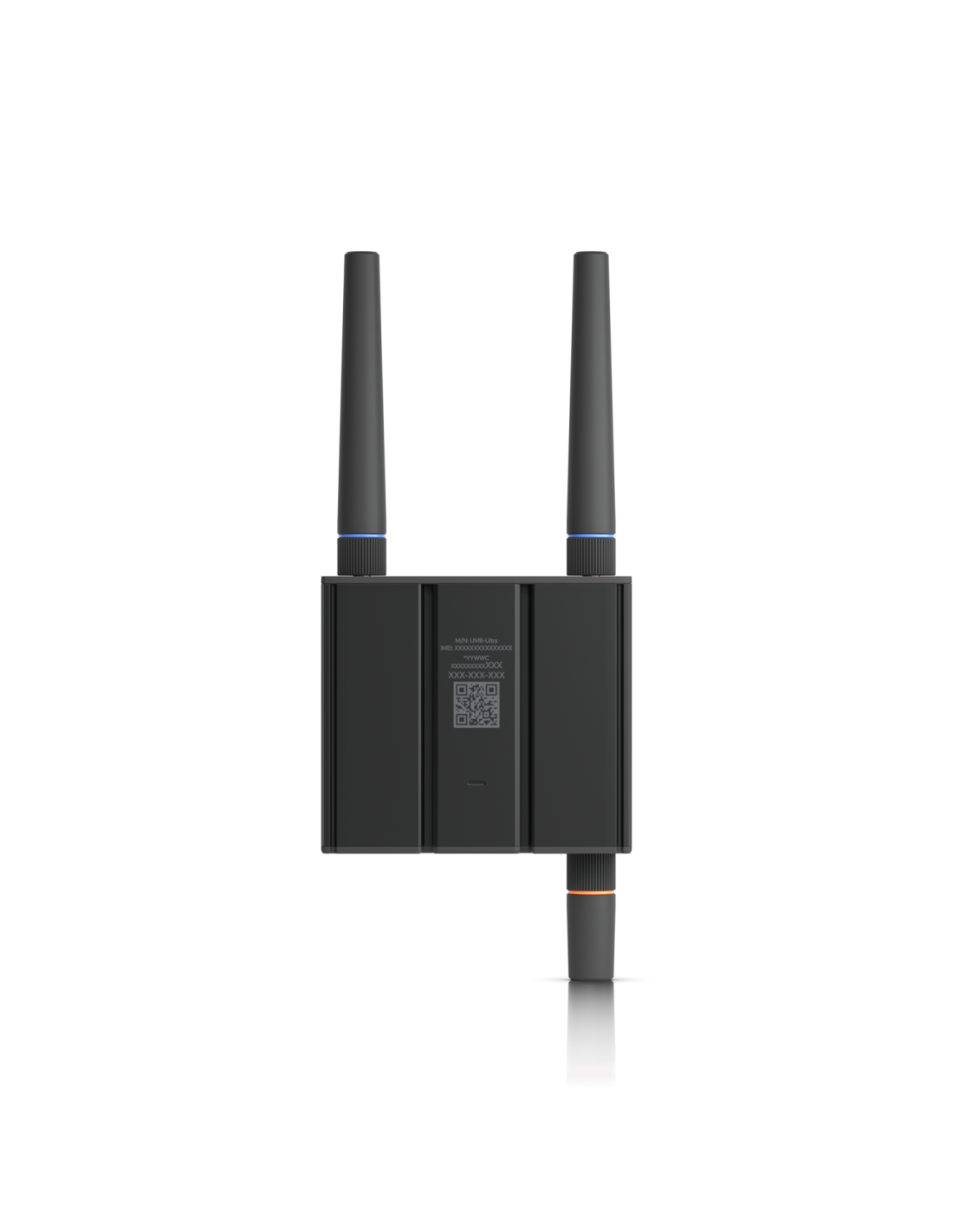

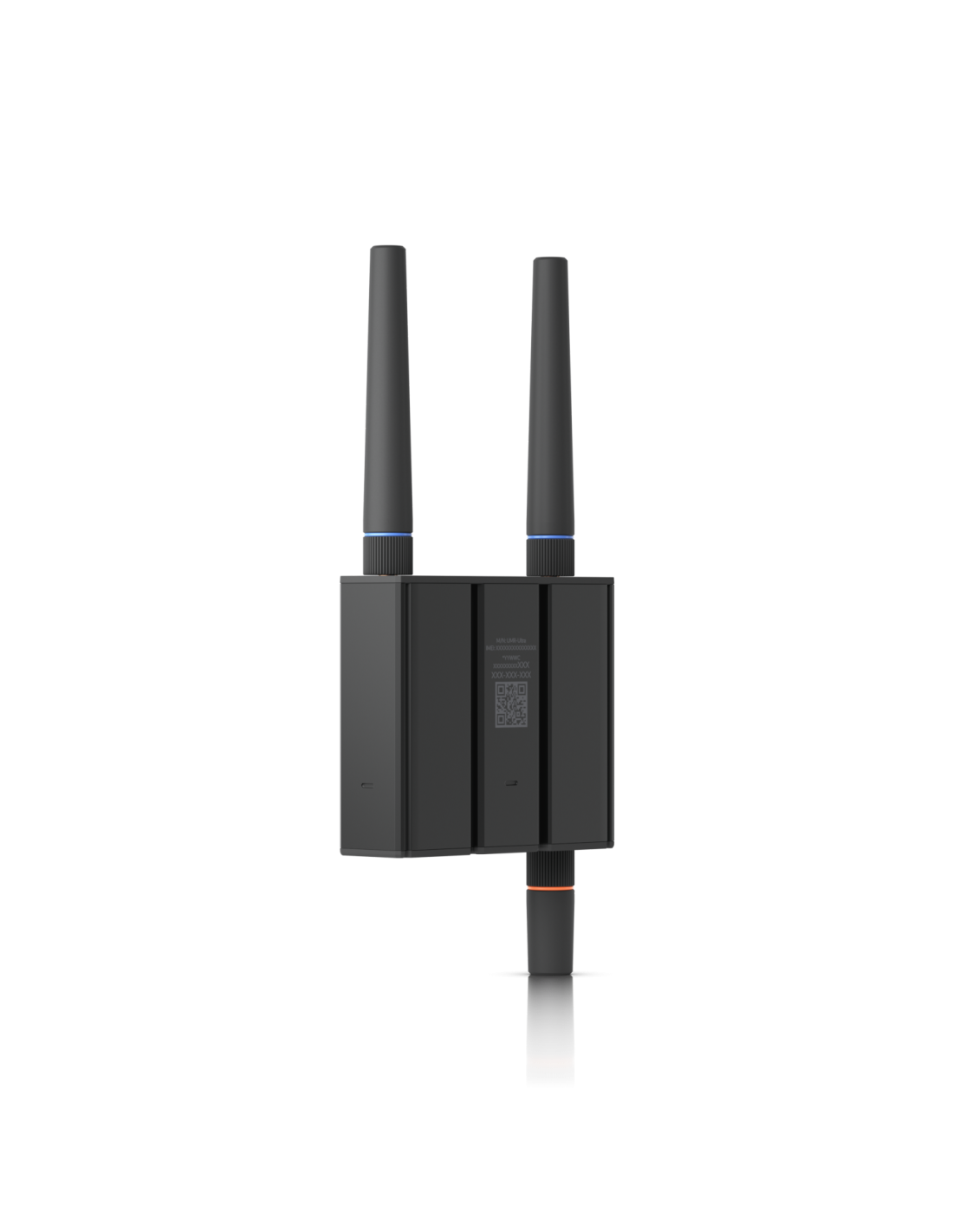

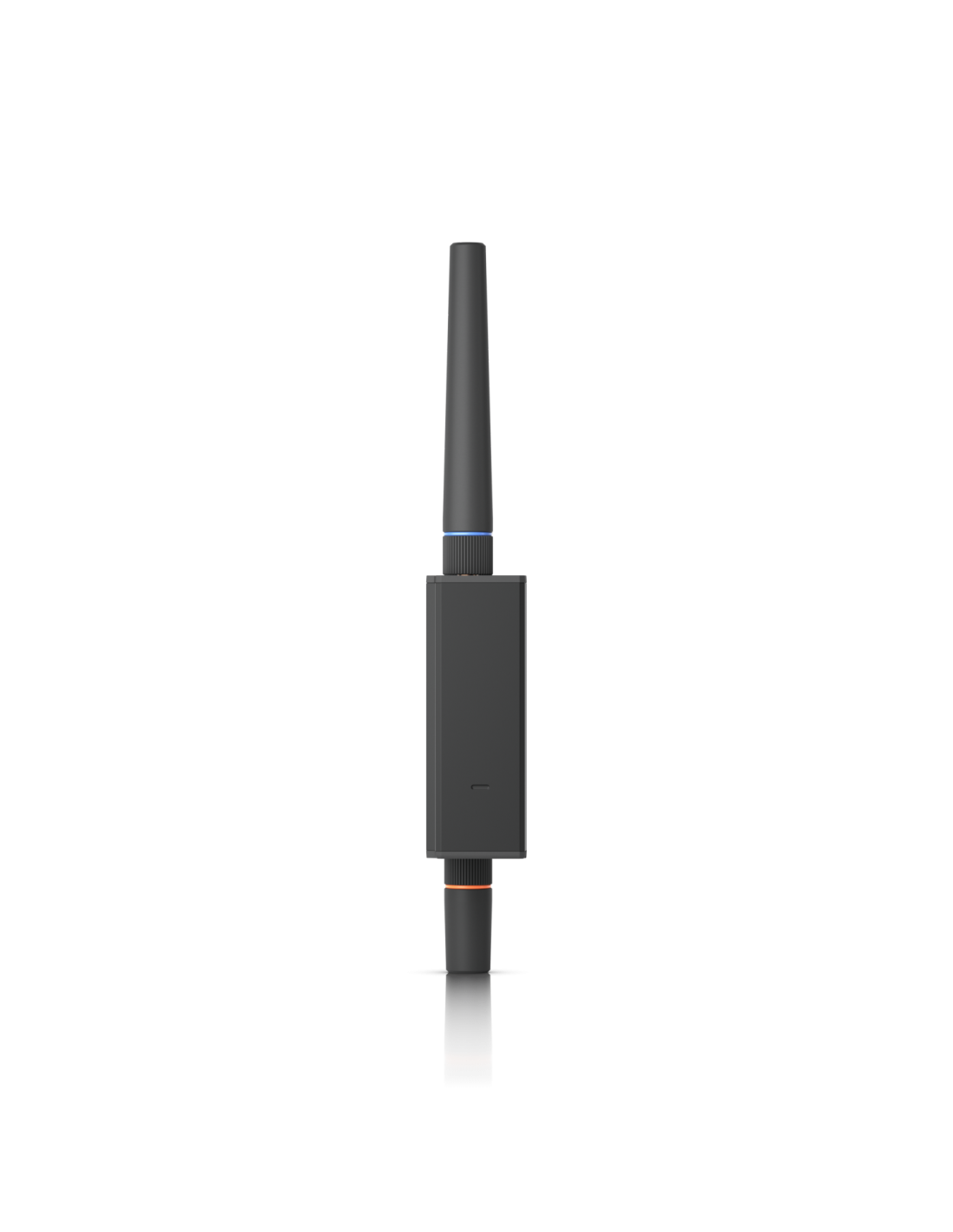

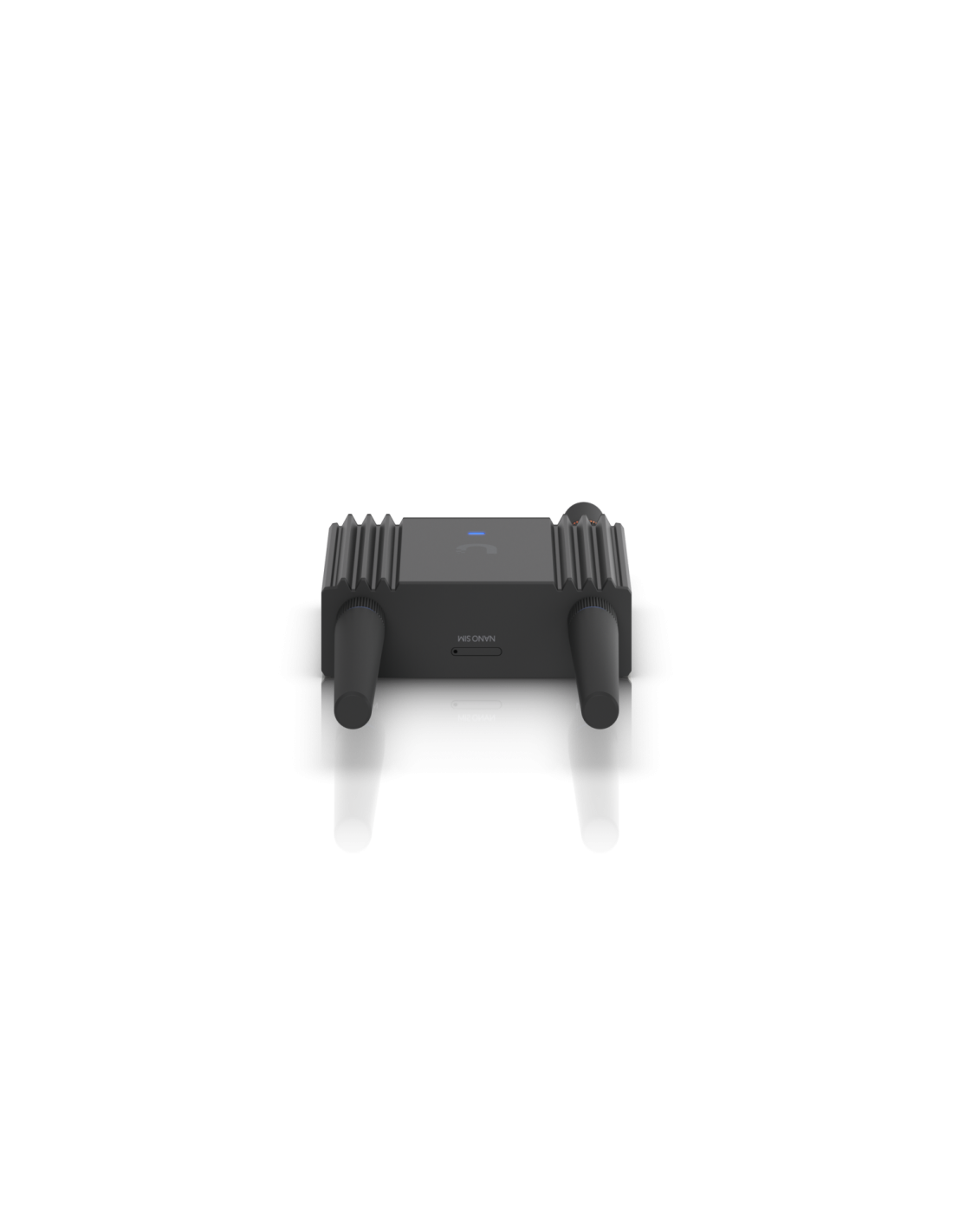

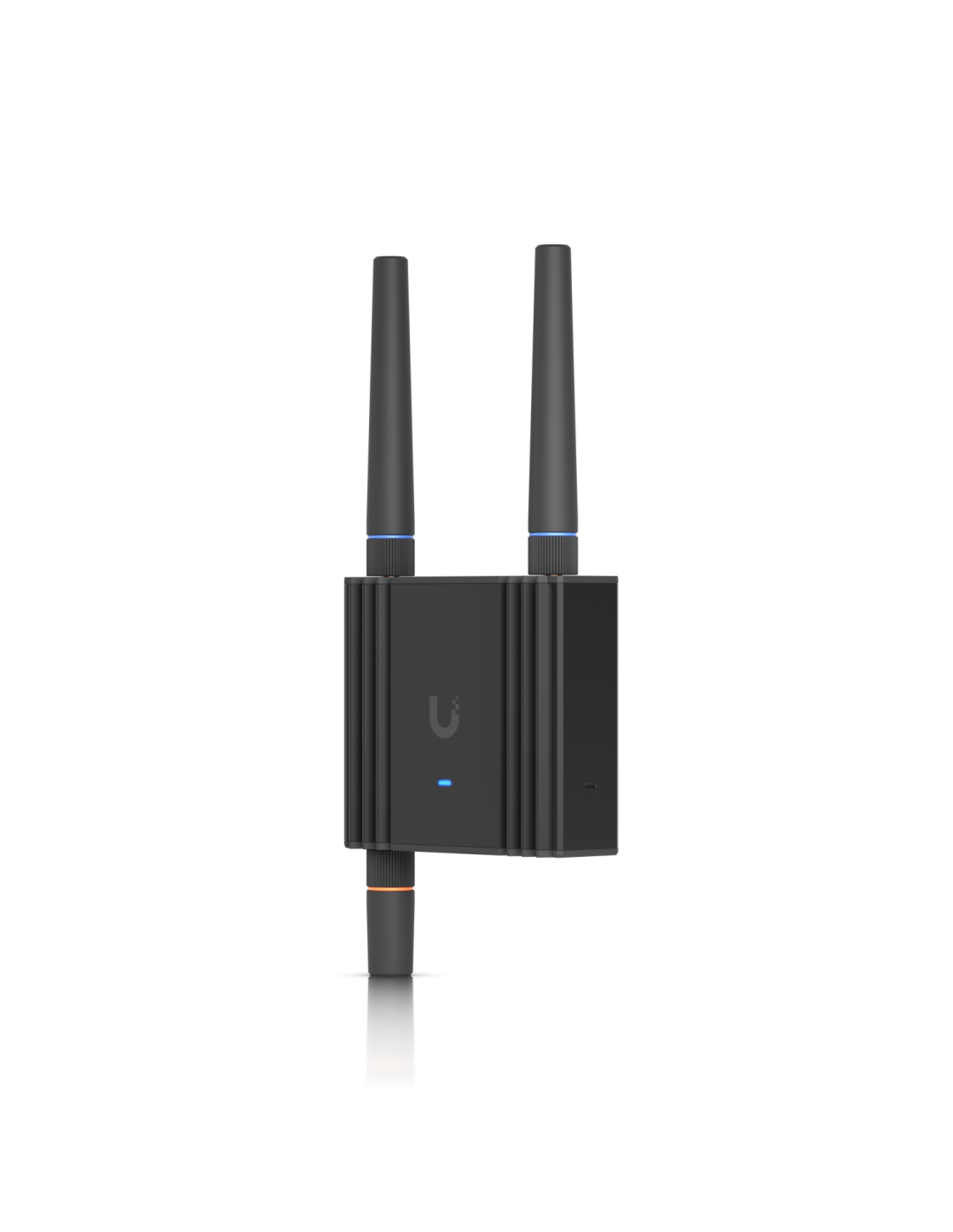

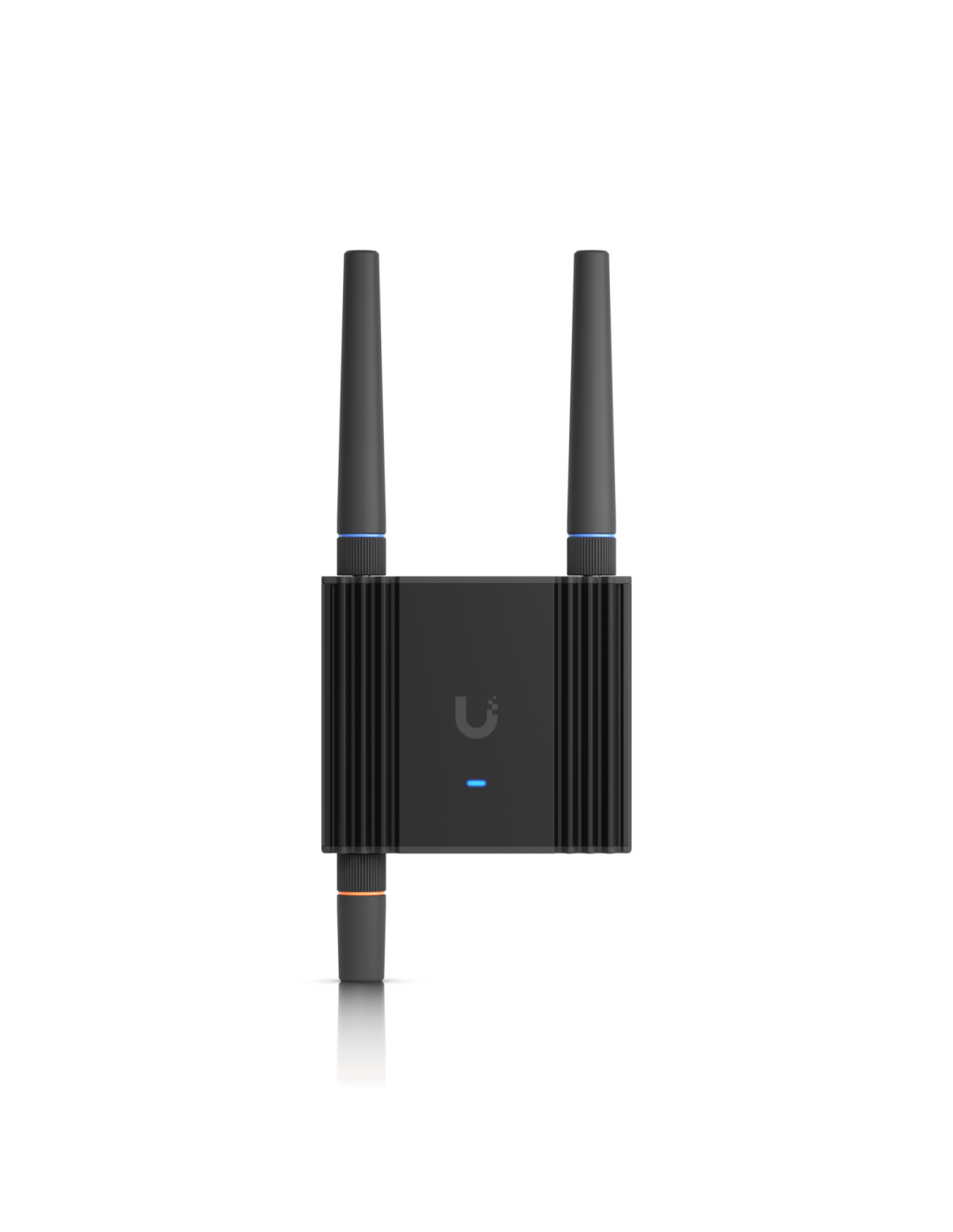

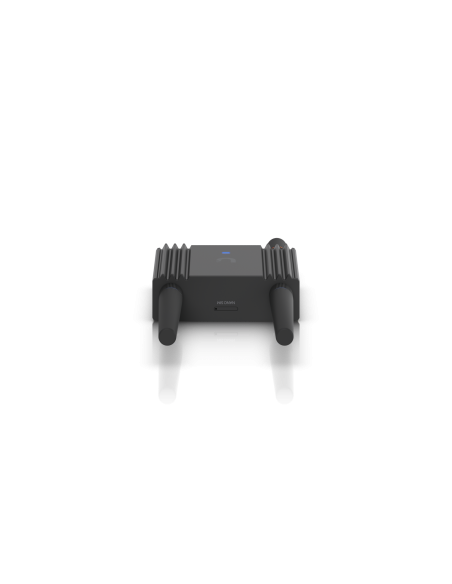

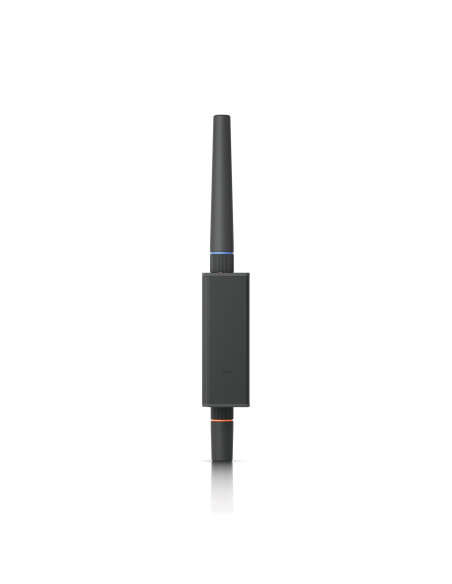

Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
Key Features
Power adapter and cable not included
Related Products & Accessories

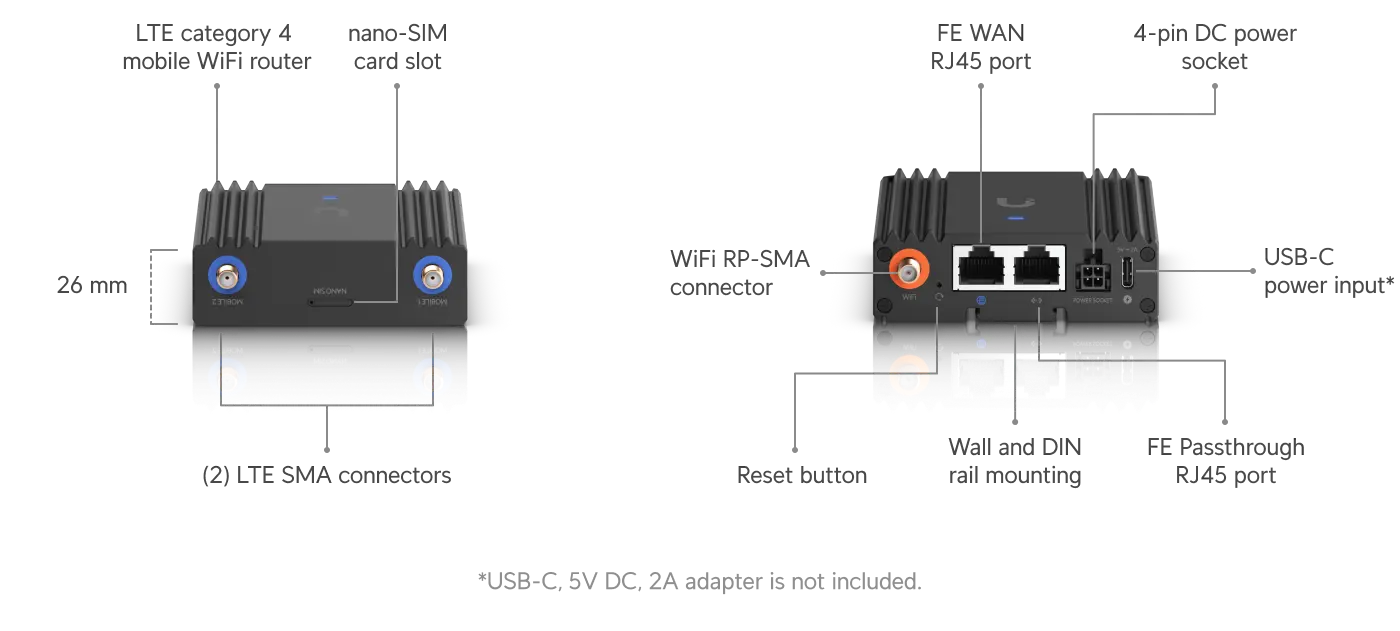

| Dimensions | Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1") With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1") |

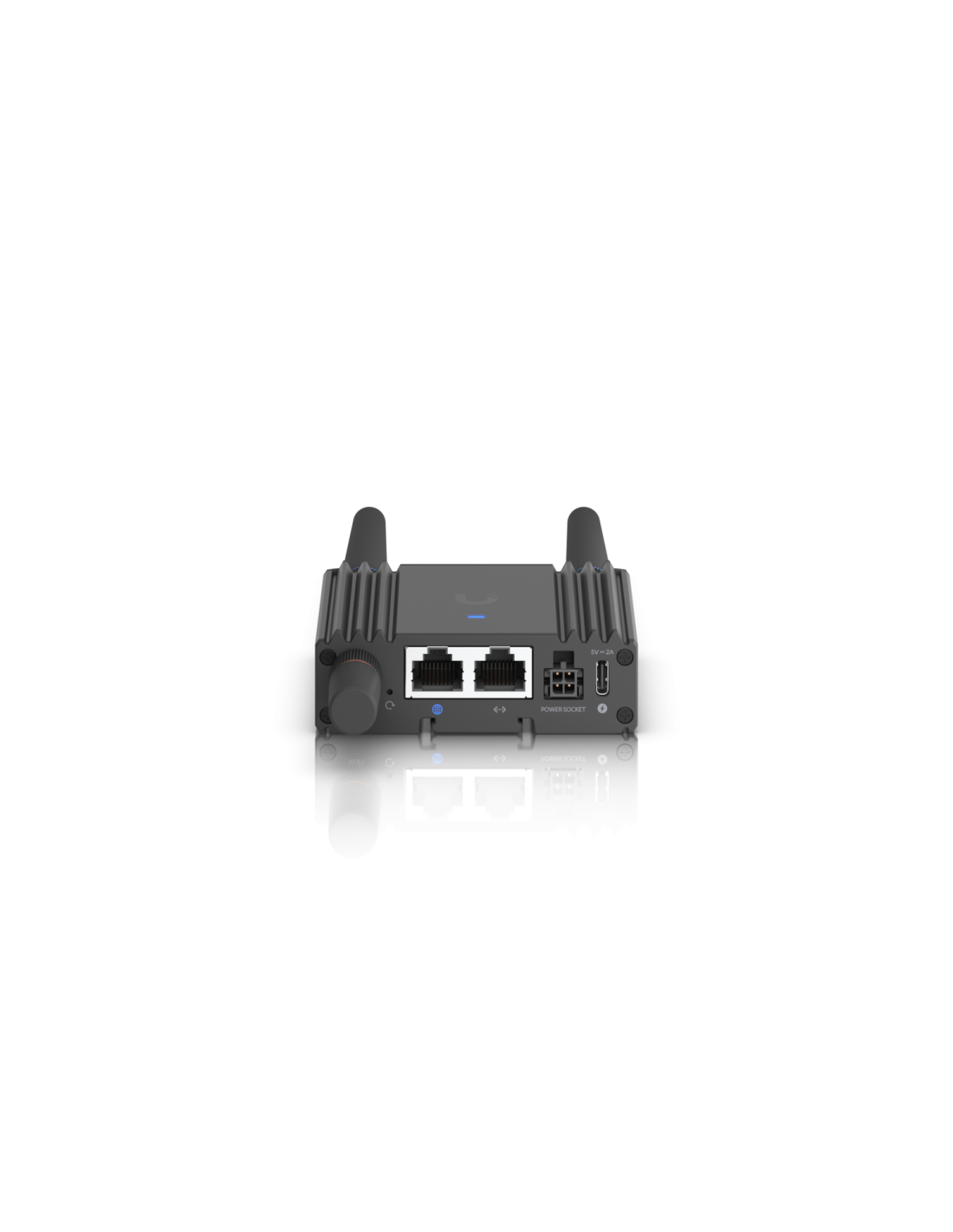

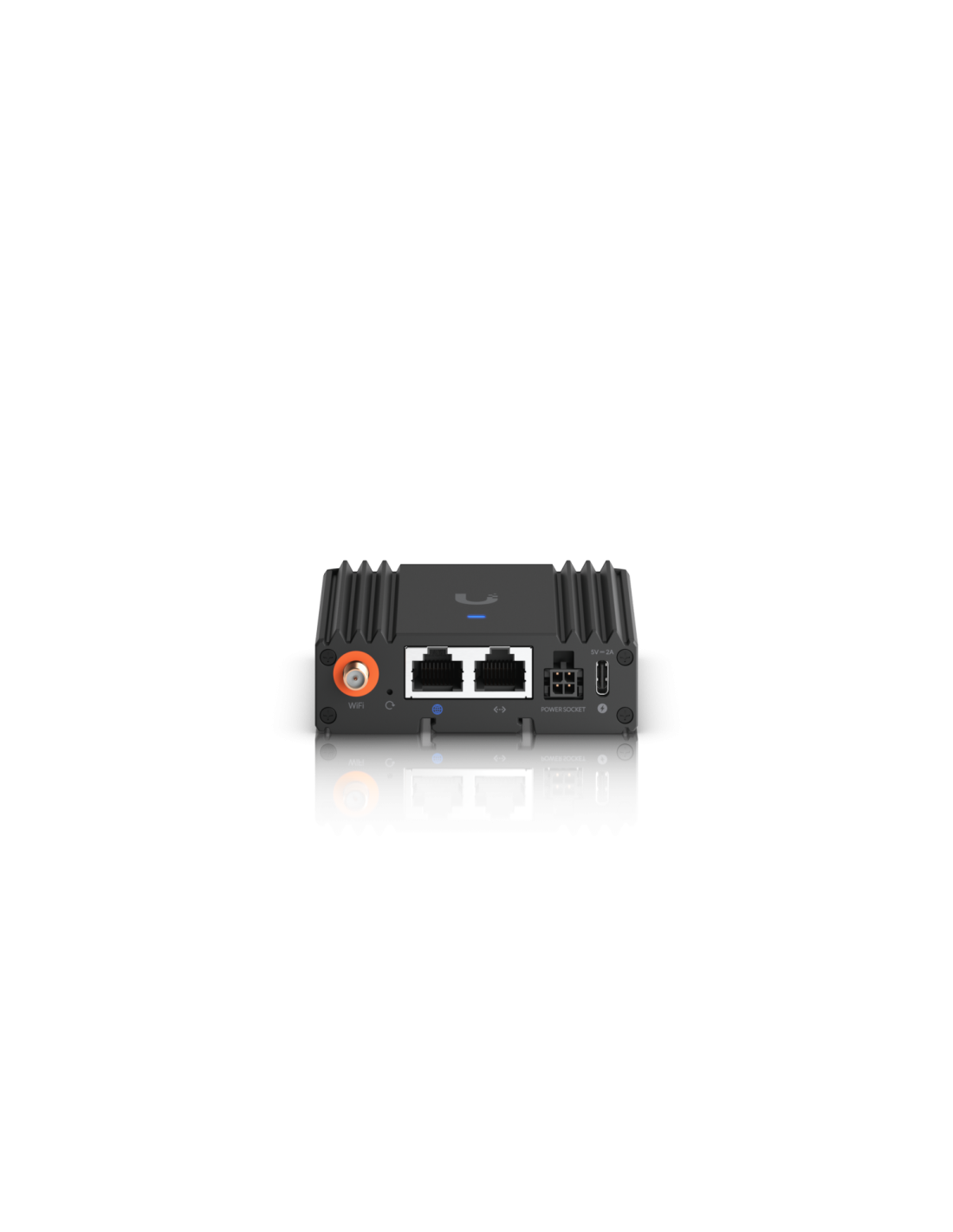

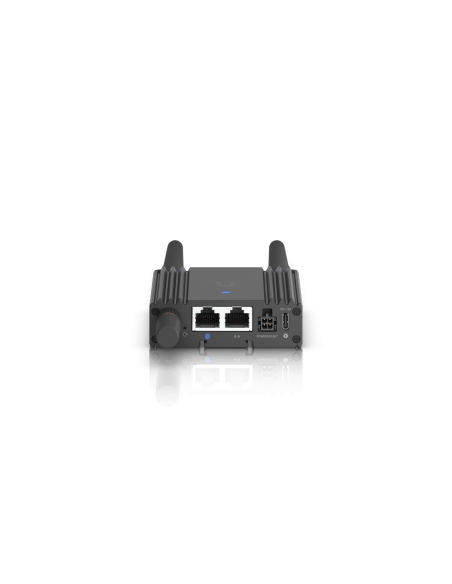

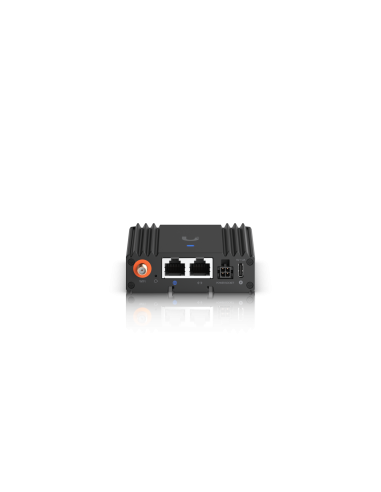

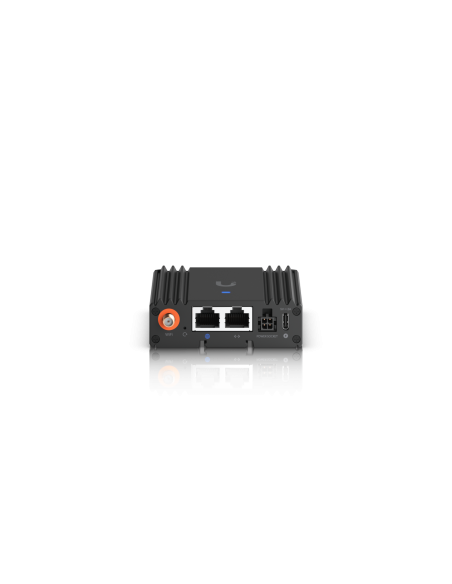

| Networking Interface | (2) FE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
| SIM | Nano SIM |
| LTE Bands | B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 |
| Mounting | DIN rail, Wall (Mounts Included) |
| Weight | Device: 200 g (7.1 oz) DIN rail/wall mounts: 20 g (0.7 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Wall Mount: Polycarbonate DIN Rail Mount: Steel |
| WAN | Priority & Fallback ✓ |
| Cellular | ✓ |
| WiFi | ✓ |
| Ethernet | ✓ |
| LTE Passthrough mode | ✓ |
| Ethernet Bridge Mode | ✓ |
| VPN Client | OpenVPN ✓ WireGuard ✓ |
| Site-to-Site VPN | IPsec ✓ WireGuard ✓ |
| WiFi Standard | WiFi 4 |
| Port Forwarding | ✓ |
| Firewall | ✓ |
| Static Routes | ✓ |
| Supported Data Rates | 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40) |
| Management | Ethernet, WiFi |
| LTE Throughput Speed | Download 150 Mbps / Upload 50 Mbps |

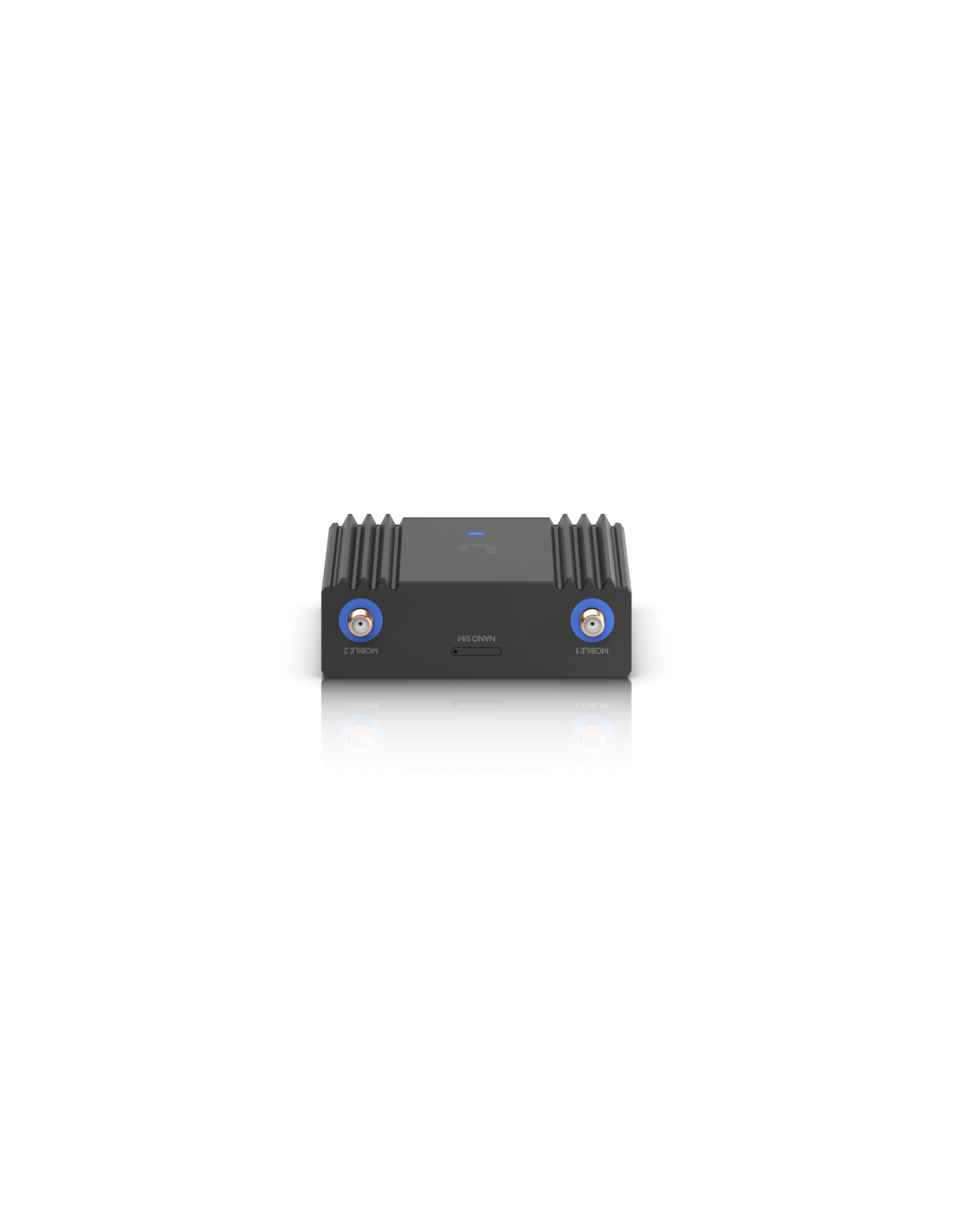

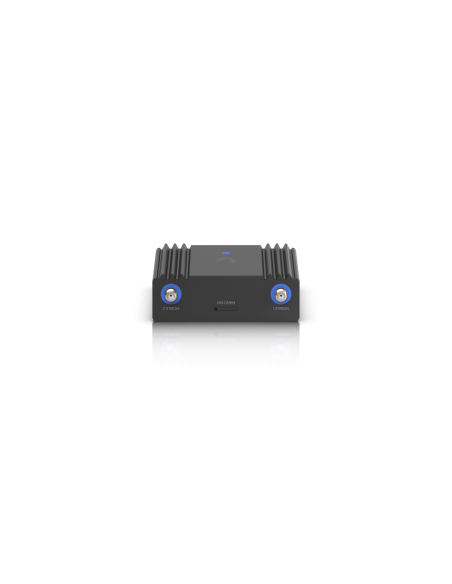

| Antennas | Ports: (1) Mobile 1: SMA female (1Rx) (1) Mobile 2: SMA female (1Tx/1Rx) (1) WiFi: RP-SMA female Type: (2) External LTE antenna (1) External WiFi (1) External GPS |
| Max. TX Power | 17 dBm |
| WiFi MIMO | 1 x 1 |
| Max. Power Consumption | 5.7W |
| Power Method | USB Type-C (5V DC/2A), 4-pin ATX DC (9–30V DC) |
| Power Supply | USB Type-C (5V DC/2A), 4-pin ATX DC (9–30V DC) |
| Buttons | (1) Factory-reset |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |
