Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.
The UCG-Ultra offers fast, reliable data transfer at 1 Gbps speed, crucial for high-bandwidth operations. Its IDS/IPS feature boosts security against intrusions and attacks. Multi-WAN load balancing enhances connection reliability, preventing downtime. Its compact design includes a 0.96" LCM status display for real-time monitoring and USB-C powered functionality for ease of use and compatibility.
Features:
Runs UniFi Network for full-stack network management
Manages 30+ UniFi Network devices and 300+ clients
1 Gbps routing with IDS/IPS
Multi-WAN load balancing
0.96" LCM status display
USB-C powered (adapter included)
Related Products & Accessories
The Cloud Gateway Ultra (UCG-Ultra) empowers enterprise networks with unparalleled control and scalability. Tailored for businesses needing robust, secure, and efficient network management, it handles extensive UniFi networks effortlessly, making it perfect for growing enterprises.
With 1 Gbps routing, it ensures fast, reliable data transfer crucial for high-bandwidth operations. Its IDS/IPS feature adds security layers against intrusions and attacks, while multi-WAN load balancing optimizes internet traffic distribution, preventing downtime.

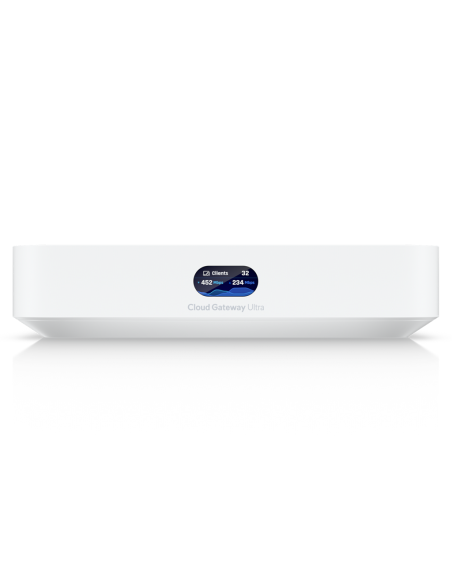

Its compact design with a 0.96" LCM status display offers real-time monitoring and USB-C powered functionality for ease of use and compatibility.
| Mechanical | |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System memory | 3 GB DDR4 |
| On-board storage | 16 GB eMMC |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (4) GbE RJ45 ports WAN: (1) 1/2.5 GbE RJ45 port |
| IDS/IPS throughput | 1 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power method | USB type C (5V DC/3A) |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 6.2W |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | White: link/activity |
| Application Requirements | |
| Mobile app | UniFi iOS™: Version 10.12.0 and later UniFi Android™: Version 10.11.2 and later |
