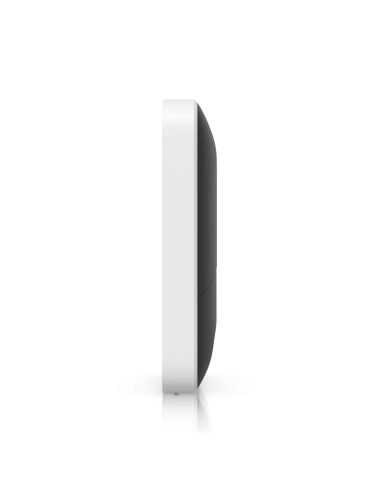

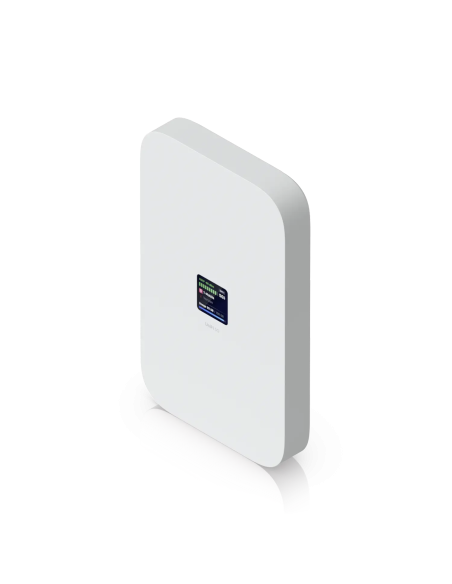

Ubiquiti U5G-Max 5G Modem 3.4 Gbps with Dual SIM/eSIM & UniFi PoE Support

Ubiquiti U5G-Max|Ubiquiti U5G-Max 5G Modem 3.4 Gbps with Dual SIM/eSIM & UniFi PoE Support|Wisp Australia

Ubiquiti U5G-Max 5G Modem 3.4 Gbps with Dual SIM/eSIM & UniFi PoE Support

Name: Ubiquiti U5G-Max 5G Modem 3.4 Gbps with Dual SIM/eSIM & UniFi PoE Support
Brand: Ubiquiti
SKU: U5G-Max
Price: 814 AUD
Availability: InStock

Reference U5G-Max

Last items in stock

$814.00

Tax included

Ubiquiti U5G-Max

A high-performance 5G (3.4 Gbps) modem for any UniFi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover. Certified with AT&T, T-Mobile*, and Verizon**.

*T-Mobile Home Internet SIMs aren't supported. Data-only plan required.
**Verizon support expected in February.

Key Features:

5G LTE Network/Wireless Cellular Modem Combo
Supports 5G NR, LTE, and UMTS protocols
Maximum Transfer Rates up to 3.4 Gbps

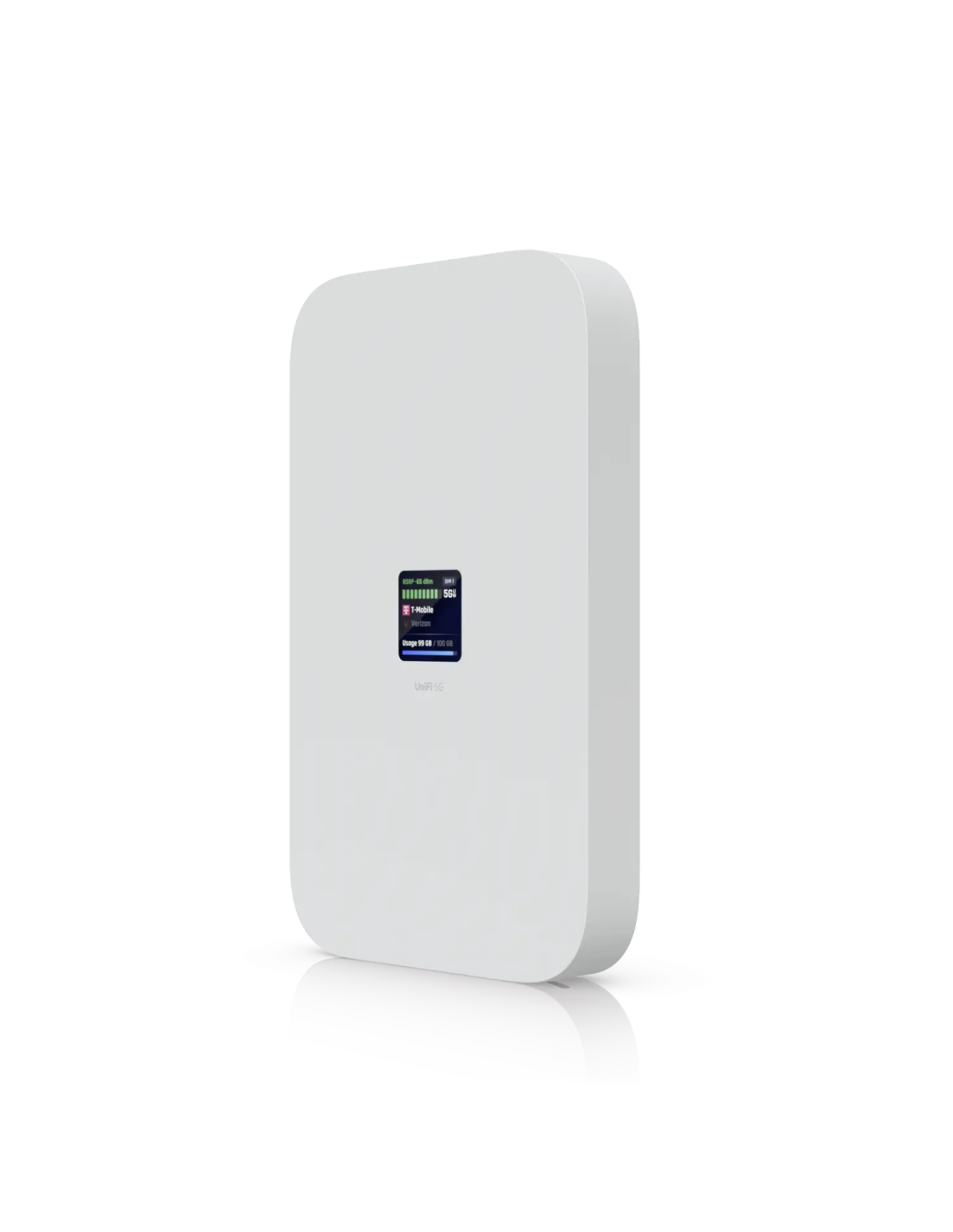

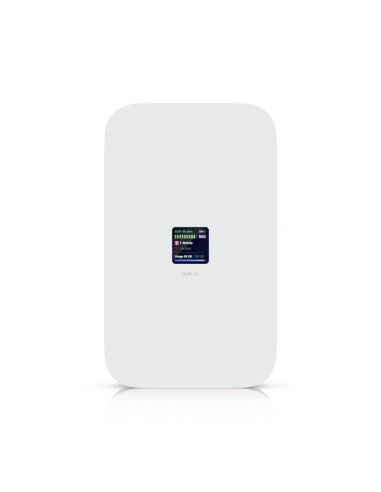

Built-in 1.3-inch Touchscreen Display for Easy Management
Versatile Installation Options: Wall-Mount, Desk-Mount, or Window-Mount

*Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!

Cables & Adapters

	Ubiquiti UACC-PoE+-2.5G, 2.5G PoE+ Adapter Delivers up to 30W of PoE+ Surge, peak pulse, and overcur $39.64
	Ubiquiti UACC-Cable-Patch-EL-0.15M-W-24 UniFi Etherlighting Patch Cable - 24 pack $163.90

Accessories

	Ubiquiti UACC-ETH-SP-DIN Ethernet Surge Protector 10GbE PoE++ DIN Mount Bidirectional Protection $60.17
	Ubiquiti UI Care Five-Year Extended Replacement Protection, For NEW Sales Only $196.00

Description
Product Details

U5G-Max Ubiquiti 5G Modem 3.4 Gbps with Dual SIM/eSIM & UniFi PoE Support

The Ubiquiti UniFi 5G Max is a robust and adaptable solution for establishing high-speed wireless connectivity in a variety of settings. It serves as a reliable alternative to traditional wired internet connections, especially beneficial in locations where wired infrastructure is unavailable or unreliable. Designed for ease of use and high performance, this modem combines advanced cellular technology with a user-friendly interface.

The UniFi 5G Max supports a wide range of cellular protocols, including 5G NR, LTE, and UMTS, ensuring compatibility across different networks. It delivers impressive maximum transfer rates of up to 3.4 Gbps, which is sufficient for bandwidth-intensive applications such as video conferencing and streaming. The integrated touchscreen display simplifies network configuration, monitoring, and troubleshooting, making it suitable for both technical and non-technical users.

Product Specifications:

Dimensions	180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3")
Networking Interface	(1) 2.5 GbE RJ45 port, 5G NR and LTE radio
SIM	(1) Nano SIM or eSIM
PoE Interface	(1) PoE input
Mounting	Desktop stand, wall, window mount (included)
Tamper Resistance	IK04
Weight	Device: 410 g (14.5 oz), Stand: 215 g (7.6 oz), Wall mount: 7.6 g (0.3 oz), Window mount: 20 g (0.7 oz)
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Polycarbonate, silicone rubber
Management	Ethernet
Category	5G NR
Frequency Bands (5G NR)	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Max. TX Power (5G NR)	HPUE power class 2: 26 dBm
Frequency Bands (4G LTE)	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power (4G LTE)	HPUE power class 2: 25 dBm
Frequency Bands (3G UMTS)	B1, B2, B4, B5, B8, B19
Peak Data Speed	5G NSA: Downlink 3.4 Gbps / Uplink 560 Mbps 5G SA: Downlink 1.8 Gbps / Uplink 650 Mbps 4G LTE: Downlink 1.6 Gbps / Uplink 210 Mbps
Antennas Type	(4) Embedded cellular antennas
Max. Power Consumption	14.5W
Power Method	PoE
Display	1.3" touchscreen
Buttons	(1) Factory-reset
Ambient Operating Temperature	0 to 40 °C (32 to 104 °F)
Ambient Operating Humidity	5 to 95% non-condensing
NDAA Compliant	✓
Certifications	FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon
Application Requirements	UniFi Network Version 10.0.162 and later

MPN U5G-Max
