Ubiquiti USW-Pro-XG-10-PoE 10Port 10GbE Layer 3 PoE+++ Switch with Etherlighting™ (400W 1U)
USW-Pro-XG-10-PoE|Ubiquiti USW-Pro-XG-10-PoE 10Port 10GbE Layer 3 PoE+++ Switch with Etherlighting™ (400W 1U)|Wisp Australia
USW-Pro-XG-10-PoE|Ubiquiti USW-Pro-XG-10-PoE 10Port 10GbE Layer 3 PoE+++ Switch with Etherlighting™ (400W 1U)|Wisp Australia
USW-Pro-XG-10-PoE|Ubiquiti USW-Pro-XG-10-PoE 10Port 10GbE Layer 3 PoE+++ Switch with Etherlighting™ (400W 1U)|Wisp Australia
USW-Pro-XG-10-PoE|Ubiquiti USW-Pro-XG-10-PoE 10Port 10GbE Layer 3 PoE+++ Switch with Etherlighting™ (400W 1U)|Wisp Australia

Ubiquiti USW-Pro-XG-10-PoE 10Port 10GbE Layer 3 PoE+++ Switch with Etherlighting™ (400W 1U)

USW-Pro-XG-10-PoE
Last items in stock
$1,375.00
Tax included

USW-Pro-XG-10-PoE

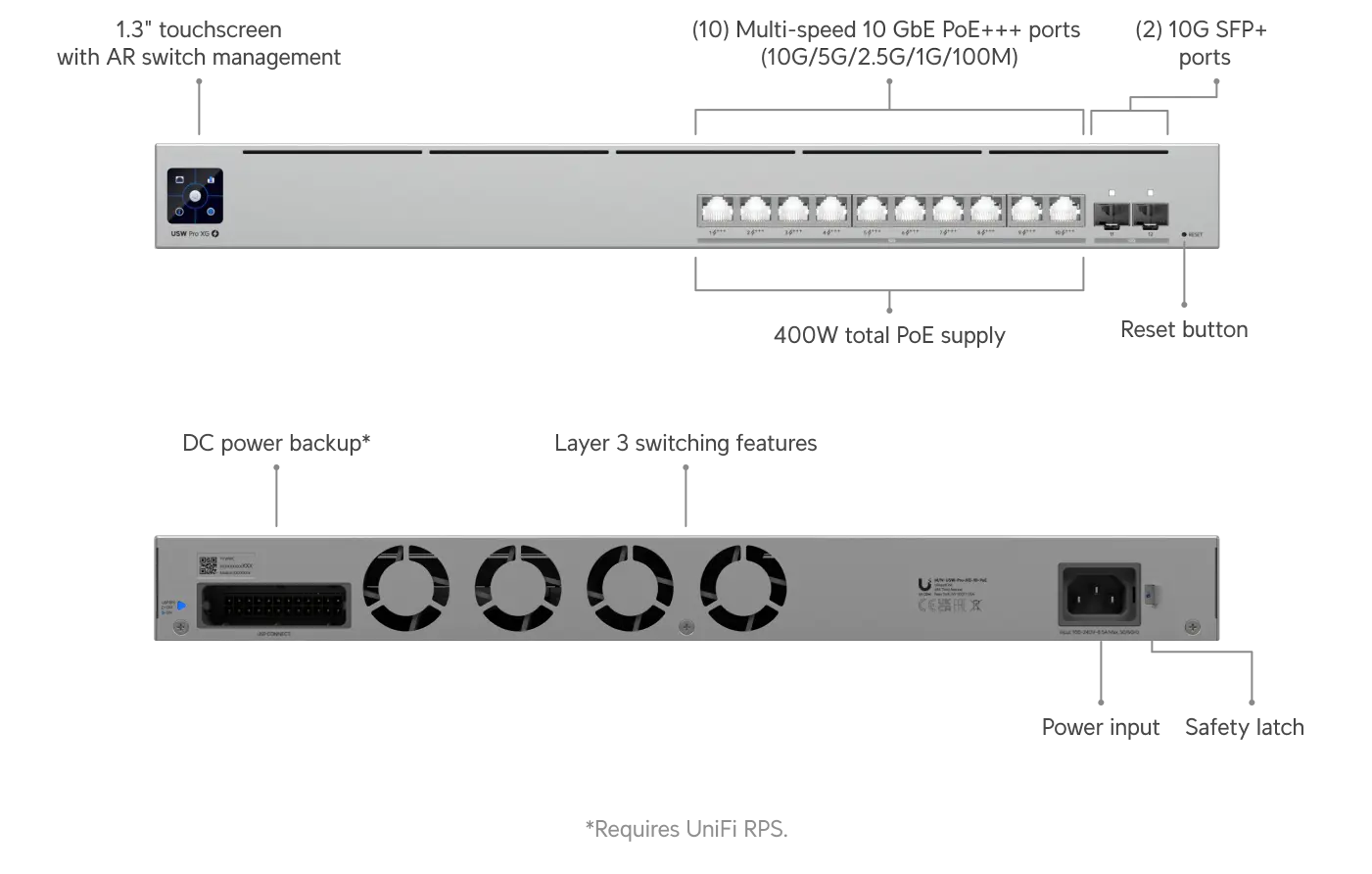

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.


Key Features:

  • Etherlightingª ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (10) 10 GbE PoE+++ ports
  • (2) 10G SFP+ ports
  • DC power backup ready**
  • 400W total PoE availability

    *Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!

Related Products & Accessories



USW-Pro-XG-10-PoE Ubiquiti 10Port 10GbE Layer 3 PoE+++ Switch with Etherlighting™ (400W 1U)

Product Specification:

Specification Details
Dimensions 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout 10 × 10 GbE RJ45 (PoE+++) (10G/5G/2.5G/1G/100M)
2 × 10G SFP+ (10G/1G)
Max. PoE Output Up to PoE+++
Total PoE Availability 400W
Redundancy DC Power Backup
Layer 3 Support ✓
Form Factor Rack mount (1U)
Etherlighting™ ✓
Switching Capacity 240 Gbps
Total Non-Blocking Throughput 120 Gbps
Forwarding Rate 179 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
L3 Table Size ARP Entries: 12,000
IPv4 Routes: 12,000
Packet Buffer Size 2 MB
Access Lists IPv4: 128
MAC: 128
DHCP Server (Local Networks) ✓
DHCP Relay ✓
Inter-VLAN Routing (Local Networks) ✓
Static Routing (Local Networks) ✓
LACP Port Aggregation ✓
STP & RSTP ✓
QoS (DSCP) ✓
Pro AV Profiles ✓ (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration ✓ (Querier, Fast Leave, Router Port)
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
Virtual Network Override ✓
PoE Ports PoE+++ (10 ports)
Max. PoE Wattage per Port PoE: 15.4W
PoE+: 30W
PoE++: 60W
PoE+++: 90W
Max. Power Consumption 65W (Excluding PoE output)
520W (Including PoE output)
Power Method (1) Universal input 100–240V AC, 50/60 Hz
(1) USP RPS DC input
Power Supply AC/DC, internal, 550W
Supported Voltage Range 100–240V AC
Weight Without mounting brackets: 4.6 kg (10.14 lb)
With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400–1200 mm (15.7–47.2")
LCM Display 1.3" touchscreen
ESD Protection Air: ±30kV, Contact: ±30kV
Ambient Operating Temperature -5 to 40°C (23 to 104°F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™ LEDs Ethernet: ✓
SFP+: ✓
System LEDs RPS ✓, System ✓
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 05660-25-08356
Application Requirements UniFi Network Version 9.1.120 and later

In The Box

USW-Pro-XG-10-PoE
