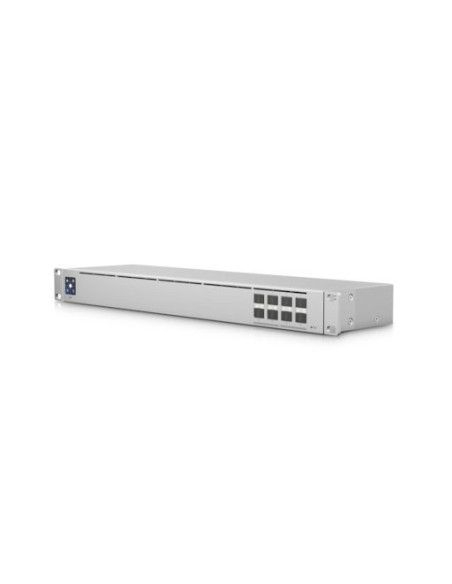

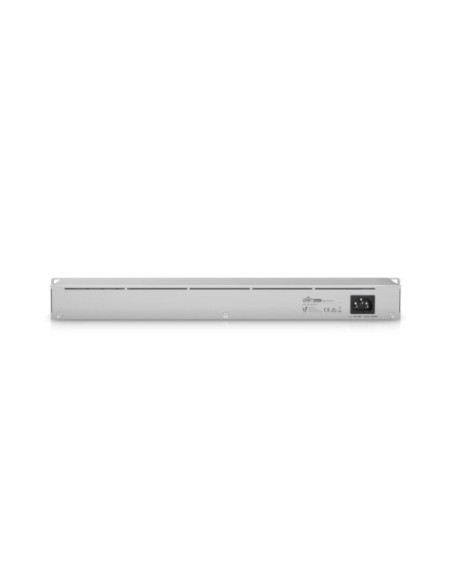

The Ubiquiti UniFi USW-Aggregation is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports high bandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately) in all eight ports.
Related Products & Accessories
Product Features
• (8) 10G SFP+ Ports
• 160 Gbps switching capacity
• 1.3" Touchscreen with AR switch management
• Fanless, 4.7" depth compact enclosure
• 1U Rackmountable (kit included)
• Managed by UniFi Network Controller
Product Specifications
• Total Non-Blocking Throughput: 80 Gbps
• Switching Capacity: 160 Gbps
• Forwarding Rate: 119.04 Mpps
• Max. Power Consumption: 30W
• Power Method Universal AC Input: 100-240VAC, 50/60 Hz
• Power Supply: AC/DC, Internal, 36W
• Management Interface: Ethernet In-Band
• Modes: SMB Layer 2 Gigabit Ethernet Switch
• ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 - 90% Non-condensing
• Certifications: CE, FCC, IC
