IGS-500T
*** Out of stock ATM, Available On Backorder ***
$132.00
Tax included

IGS-500T

Compact Size for More Practicability and Convenience
PLANET IGS-500T Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch, suitable for industrial use, features 5 1000Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (12~48V DC or 24V AC). The IGS-500T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.

Related Products & Accessories



IGS-500T - PLANET Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch

Designed for Heavy Industries
The IGS-500T’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.

Key Features:

Physical Port
5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

Layer 2 Features
Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
Backplane (switching fabric): 10Gbps
Integrated address look-up engine, supporting 4K absolute MAC addresses
9K jumbo packet size
Automatic address learning and address aging
CSMA/CD Protocol

Industrial Case and Installation
IP30 metal case
DIN rail and wall-mount design
12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Free fall, shock-proof and vibration-proof for industries

Hardware Specifications

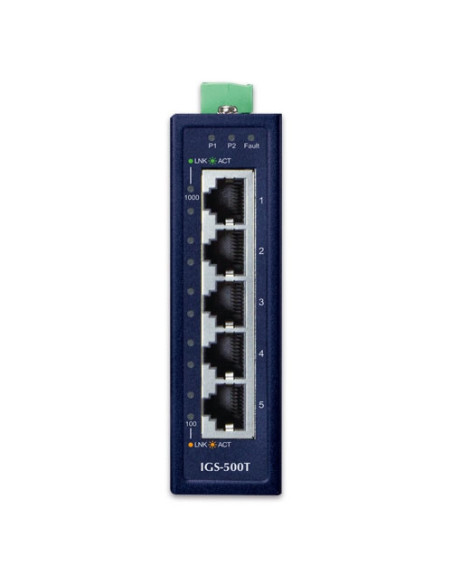

Copper Ports 5 x 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation

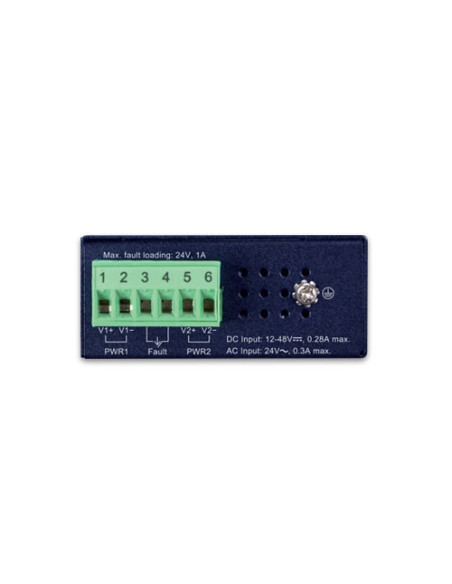

Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A@DC 24V
LED 3 x LED for system and power:
　■ Green: DC Power 1
　■ Green: DC Power 2
　■ Red: Power Fault
2 x LED for each copper port
　■ Green: 1000Mbps LNK/ACT
　■ Orange:10/100Mbps LNK/ACT
ESD Protection 6KV
EFT Protection 6KV
Power Requirements 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption / Dissipation 3.6 watts/12.35BTU
Installation DIN-rail kit and wall-mount ear
Enclosure IP30 metal case
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight 252g
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 4K entries
Buffer Memory 1M bits on-chip buffer memory
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric 10Gbps
Throughput (packet per second) 7.4Mpps@64bytes
Jumbo Frame 9K
Network Cables 10/100/1000BASE-T
Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters)
EIA/TIA-568 100-ohm STP (max. 100 meters)
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90%, Storage: 5~90% (non-condensing)

Device Type
Network Switch
Device Features
Industrial
Power Input
AC
DC
Installation Type
DIN-rail
Wall-mount
Ports
5 10/100/1000Base-TX
Type
Unmanaged
Power Consumption
1.2W/ 4.09BTU
Operating Temperature
-40 to 75° C
Throughput
7.44Mpps@64Bytes
Switch Fabric
10Gbps
4711605283229
IGS-500T
