IGS-501T PLANET Industrial Gigabit Switch

PLANET Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch

IGS-501T
In Stock
$126.49
Tax included

The IGS-501T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 5 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.

Its compact IP30 standard metal case features either DIN rail or wall mount for the efficient use of cabinet space.

Slim Type with More Practicability and Convenience

The IGS-501T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 5 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments. Its compact IP30 standard metal case features either DIN rail or wall mount for the efficient use of cabinet space.

Stable Performance under Difficult Environments

The IGS-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C coupled with hazardous location certification (Class 1 Division 2), the IGS-501T can be placed in almost any difficult environment. The IGS-501T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.

Plug and Play

All of the RJ-45 copper interfaces in the IGS-501T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Applications

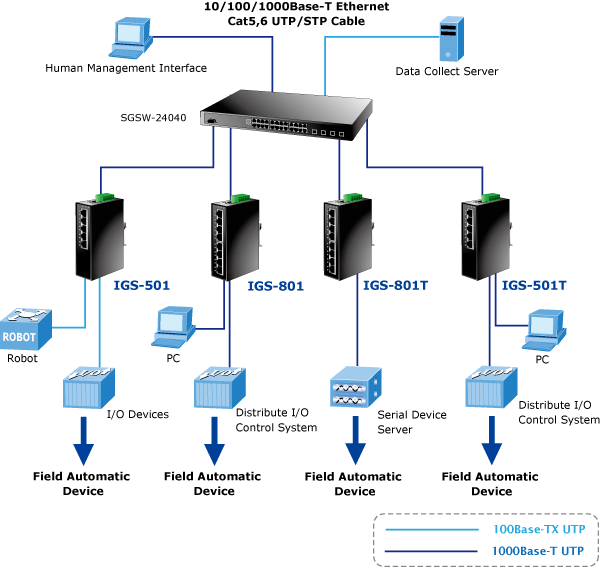

Industrial Area Switch for Data Collection and Forwarding

The IGS-501T comes with a high-performance switch architecture suitable for industrial use. With the 5 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 10Gbps and the 2K MAC address table, the IGS-501T can transfer wire-speed packets without the risk of packet loss. The flow control function enables the IGS-501T to provide fast and reliable data transfer. The Gigabit port with 9K jumbo frame supported can handle extremely large amounts of data transmission in a secure industrial topology that forwards data to the central control room.

Key Features

Physical Port

  • 5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function

Layer 2 Features

  • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
  • Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
  • High performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Backplane (switching fabric): 10Gbps
  • Integrated address look-up engine, supporting 2K absolute MAC addresses
  • 1M bits on-chip buffer memory
  • 9K Jumbo packet size support
  • Automatic address learning and address aging
  • CSMA/CD Protocol

Industrial Case / Installation

  • IP30 metal case
  • DIN rail and wall-mount design
  • 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
  • Supports EFT protection 6000V DC for power line
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
Hardware Specifications
Hardware Version 4
Copper Ports 5 x 10/100/1000Base-T RJ45 TP
auto-MDI/MDI-X, auto-negotiation

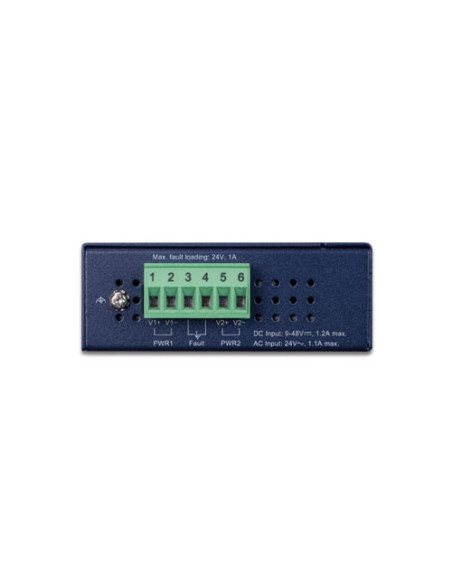

Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
LED 3 x LED for system and power:
 ■ Green: DC Power 1
 ■ Green: DC Power 2
 ■ Green: Power Fault
2 x LED for each copper port
 ■ Green: 1000Mbps LNK/ACT
 ■ Orange:10/100Mbps LNK/ACT
ESD Protection 6KV
EFT Protection 6KV
Power Requirements 12~48V DC, Redundant power with polarity reverse protection function, 24V AC power support
Power Consumption / Dissipation 5.28 watts/18BTU
Installation DIN rail kit and wall-mount ear
Enclosure IP30 metal case
Dimensions (W x D x H) 135 x 87 x 32 mm
Weight 498g
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Buffer Memory 1M bits on-chip buffer memory
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric 10Gbps
Throughput (packet per second) 7.4Mpps @64bytes
Jumbo Frame 9K
Network Cables 10/100/1000Base-T
Cat. 3, 4, 5, 5e, 6 UTP cable [100 meters (max.)]
EIA/TIA-568 100-ohm STP [100 meters (max.)]
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90%
Storage: 5~90% (non-condensing)
Device Features
Industrial, Managed
Power Input
AC, DC
Device Type
Network Switch
Ethernet Ports
5
Environment Temperature
-40℃~75℃
