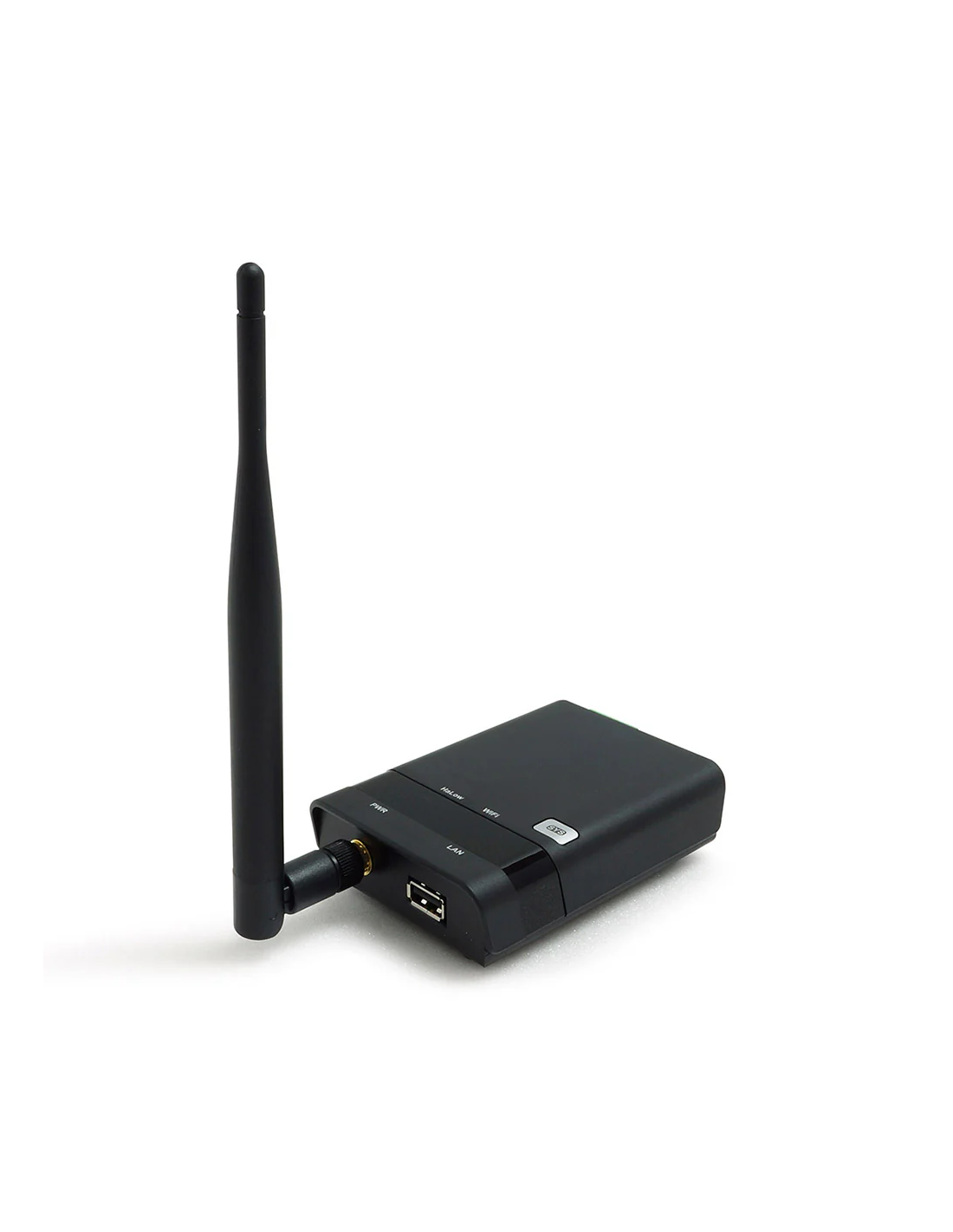

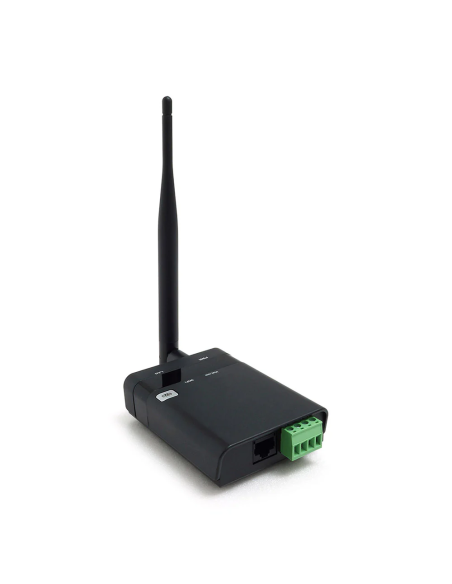

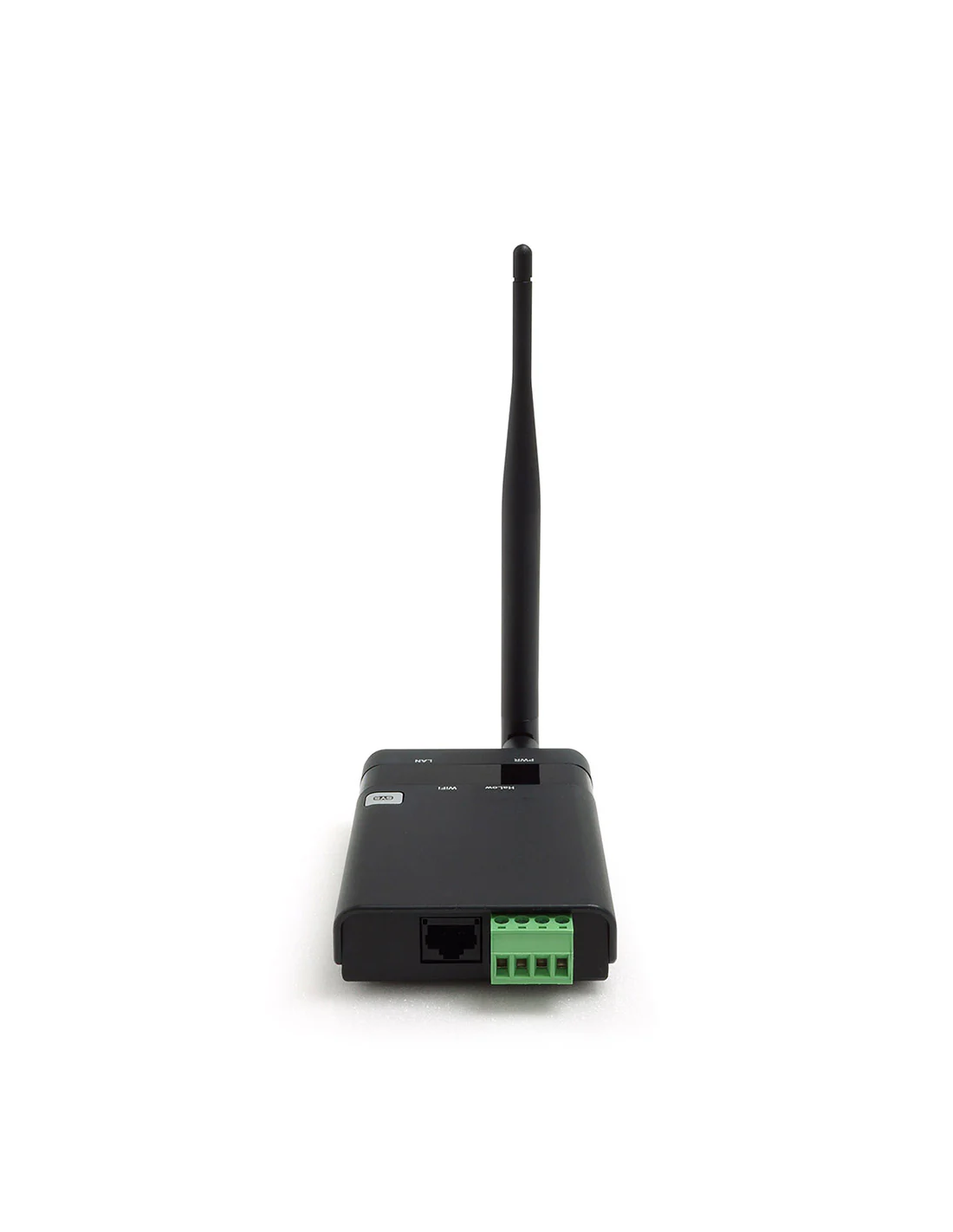

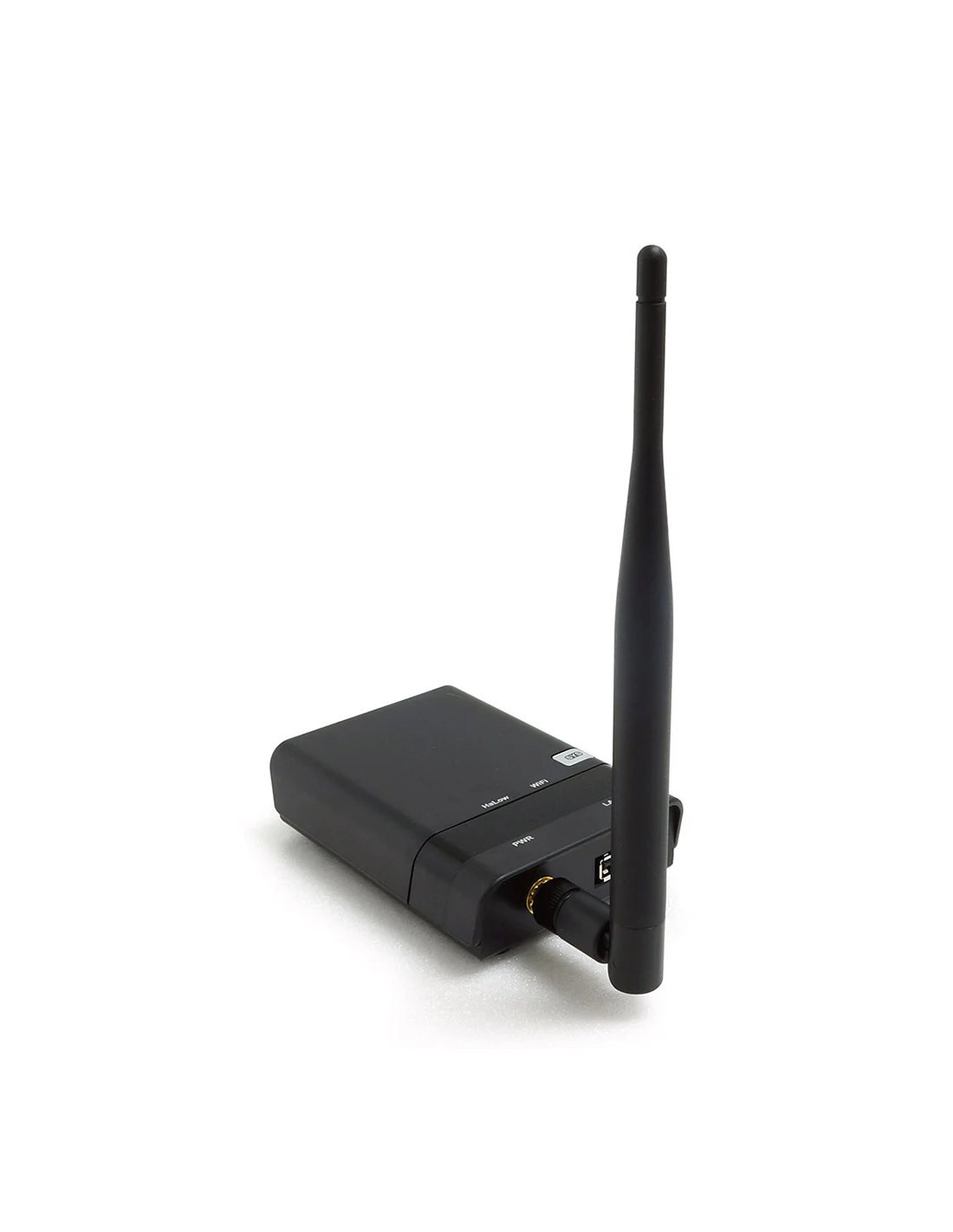

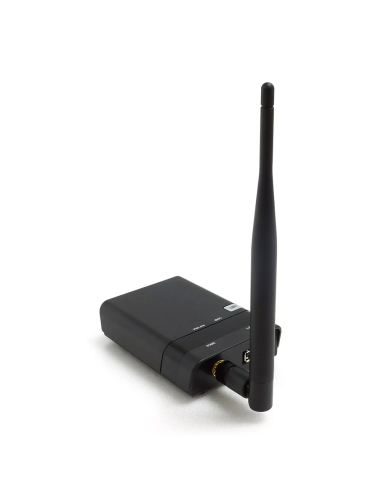

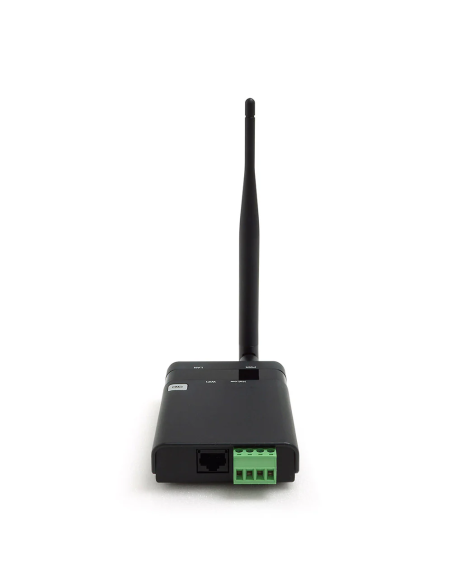

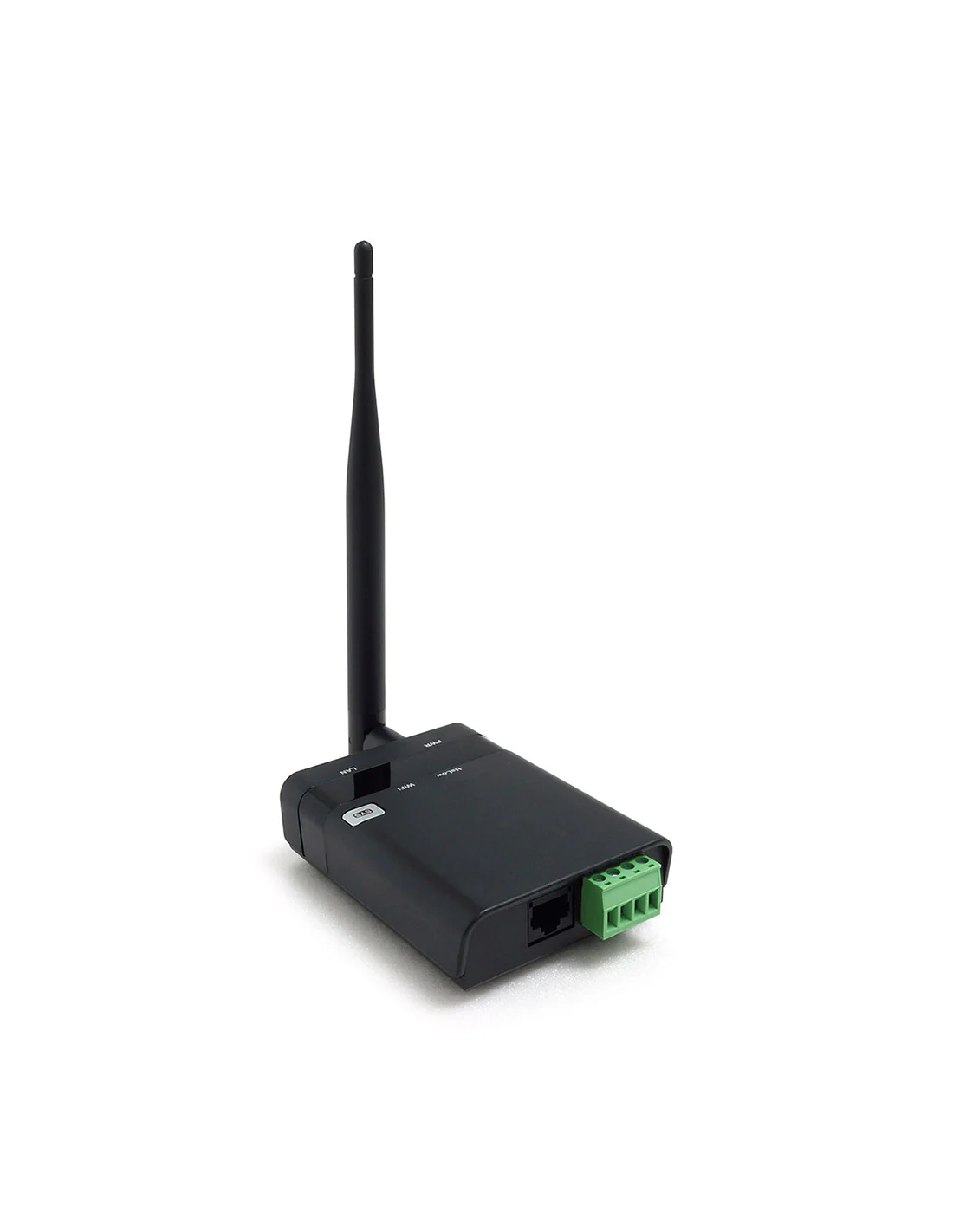

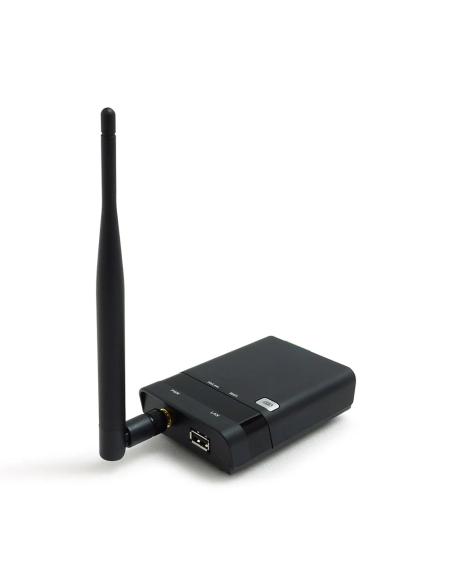

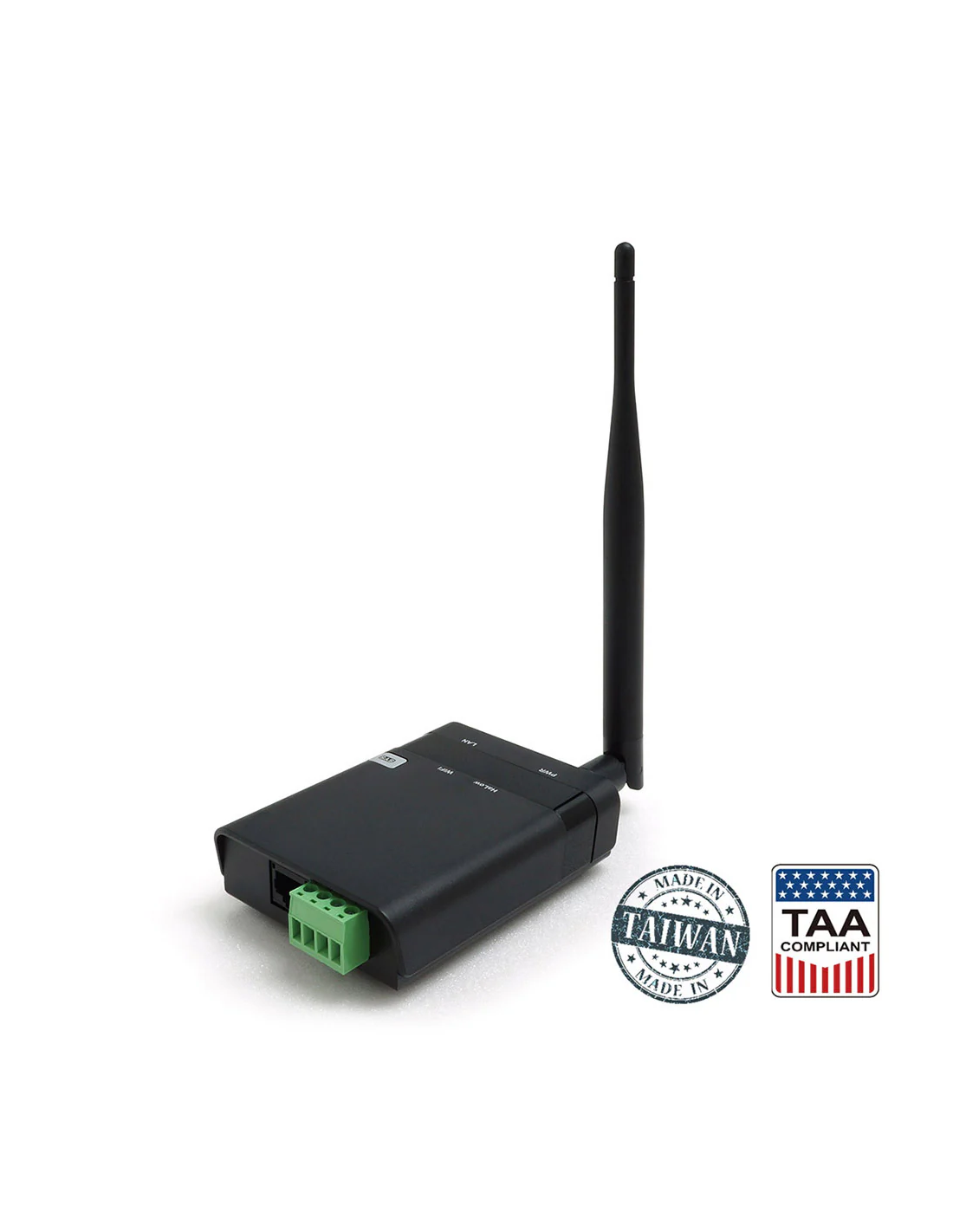

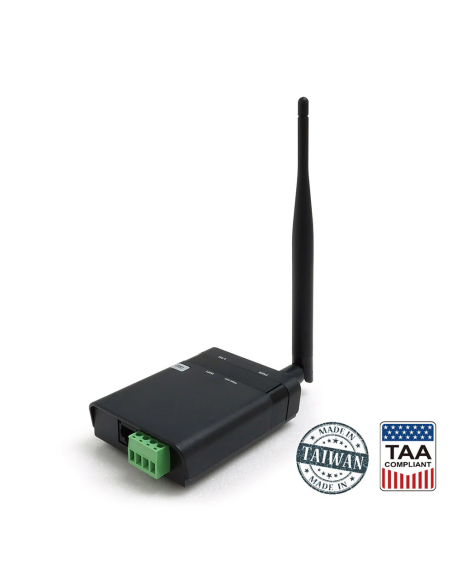

Alfa HaLow-R485 Dual-Band WiFi HaLow + WiFi 4 IoT Gateway with RS-485 USB and Ethernet

Alfa HaLow-R485 Dual-Band WiFi HaLow + WiFi 4 IoT Gateway with RS-485 USB and Ethernet

Name: Alfa HaLow-R485 Dual-Band WiFi HaLow + WiFi 4 IoT Gateway with RS-485 USB and Ethernet
Brand: Alfa
SKU: HaLow-R485
Price: 218.9 AUD
Availability: InStock

Reference HaLow-R485

Last items in stock

$218.90

Tax included

Alfa HaLow-R485

HaLow-R485 is the world’s leading WiFi HaLow + WiFi 4 + RS485 + USB port IoT AP/CPE

The HaLow-R485 is a long-range, sub-1GHz unlicensed band WiFi HaLow IoT AP/CPE. Since it supports both WiFi HaLow and WiFi 4 dual-band concurrent, the application scenarios are beyond imagination, such as IoT gateway,weather stations, industrial monitoring, medical patient monitoring, agriculture monitoring, surveillance camera and wireless remote control for RS-485 sensors.

Key Features:

Morse Micro MM6108 HaLow chipset
1x WiFi HaLow detachable antenna
2x WiFi 4 embedded antenna
1x RJ45 Fast Ethernet connector
1x RS-485 terminal block
1x USB2.0 Type-A connector

HaLow-R485 Alfa Dual-Band WiFi HaLow + WiFi 4 IoT Gateway with RS-485 USB and Ethernet

Product Specifications:

WiFi 4 (IEEE 802.11n)
Chipset	MediaTek MT7628
Flash	SPI Flash 32 MB
RAM	DDR2 SDRAM 128 MB
WiFi Standard	IEEE 802.11n (2.4 GHz)
Channel Bandwidth	20/40 MHz
Max. Data Rate (Phy rate)	300 Mbps
Antenna	2x WiFi 4 embedded antenna
WiFi HaLow (IEEE 802.11ah)
Chipset	Morse Micro MM6108
WiFi Standard	IEEE 802.11ah (sub-1GHz)
Channel Bandwidth	1/2/4/8 MHz
Max. Data Rate (Phy rate)	Up to 32.5 Mbps @ Bandwidth 8 MHz
Antenna	1x WiFi HaLow SMA detachable antenna
General
Ethernet	1x Fast Ethernet with ESD protection
RS-485	1x RS-485 terminal block (B: RS-485(B); A: RS-485(A))
USB	1x USB 2.0 Type-A
UART	2x UART interface reserve (internal interface)
I²C	1x I²C interface reserve (internal interface)
Button	1x push-button (reset)
LED	1x Power 1x WiFi HaLow 1x WiFi 2.4 G 1x Ethernet 1x Reset / System
Power Terminal	Power rated: DC 12 V / 1 A (V: DC 12 V; G: Ground)
Software	OpenWrt firmware with source available

Quick guide can be downloaded here

MPN HaLow-R485

User Quick Guide

Download (1.73MB)
