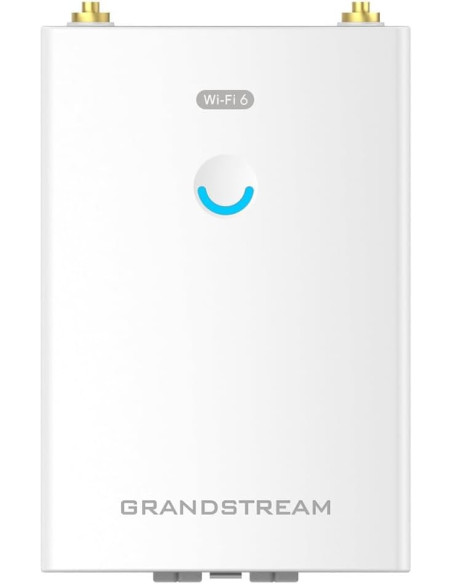

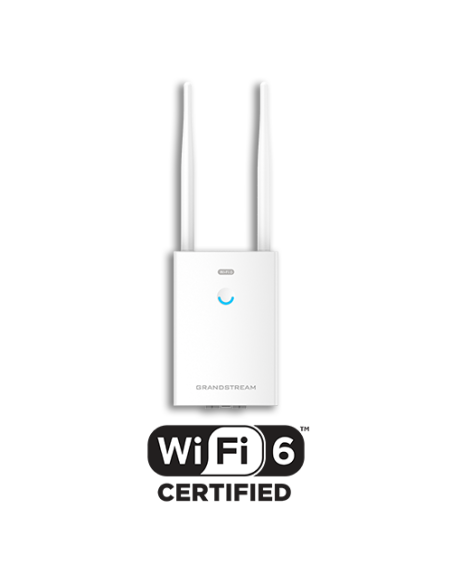

GWN7660LR - Weatherproof long-range 802.11ax Wi-Fi 6 access point
2x Gigabit Ethernet ports, Dual-band MU- MIMO, PoE, 250-meter coverage
The Grandstream GWN7660LR is a high-performance 2x2:2 Wi-Fi 6 weatherproof long-range access point. It delivers reliable and fast wireless network connectivity in outdoor environments. This access point features a durable and rugged design that can withstand harsh weather conditions. It is an ideal outdoor Wi-Fi access point for enterprises, multiple-floor offices, warehouses, parks, hospitals, schools, and more.
The GWN7660LR features dual-band 2x2:2 MU-MIMO technology and an advanced antenna design that allows for an extended coverage range of up to 250 meters. Additionally, its casing is certified with IP66 weatherproofing, ensuring its durability and resistance to harsh weather conditions.
The GWN7660LR is compatible with Grandstream's cloud-based and on-premise Wi-Fi management platform, GWN Cloud and GWN Manager. This makes it easy to manage your network or networks across multiple locations.
Using a controller-less network management architecture, the GWN7660LR embeds the controller within the product's web user interface, providing easy administration of locally deployed Wi-Fi APs.
The Grandstream GWN7660LR is an excellent Wi-Fi AP for voice-over-Wi-Fi deployments, offering a seamless connection with Grandstream's Wi-Fi-capable voice and video IP phones. Additionally, it supports advanced QoS, low-latency real-time applications, mesh networks, captive portals, and dual Gigabit network ports with PoE/PoE+.
Client Devices |
250+ |
Range |
250 Meters |
Network Interfaces |
2x autosensing 10/100/1000 Base-T Ethernet Ports |
PoE/PoE+ |
Supports PoE 802.3af/802.3at; Max Consumption: 12.9W |
2.4G Throughput |
573.5Mbps (2x2:2 MIMO) |
5G Throughput |
1201Mbps (2x2:2 MU-MIMO) |
Wi-Fi Standards |
IEEE 802.11 a/b/g/n/ac/ax |
SSIDs |
32 SSIDs total, 16 per radio (2.4Ghz and 5Ghz) |
Antennas |
2 dual band external antennas |
Wi-Fi and Security Systems |
WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
