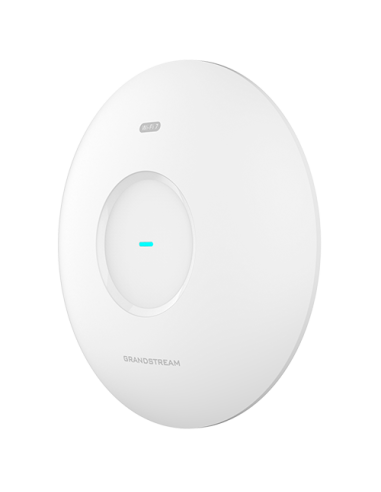

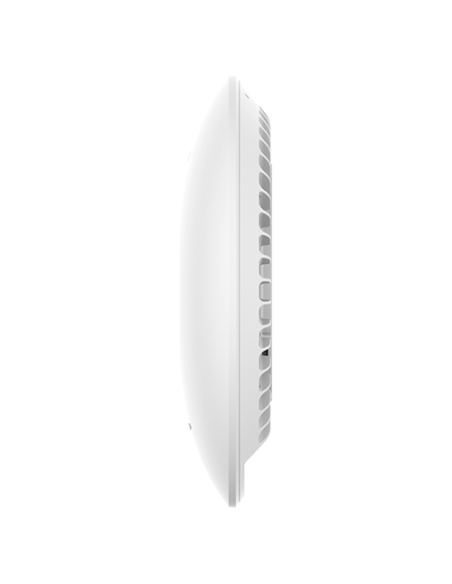

Grandstream GWN7670 Dual-Band Wi-Fi 7 AP with 3.6Gbps Speed 256 Clients and Advanced QoS for Medium Networks

GWN7670
In Stock
$175.00
Tax included

GWN7670

Dual-Band Wi-Fi 7 Access Point
The GWN7670 is a new generation enterprise-grade 802.11be Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.

Key features:

  • 3.6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
  • Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
  • Up to 175-meter coverage range
  • Supports 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self-power adaptation upon auto-detection of PoE+
  • Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Related Products & Accessories



GWN7670 Grandstream Dual-Band Wi-Fi 7 AP with 3.6Gbps Speed 256 Clients and Advanced QoS for Medium Networks

The GWN7670 is a new generation enterprise-grade Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks. It offers dual-band 2x2:2 MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. The GWN7670 improves bandwidth utilization and anti-interference ability with multi-RU and Preamble Puncturing technology. With 4096 QAM modulation, Wi-Fi 7 achieves a significant increase in data transfer rates. MLO technology optimizes spectrum resource utilization to ensure a smooth experience for every user. To ensure easy installation and management, the GWN7670 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface The GWN7670 is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real- time applications, mesh networks, captive portals, BT location with BLE 5.3, 256 concurrent clients per AP and 2 x 2.5Gigabit network ports with PoE+, GWN7670 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

 Product Specifications:
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
Antennas 5 single frequency antennas:
2.4GHz x 2, gain 3.5dBi
5GHz x 2, gain 5.5dBi
BT gain 3.5dBi
Wi-Fi Data Rates (5G) IEEE 802.11be: Up to 2882 Mbps
IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
IEEE 802.11n: 6.5 Mbps to 600 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wi-Fi Data Rates (2.4G) IEEE 802.11be: Up to 688 Mbps
IEEE 802.11ax: 7.3 Mbps to 574 Mbps
IEEE 802.11n: 6.5Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands 2.4GHz Radio: 2400 - 2483.5 MHz
5GHz Radio: 5150 - 5895 MHz
*(Not all frequency bands can be used in all regions)*
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20, 40, 80, and 160 MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2x2:2 2.4GHz
2x2:2 5GHz
Coverage Range Up to 175 meters
*(coverage range can vary based on environment)*
Maximum TX Power 5G: 26dBm
2.4G: 26dBm
*(Maximum power varies by country, frequency band, and MCS rate)*
Receiver Sensitivity (5G) 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
802.11ac 20MHz: -67dBm@MCS8; 802.11ac 40MHz:-63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11; 802.11ax 80MHz: -56dBm @MCS11
802.11be 20MHz: -59dBm @MCS13; 802.11be 40MHz: -56dBm @MCS13; 802.11be 80MHz: -54dBm @MCS13; 802.11be 160MHz: -52dBm @MCS13
Receiver Sensitivity (2.4G) 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
802.11be 20MHz: -65dBm @MCS11; 802.11be 40MHz: -62dBm @MCS11;
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 256

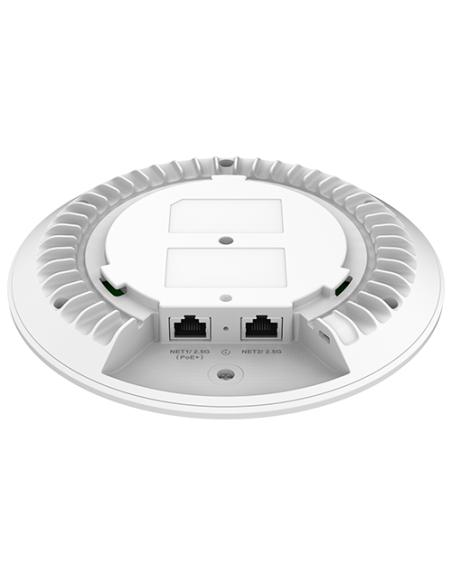

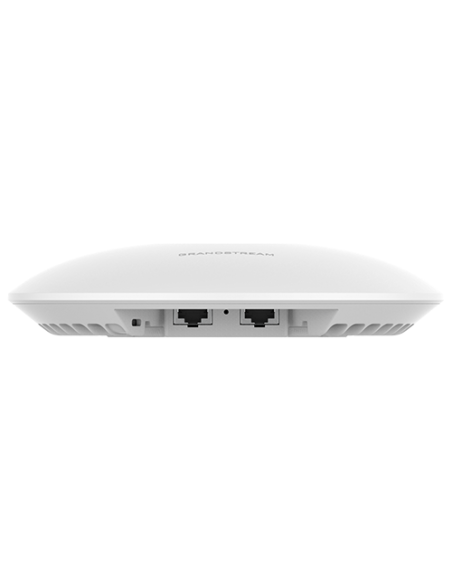

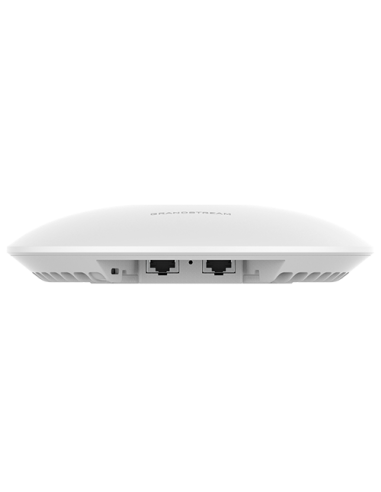

Network Interfaces 2x 2.5G Ethernet WAN/LAN
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Bluetooth® BLE 5.3
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 1 tri-color LED for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GDMS Networking offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE/PoE+ 802.3af/at;
Maximum Power Consumption: 14.5W
Environmental Operation: 0°C to 45°C
Storage: -30°C to 60°C
Humidity: 10% to 90% Non-condensing
Package Content GWN7670 Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide
Compliance FCC, CE, RCM, IC
Device Type
Access Point
MIMO
2x2
Wireless System
2.4GHz
5GHz
Wi-Fi 7
GWN7670
